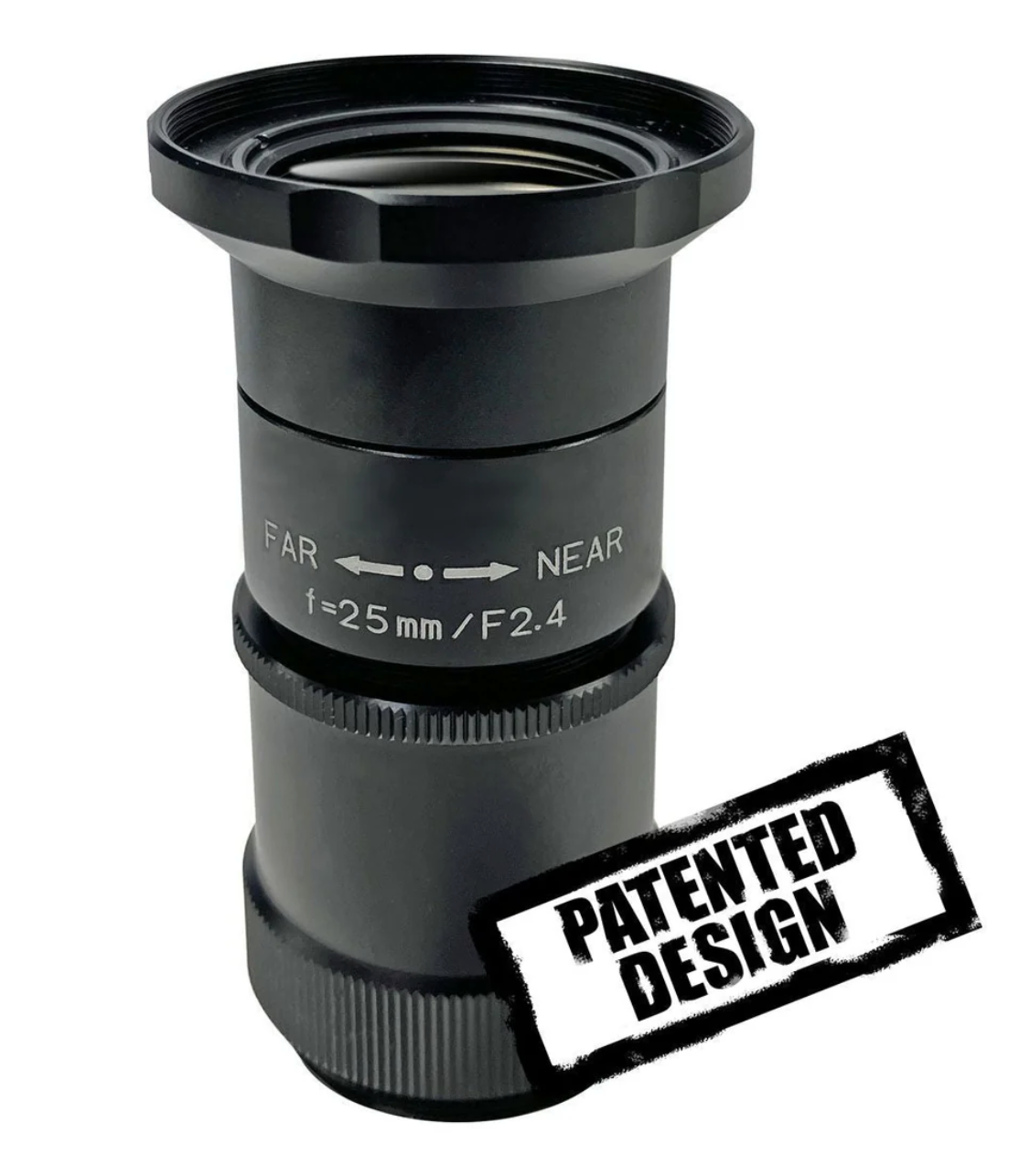

Kowa LM25EC-IR 1.2" 25mm IR-Corrected Fixed Lens with 24MP Resolution C-Mount 2.5µm Pixel Support Visible to NIR 400–1000nm
Kowa LM25EC-IR 1.2" 25mm IR-Corrected Fixed Lens with 24MP Resolution C-Mount 2.5µm Pixel Support Visible to NIR 400–1000nm
SKU:LM25EC-IR
Couldn't load pickup availability
*Please note this product is subject to tariff fee*
The Kowa LM25EC-IR is a high-resolution 25mm fixed lens designed for professional surveillance, traffic monitoring, and machine vision systems that require superior image clarity and day/night reliability. Optimized for large 1.2" image sensors (19.2mm diagonal), it supports up to 24 megapixels and is built to handle pixel sizes as small as 2.5µm—perfect for today’s high-speed, high-detail industrial cameras. Its IR-corrected optics ensure accurate imaging across the 400–1000nm spectrum, allowing for crisp results in both visible and near-infrared light conditions.
With a manual focus range from 0.5 meters to infinity, low distortion (-1.00%), and a field of view of 315mm (H) x 233mm (V) at minimum working distance, this lens is ideal for traffic enforcement, license plate capture, ITS systems, and perimeter security. Interchangeable fixed apertures (F2.4 to F8) offer precise light control for consistent image quality across changing light environments. Housed in a compact Ø36 x 67.2mm body and weighing just 90g, the LM25EC-IR is easy to integrate with standard C-Mount cameras in tight or mobile configurations. Built to operate from -10°C to +50°C, it’s ready for reliable performance in real-world surveillance deployments.
Features:
- Fixed 25mm focal length
- IR-corrected optics (400–1000nm)
- Supports 24MP resolution with 2.5µm pixels

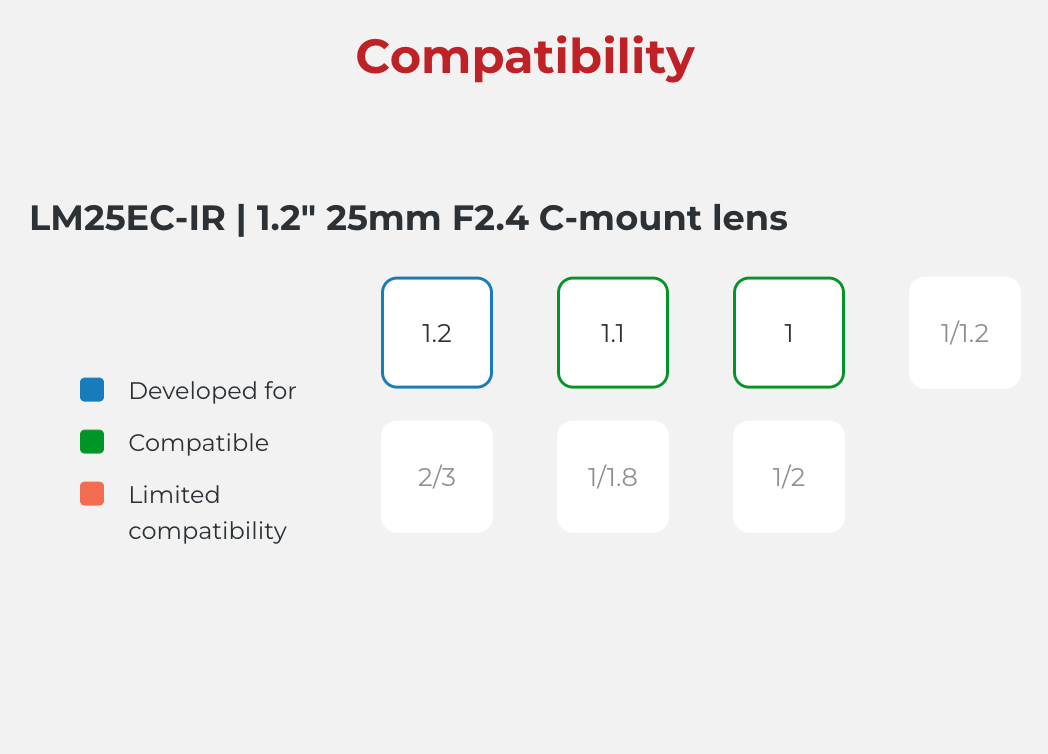

- Compatible with 1.2" (19.2mm) image sensors
- Manual focus: 0.5m – ∞
- Interchangeable fixed apertures: F2.4, F2.8, F4, F5.6, F8
- Ultra-low distortion: -1.00%
- Field of view: 315mm (H), 233mm (V) @ min working distance
- C-Mount for industry-standard cameras
- Compact: Ø36 × 67.2mm, Lightweight: 90g
- Operates from -10°C to +50°C
Typical Applications:
- License Plate Recognition (LPR / ANPR)
- Intelligent Traffic Systems (ITS)
- Surveillance systems (day/night capable)
- Border monitoring
- Perimeter security
- Machine vision inspection
- Infrared imaging and multi-spectrum systems
| Focal Length | 25.0 mm |
| Sensor Format | 1.2" (19.2 mm Diagonal) |
| Resolution | 24 Megapixels |
| Pixel Pitch | 2.5 µm |
| Aperture (F-Stop) | F2.4 / F2.8 / F4 / F5.6 / F8 |
| Aperture Control | Fixed (via aperture plates) |
| Focus Control | Manual |
| Focus Range | 0.5 m to Infinity |
| Horizontal FOV | 315.0 mm @ Minimum WD |
| Vertical FOV | 233.0 mm @ Minimum WD |
| Back Focus (Air) | 15.60 mm |
| Resolution (Center) | 200 lp/mm |
| Resolution (Edge) | 125 lp/mm |
| Mount Type | C-Mount |
| Filter Thread | M34 x P0.5 |
| Distortion | -1.00% |
| Wavelength Range | 400 nm – 1000 nm |
| IR Correction | Yes (Visible + NIR) |
| Operating Temp | -10°C to +50°C |
| Lens Dimensions | Ø36 × 67.2 mm |
| Weight | 90 g |
| Series | EC-IR |
| Lens Type | Fixed Focal Length |
