CBC-Computar TEC-ML10110UC-MPW 1.0X Motorized Telecentric Lens | 8MP, 2/3", F6.5, LensConnect, C-Mount

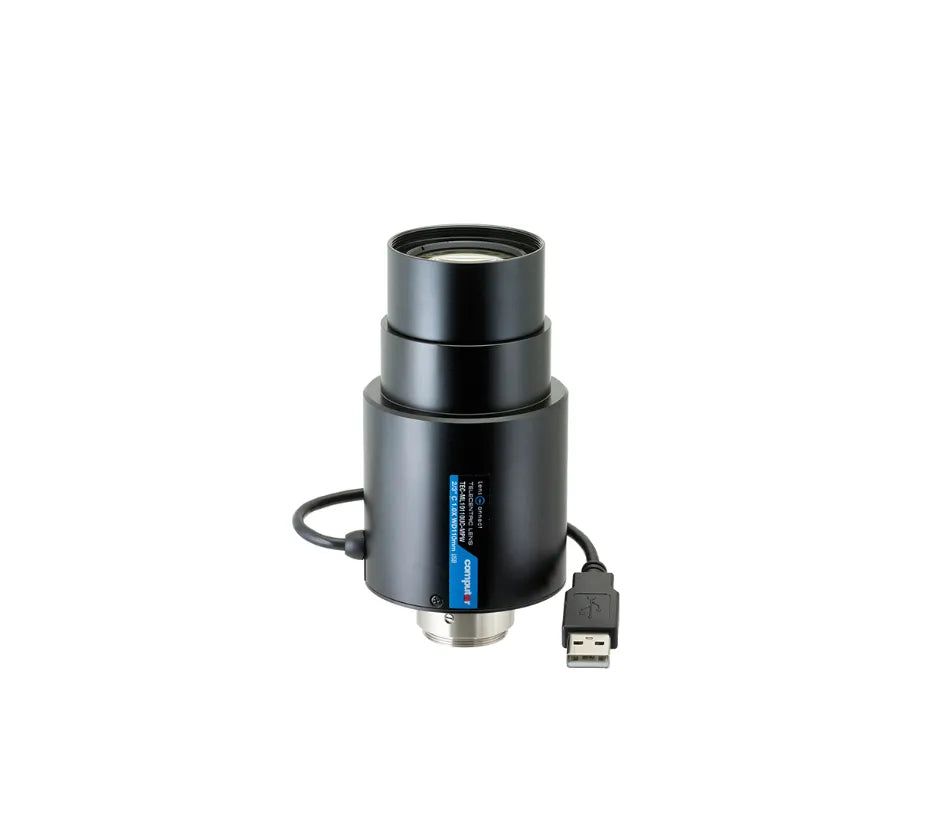

The CBC-Computar TEC-ML10110UC-MPW is an 8MP, 2/3”, 1.0X motorized telecentric lens engineered for precision measurement, machine vision inspection, robotics, factory automation, and metrology applications that require repeatable, true-to-scale imaging.

With 1.0X magnification, this lens is well suited for life-size imaging of components, edges, markings, small parts, and dimensional features. USB remote motorized focus control helps integrators adjust focus without touching the lens, improving repeatability and simplifying setup in automated inspection systems.

Key Features:

• 8MP motorized telecentric lens
• 1.0X life-size magnification
• Supports 2/3” sensors
• F6.5 aperture
• USB remote focus control
• Maintains telecentricity during focus adjustment
• Compatible with 2.74 μm pixel sensors
• C-mount industrial lens design

Applications:

• Life-size machine vision inspection
• Dimensional measurement
• Electronics inspection
• Semiconductor inspection
• Robotics alignment
• Medical device inspection
• Automated gauging
• Factory quality control
