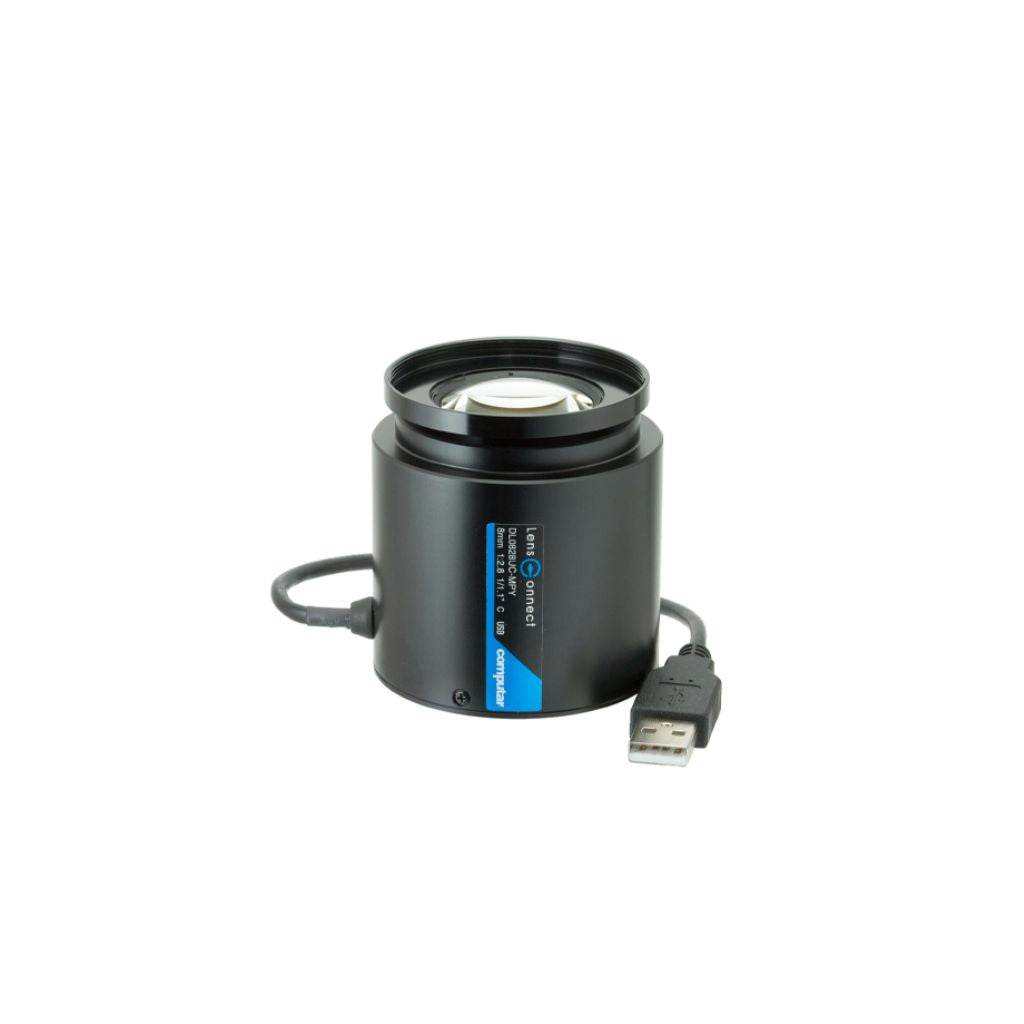

Computar DL0828SC-MPY 12MP 1/1.1" 8mm F2.8 LensConnect I²C C-Mount Lens

The Computar DL0828SC-MPY is an 8mm fixed focal length LensConnect machine vision lens designed for 1/1.1-inch format sensors and resolutions up to 12MP. The SC-version uses an I²C interface for embedded integration, with motorized focus and iris control for remote and repeatable optical adjustment.

With an F2.8 to F16 aperture range, 0.1m minimum working distance and an 80.4° diagonal field of view, the DL0828SC-MPY is suited to wide-area machine vision, inspection, robotics and automated imaging systems.

Key Features:

• 12MP optical resolution for 1/1.1-inch sensors
• 8mm fixed focal length
• F2.8 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.1m to infinity focus range
• C-mount interface
• 80.4° diagonal angle of view

Applications:

• Machine vision inspection
• Factory automation
• Robotics and embedded vision
• Warehouse and logistics imaging
• Quality control
• OEM camera systems

Technical Specifications
