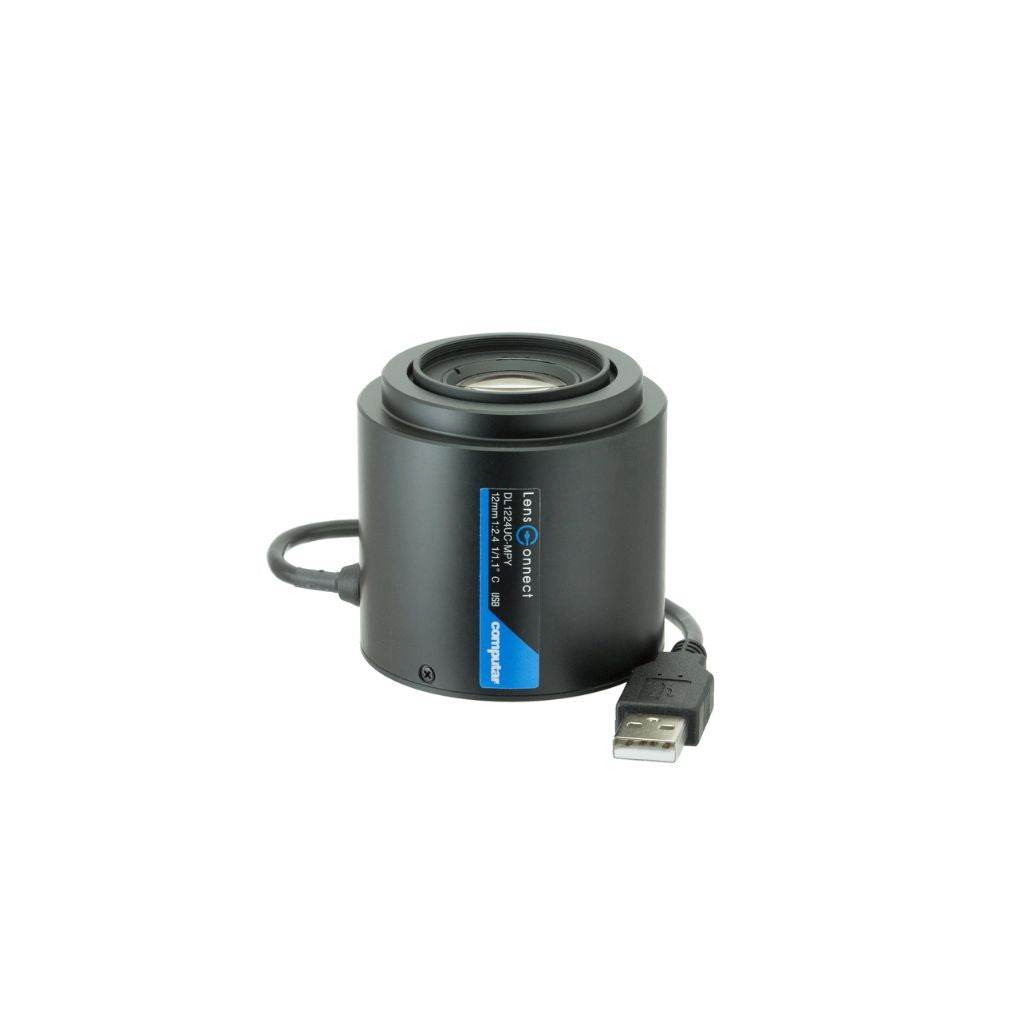

Computar DL1224SC-MPY 12MP 1/1.1" 12mm F2.4 LensConnect I²C C-Mount Lens
Computar DL1224SC-MPY 12MP 1/1.1" 12mm F2.4 LensConnect I²C C-Mount Lens
SKU:DL1224SC-MPY
Regular price
$1,445.00 USD
Regular price
Sale price
$1,445.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Computar DL1224SC-MPY is a 12mm fixed focal length LensConnect machine vision lens for 1/1.1-inch format sensors and resolutions up to 12MP. Its I²C interface is designed for embedded and OEM integration, with motorized focus and iris for precise remote adjustment.
The 12mm focal length combines a 60.2° diagonal field of view with a 0.1m minimum working distance, providing flexible coverage for automated inspection, robotics and industrial imaging.
Key Features:
- 12MP optical resolution for 1/1.1-inch sensors
- 12mm fixed focal length
- F2.4 to F16 aperture range
- LensConnect I²C interface
- Motorized focus and iris control
- 0.1m to infinity focus range
- C-mount interface
- 60.2° diagonal angle of view
Applications:
- Machine vision and automated inspection
- Factory automation
- Robotics and embedded vision
- Quality control
- Electronics inspection
- OEM camera systems
Technical Specifications
| Model | DL1224SC-MPY |
|---|---|
| Lens Series | Computar LensConnect |
| Sensor Format | 1/1.1 inch |
| Resolution | 12MP |
| Focal Length | 12mm |
| Aperture | F2.4 to F16.0 |
| Working Distance | 0.1m to infinity |
| Angle of View (1/1.1") | 60.2° diagonal / 50.5° horizontal / 38.1° vertical |
| Mount | C-Mount |
| Control Interface | I²C |
| Focus Control | Motorized |
| Iris Control | Motorized |
| Filter Size | M35.5 × P0.5mm |
| Dimensions | Ø59.5mm × 57.9mm |
| Weight | 163g |
