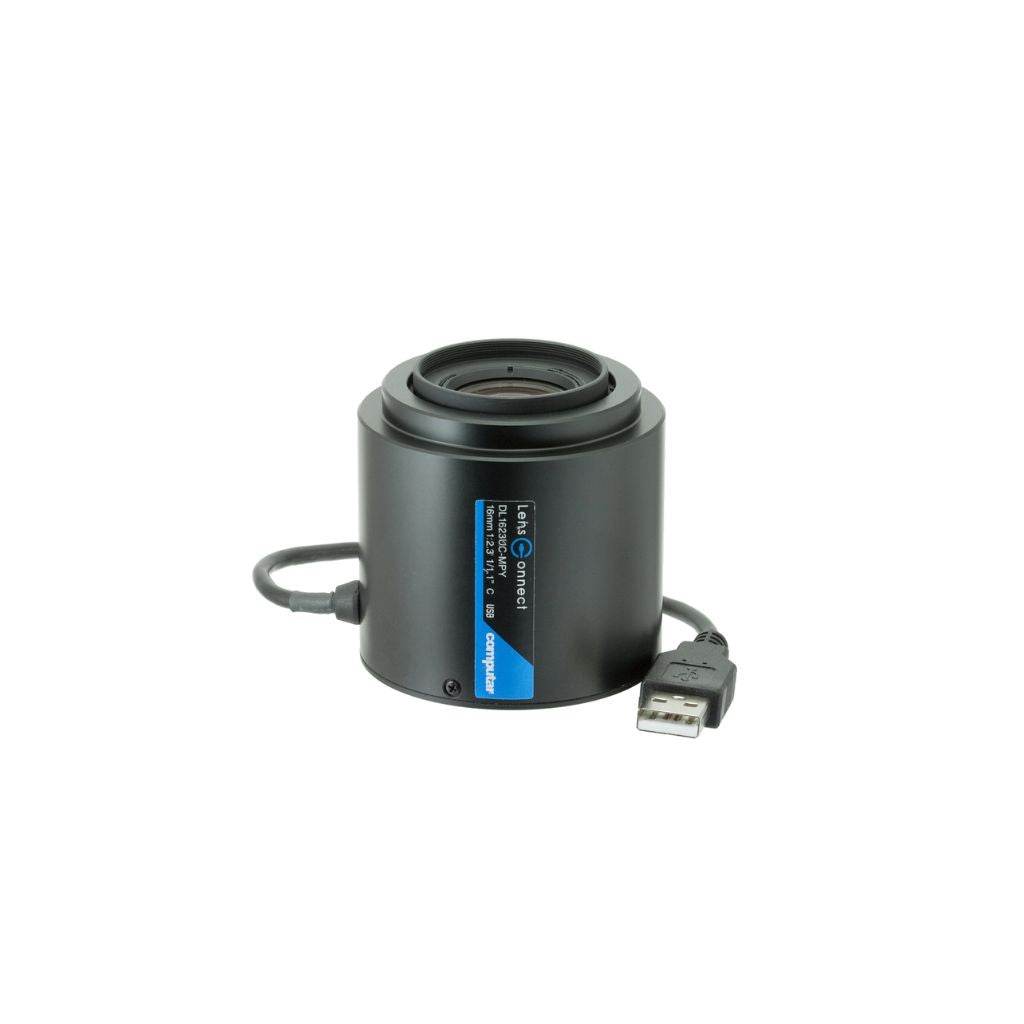

Computar DL1623SC-MPY 12MP 1/1.1" 16mm F2.3 LensConnect I²C C-Mount Lens
Computar DL1623SC-MPY 12MP 1/1.1" 16mm F2.3 LensConnect I²C C-Mount Lens
SKU:DL1623SC-MPY
Regular price
$1,445.00 USD
Regular price
Sale price
$1,445.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Computar DL1623SC-MPY is a 16mm fixed focal length LensConnect machine vision lens designed for 1/1.1-inch format sensors and resolutions up to 12MP. The SC-version uses an I²C interface for embedded system integration, with motorized focus and iris control for repeatable remote adjustment.
Its F2.3 maximum aperture, 0.11m minimum working distance and 47.0° diagonal field of view make it a strong option for high-resolution inspection and machine vision applications requiring a balanced field of view and working distance.
Key Features:
- 12MP optical resolution for 1/1.1-inch sensors
- 16mm fixed focal length
- F2.3 to F16 aperture range
- LensConnect I²C interface
- Motorized focus and iris control
- 0.11m to infinity focus range
- C-mount interface
- 47.0° diagonal angle of view
Applications:
- Machine vision and automated inspection
- Factory automation
- Robotics and embedded vision
- Quality control
- Electronics and component inspection
- OEM camera systems
Technical Specifications
| Model | DL1623SC-MPY |
|---|---|
| Lens Series | Computar LensConnect |
| Sensor Format | 1/1.1 inch |
| Resolution | 12MP |
| Focal Length | 16mm |
| Aperture | F2.3 to F16.0 |
| Working Distance | 0.11m to infinity |
| Angle of View (1/1.1") | 47.0° diagonal / 38.9° horizontal / 29.0° vertical |
| Mount | C-Mount |
| Control Interface | I²C |
| Focus Control | Motorized |
| Iris Control | Motorized |
| Filter Size | M35.5 × P0.5mm |
| Dimensions | Ø59.5mm × 59.2mm |
| Weight | 173g |
