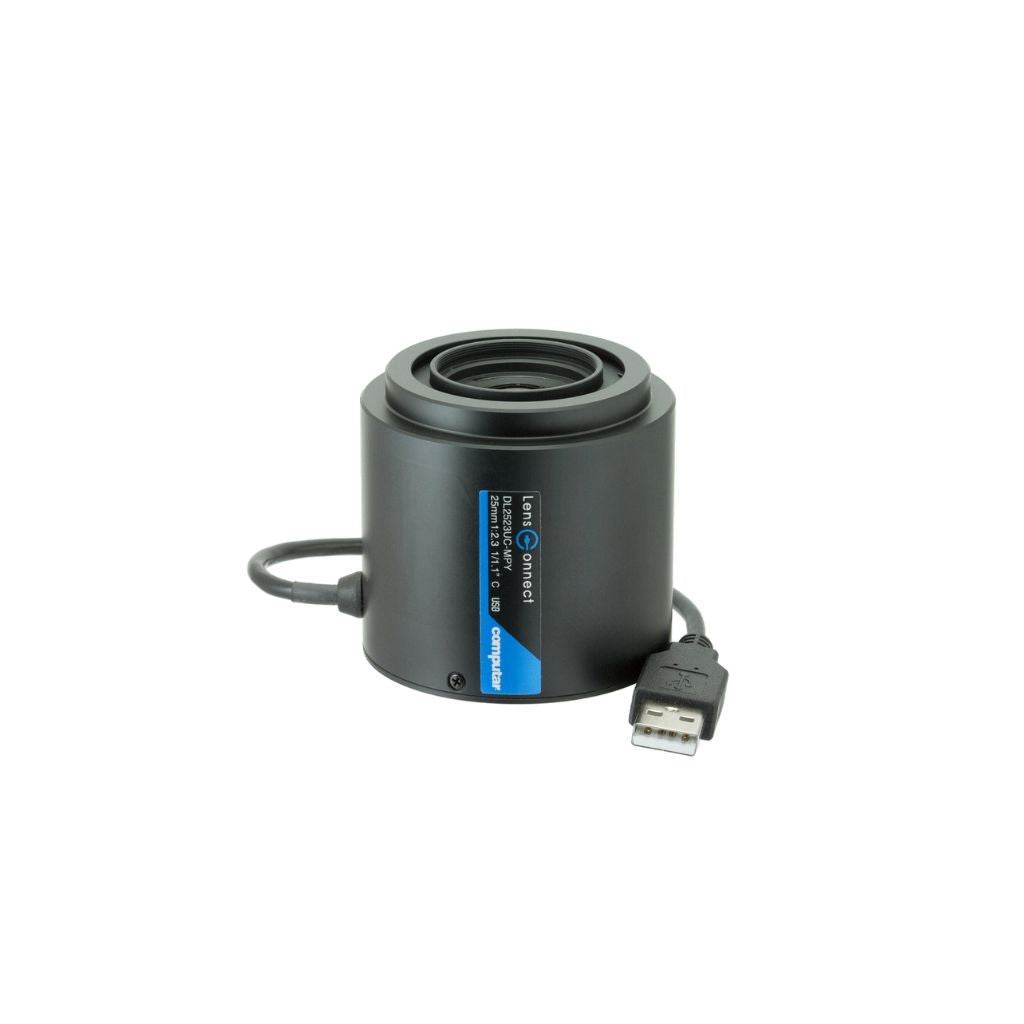

Computar DL2523SC-MPY 12MP 1/1.1" 25mm F2.3 LensConnect I²C C-Mount Lens

The Computar DL2523SC-MPY is a 25mm fixed focal length LensConnect machine vision lens for 1/1.1-inch format sensors and resolutions up to 12MP. The SC-version uses an I²C interface for embedded and OEM integration, with motorized focus and iris control for precise, repeatable optical adjustment.

Its F2.3 to F16 aperture range, 0.12m minimum working distance and 31.0° diagonal field of view make it well suited to inspection tasks that require greater working distance and detailed imaging of a smaller area.

Key Features:

• 12MP optical resolution for 1/1.1-inch sensors
• 25mm fixed focal length
• F2.3 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.12m to infinity focus range
• C-mount interface
• 31.0° diagonal angle of view

Applications:

• Machine vision and automated inspection
• Factory automation
• Robotics and embedded vision
• Electronics and component inspection
• Quality control
• OEM camera systems

Technical Specifications
