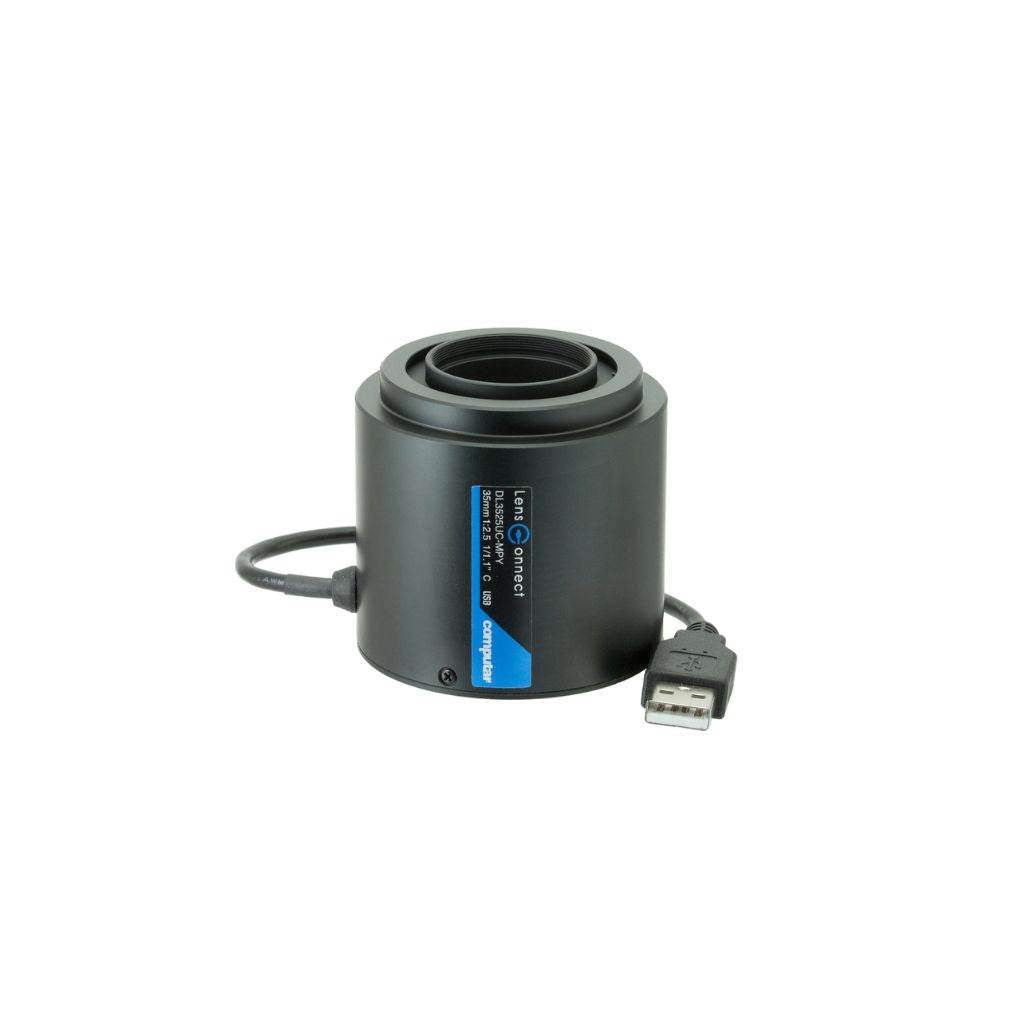

Computar DL3525SC-MPY 12MP 1/1.1" 35mm F2.5 LensConnect I²C C-Mount Lens

The Computar DL3525SC-MPY is a 35mm fixed focal length LensConnect machine vision lens designed for 1/1.1-inch format sensors and resolutions up to 12MP. Its I²C interface supports direct embedded control, while motorized focus and iris provide repeatable remote adjustment for automated systems.

With an F2.5 to F16 aperture range, 0.16m minimum working distance and 22.5° diagonal field of view, the DL3525SC-MPY is designed for detailed inspection applications requiring a narrower field of view or increased camera-to-subject distance.

Key Features:

• 12MP optical resolution for 1/1.1-inch sensors
• 35mm fixed focal length
• F2.5 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.16m to infinity focus range
• C-mount interface
• 22.5° diagonal angle of view

Applications:

• Machine vision inspection
• Factory automation
• Robotics
• Quality control
• Precision component imaging
• OEM camera systems

Technical Specifications
