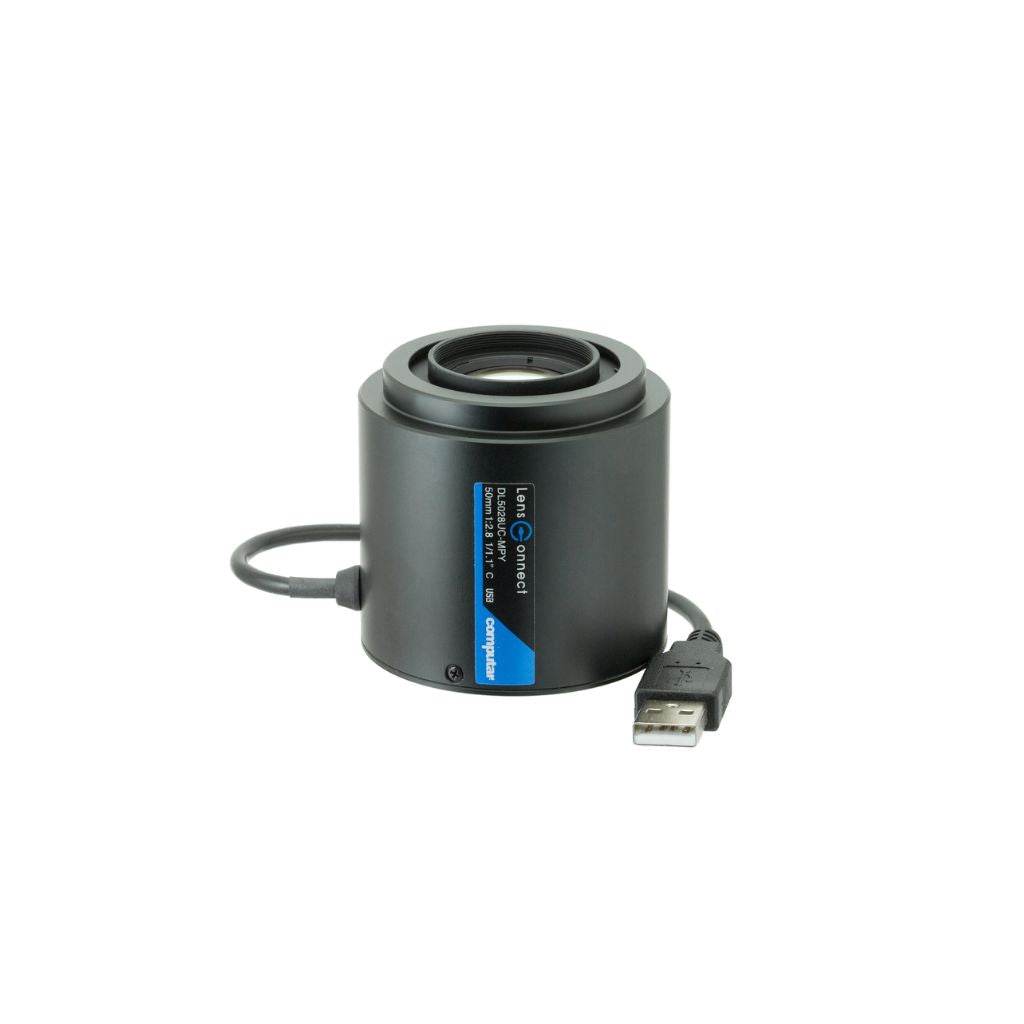

Computar DL5028SC-MPY 12MP 1/1.1" 50mm F2.8 LensConnect I²C C-Mount Lens
Computar DL5028SC-MPY 12MP 1/1.1" 50mm F2.8 LensConnect I²C C-Mount Lens
SKU:DL5028SC-MPY
Regular price
$1,445.00 USD
Regular price
Sale price
$1,445.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Computar DL5028SC-MPY is a 50mm fixed focal length LensConnect machine vision lens for 1/1.1-inch format sensors and resolutions up to 12MP. The SC-version uses an I²C interface for embedded integration, with motorized focus and iris control for precise remote adjustment.
Its 50mm focal length, F2.8 to F16 aperture range and 0.2m minimum working distance provide a narrow field of view for detailed inspection at longer working distances.
Key Features:
- 12MP optical resolution for 1/1.1-inch sensors
- 50mm fixed focal length
- F2.8 to F16 aperture range
- LensConnect I²C interface
- Motorized focus and iris control
- 0.2m to infinity focus range
- C-mount interface
- 16.3° diagonal angle of view
Applications:
- Long-distance machine vision inspection
- Factory automation
- Robotics
- Quality control
- Precision imaging
- OEM camera systems
Technical Specifications
| Model | DL5028SC-MPY |
|---|---|
| Lens Series | Computar LensConnect |
| Sensor Format | 1/1.1 inch |
| Resolution | 12MP |
| Focal Length | 50mm |
| Aperture | F2.8 to F16.0 |
| Working Distance | 0.2m to infinity |
| Angle of View (1/1.1") | 16.3° diagonal / 13.2° horizontal / 9.7° vertical |
| Mount | C-Mount |
| Control Interface | I²C |
| Focus Control | Motorized |
| Iris Control | Motorized |
| Filter Size | M30.5 × P0.5mm |
| Dimensions | Ø59.5mm × 58mm |
| Weight | 173g |
