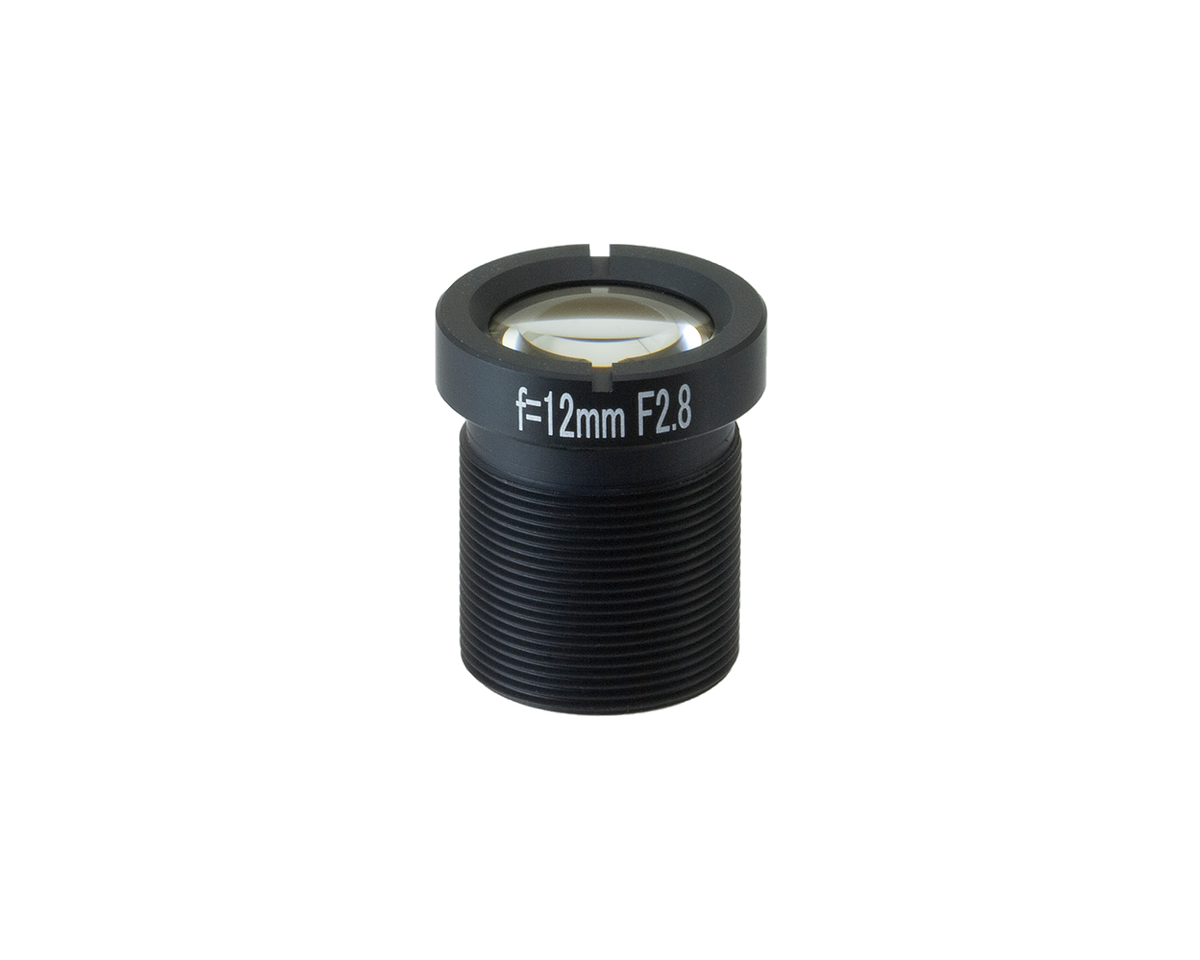

Computar E1228KY 8MP 1/1.8" 12mm F2.8 M12 S-Mount Machine Vision Lens

The Computar E1228KY is a compact 12mm machine vision lens designed for 1/1.8-inch sensors and resolutions up to 8MP. Part of Computar's MVS Series, it uses an M12 × P0.5 S-mount for space-constrained embedded and industrial vision systems.

With an F2.8 aperture and ultra-low -0.20% distortion, the E1228KY provides a tighter field of view than the 8mm model while maintaining accurate image geometry for measurement and inspection applications.

Key Features:

• 8MP optical performance for 1/1.8-inch sensors
• 12mm fixed focal length
• F2.8 aperture
• Ultra-low -0.20% distortion
• Supports pixel pitches down to 2.0µm
• M12 × P0.5 S-mount
• Compact design for embedded vision systems
• Designed for machine vision and measurement applications

Applications:

• Machine vision
• Industrial inspection
• Measurement systems
• Robotics
• Embedded vision
• OEM imaging modules
