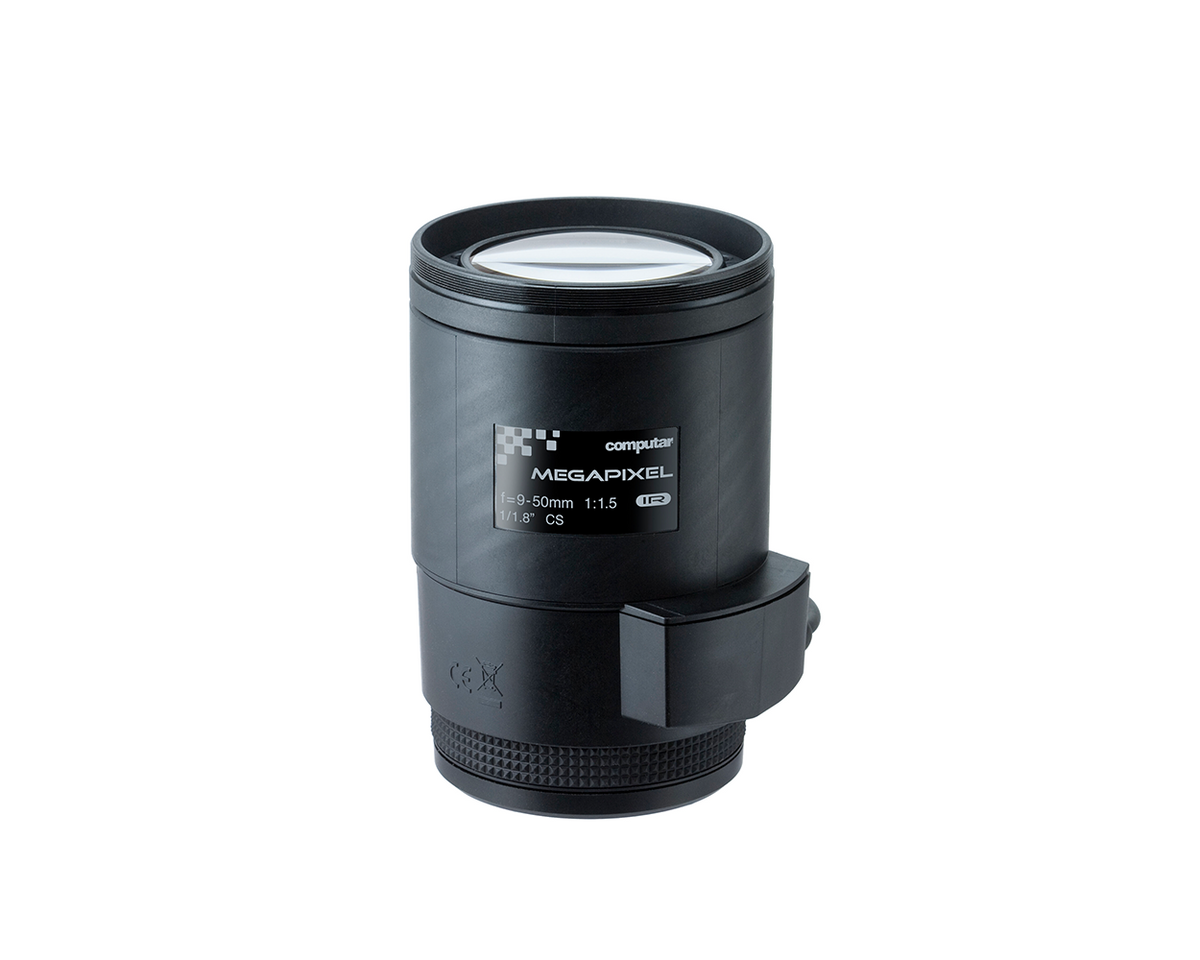

Computar EG6Z0915KCS-MPWIR 4K 1/1.8" 9-50mm F1.5 P-Iris IR CS-Mount Lens
Computar EG6Z0915KCS-MPWIR 4K 1/1.8" 9-50mm F1.5 P-Iris IR CS-Mount Lens
SKU:EG6Z0915KCS-MPWIR
Regular price
$287.48 USD
Regular price
Sale price
$287.48 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Computar EG6Z0915KCS-MPWIR is a 9-50mm varifocal lens for 1/1.8-inch cameras and high-resolution 4K imaging. Its P-Iris stepping-motor control provides precise aperture adjustment, while IR-corrected optics help maintain focus between visible and near-infrared illumination.
The 6× focal range combines broad scene coverage with telephoto reach for security, traffic, industrial monitoring and other applications that require flexible high-resolution day/night imaging.
Key Features:
- 4K / high-resolution performance for 1/1.8-inch sensors
- 9-50mm 6× varifocal range
- F1.5 wide / F1.6 tele maximum aperture
- P-Iris stepping-motor control
- IR-corrected day/night optics
- Manual zoom and focus adjustment
- 3.0m minimum object distance
- CS-mount interface
Applications:
- 4K video surveillance
- Day/night security imaging
- Traffic and perimeter monitoring
- Industrial imaging
- Machine vision
- OEM camera integration
Technical Specifications
| Model | EG6Z0915KCS-MPWIR |
|---|---|
| Sensor Format | 1/1.8 inch |
| Resolution | 4K / high-resolution |
| Focal Length | 9-50mm |
| Maximum Aperture | F1.5 wide / F1.6 tele |
| Iris Range | To F16C |
| Minimum Object Distance | 3.0m |
| Angle of View (1/1.8") | 52.5° to 10.2° diagonal / 46.1° to 9.0° horizontal / 26.3° to 5.2° vertical |
| Iris Control | P-Iris / Stepping Motor |
| Focus Control | Manual |
| Zoom Control | Manual |
| IR Correction | Yes |
| Mount | CS-Mount |
| Dimensions | 68 × 83 × 104.8mm |
| Weight | 278g |
