USA Security Systems

M5028MPX

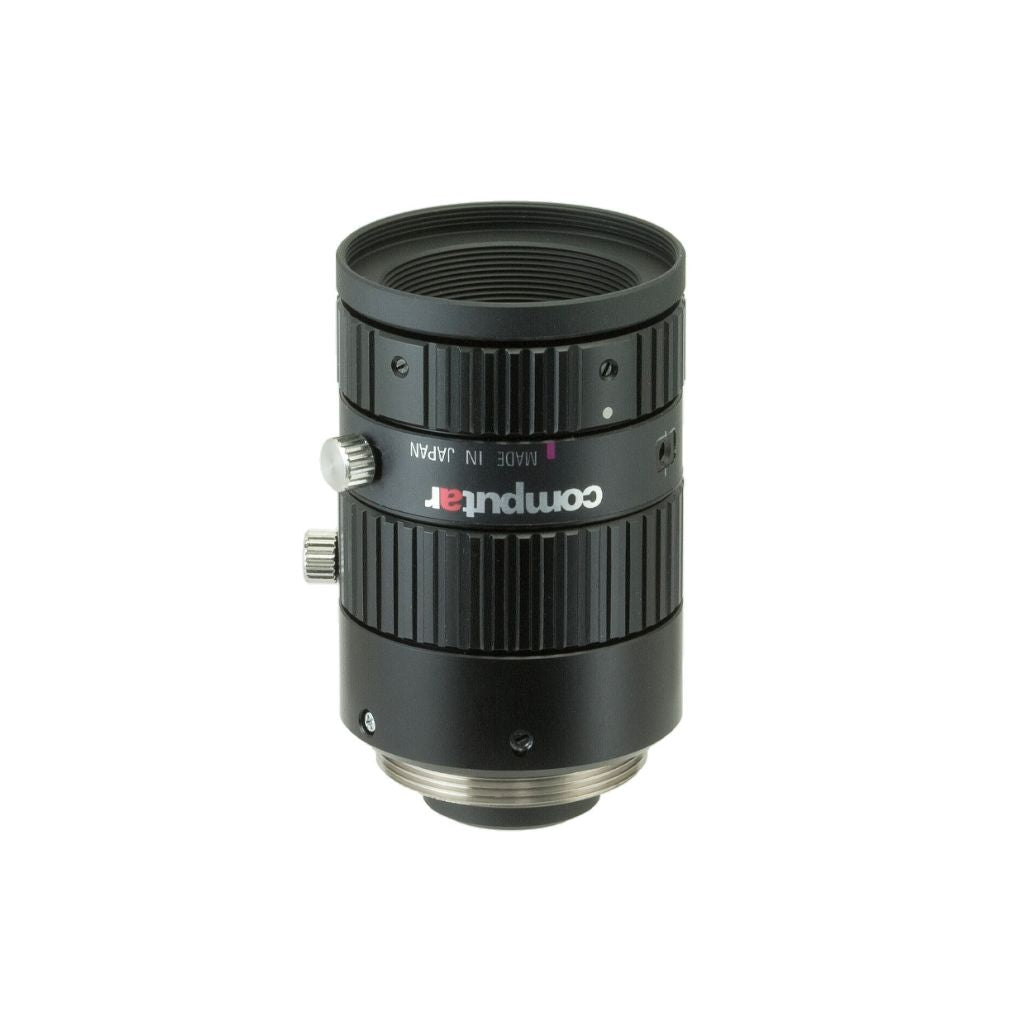

Computar M5028-MPX 2/3" 50mm F2.8 Ruggedized Lens for 16 Megapixel cameras (C-Mount)

Computar M5028-MPX 2/3" 50mm F2.8 Ruggedized Lens for 16 Megapixel cameras (C-Mount)

SKU:M5028-MPX

Regular price $241.50 USD
Regular price Sale price $241.50 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Title

See Clearly in Any Condition: Computar M5028-MPX Ruggedized Lens

Product Spec Sheet

The Computar M5028-MPX is a top-of-the-line C-mount lens designed specifically for the challenges of industrial and machine vision applications. This ruggedized lens separates itself from the pack with exceptional features like anti-vibration and shock resistance, making it ideal for harsh environments where stability is paramount.

At the heart of the M5028-MPX lies a high-resolution lens capable of supporting pixel sizes as small as 2μm. This translates to crisp, detailed images for even the most demanding 16 megapixel cameras. Furthermore, a unique floating mechanism ensures exceptional image quality from close-up distances to infinity, eliminating the need for constant refocusing. Precise focus adjustments are achieved with a focus rotation angle that is 5 times greater than most lenses, offering unparalleled control. A click-type iris mechanism allows for quick and easy aperture control, perfect for fine-tuning light levels in your machine vision setup.

The M5028-MPX is part of the versatile MPX Series, available in a variety of focal lengths (8mm, 12mm, 16mm, 25mm, 35mm, 75mm) to perfectly match your specific application. This level of adaptability makes the MPX Series a favorite among machine vision professionals across a wide range of industries.

Features:

  • Ruggedized design for anti-vibration and shock resistance
  • High-resolution lens supports pixel sizes of 2μm or less
  • Floating mechanism for sharp images at all distances
  • Precise focus adjustment with extended rotation angle
  • Click-type iris mechanism for easy aperture control
  • Also available in a variety of focal lengths (8mm, 12mm, 16mm, 25mm, 35mm, 75mm)
  • For sensors IMX536 (546/566), IMX537 (547/566), IMX676, IMX226, IMX178

Applications:

  • Factory automation
  • Quality control
  • Object identification
  • Inspection systems
  • Robotics
  • Security systems
