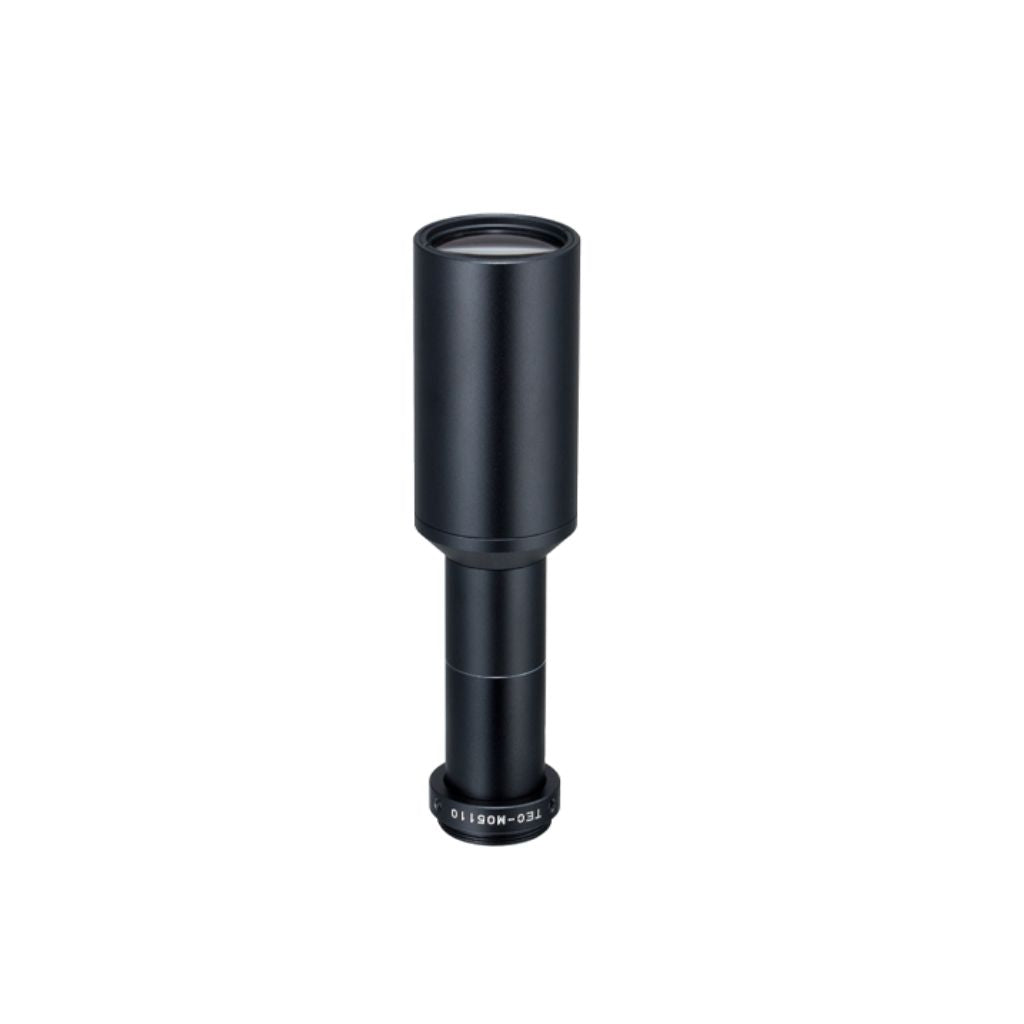

Computar TEC-M05110MP 2MP, 2/3" 111.8mm, Telecentric Lens, 0.5x magnification (C Mount)

High-Performance Imaging for Machine Vision Applications

The Computar TEC-M05110MP is a telecentric lens designed to deliver exceptional image quality for industrial machine vision systems. This high-resolution lens is optimized for use with 2/3" 2MP cameras and features a telecentric design that minimizes geometric distortion. This ensures accurate measurements and inspections, making the TEC-M05110MP ideal for a wide range of industrial applications.

The Computar TEC-M05110MP produces sharp, clear images with minimal image distortion. Telecentric lenses like the TEC-M05110MP achieve this by limiting the chief rays (principal rays) to travel parallel to the optical axis. This minimizes the variation in image size regardless of the object's distance from the lens within the working distance. The TEC-M05110MP features a 0.5x magnification and a 110mm working distance, providing a good balance between field of view and object clearance for illumination. The C-Mount design ensures compatibility with a wide range of 2/3" 2MP machine vision cameras, simplifying system integration.

Features:

• High-Resolution Images
• Low Geometric Distortion
• 0.5x Magnification
• 2/3" Sensor Compatibility
• C-Mount Lens
• 110mm Working Distance

Applications:

• Object measurement and inspection
• Defect detection
• Robotics guidance
• Assembly line monitoring
• Quality control

Download Data Sheet
