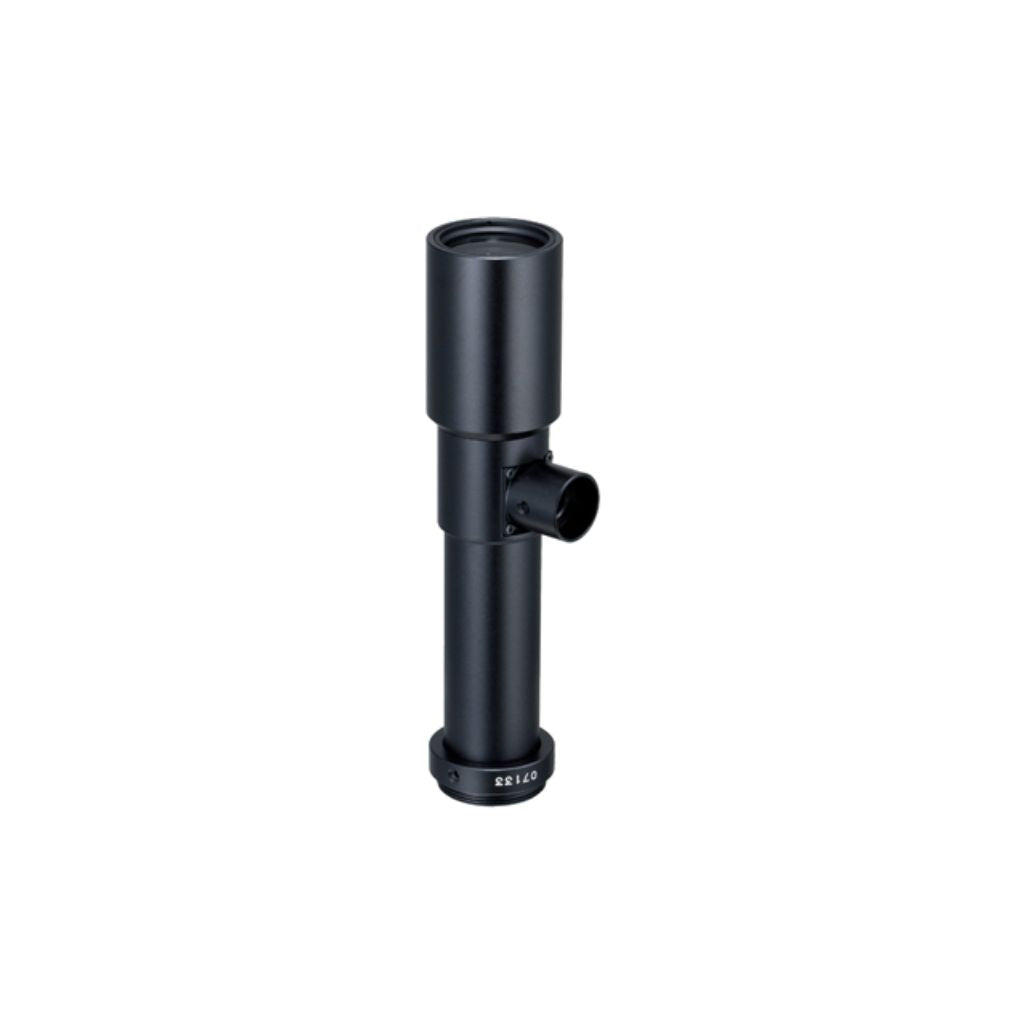

Computar TEC-M15110MPC 2MP, 2/3" 110.7mm, Telecentric Lens, 1.5x magnification (C Mount) w/ coaxial

Computar TEC-M15110MPC 2MP, 2/3" 110.7mm, Telecentric Lens, 1.5x magnification (C Mount) w/ coaxial

SKU:TEC-M15110MPC

Regular price $580.00 USD
Regular price Sale price $580.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Title

Sharp Vision for Industrial Applications: Computar TEC-M15110MPC Telecentric Lens

The Computar TEC-M15110MPC is a 2-megapixel telecentric lens designed for precise imaging in industrial and machine vision applications. This high-quality lens features a compact design and offers exceptional image clarity with low geometric distortion. Telecentric lenses are known for their ability to maintain consistent image size regardless of object working distance. This makes the TEC-M15110MPC ideal for applications requiring precise measurements or consistent object analysis.

The TEC-M15110MPC features a 1.5x magnification and a 110.7mm working distance, making it suitable for a variety of machine vision tasks. The C-Mount interface ensures compatibility with a wide range of industrial cameras. Additionally, the lens boasts coaxial lighting capability, which allows for direct illumination of objects at the focal plane for enhanced image quality.

Whether you're inspecting objects for defects, measuring dimensions, identifying parts, or guiding robots, the Computar TEC-M15110MPC lens provides the clarity and precision needed to ensure success in your machine vision application.

Features:

  • 2 megapixel resolution
  • 1.5x magnification
  • 110.7mm working distance
  • C-Mount
  • Coaxial lighting capability
  • Minimized geometric distortion

Applications:

  • Object inspection
  • Dimensional measurement
  • Part identification
  • Robotics guidance
  • Quality control
