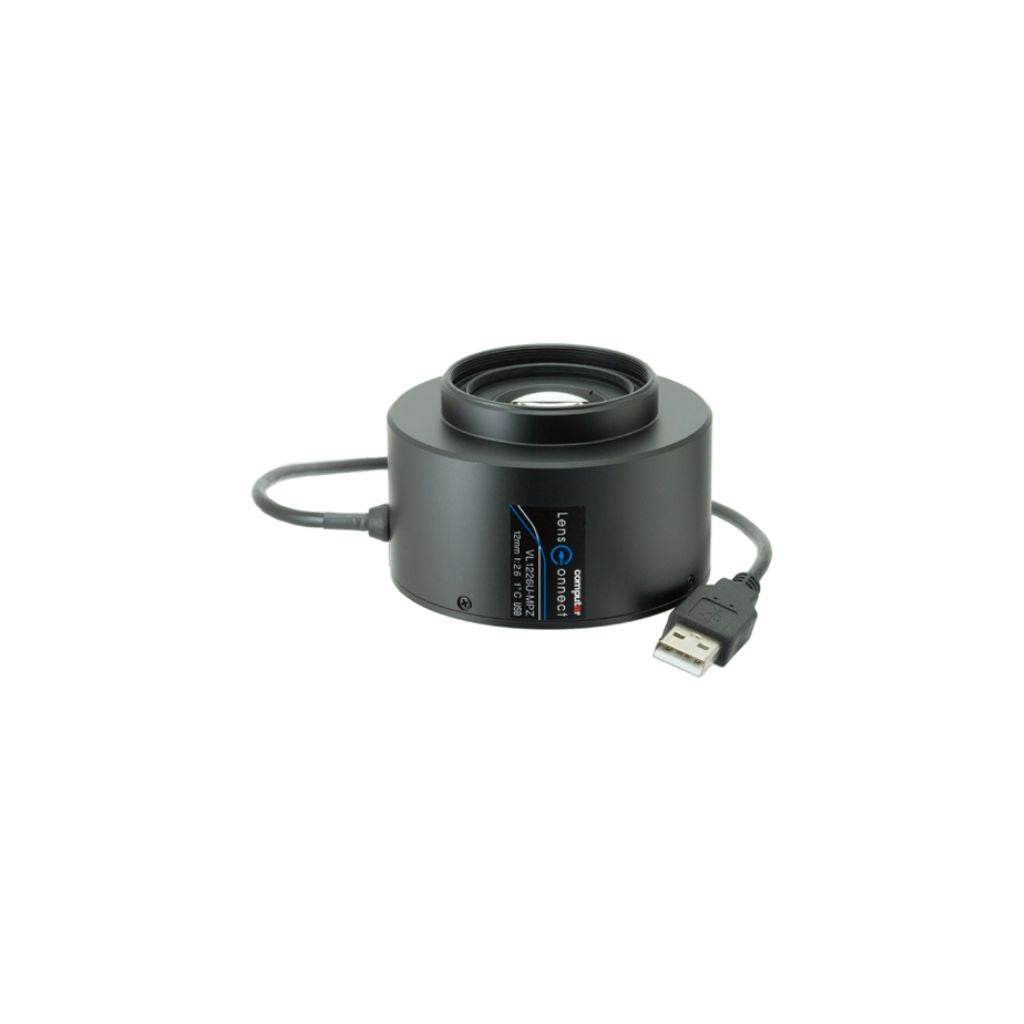

Computar VL1226S-MPZ 20MP 1" 12mm F2.6 LensConnect I²C C-Mount Lens

The Computar VL1226S-MPZ is a 12mm fixed focal length LensConnect machine vision lens designed for 1-inch format sensors and resolutions up to 20MP. The S-version uses an I²C interface for direct embedded and OEM integration, with motorized focus and iris adjustment for systems where manual lens access is limited.

Its F2.6 to F16 aperture range, 0.1m minimum working distance and 67.4° diagonal field of view make it a versatile option for high-resolution inspection, robotics, automation and embedded vision systems.

Key Features:

• 20MP optical resolution for 1-inch sensors
• 12mm fixed focal length
• F2.6 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.1m to infinity focus range
• C-mount interface
• 67.4° diagonal angle of view on 1-inch sensors
• Designed for embedded machine vision and factory automation

Applications:

• Machine vision and automated inspection
• Factory automation
• Robotics and embedded vision
• Quality control
• Warehouse and logistics imaging
• OEM camera systems

Technical Specifications
