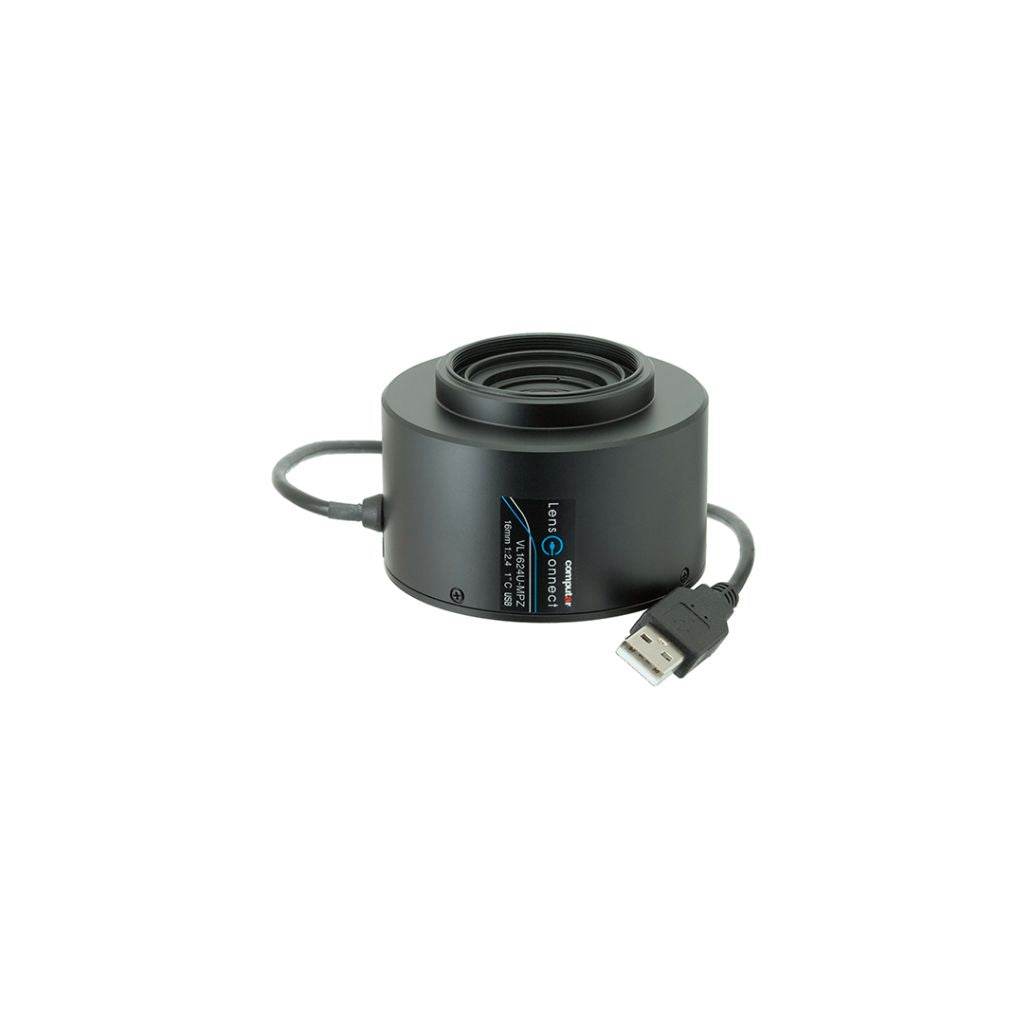

Computar VL1624S-MPZ 20MP 1" 16mm F2.4 LensConnect I²C C-Mount Lens

The Computar VL1624S-MPZ is a 16mm fixed focal length LensConnect machine vision lens for 1-inch format sensors and resolutions up to 20MP. Its I²C interface supports direct embedded control, while motorized focus and iris provide repeatable remote adjustment for automated imaging systems.

With an F2.4 to F16 aperture range, 0.1m minimum working distance and a 53.2° diagonal field of view, the VL1624S-MPZ is designed for high-resolution machine vision, inspection, robotics and OEM camera integration.

Key Features:

• 20MP optical resolution for 1-inch sensors
• 16mm fixed focal length
• F2.4 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.1m to infinity focus range
• C-mount interface
• 53.2° diagonal angle of view on 1-inch sensors

Applications:

• Machine vision and automated inspection
• Factory automation
• Robotics and embedded vision
• Quality control
• OEM camera systems

Technical Specifications
