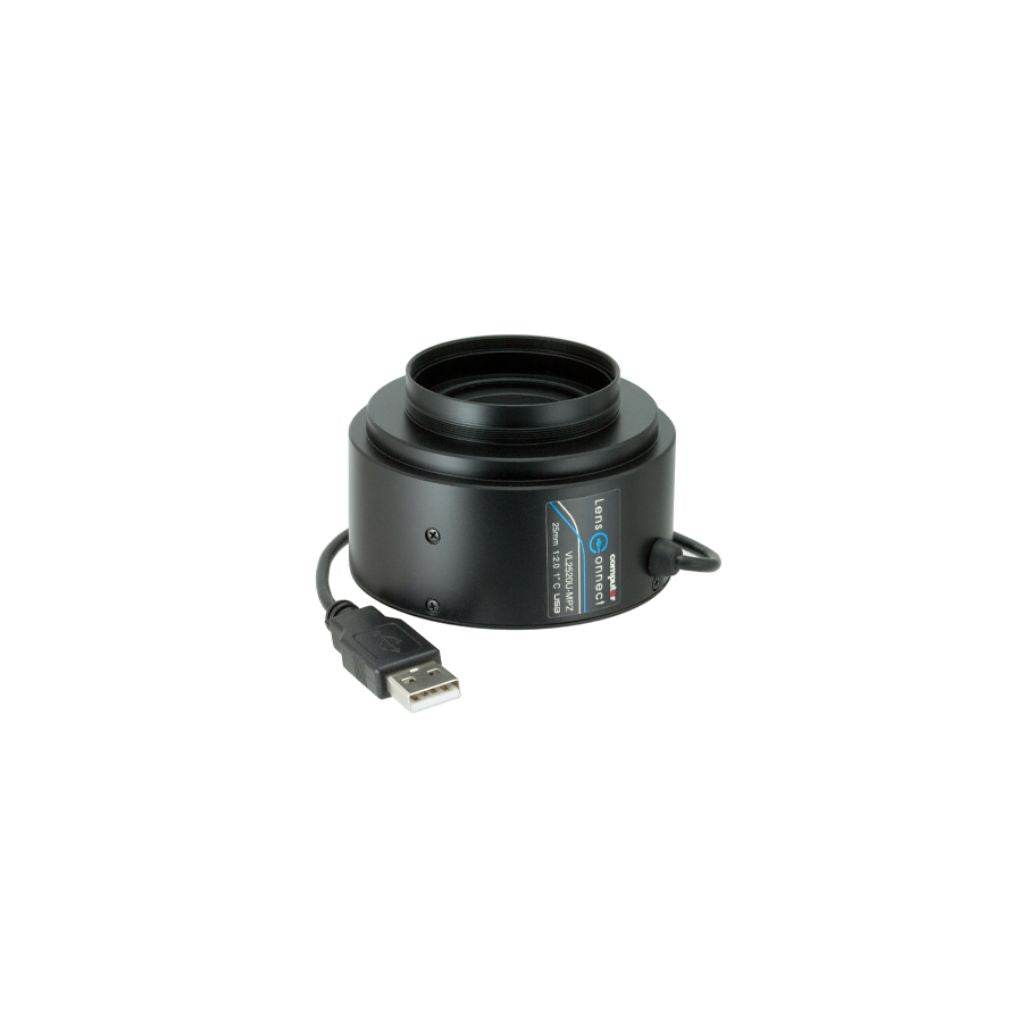

Computar VL2520S-MPZ 20MP 1" 25mm F2.0 LensConnect I²C C-Mount Lens

The Computar VL2520S-MPZ is a 25mm fixed focal length LensConnect machine vision lens designed for 1-inch format sensors and resolutions up to 20MP. The S-version uses an I²C interface for embedded control, with motorized focus and iris adjustment for repeatable optical setup in automated systems.

Its F2.0 to F16 aperture range, 0.15m minimum working distance and 35.5° diagonal field of view make it well suited to detailed inspection and machine vision applications requiring a tighter field of view.

Key Features:

• 20MP optical resolution for 1-inch sensors
• 25mm fixed focal length
• F2.0 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.15m to infinity focus range
• C-mount interface
• 35.5° diagonal angle of view on 1-inch sensors

Applications:

• Machine vision inspection
• Factory automation
• Robotics and embedded vision
• Quality control
• Precision imaging
• OEM camera systems
