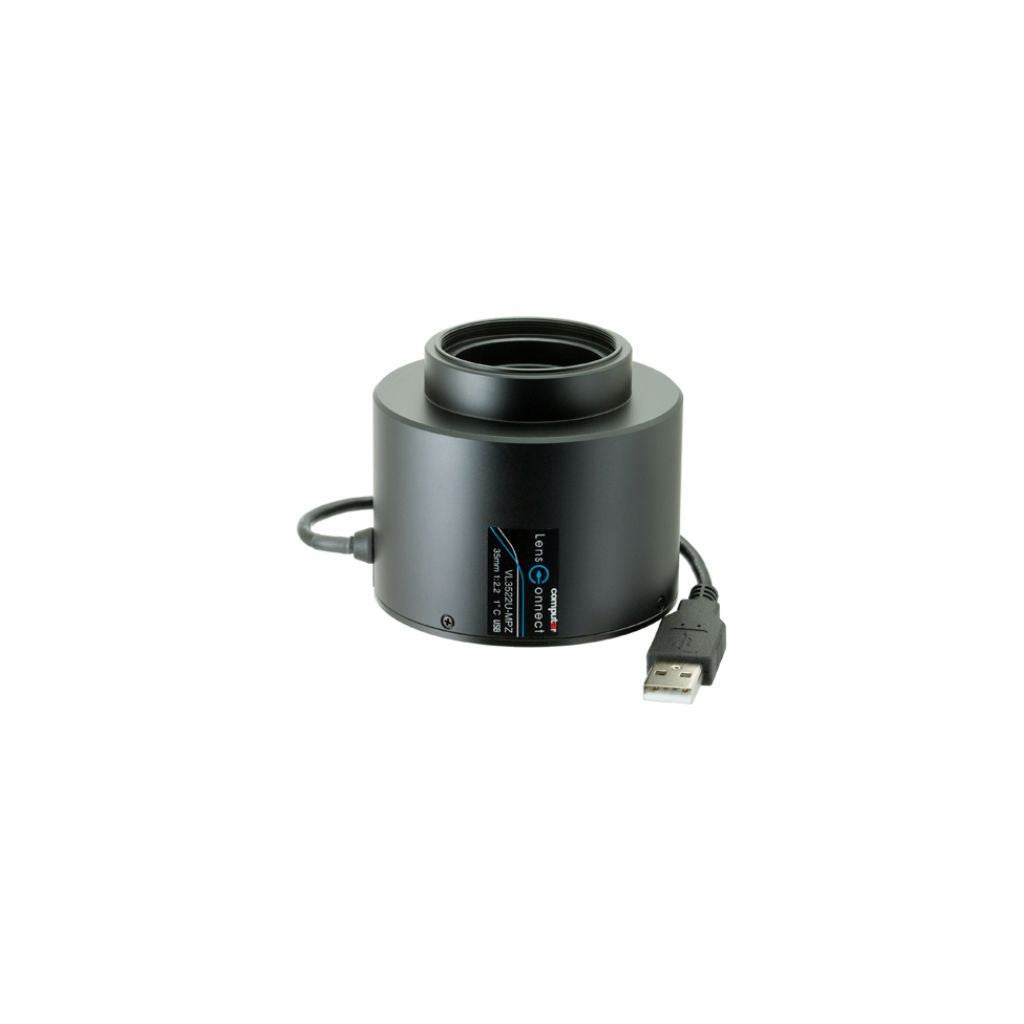

Computar VL3522S-MPZ 20MP 1" 35mm F2.2 LensConnect I²C C-Mount Lens

The Computar VL3522S-MPZ is a 35mm fixed focal length LensConnect machine vision lens for 1-inch format sensors and resolutions up to 20MP. Its I²C interface enables embedded control, while motorized focus and iris support repeatable remote adjustment in automated imaging systems.

With an F2.2 to F16 aperture range, 0.2m minimum working distance and 25.8° diagonal field of view, the VL3522S-MPZ is designed for detailed inspection and applications requiring a narrower field of view or greater camera-to-subject distance.

Key Features:

• 20MP optical resolution for 1-inch sensors
• 35mm fixed focal length
• F2.2 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.2m to infinity focus range
• C-mount interface
• 25.8° diagonal angle of view on 1-inch sensors

Applications:

• Machine vision inspection
• Factory automation
• Robotics
• Quality control
• Precision imaging
• OEM camera systems
