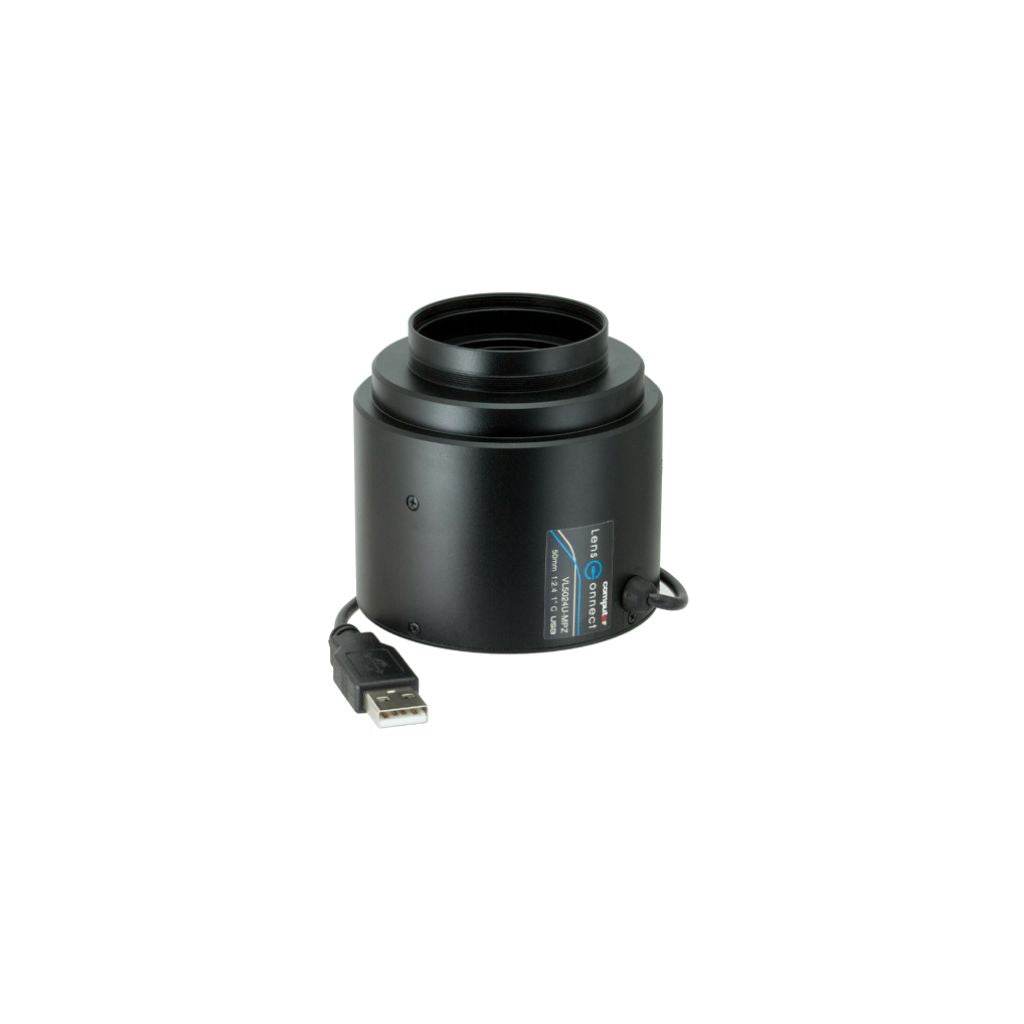

Computar VL5024S-MPZ 20MP 1" 50mm F2.4 LensConnect I²C C-Mount Lens

The Computar VL5024S-MPZ is a 50mm fixed focal length LensConnect machine vision lens designed for 1-inch format sensors and resolutions up to 20MP. The S-version uses an I²C interface for embedded and OEM integration, with motorized focus and iris control for repeatable remote adjustment.

Its 50mm focal length, F2.4 to F16 aperture range and 0.2m minimum working distance make it well suited to detailed inspection applications that require a narrower field of view or increased camera-to-subject distance.

Key Features:

• 20MP optical resolution for 1-inch sensors
• 50mm fixed focal length
• F2.4 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.2m to infinity focus range
• C-mount interface
• 18.2° diagonal angle of view on 1-inch sensors

Applications:

• Machine vision inspection
• Factory automation
• Robotics and embedded vision
• Quality control
• Precision imaging
• OEM camera systems
