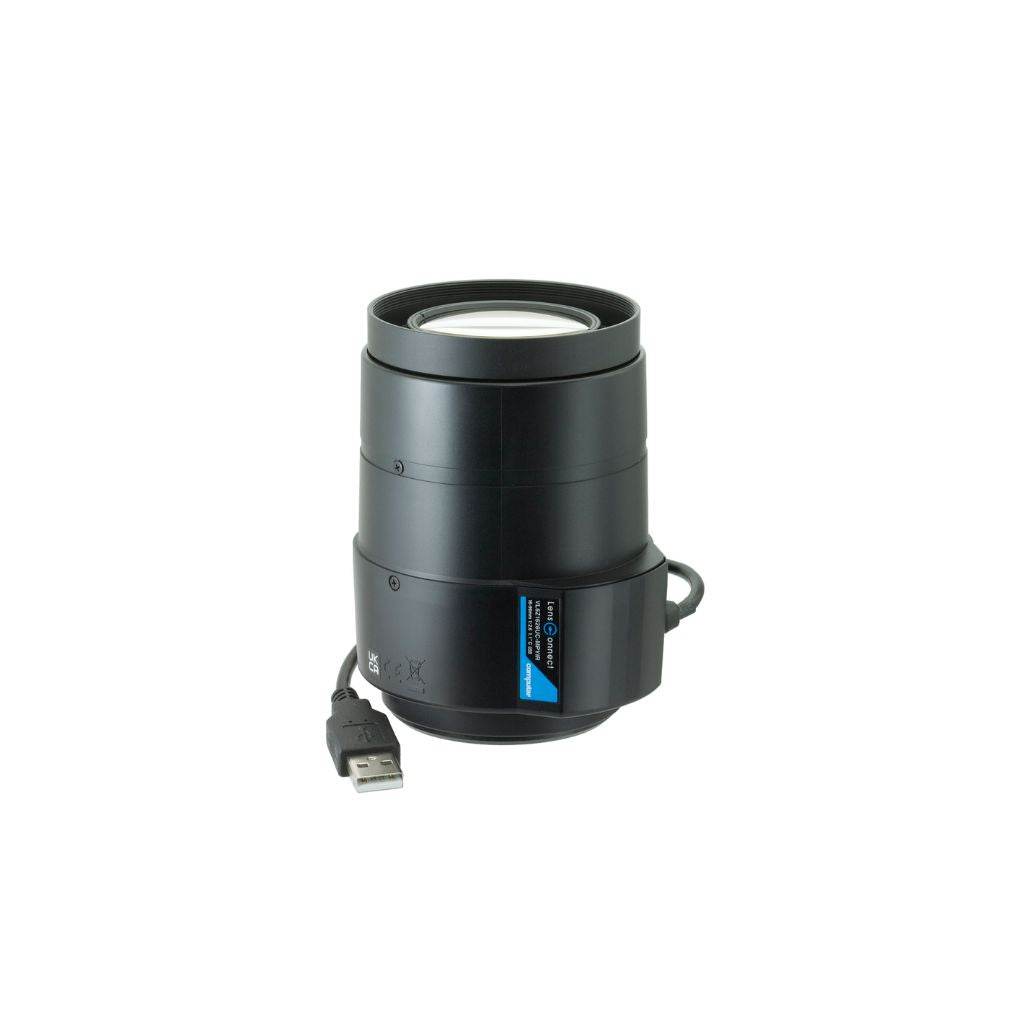

Computar VL6Z1626SC-MPYIR 12MP 1.1" 16-96mm F2.6 LensConnect I²C IR C-Mount Lens

The Computar VL6Z1626SC-MPYIR is a 16-96mm motorized varifocal LensConnect lens designed for 1.1-inch format sensors and resolutions up to 12MP. The SC-version uses an I²C interface for embedded and OEM integration, with motorized zoom, focus and P-Iris control for repeatable remote adjustment.

Its 6× zoom range, F2.6 maximum aperture and IR-corrected optics make it suited to machine vision, intelligent transportation, robotics, security and other applications requiring flexible framing and visible-to-NIR performance.

Key Features:

• 12MP optical resolution for 1.1-inch sensors
• 16-96mm motorized varifocal range
• F2.6 wide / F2.7 tele maximum aperture
• LensConnect I²C interface
• Motorized zoom, focus and P-Iris control
• IR-corrected optical design
• 3m to infinity working distance
• C-mount interface

Applications:

• Machine vision and automated inspection
• Intelligent transportation systems
• Robotics and embedded vision
• Security and surveillance imaging
• Day/night and IR-assisted imaging
• OEM camera integration
