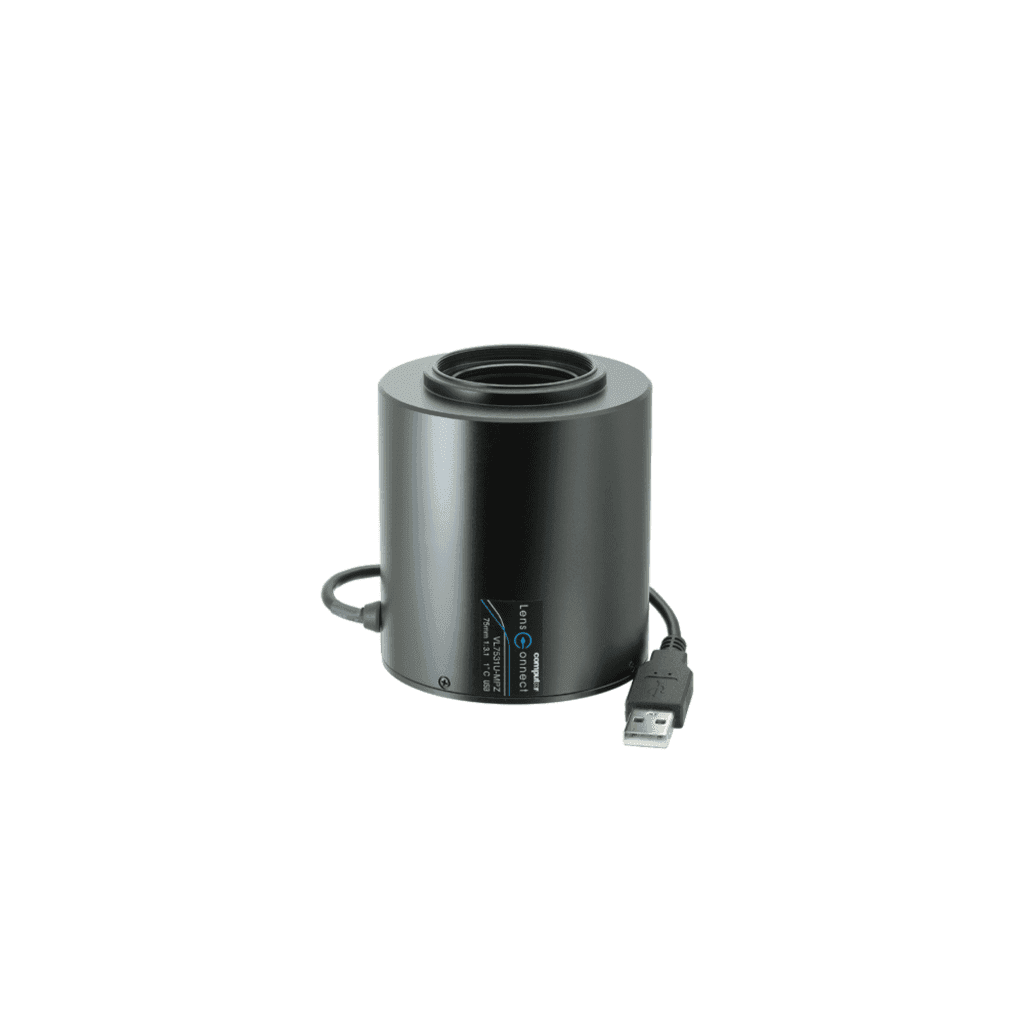

Computar VL7531S-MPZ 20MP 1" 75mm F3.1 LensConnect I²C C-Mount Lens

The Computar VL7531S-MPZ is a 75mm fixed focal length LensConnect machine vision lens for 1-inch format sensors and resolutions up to 20MP. Its I²C interface supports embedded control, while motorized focus and iris allow repeatable remote adjustment in automated imaging systems.

The 75mm focal length provides the narrowest field of view in the VL-MPZ family, making this lens suited to long working-distance inspection and applications that require detailed imaging of smaller target areas.

Key Features:

• 20MP optical resolution for 1-inch sensors
• 75mm fixed focal length
• F3.1 to F16 aperture range
• LensConnect I²C interface
• Motorized focus and iris control
• 0.25m to infinity focus range
• C-mount interface
• 12.2° diagonal angle of view on 1-inch sensors

Applications:

• Long-distance machine vision inspection
• Factory automation
• Robotics
• Quality control
• Precision component imaging
• OEM camera systems

Technical Specifications
