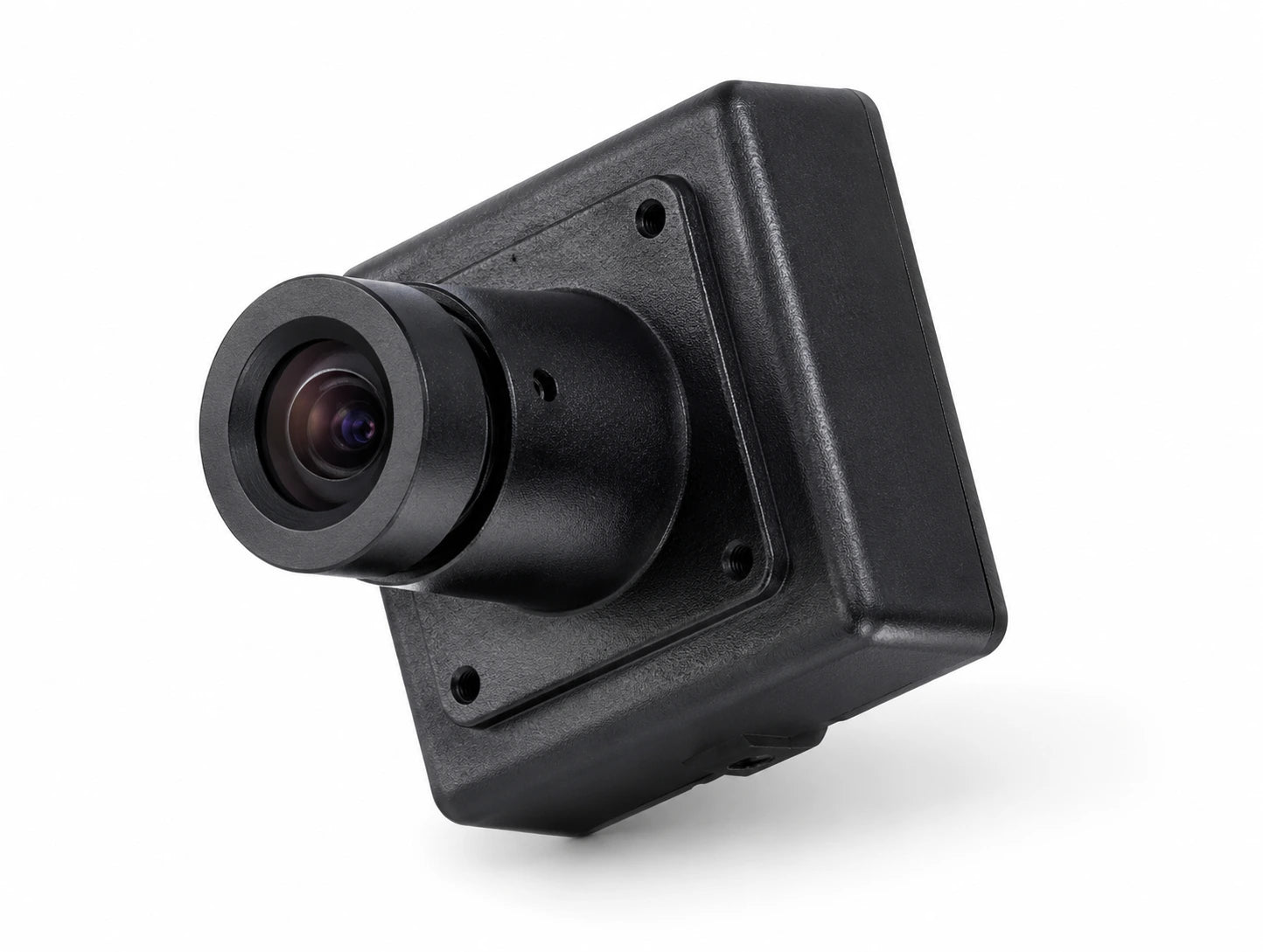

IPX DQ-F3042DM 2.2MP 30×30mm Miniature 3G-SDI Camera

IPX DQ-F3042DM 2.2MP 30×30mm Miniature 3G-SDI Camera

Compact 1080p60 SDI video performance for embedded vision, robotics, UAV, inspection, surveillance, and OEM camera integration.

The IPX DQ-F3042DM features a 1/2.8" Sony IMX327 progressive scan CMOS sensor, 3.6mm fixed lens, Real WDR, 3D-DNR, Defog, RS-485 support, and DC12V input in a compact 30 × 30mm board-level camera design.

Designed for compact professional video systems, this miniature 3G-SDI camera gives OEMs, engineers, and system integrators a small-format HD camera for applications that require low-latency video, dependable image quality, and board-level integration. Its professional SDI output and advanced image processing make it well suited for changing lighting conditions and space-constrained designs.

Key Features:

• IPX DQ-F3042DM 2.2MP miniature 3G-SDI camera

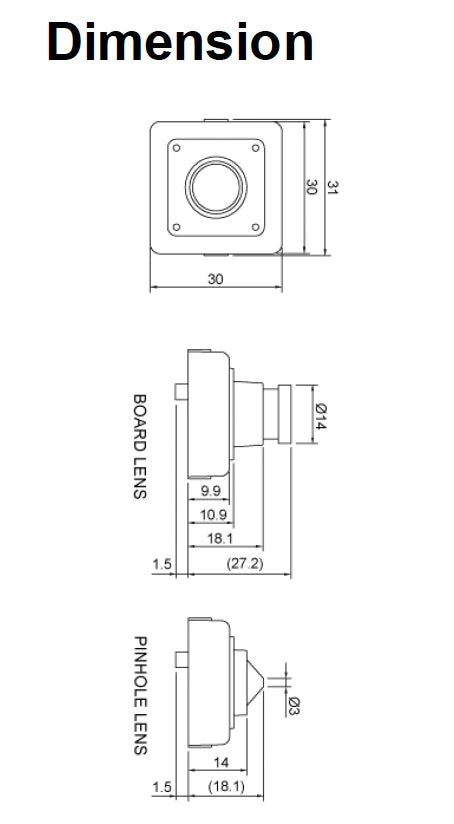

• Compact 30 × 30mm board-level design
• 1/2.8" Sony IMX327 progressive scan CMOS sensor
• Eyenix EN781F DSP image processing
• 1080p @ 60/50fps and 1080p @ 30/25fps video output
• 3.6mm fixed lens
• 0.007 lux low-light sensitivity
• Built-in OSD, Real WDR, 3D-DNR, Defog, and Sense-up 32x
• Digital day/night support
• Optional cable OSD and RS-485 support
• DC12V input

Applications:

• Robotics and autonomous platforms
• UAV and drone video payloads
• Machine vision and industrial inspection
• Embedded vision and OEM camera integration
• Medical and laboratory imaging systems
• Intelligent traffic and transportation monitoring
• Security, surveillance, and remote video systems
