IPX NM-542B28-W 5MP 42x42mm IP Camera Module with 2.8mm Lens

IPX NM-542B28-W 5MP 42x42mm IP Camera Module with 2.8mm Lens

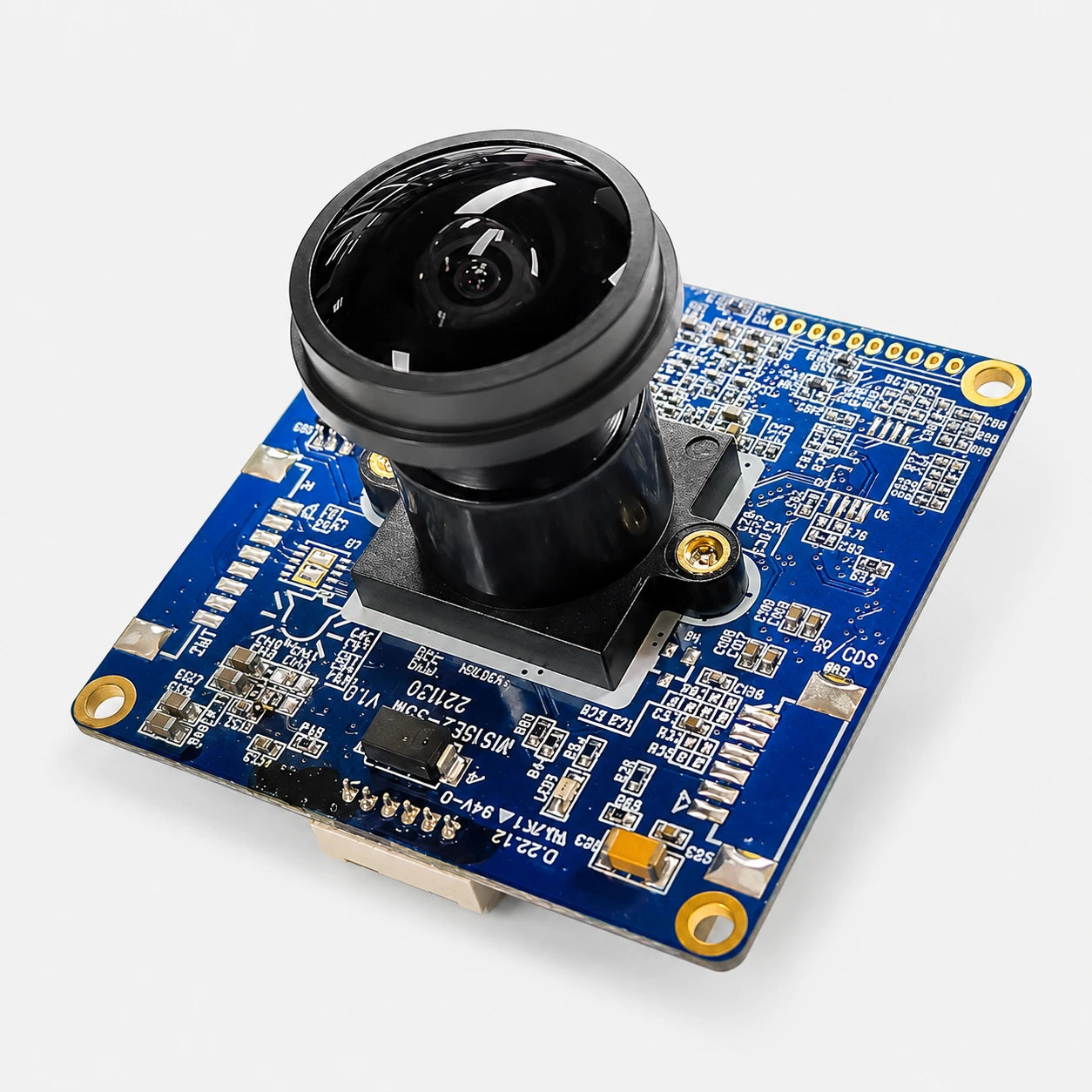

The IPX NM-542B28-W is a compact 5MP board-level IP camera module with a 1/2.8" Sony CMOS sensor, 2.8mm lens, H.265/H.264/MJPEG video compression, AI object detection support, and empty-space analytics for embedded vision, surveillance, robotics, intelligent traffic, inspection, and OEM camera systems.

Designed for compact integration, the NM-542B28-W combines high-resolution 5MP network video with onboard processing in a small 42 x 42mm single-board camera format. Built around a 64-bit Quad Core RISC-V SoC running Embedded Linux, this IP camera module is engineered for smart security devices, robotics vision, UAV/drone imaging, AI monitoring, machine vision, parking analytics, and custom OEM embedded systems.

With video output up to 2592 x 1944 at 30fps, the IPX NM-542B28-W delivers detailed image capture while supporting efficient H.265 compression, widely compatible H.264 streaming, and MJPEG output. Its onboard NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, making it a strong choice for AI-enabled applications such as object recognition, empty-space detection, intelligent monitoring, and optional number recognition software.

Key Features:

• 5MP IP camera module with 1/2.8" Sony CMOS sensor
• Compact 42 x 42mm single-board camera design
• 2.8mm fixed lens for wide-angle embedded vision applications
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 2592 x 1944 resolution at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Empty-space analytics for up to 12 spaces
• Optional number recognition software support
• Image controls for sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Ideal for robotics, UAV/drone vision, AI cameras, surveillance, inspection, intelligent traffic, machine vision, and OEM embedded systems

Applications:

• Embedded IP camera systems
• AI vision and object detection cameras
• Robotics and autonomous equipment
• UAV/drone video and monitoring systems
• Intelligent traffic and parking analytics
• Machine vision and inspection systems
• Security and surveillance devices
• OEM smart camera integration
• Industrial automation and remote monitoring

Specifications
