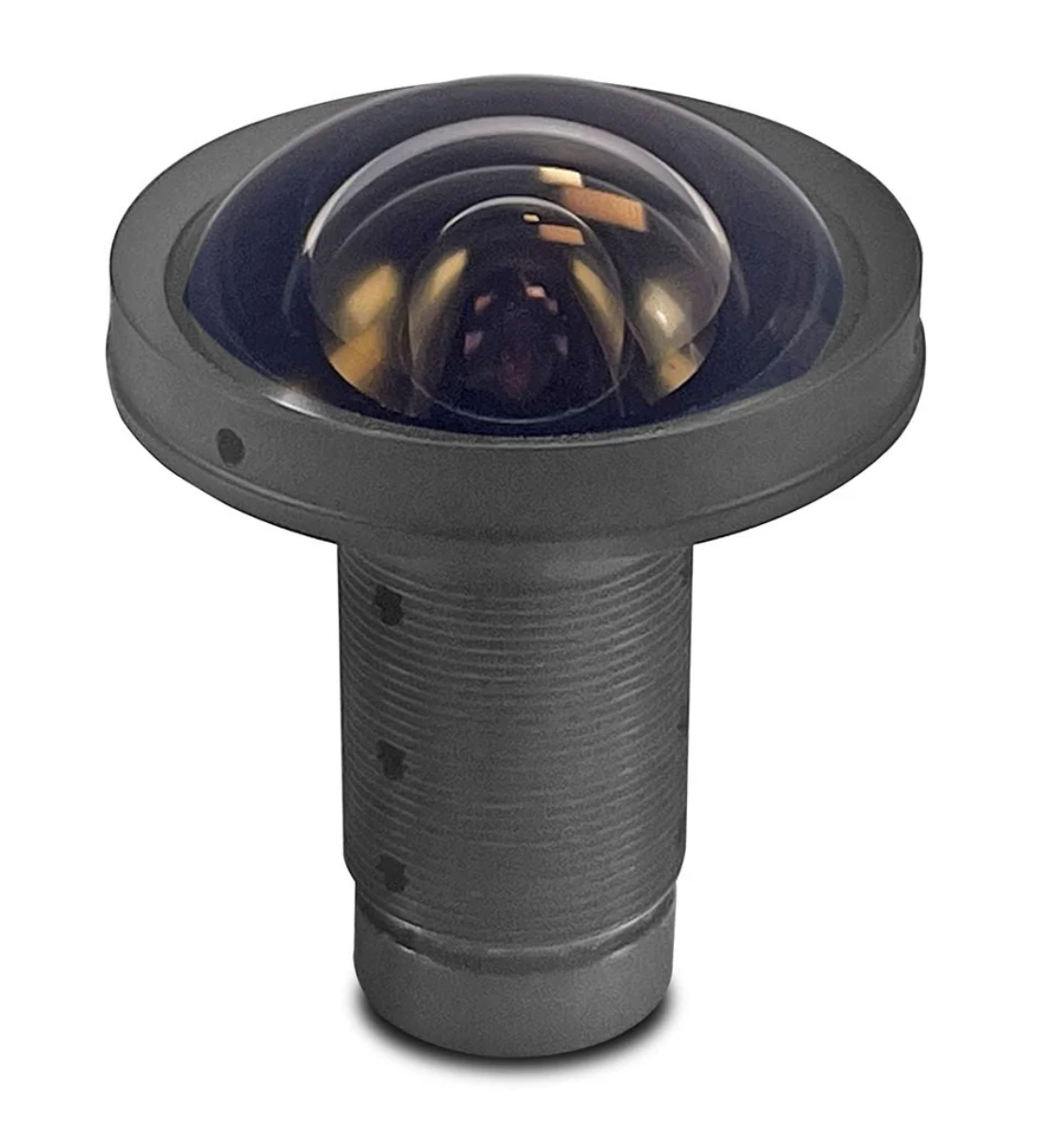

Kowa LM1.7QS25 1/2.5" 1.7mm S-Mount Fixed Lens for 2MP Sensors with 3.2µm Pixel Support and 160 lp/mm Resolution, Visible Spectrum 400–800nm

*Please note this product is subject to tariff fee*

The Kowa LM1.7QS25 is a precision-engineered 1.7mm fixed focal length lens optimized for 1/2.5” image sensors and supporting resolutions up to 2 megapixels. It delivers outstanding sharpness across the image plane, with 160 lp/mm center and 100 lp/mm margin resolution, making it an excellent choice for compact high-performance vision systems. With 3.2µm pixel compatibility, this S-Mount lens is ideal for integration into modern low-pixel-pitch CMOS cameras used in robotics, surveillance, and automotive imaging.

This lens is compact and durable, featuring a fixed F2.5 aperture, manual focus control, and a short 4.00mm back focus distance. Its optical path is tuned for the visible spectrum (400–800nm) and provides minimal TV distortion at -0.32%, ensuring high geometric fidelity. The mechanical design supports rugged environments with an operating range of -10°C to +50°C, and the housing weighs just 18 grams. Custom modifications, including glued internal optics for shock/vibration resistance or IR-cut filter integration, are available upon request, making it a versatile solution for OEMs and system integrators.

Features:

• 1.7mm ultra-wide fixed focal length

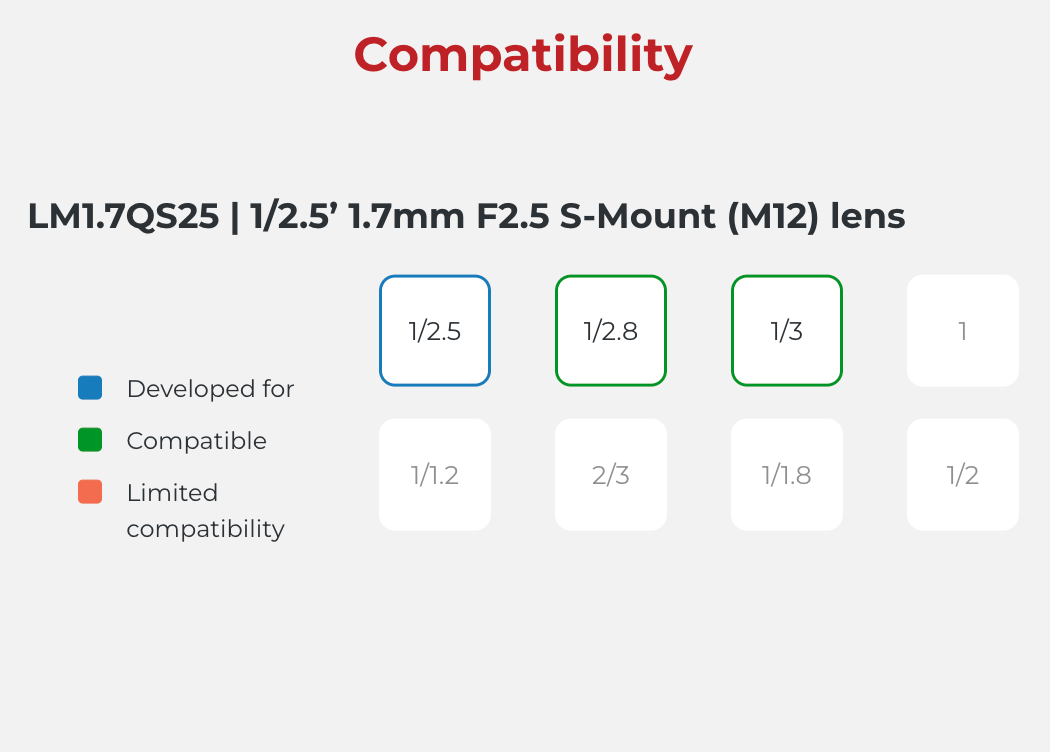

• Designed for 1/2.5" image sensors
• 2MP resolution capability
• Supports small 3.2µm pixel sizes
• 160 lp/mm center / 100 lp/mm edge resolution
• F2.5 fixed aperture
• Manual focus operation
• Ultra-compact: Ø26.5 x 32.83mm
• Lightweight: 18g
• Minimal TV distortion: -0.32%
• Visible spectrum optimized (400–800nm)
• Rugged temperature support: -10°C to +50°C
• Short 4.00mm back focus
• Custom builds available: IR filter, glued optics, modified F-stop

Applications:

• UAVs and drone surveillance
• Embedded vision modules
• Robotics and automation systems
• Mobile inspection units
• Automotive driver-assist cameras
• Compact machine vision platforms
• OEM imaging products
• Portable security monitoring devices
