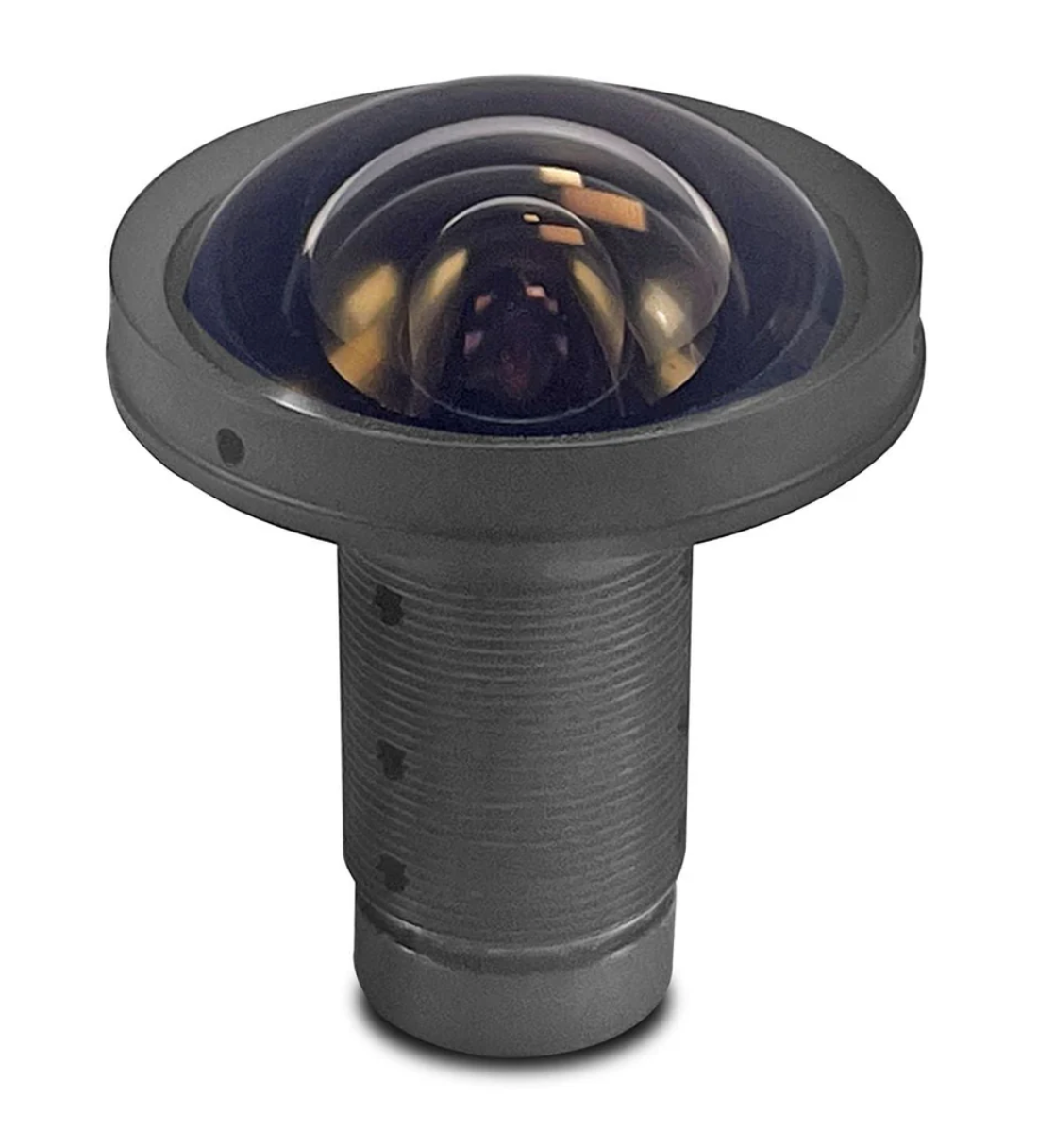

Kowa LM1.7QS40 1/2.5" 1.7mm Fixed Lens S-Mount, f/4 Aperture, 160 lp/mm Center Resolution, Wide Angle for Machine Vision

*Please note this product is subject to tariff fee*

The Kowa LM1.7QS40 is a precision-engineered 1.7mm wide-angle lens tailored for 1/2.5" CMOS sensors in space-constrained machine vision setups. Featuring a fixed f/4 aperture and 4.0mm back focus, it enables seamless integration with compact board-level cameras. This S-mount lens delivers high-performance imaging with 160 lp/mm resolution at center and 100 lp/mm at the edges—ideal for extracting fine detail in embedded vision and industrial inspection tasks.

Designed with distortion control in mind, the lens limits TV distortion to just -0.32%, ensuring geometric accuracy across the frame. Its 0.1m to infinity focus range and temperature tolerance from -10°C to +50°C support continuous use in demanding environments. The LM1.7QS40 also supports custom options such as IR-cut filters, glued optics for shock resistance, and aperture modifications, making it an adaptable tool for OEM vision systems, robotics, factory automation, and embedded AI vision modules.

Features:

• 1.7mm ultra-wide fixed focal length

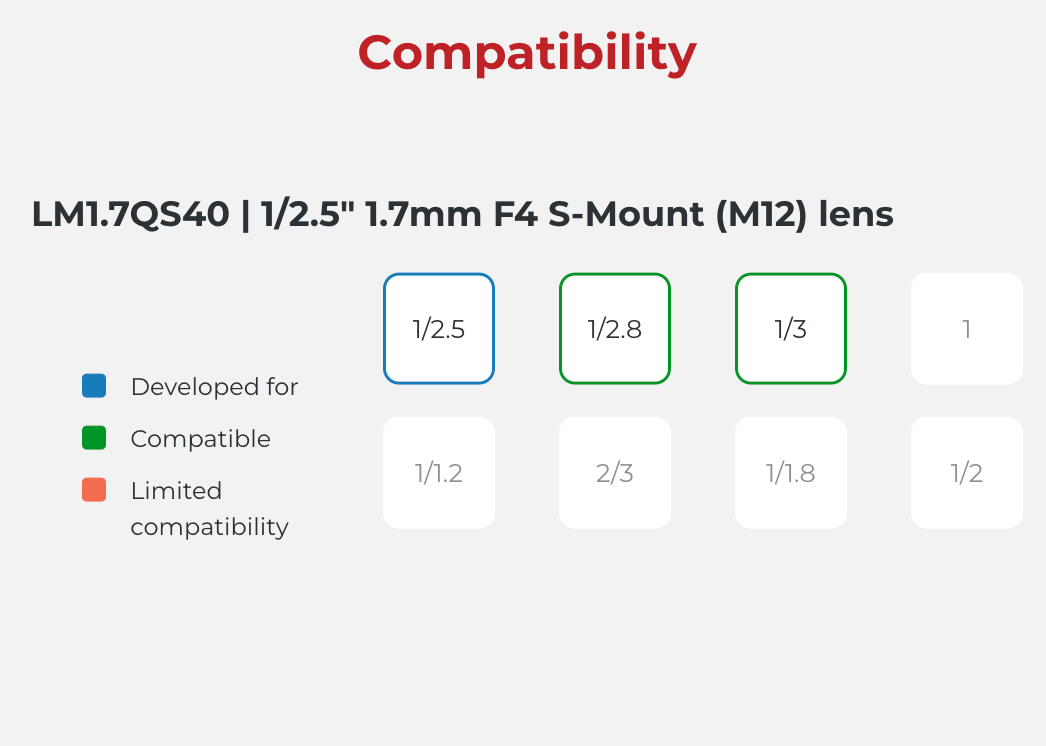

• Designed for 1/2.5" CMOS sensors
• S-Mount for space-saving system designs
• High resolution: 160 lp/mm (center), 100 lp/mm (edge)
• Low TV distortion: -0.32%
• Back focus distance: 4.0mm
• f/4 fixed aperture
• Focus range: 0.1m to infinity
• Customizable: IR filter, glued optics, aperture
• Operating range: -10°C to +50°C

Applications:

• Embedded AI vision
• Machine vision inspection systems
• Robotics and automation cameras
• Board-level camera modules
• Barcode and code scanning systems
• Industrial vision in tight enclosures
• High-speed short-range capture
• Compact industrial monitoring

Focal Length 1.7mm Mount Type S-Mount Sensor Size 1/2.5" Aperture (f-stop) f/4 Resolution (Center) 160 lp/mm Resolution (Edge) 100 lp/mm Back Focus (in air) 4.0mm Focus Range 0.1m – ∞ TV Distortion -0.32% Temperature Range -10°C to +50°C Lens Type Fixed Focal Series LM1.7Q
