Kowa LM100FC24M 1.1", 75mm, F2.5-F16, C-Mount, 24 MP Macro Lens Compatible with Sony IMX531, IMX183 and IMX304 sensors and many more

Discover the Power of Kowa LM100FC24M 1.1" Macro Lens

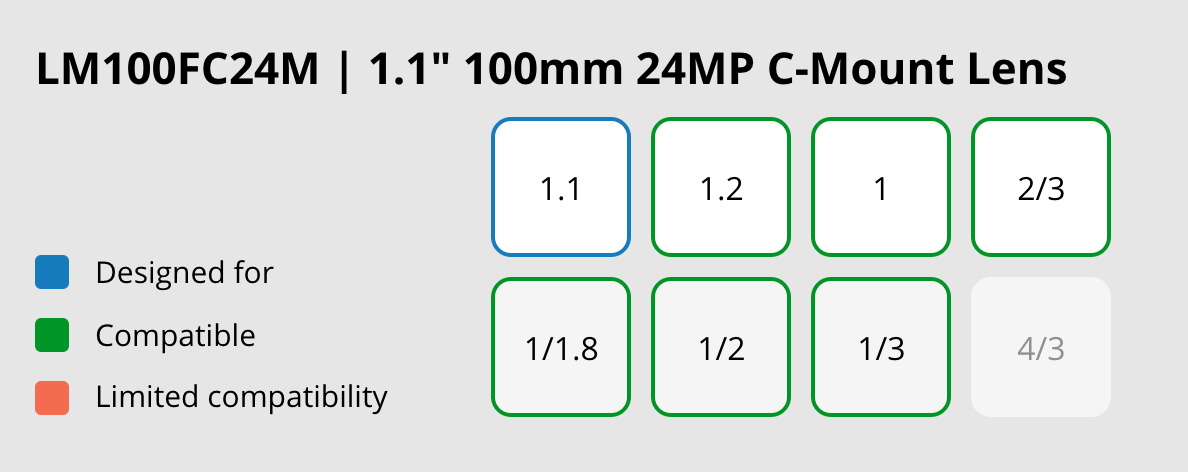

Unleash the full potential of your security system with the Kowa LM100FC24M 1.1" 24 Megapixel Macro Lens. Designed for precision and versatility, this C-Mount lens offers exceptional image quality and compatibility with sensors up to 1.1" format size, including popular models like the Sony IMX183, IMX253, and IMX304. With a large image size of Φ17.6mm, it eliminates vignetting and ensures optimal performance even with sensors as large as 14.1mm x 10.6mm. The aperture range of F2.5-F16 allows for flexibility in various lighting conditions, while its high transmission from visible to NIR wavelengths extends its utility across different applications.

Equipped with superior optics, this macro lens delivers crisp and clear images from distance to infinity, making it perfect for machine vision and industrial camera setups. Whether you're inspecting small components, monitoring production lines, or enhancing security systems, the LM100FC24M lens provides unmatched performance and reliability. Its compatibility with sensors with a pixel size of 2.5µm or greater ensures optimal resolution and accuracy in capturing details. Elevate your industrial and machine vision applications with the Kowa LM100FC24M lens.

Features:

• Compatible with 1.2" format size
• Wide aperture range from F2.5 to F16
• High transmission from visible to NIR wavelengths
• Superior optical performance from distance to infinity
• Compatible With Sony Sensors IMX183, IMX253, and IMX304

Applications:

• Component inspection
• Production line monitoring
• Security system enhancement

LM100FC24M Spec Sheet
