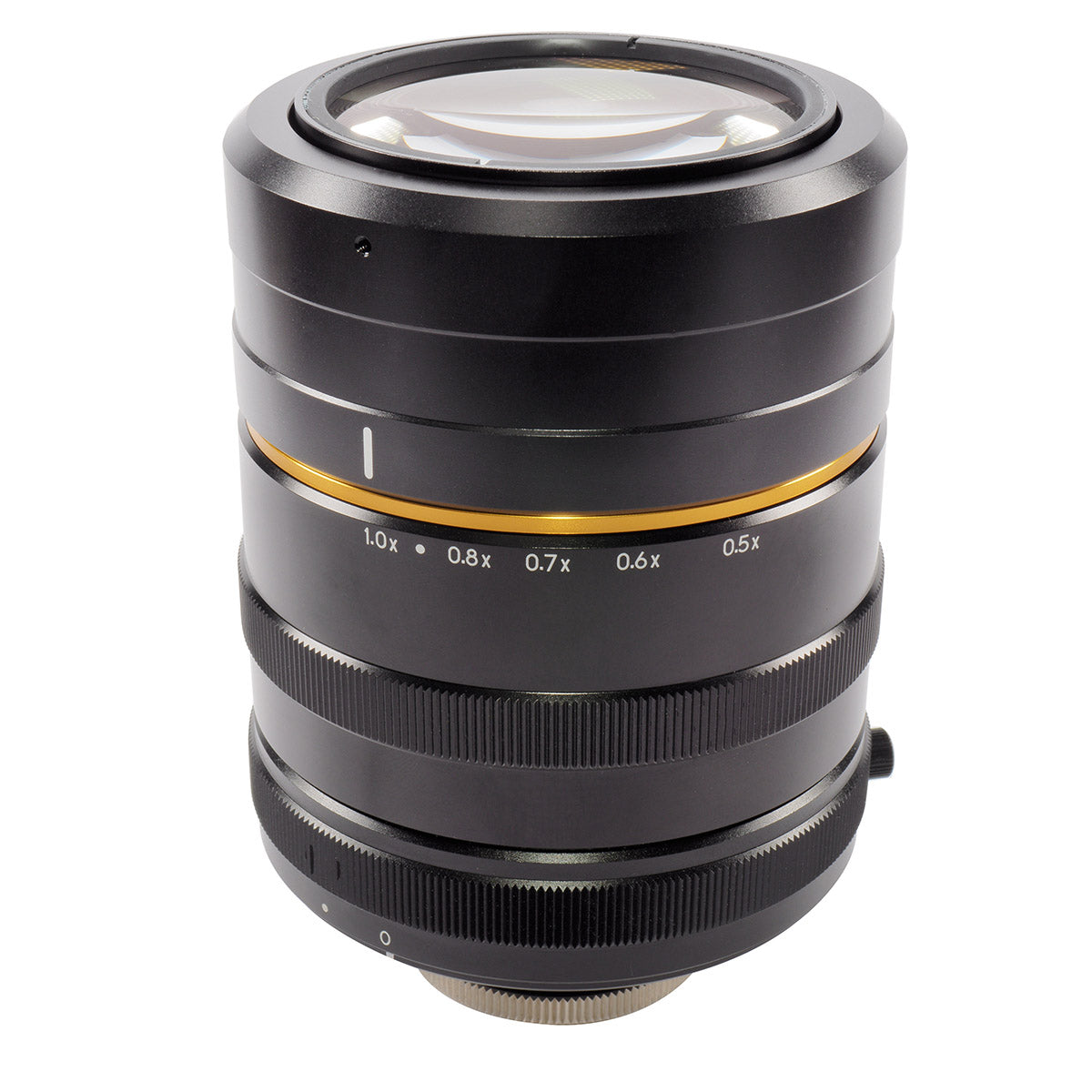

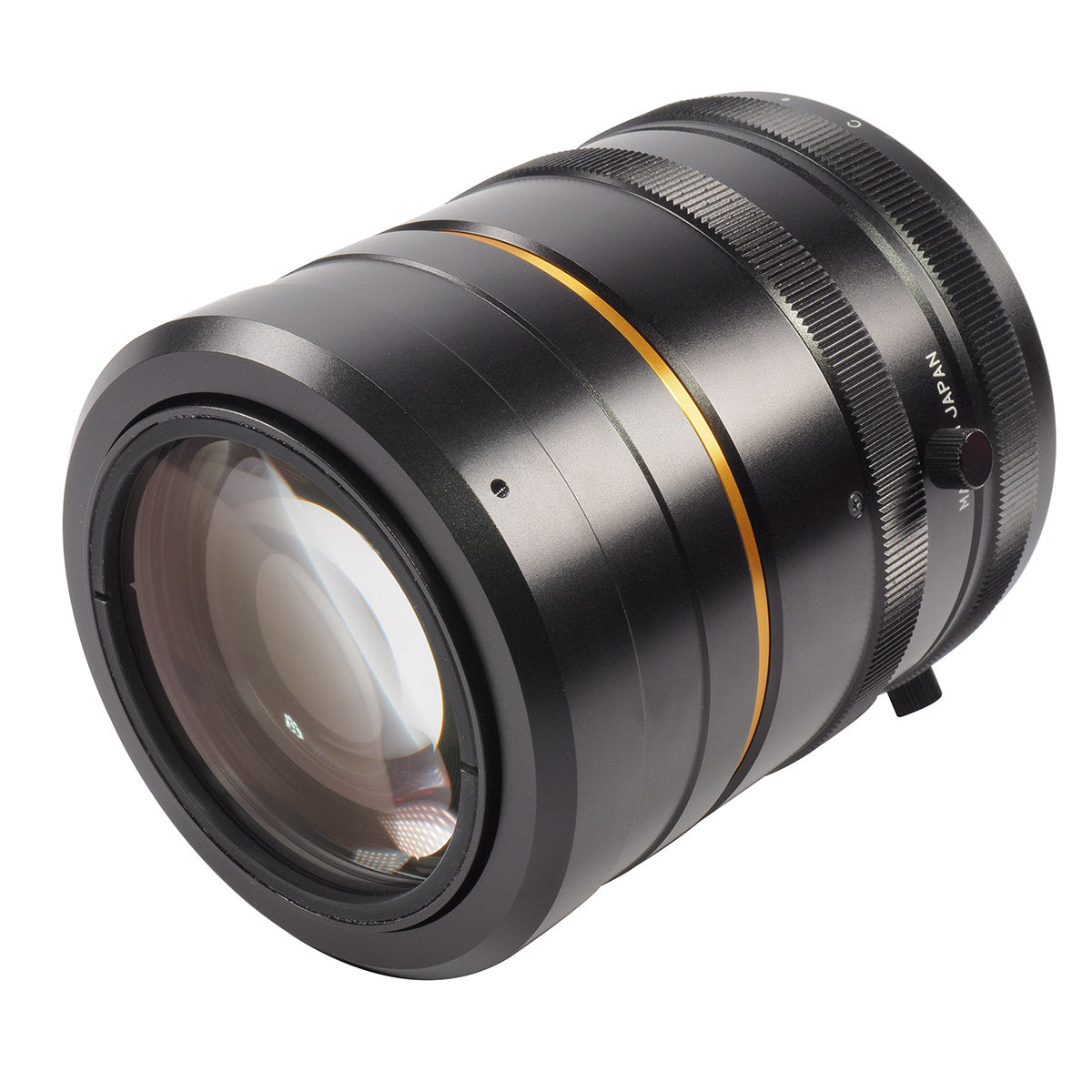

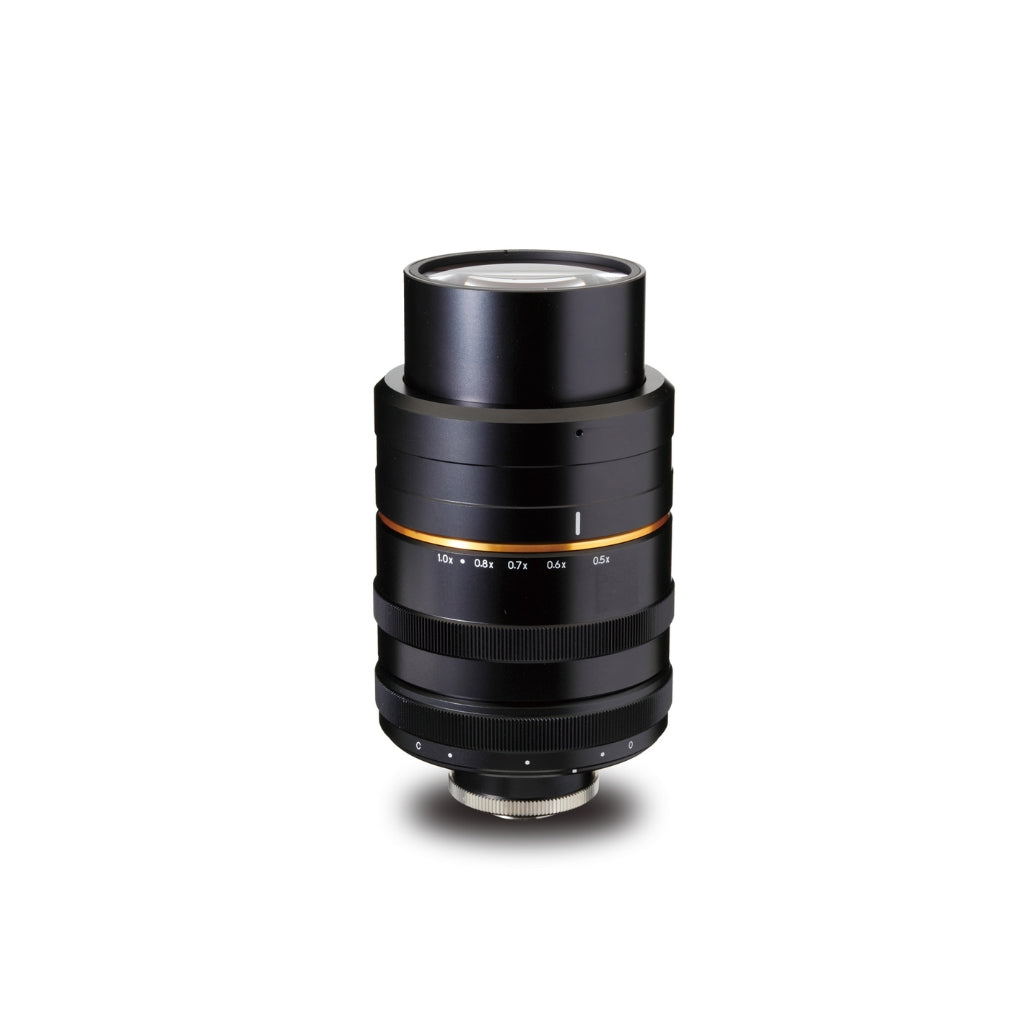

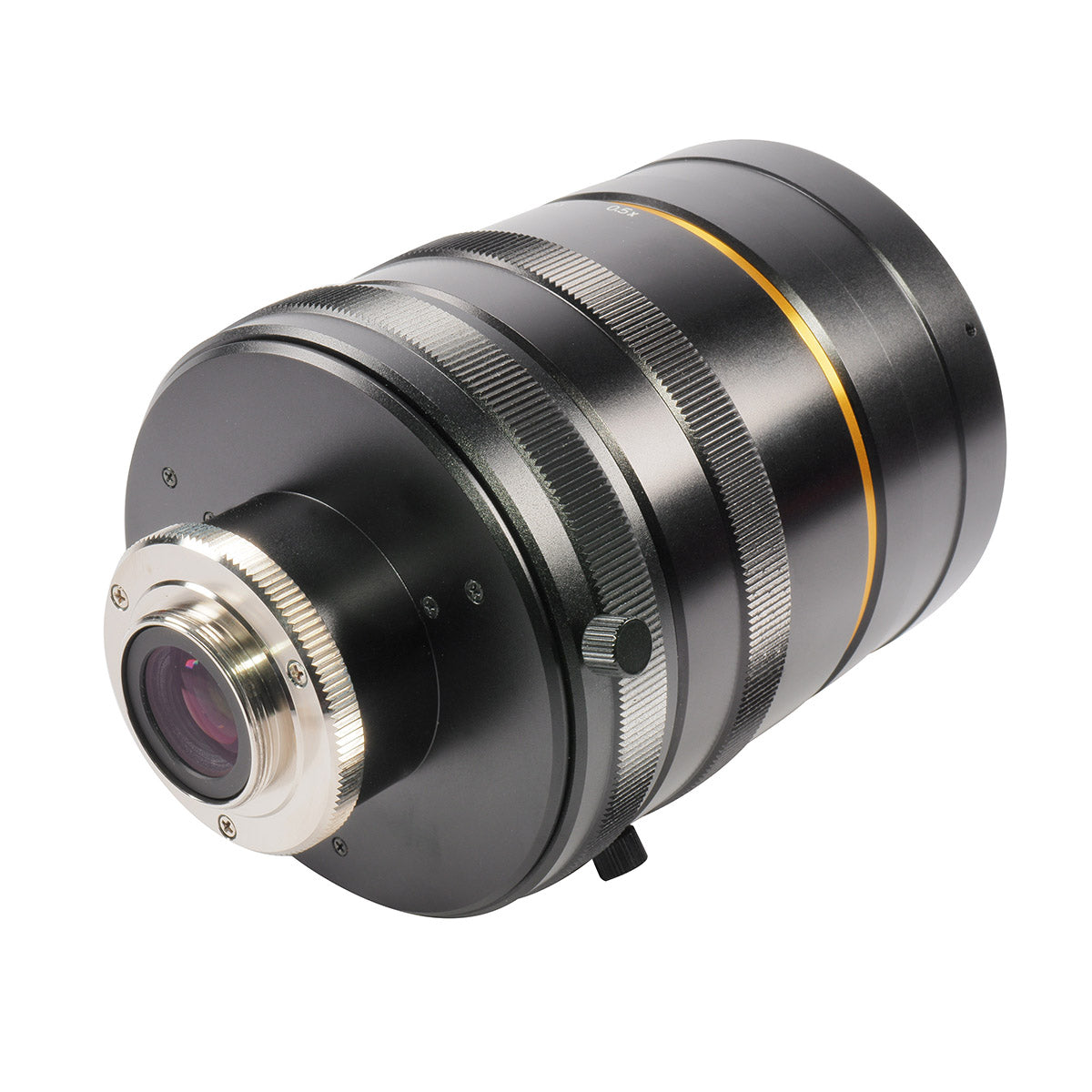

Kowa LM1119TC 4/3" 0.5~1.0x Telecentric Lens

Unmatched Precision and Clarity for Industrial Imaging

Product Spec Sheet

Kowa, a renowned name in precision optics, presents the LM1119TC 4/3" Telecentric Lens, designed to meet the exacting demands of machine vision and industrial imaging. With low TV distortion and a magnification range of 0.5-1.0x, this C-mount lens ensures unparalleled clarity and accuracy in every application. Its telecentric design eliminates perspective error, making it ideal for precise measurements and inspections.

The Kowa LM1119TC lens boasts a wavelength range from 380nm to 780nm, catering to a wide spectrum of imaging needs. Manual iris and focus controls offer flexibility and fine-tuning for various setups. Its compact size and lightweight build make it versatile for integration into diverse industrial systems. With a resolution of 120 lp/mm across the frame, this lens ensures exceptional image quality from center to corner.

Elevate your industrial imaging with Kowa's LM1119TC 4/3" Telecentric Lens. Delivering unmatched precision and clarity, it's perfect for machine vision applications. Purchase now to enhance your inspections and measurements!

Features:

• Low TV distortion
• 0.5-1.0x magnification
• Wide wavelength range: 380nm - 780nm
• Manual iris and focus control
• Compact size: Ø82 X 151.5mm
• Lightweight: 1000g

Applications:

• Precision measurement
• Quality inspection
• Automated imaging systems
• Robotics guidance
• PCB inspection
