Kowa LM12HC-V 1" Ruggedized 12mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
Kowa LM12HC-V 1" Ruggedized 12mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
SKU:LM12HC-V
Couldn't load pickup availability
Unleash Precision with Kowa LM12HC-V Ruggedized 12mm 5MP C-Mount Lens
Elevate your machine vision capabilities with the Kowa LM12HC-V, a ruggedized 12mm 5MP C-mount lens designed to meet the demands of industrial environments. Engineered for compatibility with top sensors including the Sony IMX174, CMOSIS CMV4000, and Sony IMX249, this lens ensures exceptional image quality and reliability in applications requiring high precision.
Featuring a robust construction, the Kowa LM12HC-V is tailored to withstand strong vibrations and shocks, making it ideal for deployment in challenging industrial settings. Its manual iris control allows for precise adjustment of aperture settings, empowering users to optimize image clarity and depth of field according to specific requirements.
With a fixed focal length and high resolution capabilities, this lens delivers consistent performance and sharp imaging for a wide range of machine vision tasks. Whether used for ITS/traffic control, automated quality inspection, object recognition in manufacturing, robotics guidance, or PCB inspection, the Kowa LM12HC-V offers unparalleled accuracy and reliability.
Upgrade your machine vision system today with the Kowa LM12HC-V and experience enhanced precision and efficiency in your industrial applications.
Features:
- Compatible with Sony IMX174, CMOSIS CMV4000, Sony IMX249, and more sensors
- Ruggedized construction for shock and vibration resistance
- High resolution of 5MP for precise imaging

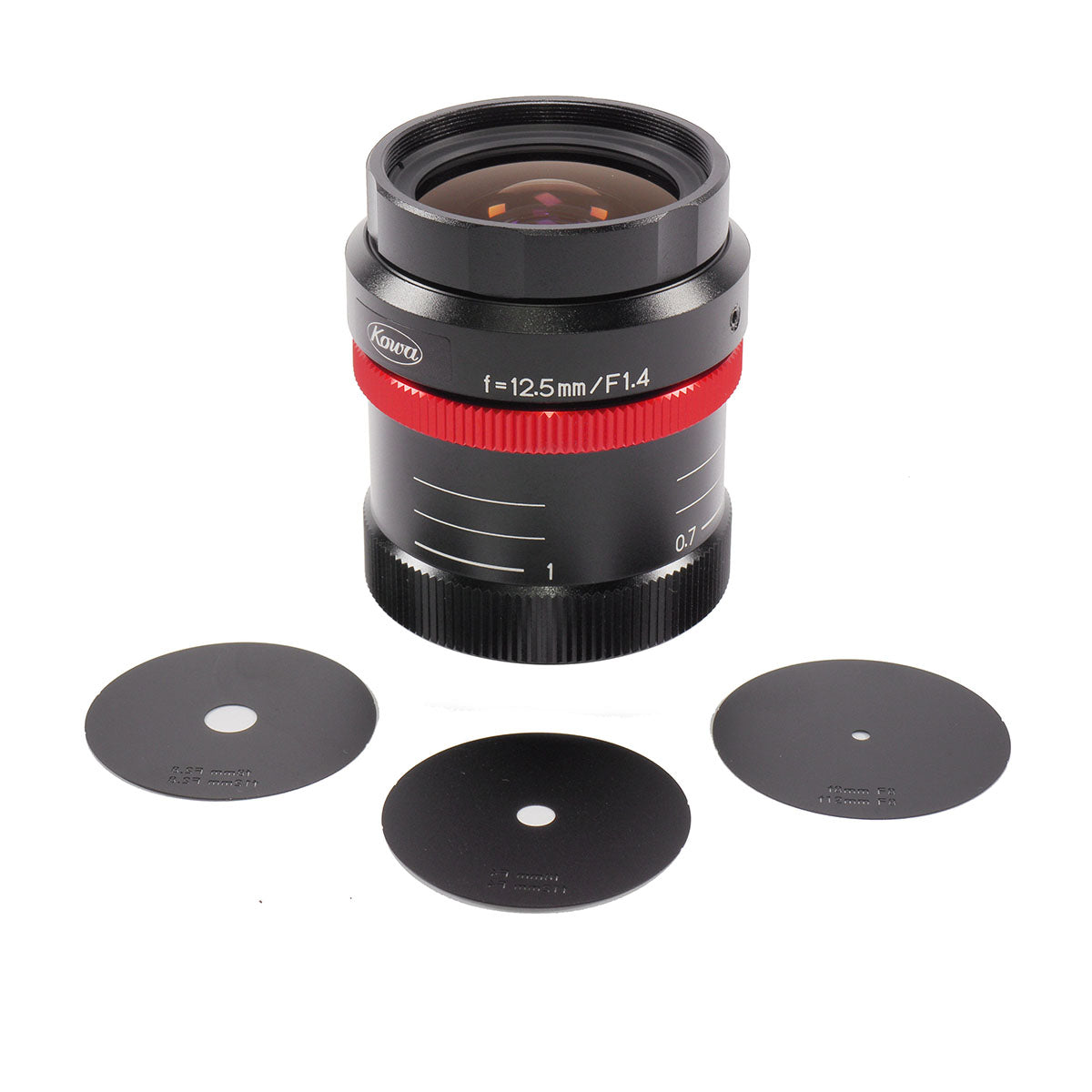

- Manual iris control for customizable aperture settings
- Fixed focal length design for consistent performance
Applications:
- ITS/Traffic Control systems
- Automated quality inspection
- Object recognition in manufacturing
- Robotics guidance
- PCB inspection
| Aperture (F-stop) | F1.4 / F2.8 / F4 / F8 |
| Aperture (control) | Manual |
| Application field | ITS/Traffic Control, Machine Vision |
| Back focus in air (mm) | 12.6 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 330.6 |
| Field of view at minimum working distance, vertical (mm) | 243.5 |
| Filter size (mm) | M35.5 x P0.5 |
| Focal length (mm) | 12.5 |
| Focus range (m) | 0.3 - ∞ |
| Megapixel | 5 |
| Mount | C-mount |
| Pixel size (µm) | 5 |
| Resolution, centre (lp/mm) | 120 |
| Resolution, margin (lp/mm) | 80 |

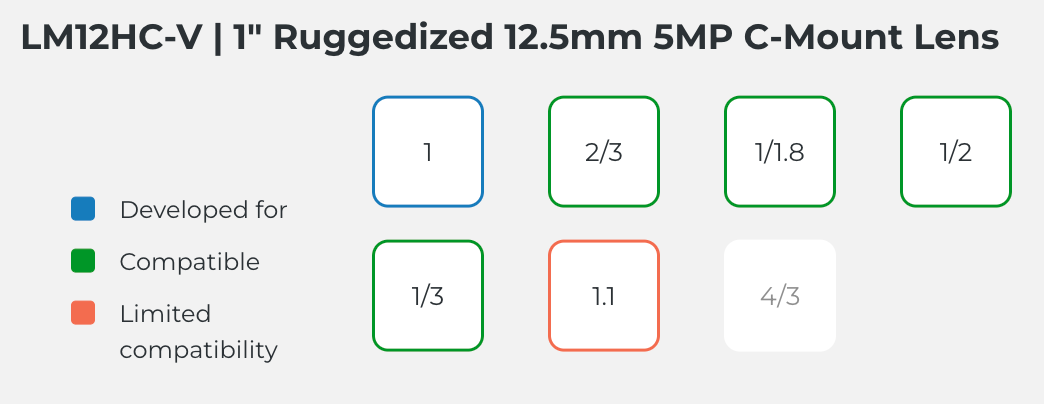

| Sensor size | 1" |

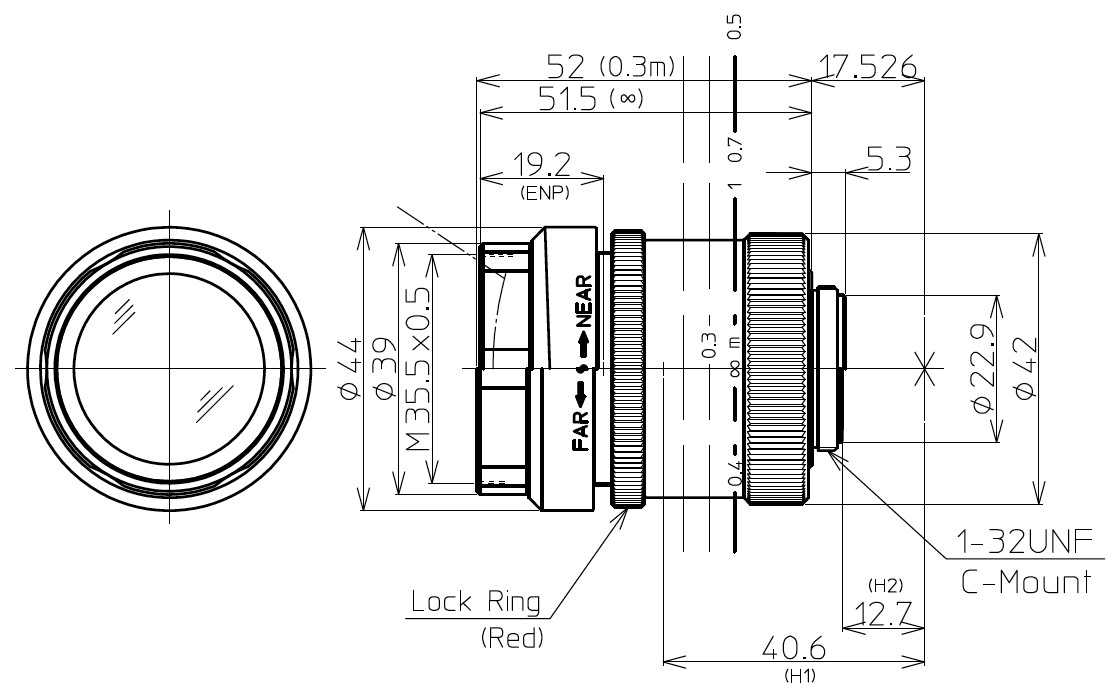

| Size (mm) | Ø44 x 52 |
| TV distortion (%) | -1.58 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Peak Coating (400nm – 1000nm) |
| Weight (g) | 130 |
