USA Security Systems

LM12JC10M

Kowa LM12JC10M 2/3" 12mm 10MP C-Mount Lens Compatible With Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more

Kowa LM12JC10M 2/3" 12mm 10MP C-Mount Lens Compatible With Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more

SKU:LM12JC10M

Regular price $820.90 USD
Regular price Sale price $820.90 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

High-Performance Kowa LM12JC10M 2/3" 12mm 10MP C-Mount Lens

In the realm of machine vision and industrial imaging, precision is paramount. This ethos is embodied by the Kowa LM12JC10M lens, meticulously crafted to elevate your imaging solutions to new heights of clarity and accuracy. With a focal length of 12mm and compatibility with 2/3" sensors, including Sony IMX250, IMX264, and Aptina MT9D131, this lens boasts unparalleled versatility.

Its manual iris control ensures precise adjustments, allowing you to tailor your imaging to exact specifications. The broad band coating extends its functionality across various wavelengths, from 380nm to 1000nm, enhancing its adaptability in diverse environments.

Designed for applications requiring exceptional detail, the Kowa LM12JC10M lens delivers a resolution of 10MP, capturing even the subtlest nuances with stunning clarity. Its compact size and lightweight construction belie its robust performance, making it an ideal choice for machine vision systems, broadcast applications, and security systems alike.

Whether you're inspecting intricate components in industrial settings or monitoring critical processes with unwavering precision, the Kowa LM12JC10M lens empowers you to see the unseen, unlocking new possibilities in imaging excellence.

Upgrade your vision today with the Kowa LM12JC10M lens and experience the difference precision makes in your imaging solutions.

Features:

  • High resolution for detailed imaging
  • Manual iris control for precise adjustments
  • Broad band coating for versatile use
  • Compatible with Sony IMX250, IMX264, and Aptina MT9D131 sensors

Applications:

  • Machine vision systems
  • Industrial imaging
  • Broadcast applications
  • Security systems

LM12JC10M Spec Sheet

Focal Length (mm) 12 mm

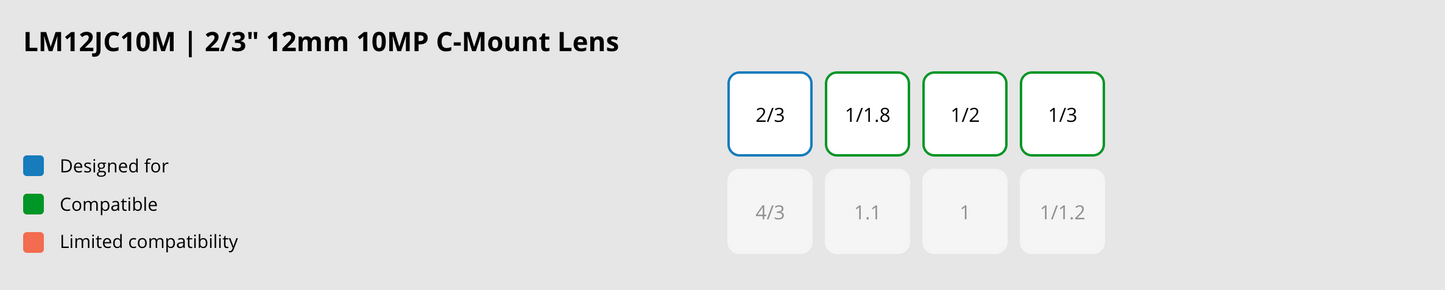

Sensor Size 2/3"
Pixel Size (µm) 2,5
Mount C-Mount
Iris Control Manual
Iris Range (F-Stop) 1,8 - 11
Lens Type Fixed Focal Lens
Wavelength Range VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm)
Focusing range (m) 0,1 - ∞
Focus Control Manual
Shooting range at MOD, horizontal (mm) 80,7
Shooting range at MOD, vertical (mm) 60,2
Resolution (Center, Corner) 200lp/mm,160lp/mm
Megapixel 10
TV Distortion (%) -0,12
Back Focus in Air (mm) 13,9
Filter Size (mm) M25,5 x P0,5

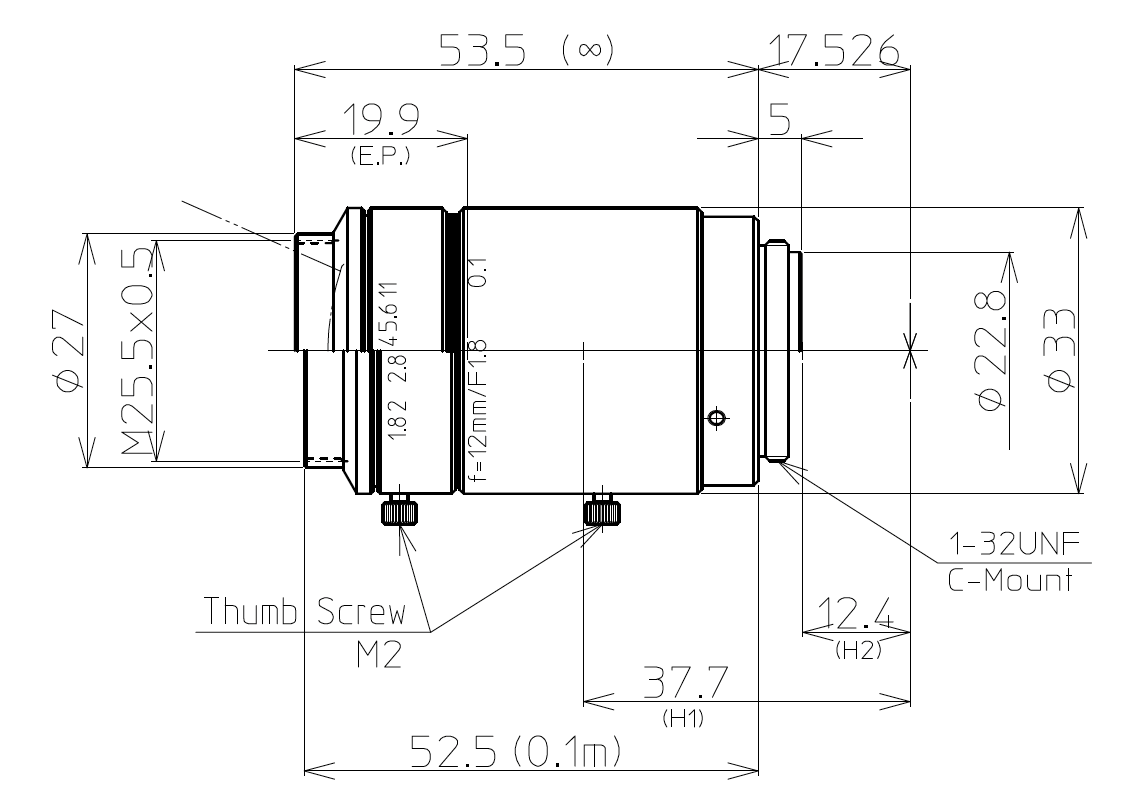

Size (mm) Ø33 X 53,5
Weight 105
Temperature Range -10°C - +50°C
Series JC10M
Application Machine Vision, Broadcast
