USA Security Systems

LM16HC

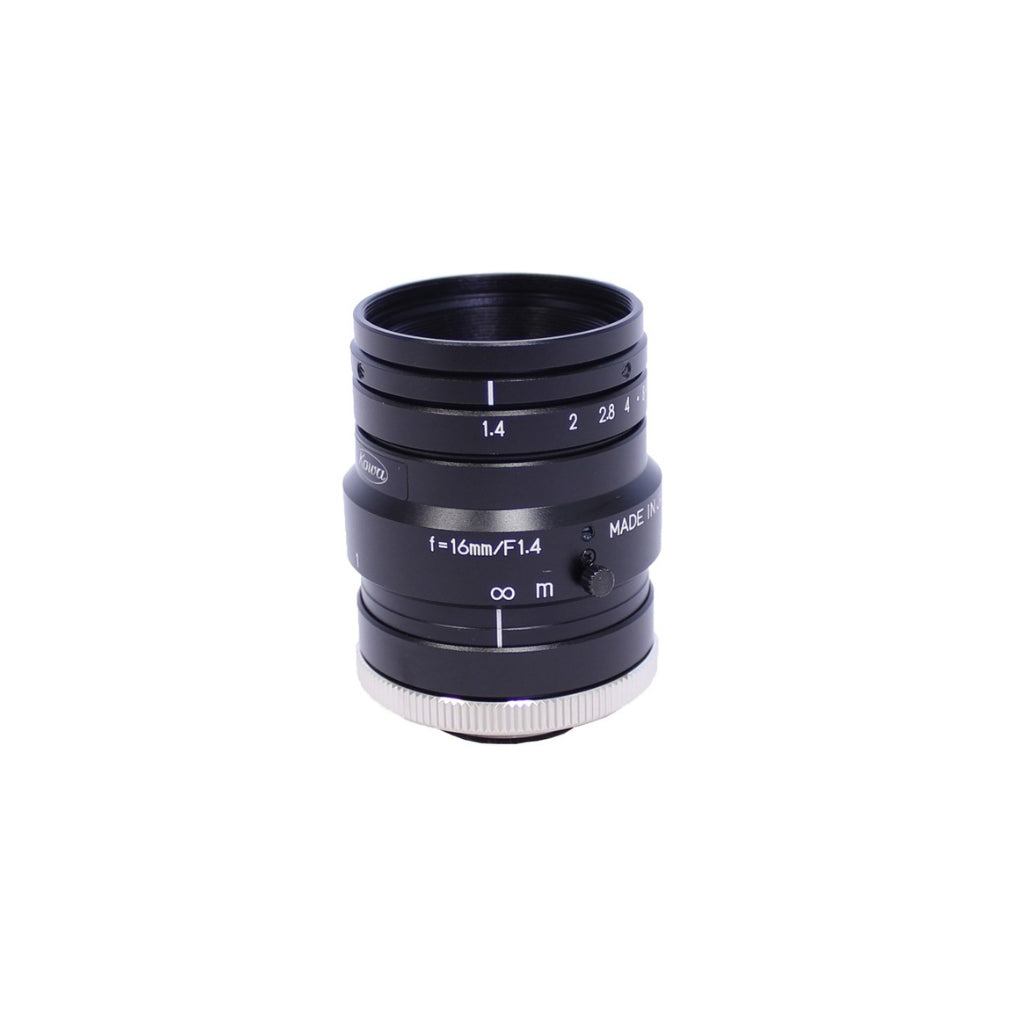

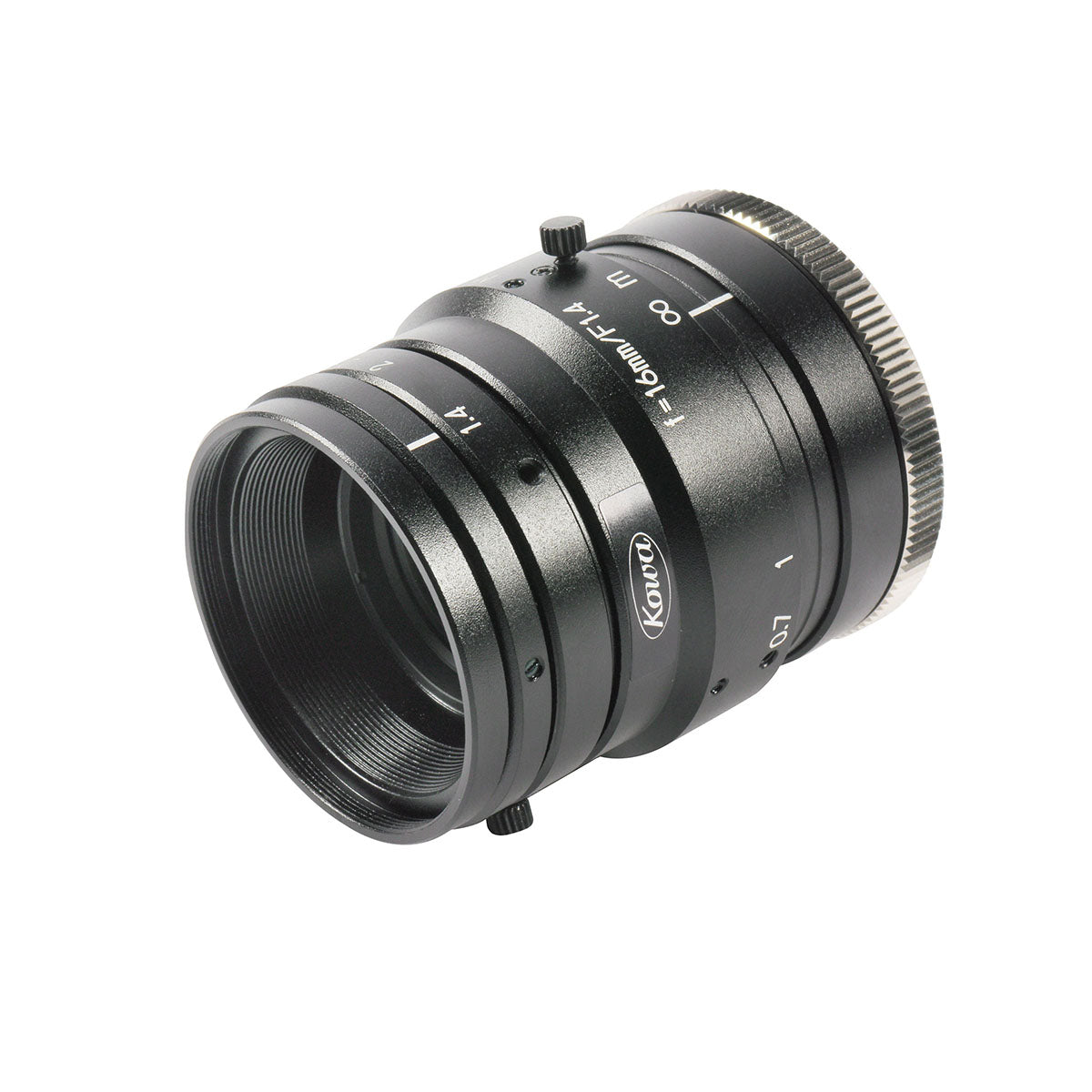

Kowa LM16HC 1" 16mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more

Kowa LM16HC 1" 16mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more

SKU:LM16HC

Regular price $210.00 USD
Regular price Sale price $210.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Unveiling the Power of Kowa LM16HC 1" 16mm 5MP C-Mount Lens

Discover the pinnacle of clarity and precision with the Kowa LM16HC 1" 16mm 5MP C-Mount Lens, tailored for industrial and machine vision applications. Engineered with meticulous attention to detail, this lens is optimized for sensors with a pixel size of 5.0μm or more, making it perfect for Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors, among others.

With a focal length of 16mm and manual iris control ranging from f/1.4 to f/16, it offers unparalleled flexibility and control over image capture. Its VIS wavelength range ensures accurate imaging in various lighting conditions, while its high resolution of up to 120 lp/mm guarantees crystal-clear visuals. Whether used in broadcast, ITS/traffic control, or security systems, this lens delivers exceptional performance and reliability. Elevate your vision and empower your applications with the Kowa LM16HC 1" 16mm 5MP C-Mount Lens.

Features:

  • Focal length of 16mm
  • Manual iris control (f/1.4 - f/16)
  • Compatible with Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors
  • High resolution up to 120 lp/mm
  • VIS wavelength range for accurate imaging

Applications:

  • Broadcast
  • ITS/Traffic Control
  • Security Systems

LM16HC Spec Sheet

Focal Length (mm) 16 mm
Image Size (mm) 12.8x9.6 (Φ16)
Iris Range F 1.4 - 16
Focusing range (m) 0.3 - ∞
Iris Manual
Focus  Manual
Shooting range at MOD (mm) 251.5 x 186.2

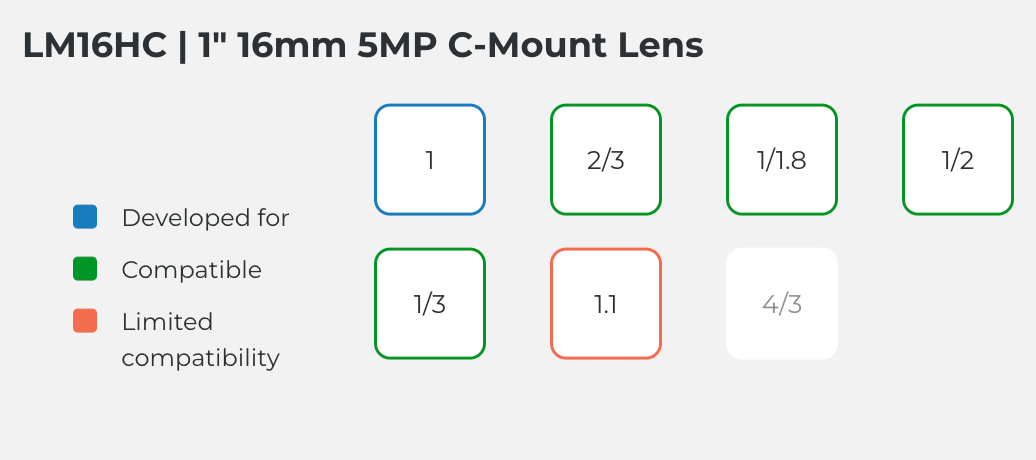

Angle of View (Degrees) 1": 44.3 x 33.6
2/3": 30.8 x 23.2
1/1.8": 25.3 x 19.0
Resolution (Center, Corner) 120lp/mm, 80lp/mm
TV Distortion (%) -1.0
Back Focus in Air (mm) 12.6

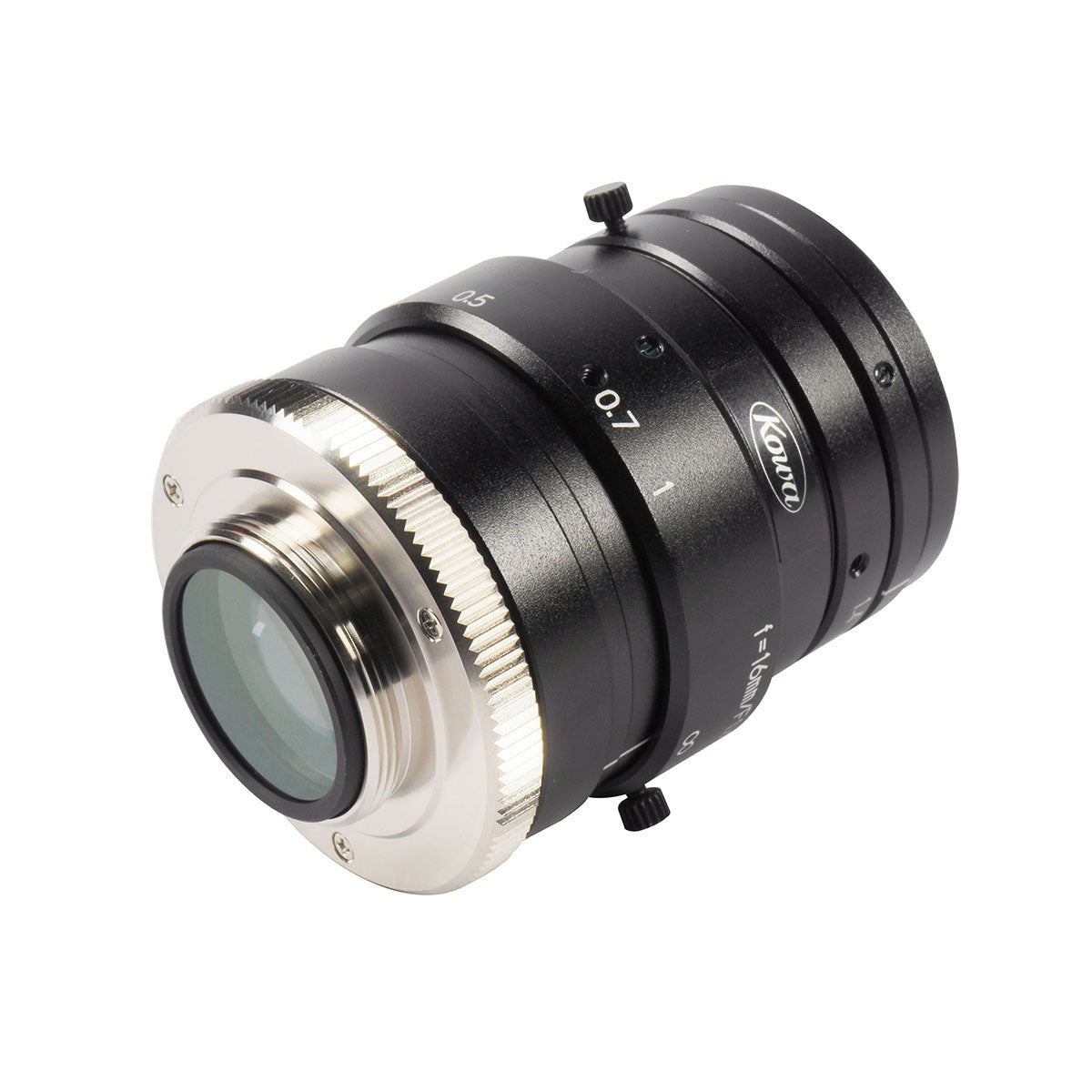

Mount C-Mount
Filter Thread (mm) M35.5xP0.5

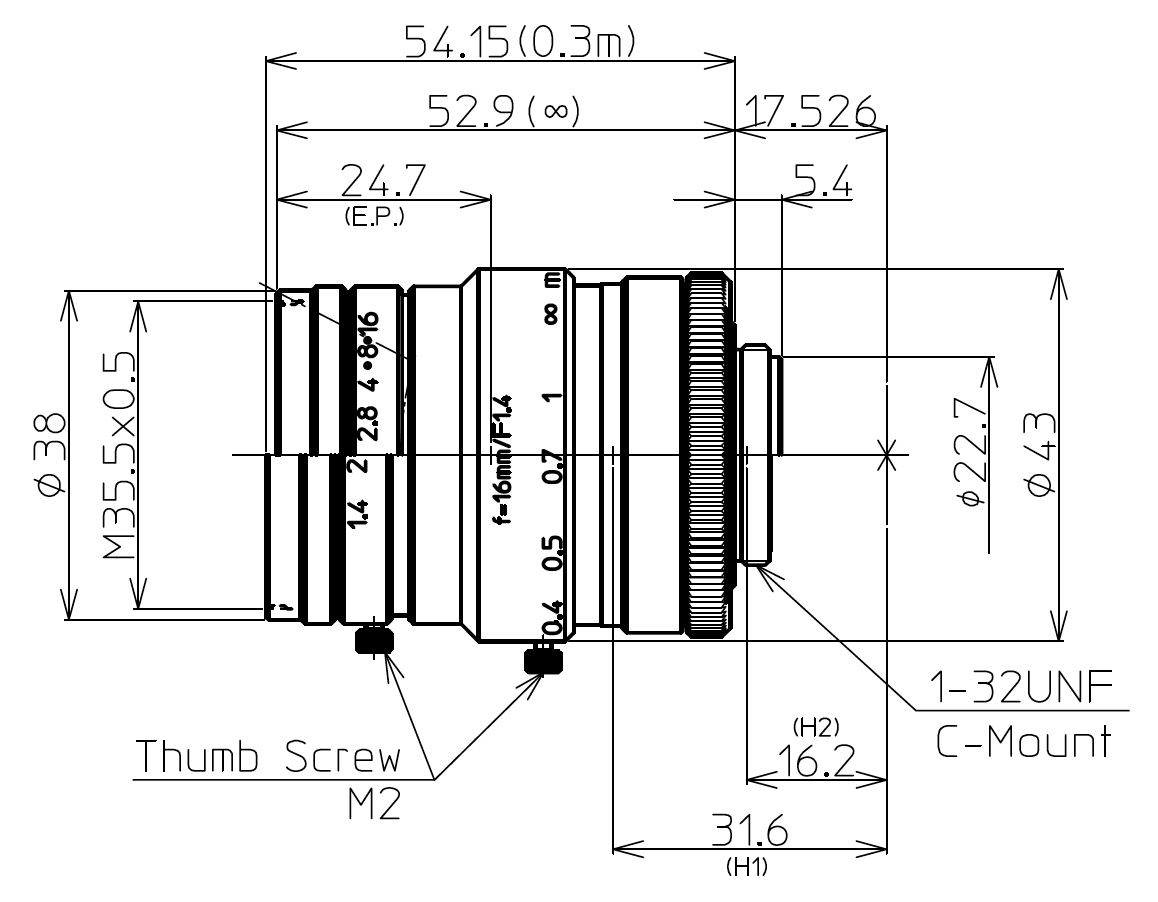

Size (mm) Φ43 x 52.9
Weight 150
Temperature Range -10°C - +50°C
