LM25FC24M
Kowa LM25FC24M 1.1" 25mm 24MP C-mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more
Kowa LM25FC24M 1.1" 25mm 24MP C-mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more
SKU:LM25FC24M
Unlock Precision Imaging with Kowa LM25FC24M Lens
In the realm of machine vision and industrial lenses, the Kowa LM25FC24M stands as a pinnacle of precision and performance. Designed to cater to the exacting demands of industrial imaging applications, this C-mount lens offers a focal length of 25mm, paired with a generous 1.1" sensor size, ensuring compatibility with a wide array of imaging setups. What sets the Kowa LM25FC24M apart is its remarkable 24-megapixel capacity, coupled with its suitability for sensors with a pixel size of 2.5μm or more, including the esteemed Sony IMX series like IMX183, IMX530/540, IMX531/541, IMX253/304, and many more.
Crafted with meticulous attention to detail, this lens boasts manual iris control, allowing users to fine-tune their imaging parameters with unparalleled precision. Its broad band coating ensures optimal light transmission across the visible spectrum, delivering images of exceptional clarity and detail. From industrial automation to quality control inspection, the Kowa LM25FC24M lens finds its niche in a myriad of machine vision applications, where accuracy and reliability are paramount.
Whether it's broadcasting, traffic control, or machine vision systems, this lens elevates imaging to new heights, empowering businesses to achieve unmatched levels of efficiency and quality assurance. Experience the difference with the Kowa LM25FC24M lens and unlock a world of precision imaging possibilities.
Features:

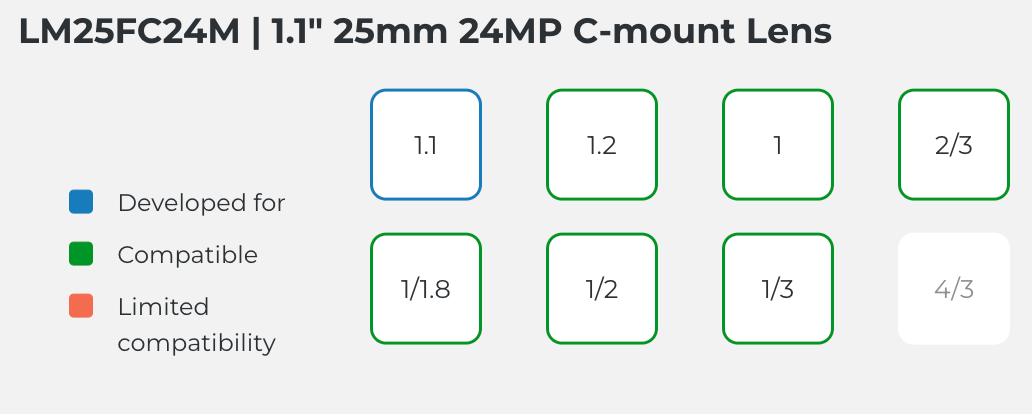

- Compatible with Sony IMX sensors
- Manual iris control for precision
- Broad band coating for enhanced clarity
- Versatile C-mount design
- High-resolution 24MP imaging
Applications:
- Industrial automation
- Machine vision systems
- Quality control inspection
- Industrial imaging solutions
Focal Length (mm) | 25 mm |
Image Size (mm) | 14.1x10.6 (Φ17.6) |
Iris Range | F1.8 - F16 |
Focusing range (m) | 0.1 - ∞ |
Iris | Manual |
Focus | Manual |
Shooting range at MOD (mm) | 64 x 48 |
Angle of View (Degrees) | 1.1": 31.5 x 23.9 1": 28.7 x 21.7 2/3": 20.0 x 15.0 |
Resolution (Center, Corner) | 200lp/mm,100lp/mm |
TV Distortion (%) | -0.3 |
Back Focus in Air (mm) | 13.3 |
Mount | C-mount |
Filter Thread (mm) | M35.5xP0.5 |

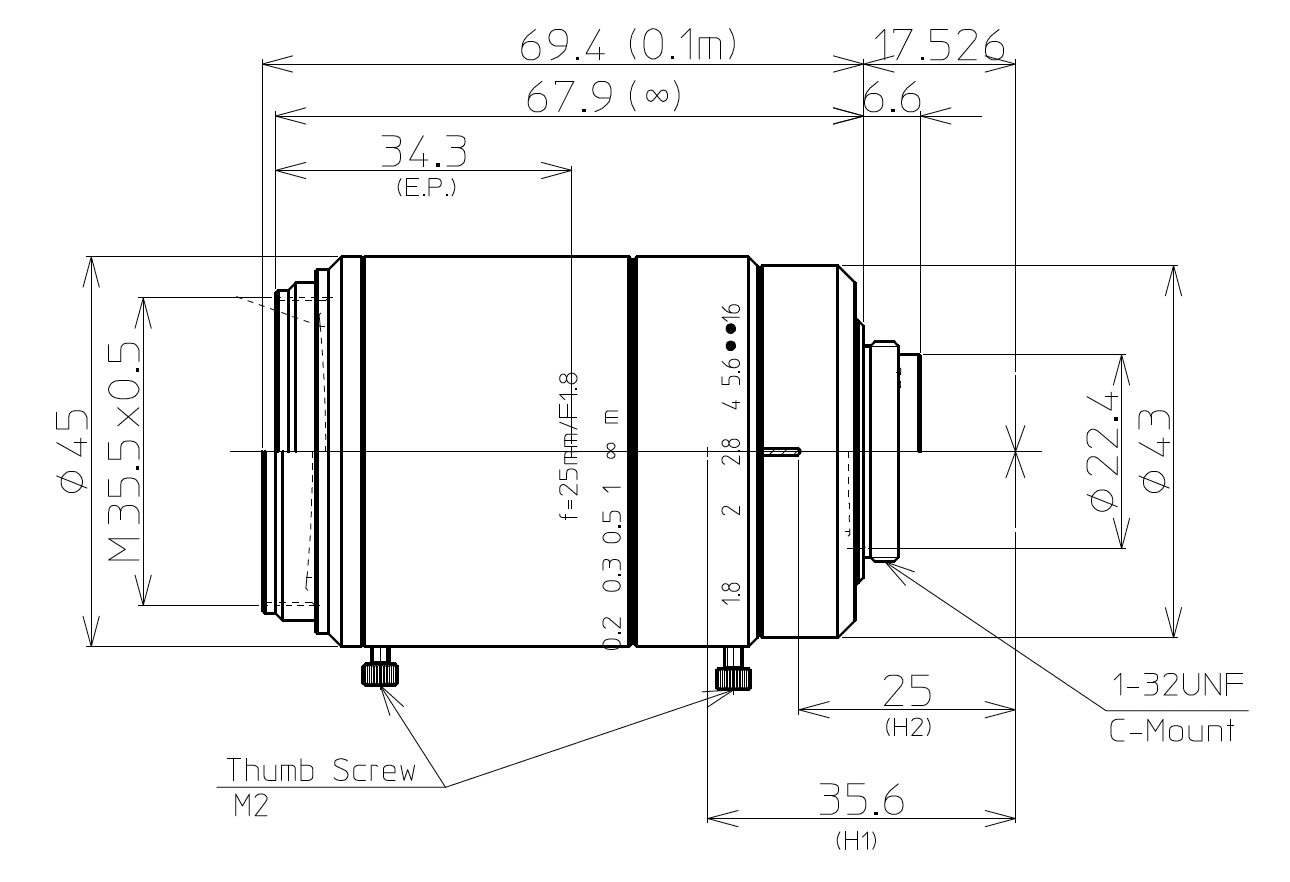

Size (mm) | Φ45 x 67.9 |
Weight | 220 |
Temperature Range | -10°C - +50°C |
