LM25HCV
Kowa LM25HC-V 1" Ruggedized 25mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
Kowa LM25HC-V 1" Ruggedized 25mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
SKU:LM25HC-V
Couldn't load pickup availability
Exceptional Vision with Kowa LM25HC-V 1" Ruggedized Lens
In the realm of machine vision and industrial lenses, Kowa stands out with its LM25HC-V series, epitomized by the LM25HC-V 1" Ruggedized Lens. Crafted for resilience and precision, this lens thrives in environments marked by vibrations and shocks. With a focal length of 25mm and compatibility with sensors like Sony IMX174, CMOSIS CMV4000, and Sony IMX249, it guarantees exceptional performance.
This lens boasts manual iris control, offering flexibility and fine-tuning in various scenarios. Its ruggedized design ensures durability, while its high-resolution capability, reaching up to 5MP, delivers crisp and clear imaging. The lens's adaptability to sensors with a pixel size of 5.0μm ensures versatility across applications.
Features:
- Ruggedized design for resilience

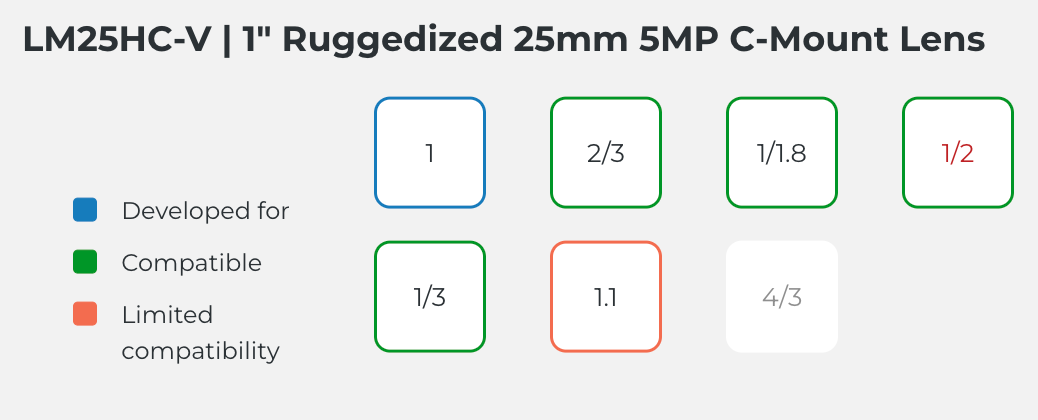

- Compatibility with various sensors
- Manual iris control for precision
- High-resolution imaging up to 5MP
- Adaptability to 5.0μm pixel size sensors
Applications:
- Industrial inspection
- Quality control
- Robotics
- Traffic monitoring
- Surveillance systems
| Focal Length (mm) | 25 mm |
| Sensor Size | 1" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F1.4 / F2.8 / F4 / F8 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,3 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 160,7 |
| Shooting range at MOD, vertical (mm) | 119,2 |
| Resolution, Center (lp/mm) | 120 |
| Resolution, Corner (lp/mm) | 80 |
| Megapixel | 5 |
| Distortion (TV) (%) | -1 |
| Back focus in air (mm) | 16,5 |
| Filter Size (mm) | M35,5 x P0,5 |
| Size (mm) | Ø44 X 43 |
| Weight (g) | 104 |
| Temperature Range (℃) | -10°C - +50°C |

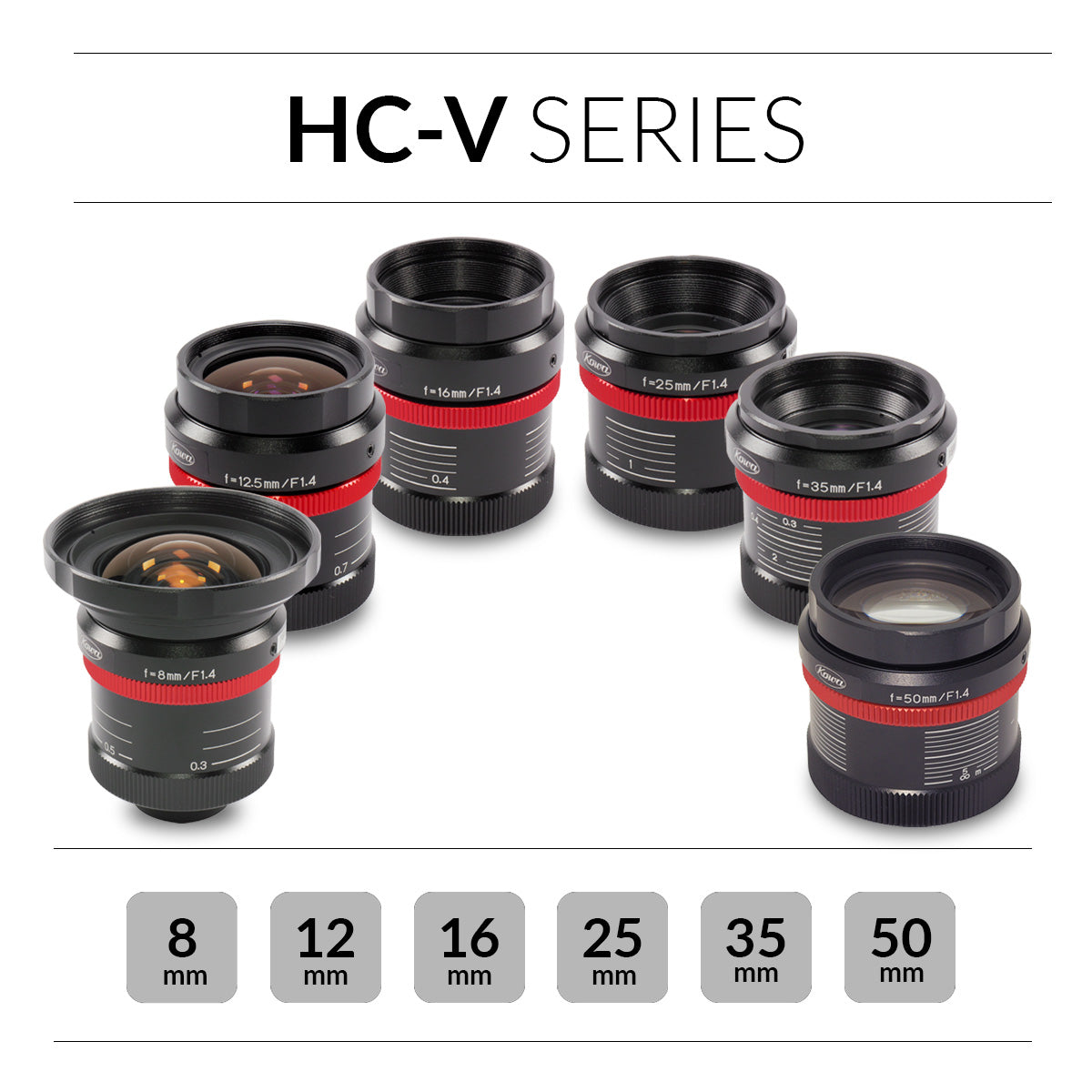

| Series | HC-V |
| Application | ITS/Traffic Control, Machine Vision |
