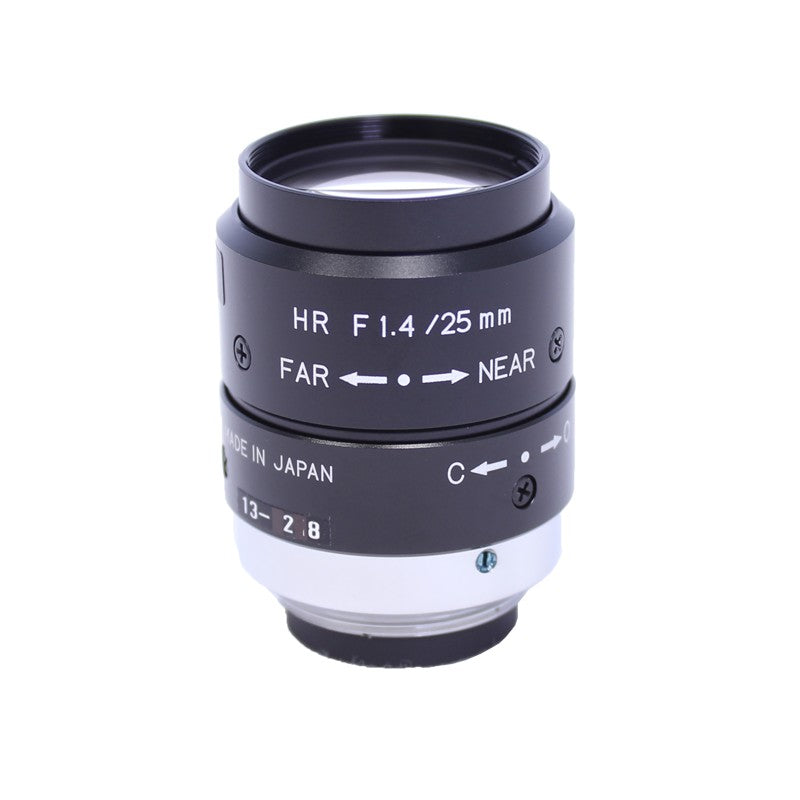

Kowa LM25JCM 2/3" 25mm Megapixel Lens

Kowa LM25JCM 2/3" 25mm Megapixel Lens

SKU:LM25JCM

Regular price $181.00 USD
Regular price Sale price $181.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Unveiling the Kowa LM25JCM Megapixel Lens for Machine Vision

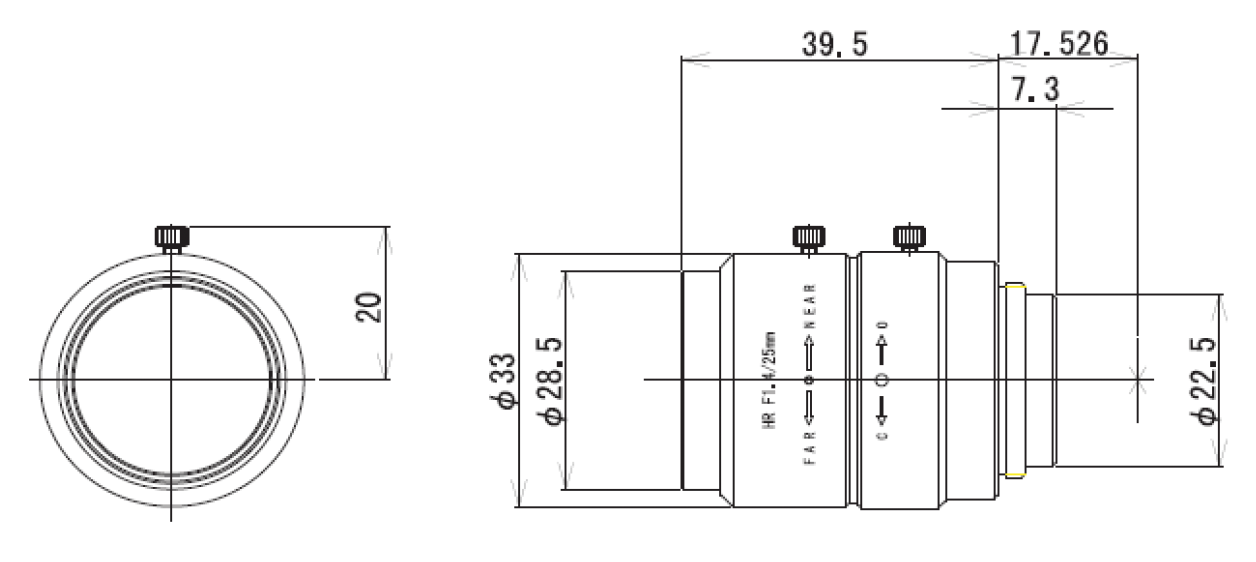

Product Spec Sheet

The Kowa LM25JCM Megapixel Lens stands as a testament to precision engineering, designed specifically for machine vision and industrial applications. With a focal length of 25mm and compatibility with 2/3" sensors boasting a pixel size from 5.0μm, this C-mount lens ensures unparalleled image quality. Its manual iris control, ranging from F1.6 to F16, allows precise adjustment for optimal light conditions.

Crafted as a fixed focal lens, the Kowa LM25JCM guarantees consistent performance across various applications, maintaining sharpness and clarity throughout. Its VIS wavelength range from 380nm to 780nm ensures versatility in imaging diverse materials and objects. With manual focus control and a focusing range from 0.2m to infinity, users can finely tune their vision system to capture even the minutest details.

Boasting exceptional resolution of 100 lp/mm at the center and 60 lp/mm at the corner, alongside minimal distortion of -0.6%, this lens delivers crisp, distortion-free images crucial for accurate analysis in industrial settings. Its robust construction withstands temperatures from -10°C to +50°C, ensuring reliable operation in challenging environments.

Features:

  • High resolution and low distortion
  • Manual iris and focus control
  • Wide temperature range (-10°C to +50°C)
  • Compatible with 2/3" sensors with 5.0μm pixel size
  • VIS wavelength range for versatile applications

Applications:

  • Quality inspection
  • Robotics
  • Material handling
  • Automation
  • Surveillance
