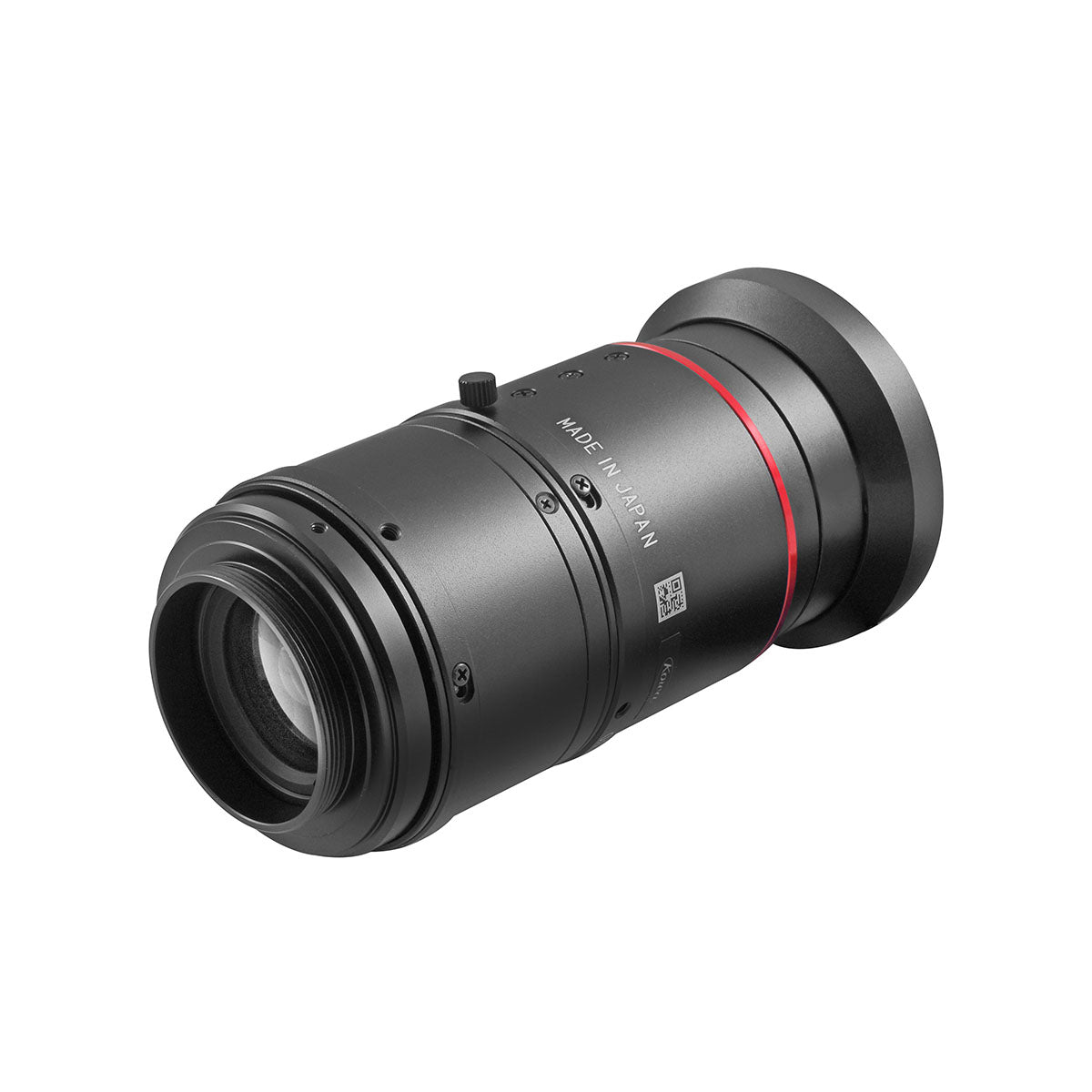

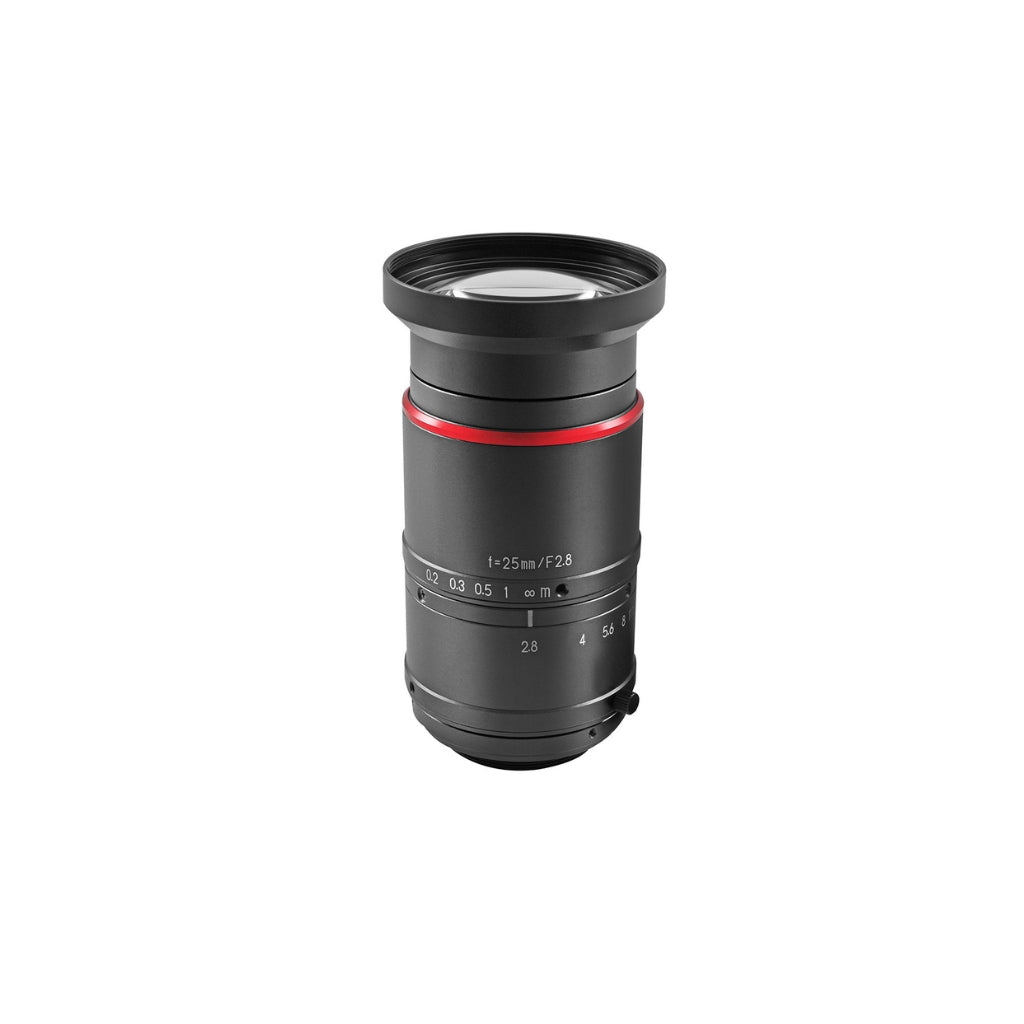

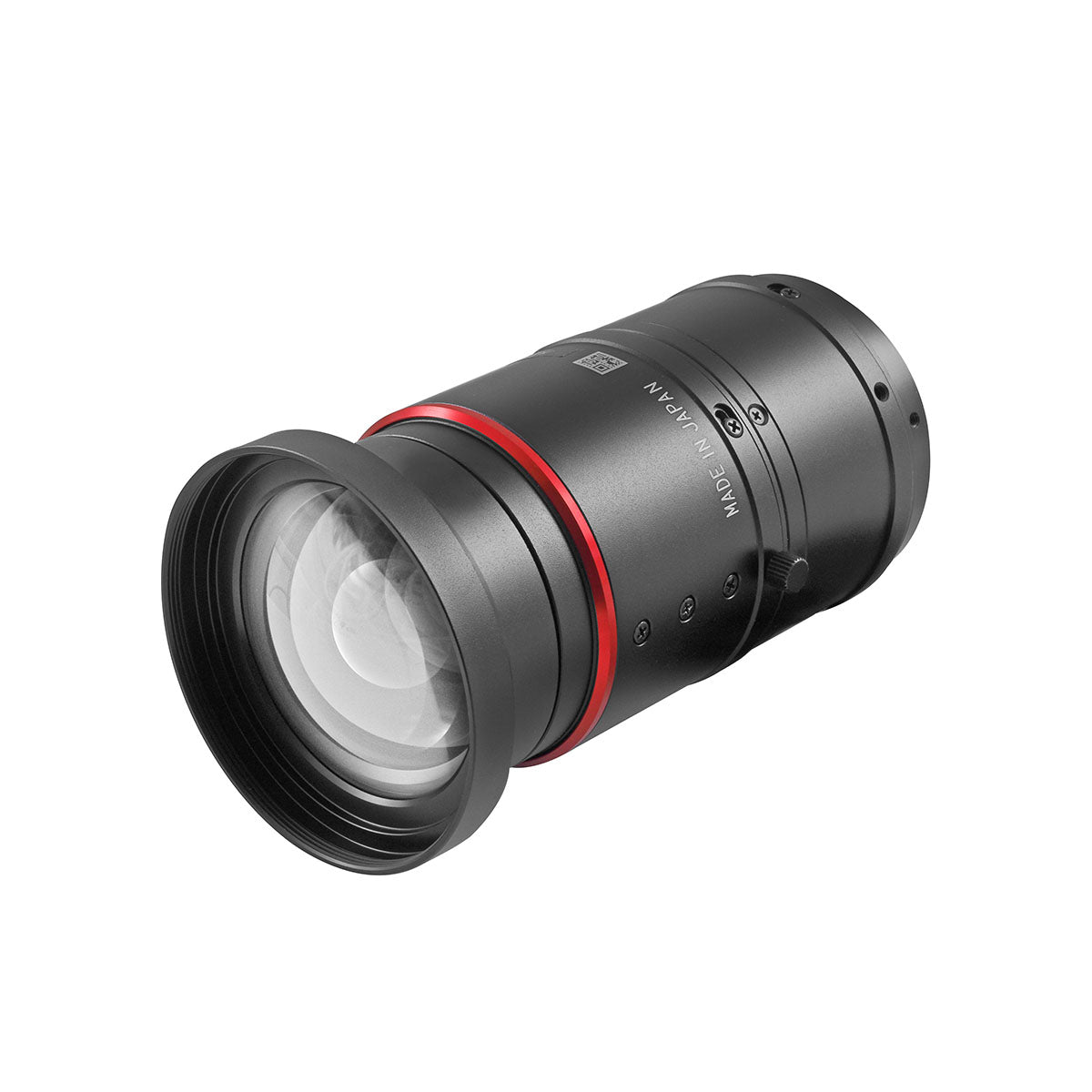

Kowa LM25VM35 2" ø32mm 50MP Lens Compatible With Sony IMX342, CMOSIS CMV12000, CMV20000 & CMV50000

Kowa LM25VM35 2" ø32mm 50MP Lens Compatible With Sony IMX342, CMOSIS CMV12000, CMV20000 & CMV50000


Regular price $1,123.00 USD
Regular price Sale price $1,123.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Revolutionizing Industrial Vision: Kowa LM25VM35 Lens

Product Spec Sheet

In the realm of machine vision and industrial applications, Kowa stands as a beacon of optical excellence. The Kowa LM25VM35 2" lens with a ø32mm image circle and a resolution of up to 50MP epitomizes precision and reliability. Crafted to perfection, it caters to sensors with a pixel size of 3.1μm or more, including the Sony IMX342 and CMOSIS CMV series, ensuring compatibility and seamless integration. With a TFL-Mount and manual iris control, this fixed focal lens offers unparalleled flexibility and accuracy in image capture. Its ability to maintain high resolution across the frame, with 160 lp/mm at the center and 100 lp/mm at the corner, ensures clarity in even the most demanding applications.

This lens finds its place in a myriad of industrial settings, from quality control in manufacturing to robotics and automation. Its robust construction and wide temperature range (-10°C to +50°C) make it suitable for harsh environments. Whether it's inspecting intricate electronic components or monitoring production lines, the Kowa LM25VM35 lens delivers exceptional performance, empowering businesses to streamline processes and enhance productivity.

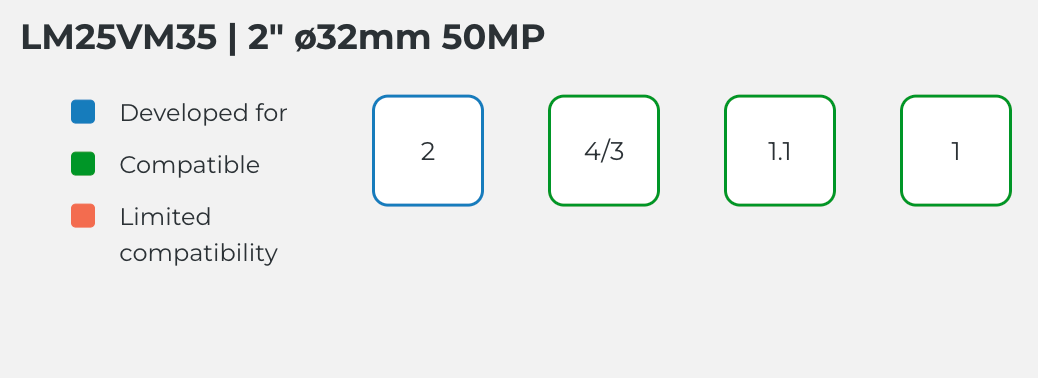

  • Compatible with Sony IMX342, CMOSIS CMV sensors
  • Manual iris control for precise adjustments
  • High resolution: 160 lp/mm at center, 100 lp/mm at corner
  • ø32mm image circle
  • TFL-Mount for seamless integration


  • Quality control in manufacturing
  • Robotics and automation
  • Electronic component inspection
  • Production line monitoring
