LM35FC24M

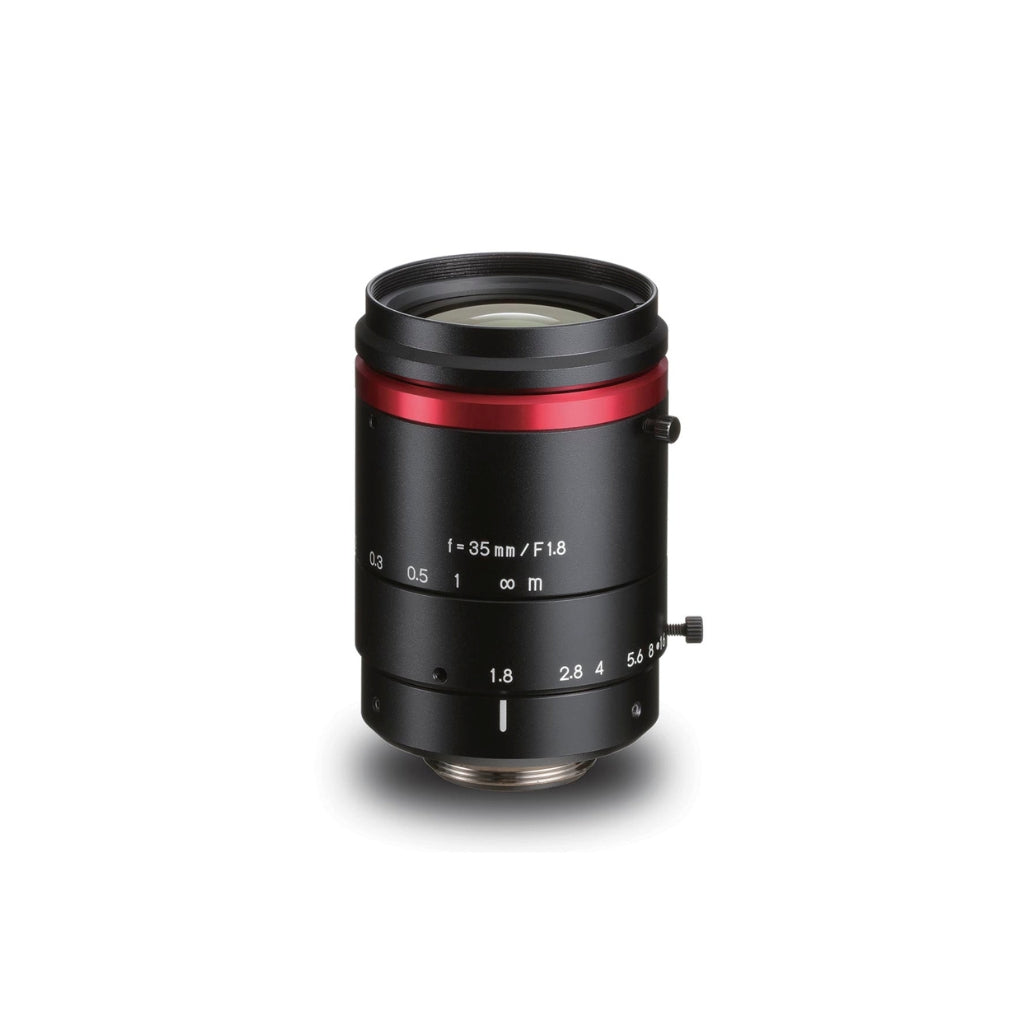

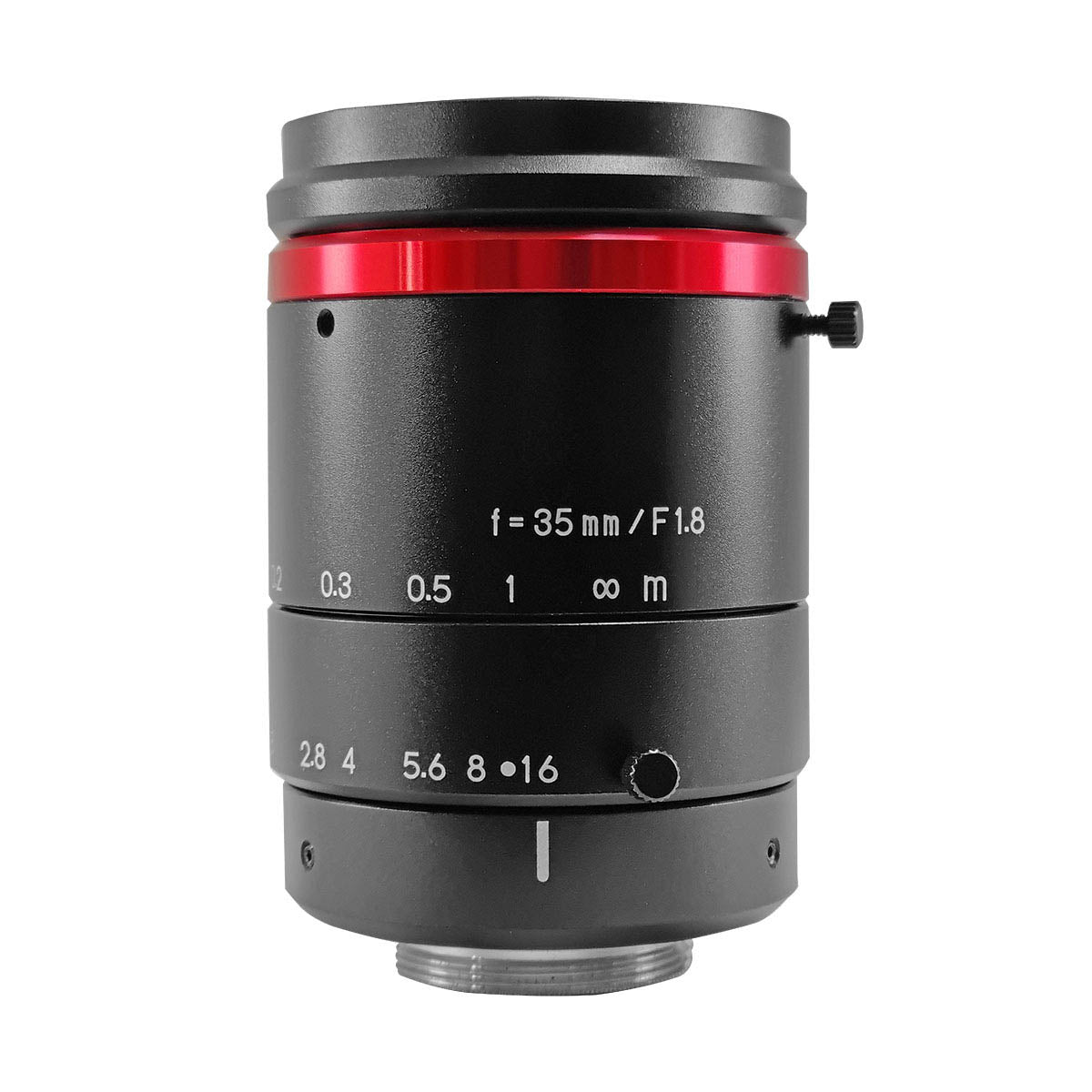

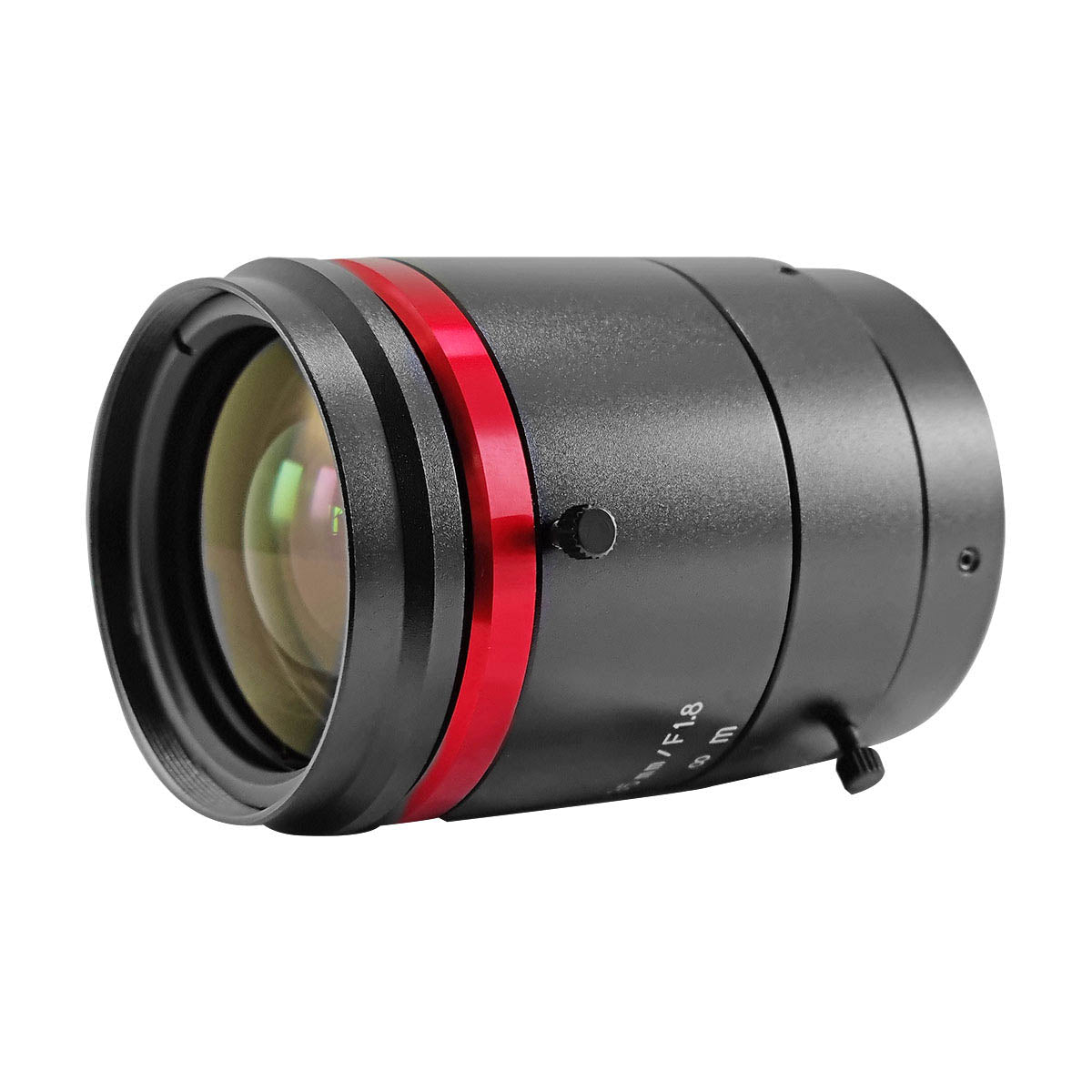

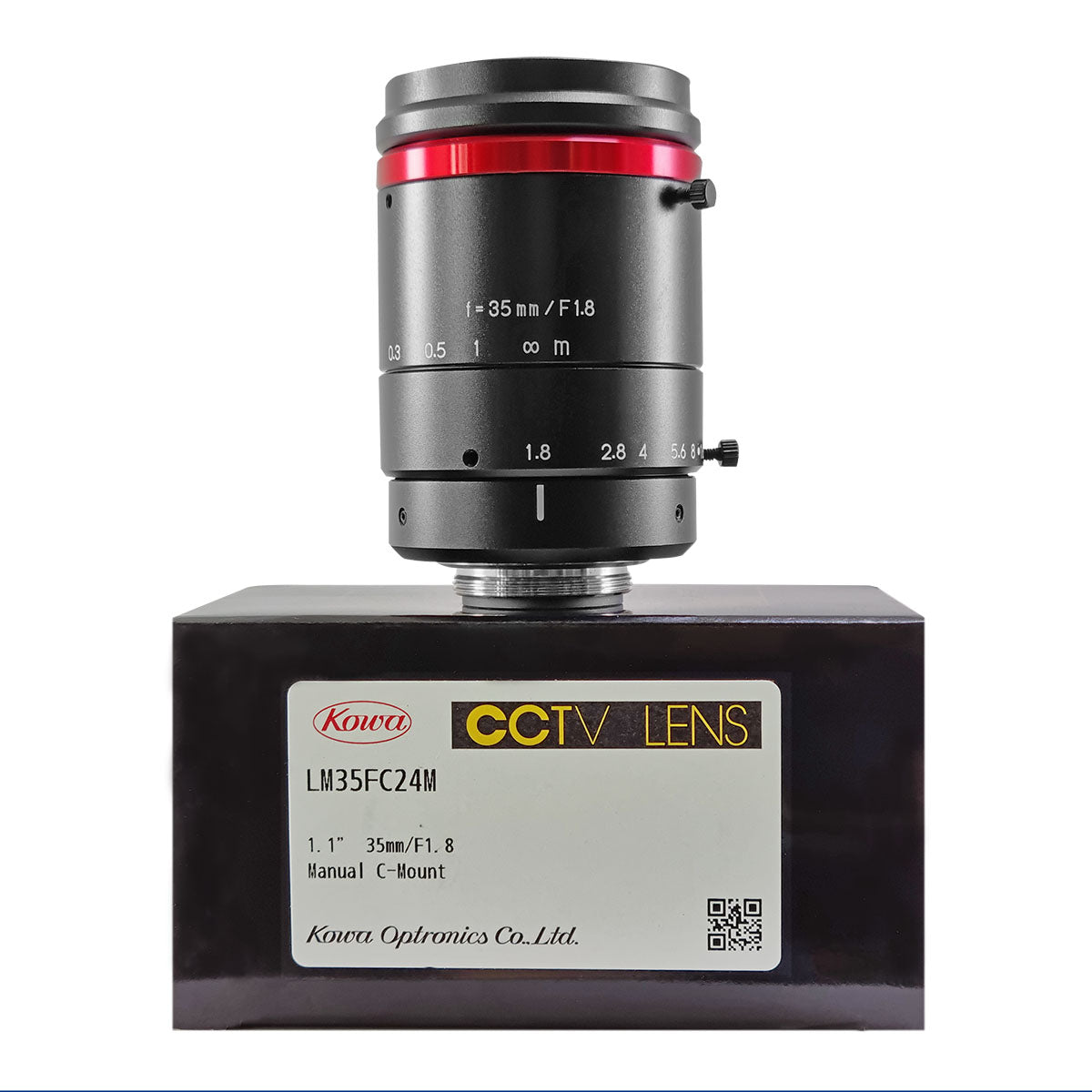

Kowa LM35FC24M 1.1" 35mm 24MP C-mount Lens Compatible With Sony IMX531, IMX183 and IMX304 sensors and many more

Kowa LM35FC24M 1.1" 35mm 24MP C-mount Lens Compatible With Sony IMX531, IMX183 and IMX304 sensors and many more

SKU:LM35FC24M

Regular price $707.80 USD
Regular price Sale price $707.80 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Explore the Versatility of Kowa LM35FC24M Lens

Discover the exceptional quality and precision engineering of Kowa LM35FC24M lenses. Engineered for machine vision and industrial applications, these lenses offer unparalleled performance and reliability. With a focal length of 35mm and compatibility with Sony IMX531, IMX183, and IMX304 sensors, they deliver high-resolution imaging for demanding tasks. The manual iris control allows for precise adjustments, while the broad wavelength range ensures versatility in various lighting conditions. Designed for accuracy, these lenses boast low distortion and high-resolution capabilities, making them ideal for applications such as traffic control, machine vision, and broadcast imaging. Whether you're monitoring traffic flow or inspecting manufacturing processes, Kowa LM35FC24M lenses provide the clarity and precision needed for critical tasks.

Experience precision imaging with Kowa LM35FC24M lenses. Ideal for machine vision and industrial applications. Upgrade now for superior clarity and reliability.

Features:

  • High resolution 24MP lens
  • Manual iris control for precision adjustments
  • Compatible with Sony IMX sensors
  • Broadband coating for versatile lighting conditions
  • Compact design for easy integration
  • Wide temperature range for various environments

Applications:

  • Traffic control systems
  • Manufacturing inspection
  • Broadcast imaging

LM35FC24M Spec Sheet

Focal Length (mm) 35

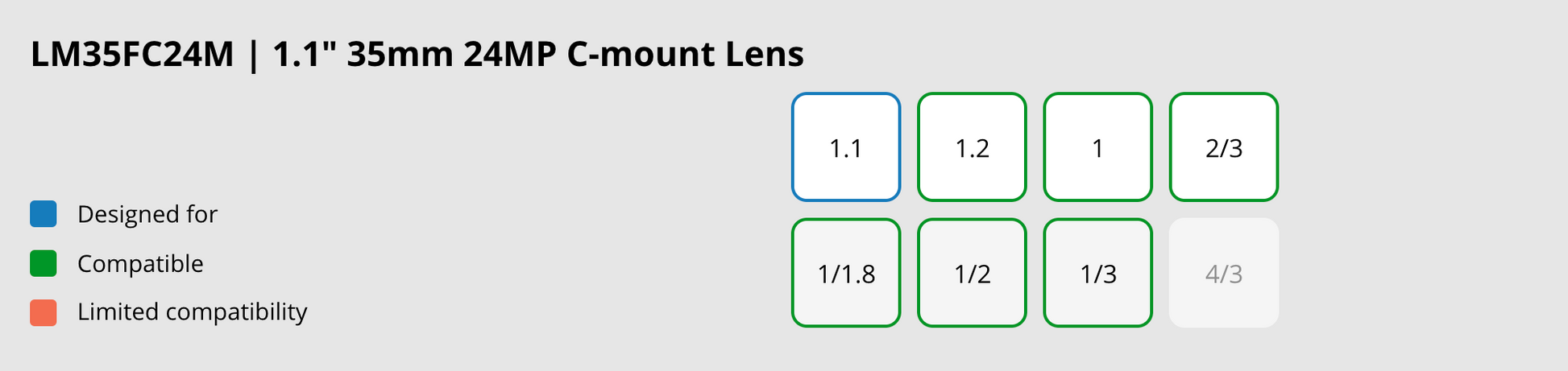

Sensor Size 1.1"
Pixel Size (µm) 2.5

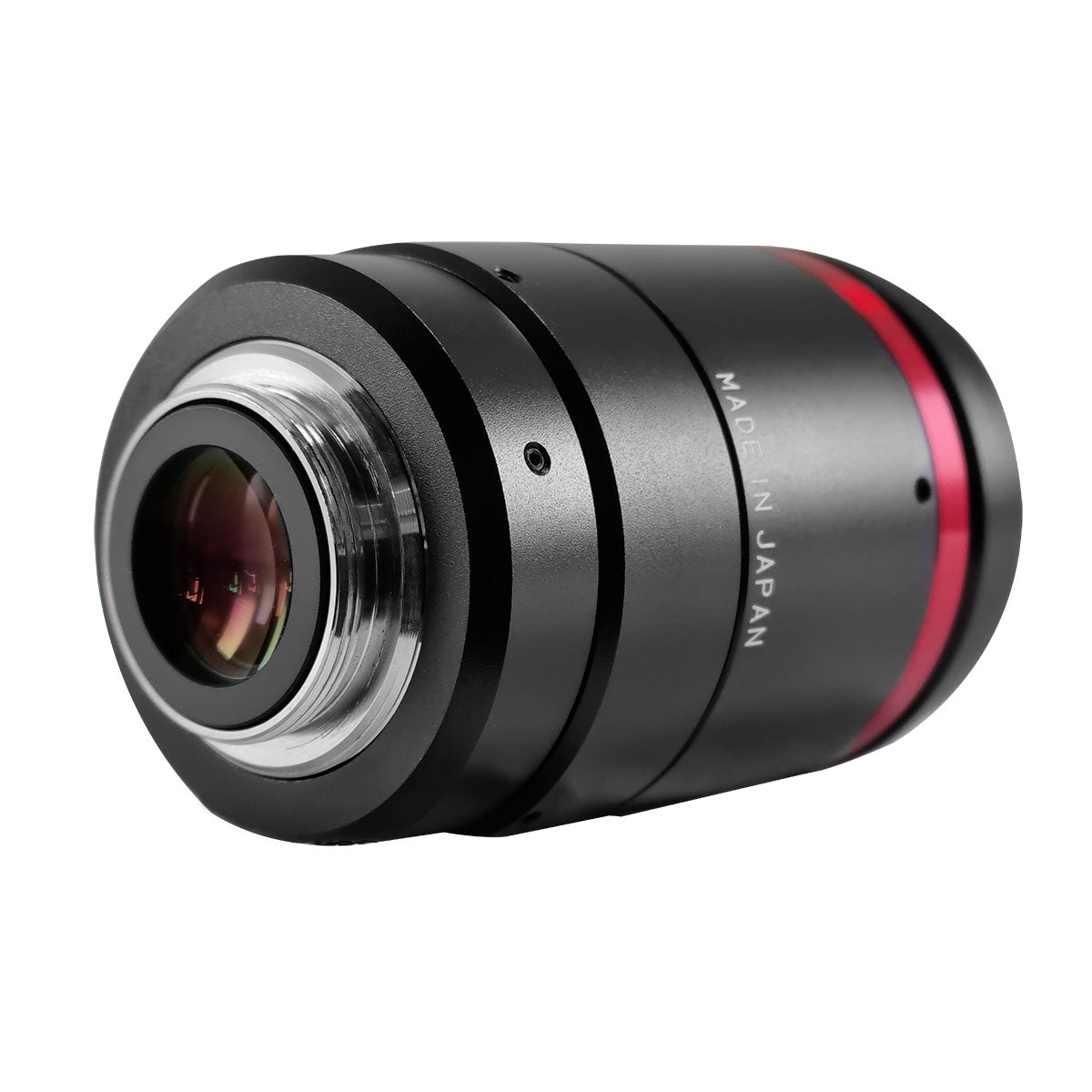

Mount C-Mount
Iris Control Manual
Iris Range (F-Stop) 1.8 - 16
Lens Type Fixed Focal Lens
Wavelength Range VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm)
Focusing range (m) 0,2 - ∞
Focus Control Manual
Shooting range at MOD, horizontal (mm) 84
Shooting range at MOD, vertical (mm) 63
Resolution (Center, Corner) 200lp/mm,100lp/mm
Megapixel 24
TV Distortion (%) 0.01
Back Focus in Air (mm) 15.5
Filter Size (mm) M40.5 x P0,5

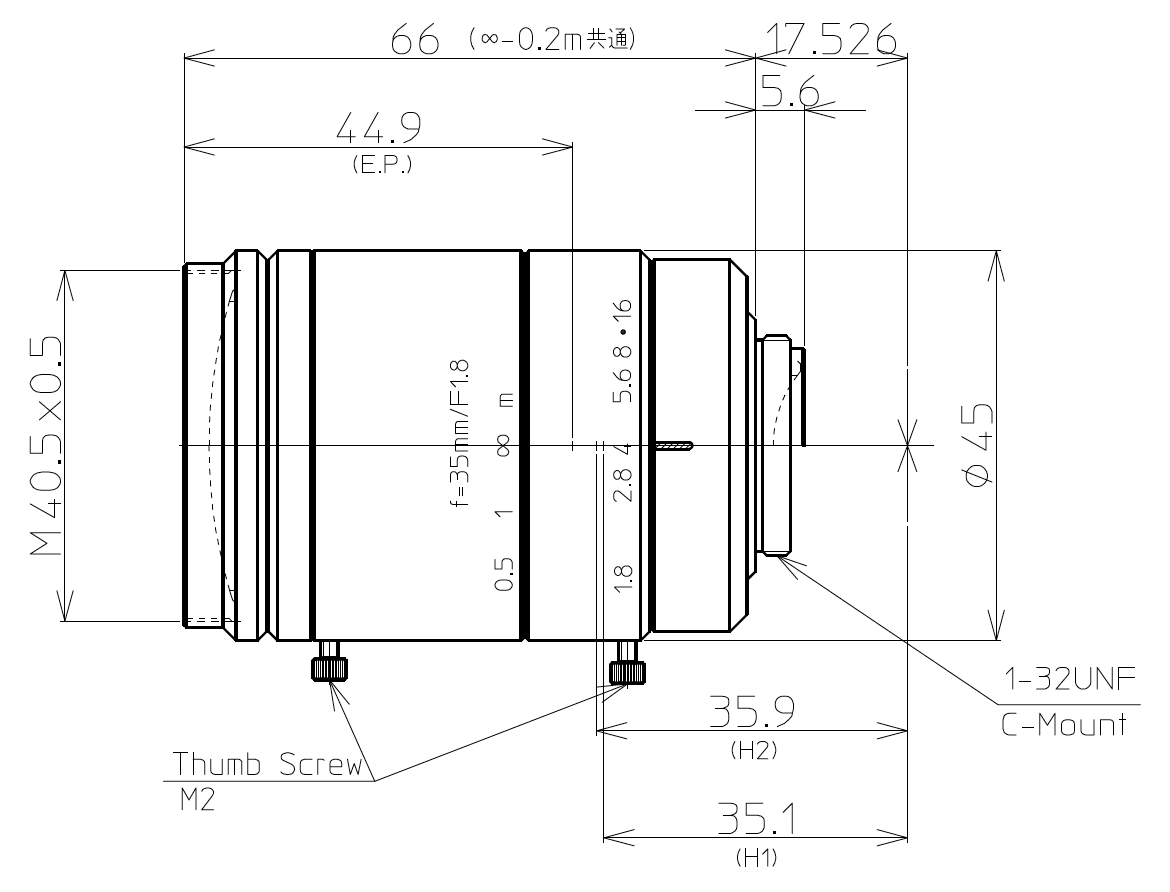

Size (mm) Ø45 X 66
Weight 205
Temperature Range -10°C - +50°C

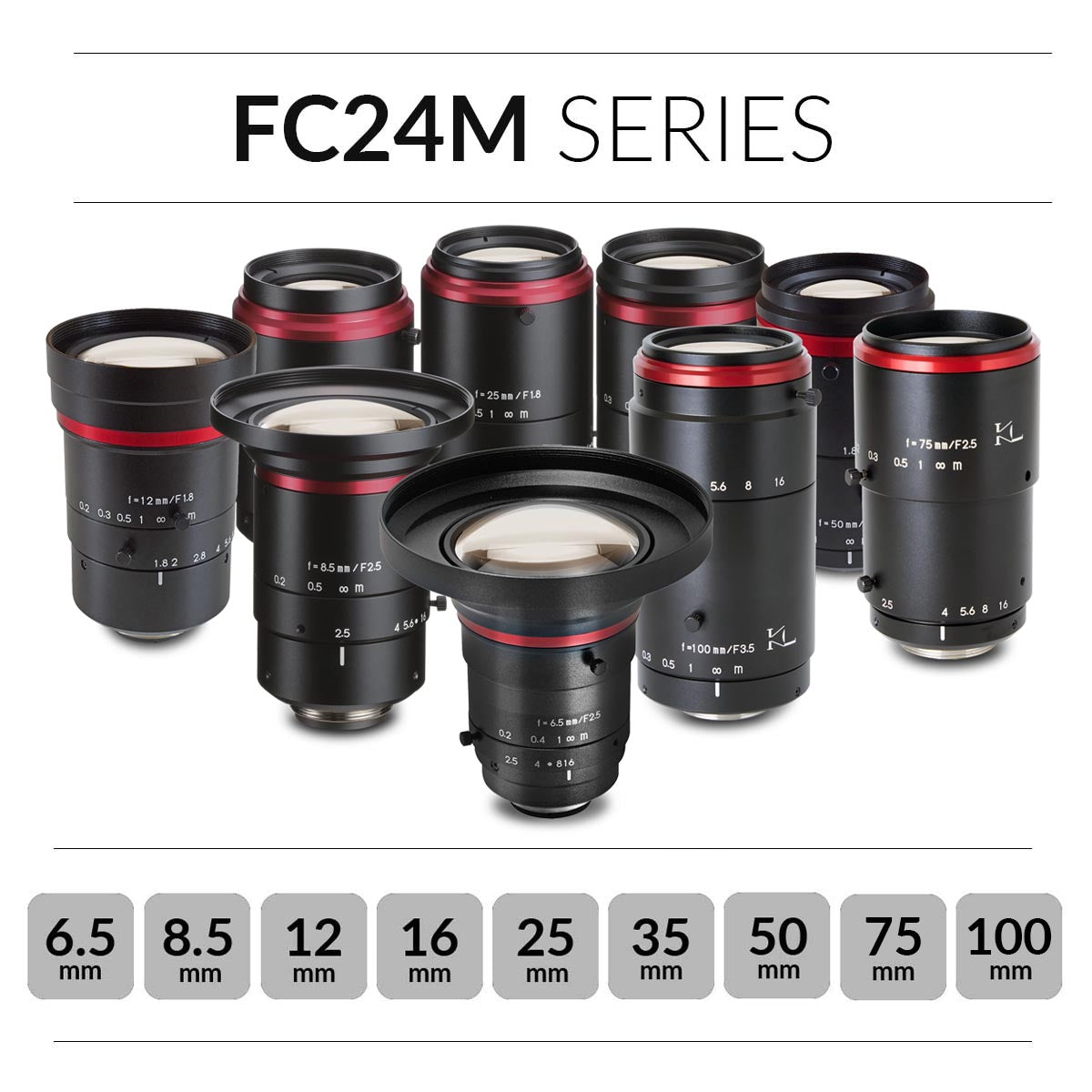

Series FC24M
Application ITS/Traffic Control, Machine Vision, Broadcast
