USA Security Systems

LM35JC10M

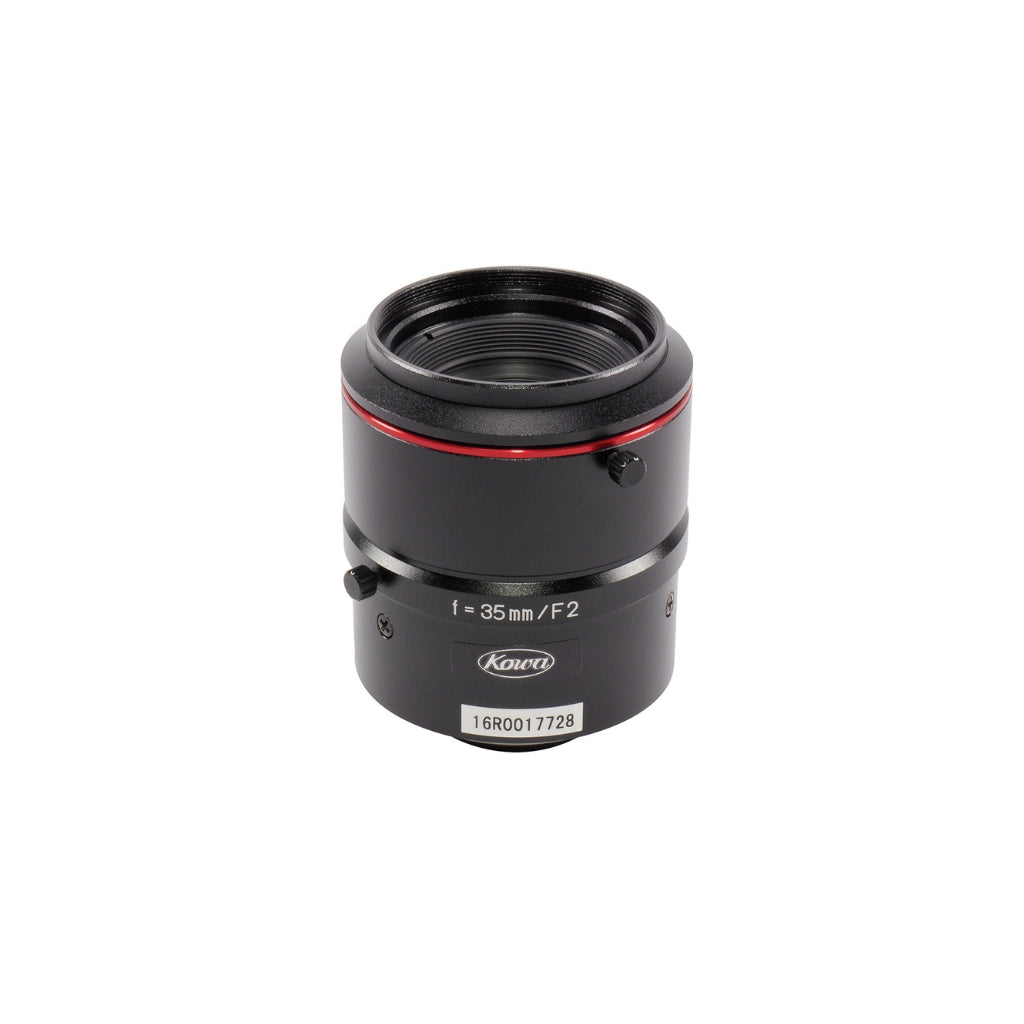

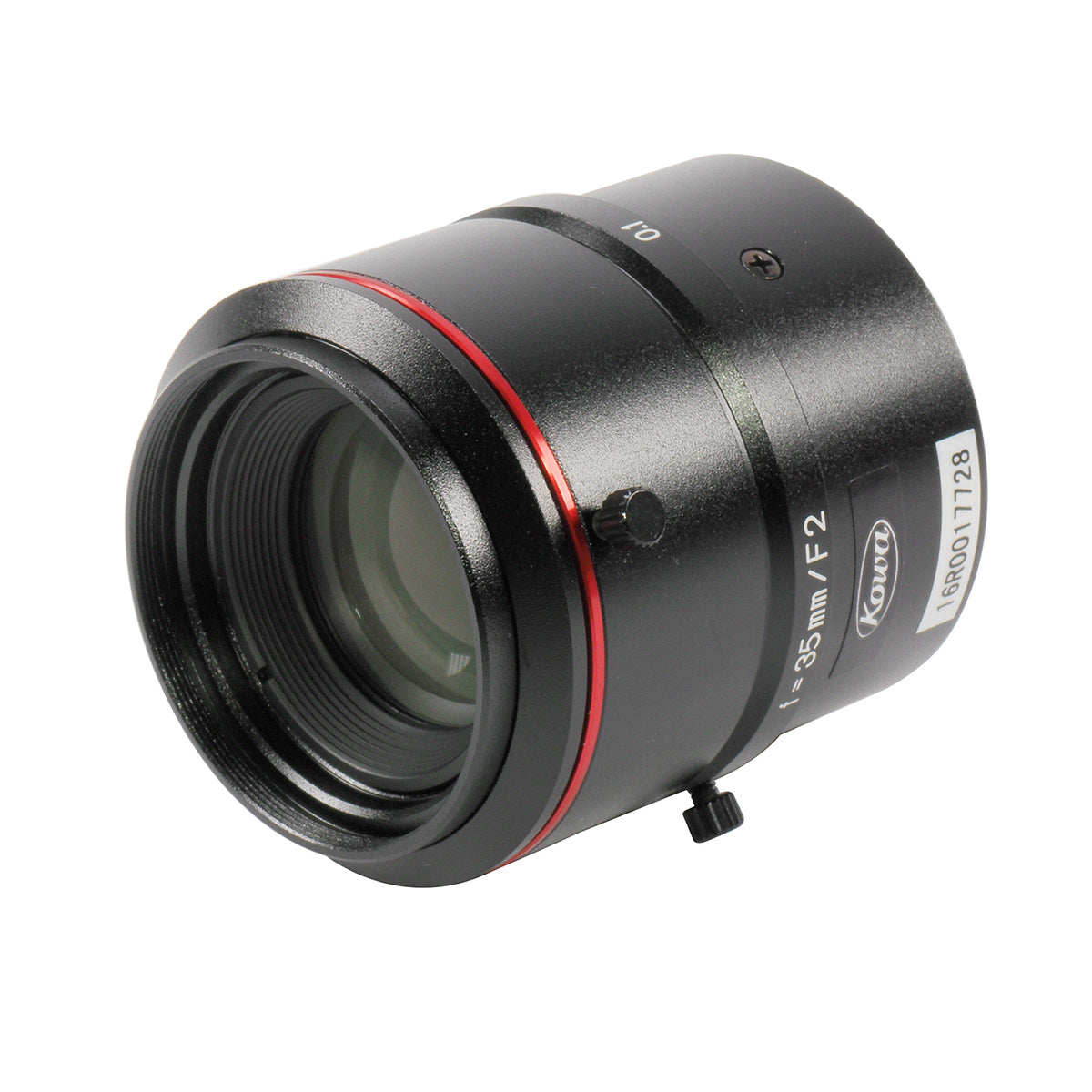

Kowa LM35JC10M 2/3" 35mm 10MP C-Mount Lens Compatible With Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more

Kowa LM35JC10M 2/3" 35mm 10MP C-Mount Lens Compatible With Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more

SKU:LM35JC10M

Regular price $755.90 USD
Regular price Sale price $755.90 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Discover the Power of Kowa LM35JC10M Lens

In the competitive landscape of machine vision and industrial lenses, Kowa stands tall, renowned for its precision optics and innovative solutions. The Kowa LM35JC10M 2/3" 35mm 10MP C-Mount Lens epitomizes excellence, catering to the exacting demands of modern industrial and machine vision applications. With a focal length of 35mm and compatibility with Sony IMX250, Sony IMX264, Aptina MT9D131 sensors, and more, this lens delivers unparalleled clarity and detail. Its manual iris control allows precise adjustments, while the broad band coating ensures optimal performance across various wavelengths. Engineered with a fixed focal length and boasting a high resolution of 10MP, this lens excels in capturing intricate details with minimal distortion. Whether used in manufacturing, inspection, or surveillance, the Kowa LM35JC10M lens guarantees superior imaging, empowering businesses to optimize their processes and enhance security measures.

Features:

  • Compatible with Sony IMX and Aptina sensors
  • Manual iris control for precise adjustments
  • Broad band coating for optimal performance
  • Fixed focal length of 35mm
  • High resolution of 10MP
  • Minimal distortion (0.05%)
  • Compact size and lightweight design

Applications:

  • Machine vision inspection
  • Industrial imaging and automation
  • Security surveillance systems

LM35JC10M Spec Sheet

Focal Length (mm) 35 mm

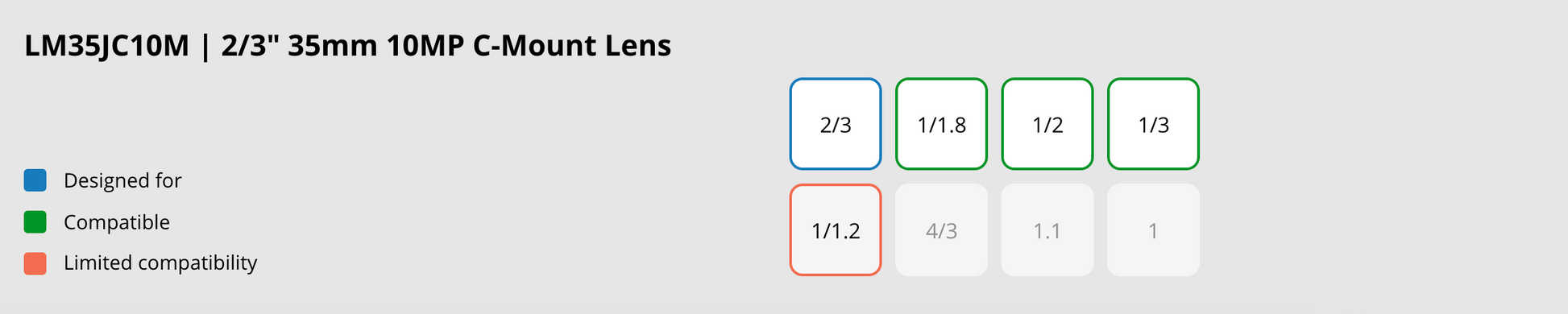

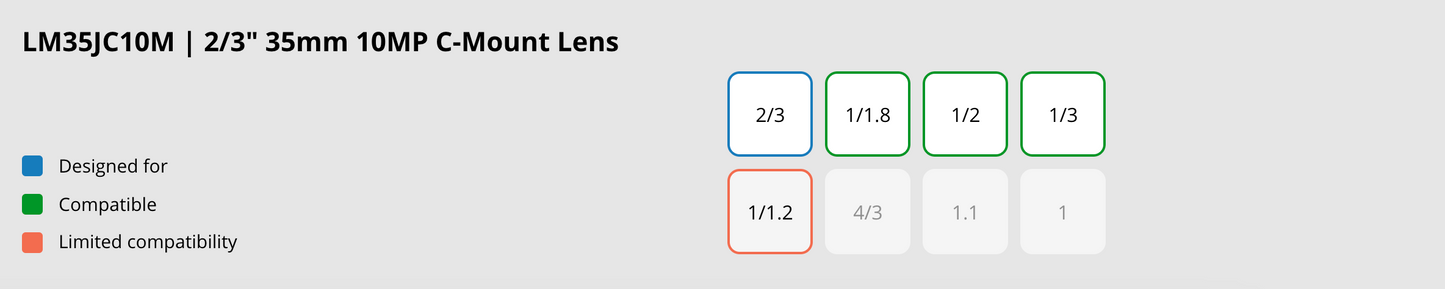

Sensor Size 2/3"
Pixel Size (µm) 2,5

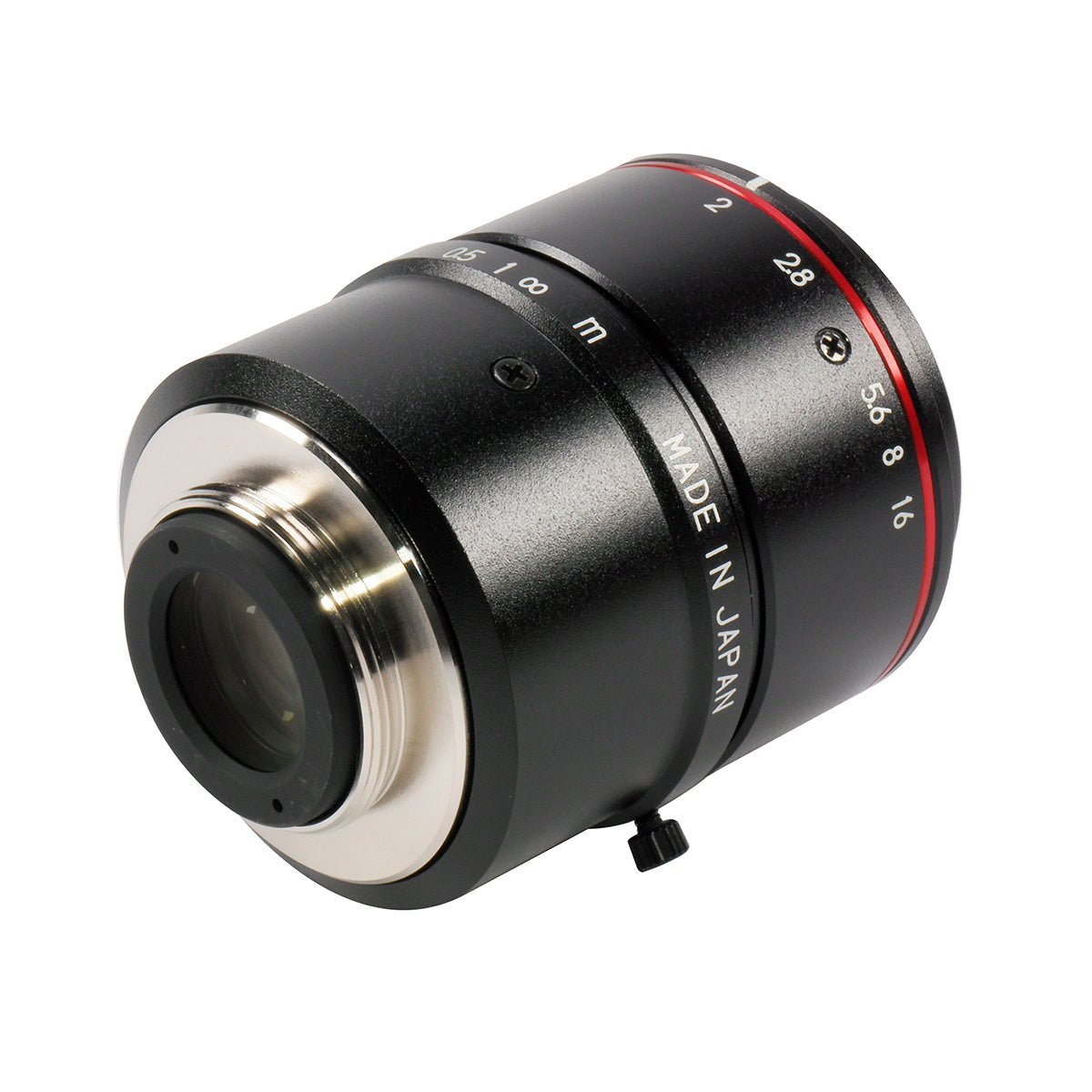

Mount C-Mount
Iris Control Manual
Iris Range (F-Stop) 2 - 16
Lens Type Fixed Focal Lens
Wavelength Range VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm)
Focusing Range (m) 0,1 - ∞
Focus Control Manual
Shooting range at MOD, horizontal (mm) 23,4
Shooting range at MOD, vertical (mm) 17,6
Resolution, Center (lp/mm) 200
Resolution, Corner (lp/mm) 160
Megapixel 10
Distortion (TV) (%) 0,05
Back focus in air (mm) 14,2
Filter Size (mm) M34 x P0,5

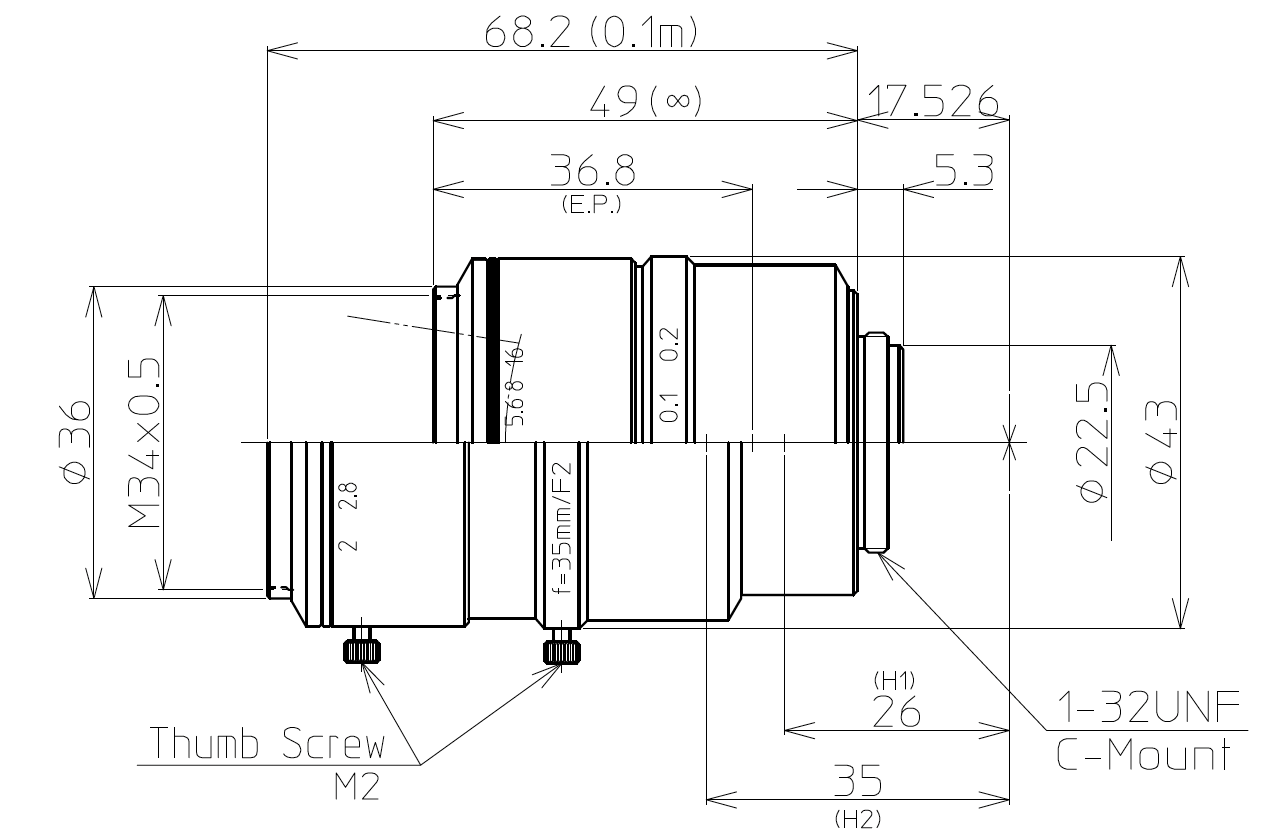

Size (mm) Ø43 X 49
Weight (g) 160
Temperature Range (℃) -10°C - +50°C

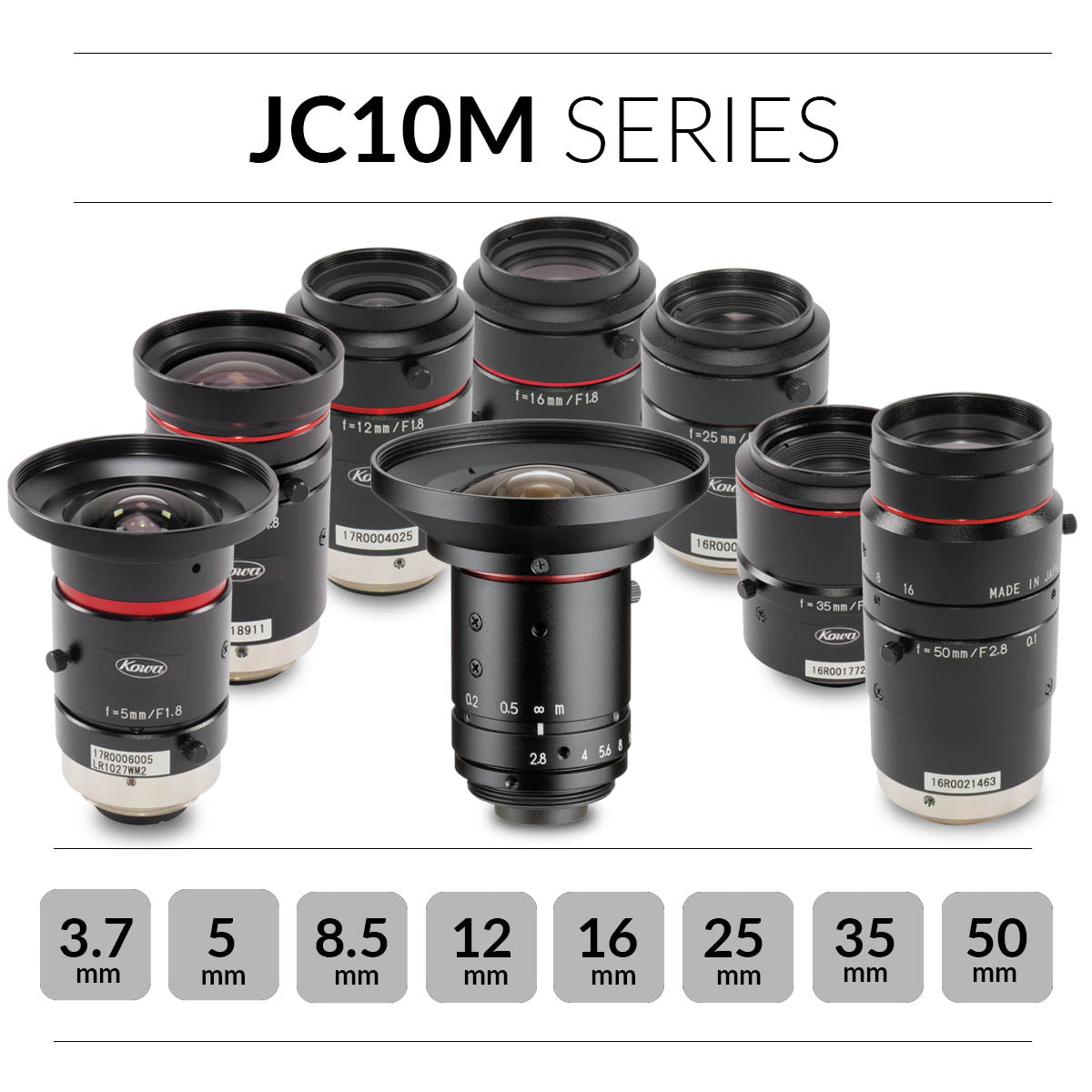

Series JC10M
Application Machine Vision, Broadcast
