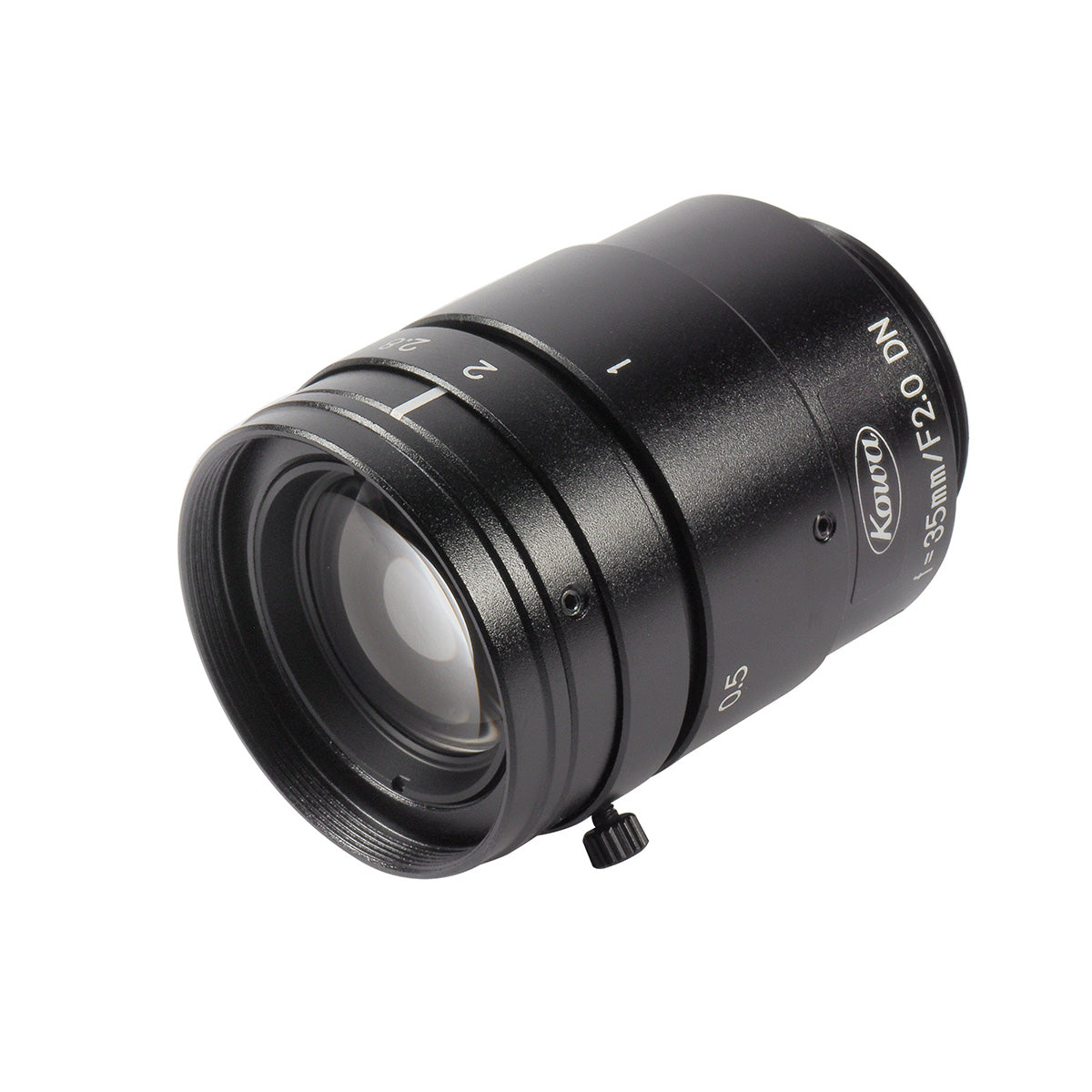

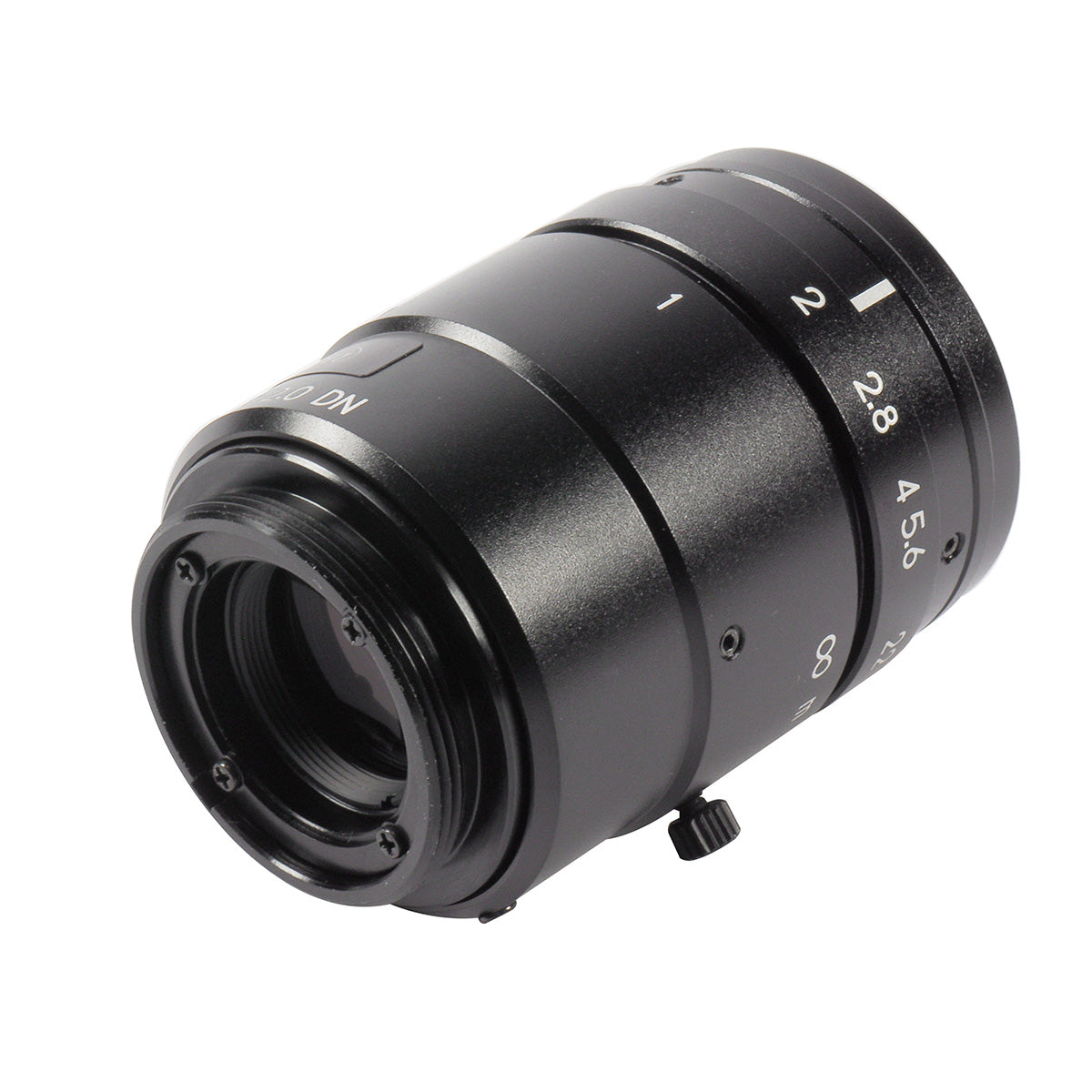

Kowa LM35JC5M-IR 2/3" 35mm 5MP IR Corrected Lens

Kowa LM35JC5M-IR 2/3" 35mm 5MP IR Corrected Lens

SKU:LM35JC5M-IR

Regular price $394.50 USD
Regular price Sale price $394.50 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Kowa LM35JC5M-IR: Precision Lens for Machine Vision

Delve into the world of precision optics with the Kowa LM35JC5M-IR series. Renowned for its commitment to quality, Kowa lenses are crafted to deliver unparalleled performance in machine vision and industrial applications. The LM35JC5M-IR model is meticulously engineered, boasting up to 5-megapixel resolution and IR correction for crystal-clear imaging in various lighting conditions.

This fixed focal lens features manual iris control, ensuring precise adjustments for optimal image clarity. With a focal length of 35mm and a sensor size of 2/3", it offers versatility for a wide range of applications. The robust metal mount and housing ensure durability in demanding industrial environments, while the compact design makes it easy to integrate into existing systems.

Experience unrivaled image quality and reliability with Kowa LM35JC5M-IR. Perfect for machine vision applications. Upgrade your system today!

Features:

  • Up to 5-megapixel resolution
  • IR corrected for day and night vision
  • Manual iris control for precise adjustments
  • Durable metal mount and housing
  • Compact design for easy integration

Applications:

  • Machine vision systems
  • Industrial imaging
  • Traffic control and surveillance
  • Security systems
  • Surveillance equipment

LM35JC5M-IR Spec Sheet

Focal Length (mm) 35 mm

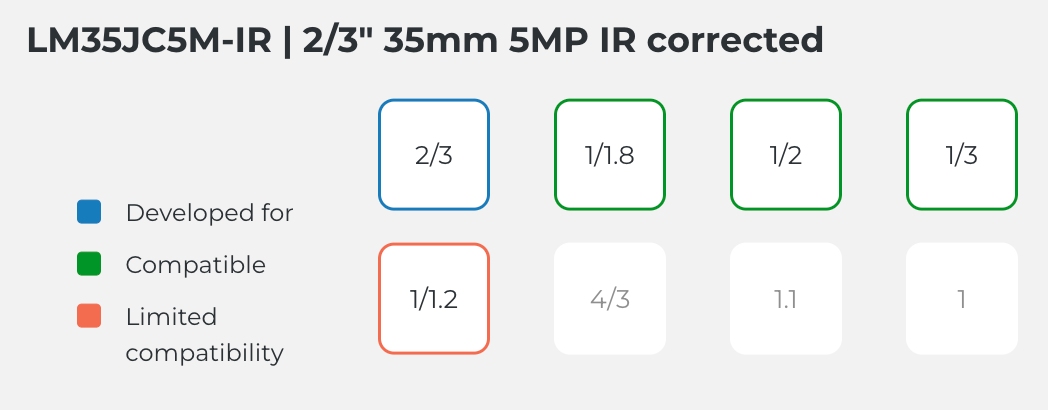

Sensor Size 2/3"
Pixel Size (µm) 3,5
Mount C-Mount
Iris Control Manual
Iris Range (F-Stop) 2 - 22
Lens Type Fixed Focal Lens
Wavelength Range VIS (380nm - 780nm), IR-corrected (Day & Night)
Focusing Range (m) 0,3 - ∞
Focus Control Manual
Shooting range at MOD, horizontal (mm) 75,8
Shooting range at MOD, vertical (mm) 56,6
Resolution, Center (lp/mm) 160
Resolution, Corner (lp/mm) 125
Distortion (TV) (%) -0,3
Back focus in air (mm) 19,2
Filter Size (mm) M30,5 x P0,5
Size (mm) Ø34 X 43
Weight (g) 100
Temperature Range (℃) -10°C - +50°C
Series JC5M-IR
Application ITS/Traffic Control
