LM35JC5MC

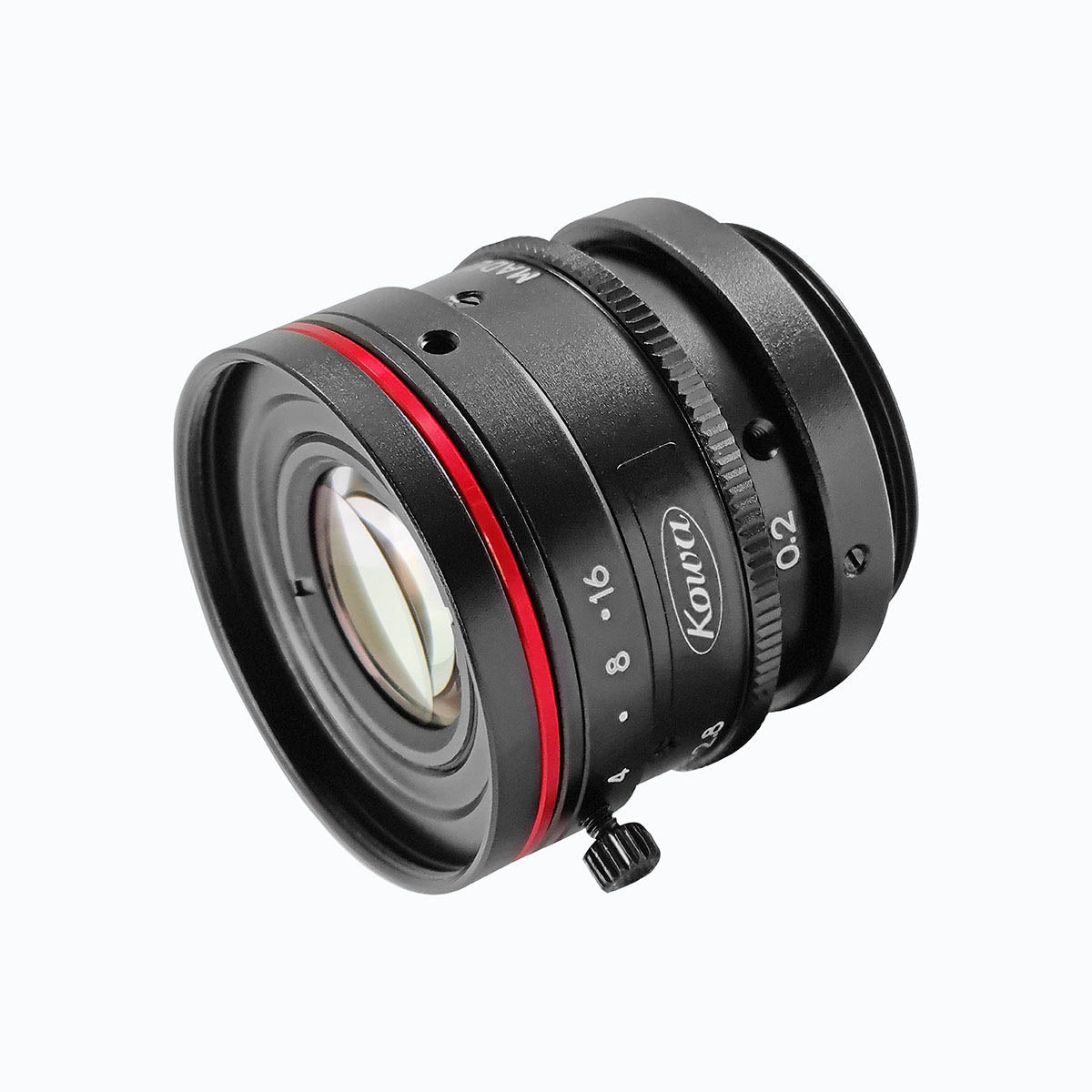

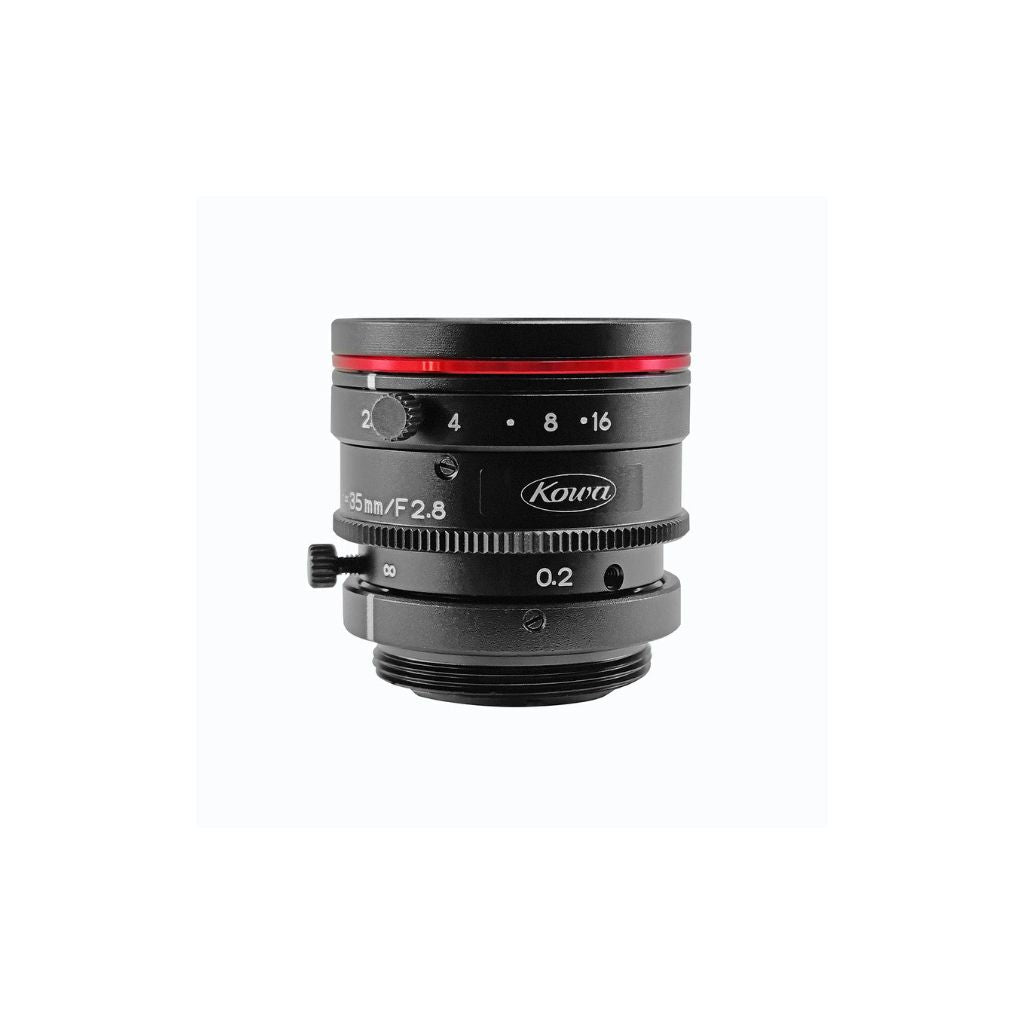

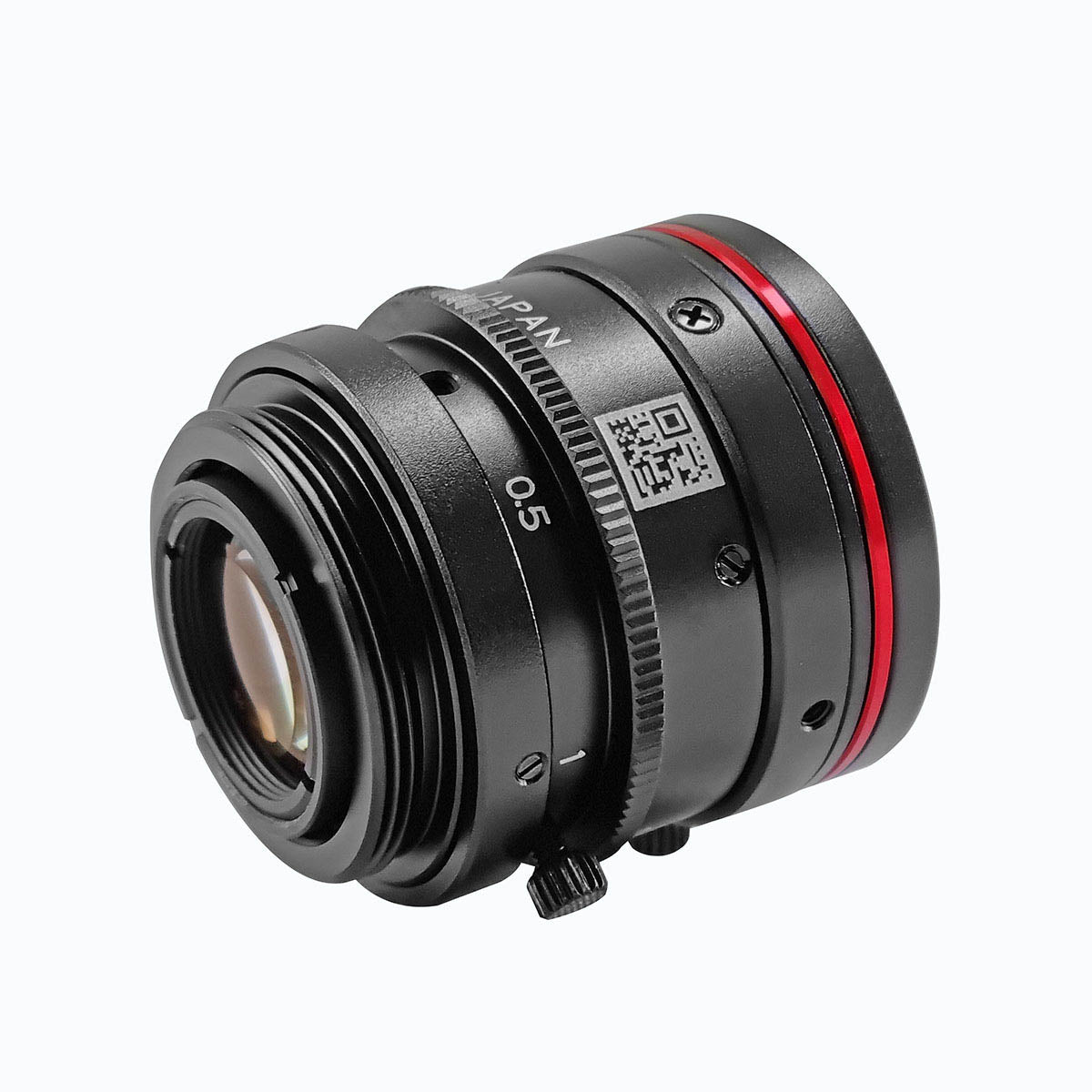

Kowa LM35JC5MC 2/3" 35mm 5MP Ultra Compact Lens

Kowa LM35JC5MC 2/3" 35mm 5MP Ultra Compact Lens

SKU:LM35JC5MC

Regular price $311.00 USD
Regular price Sale price $311.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Precision Performance with the Kowa LM35JC5MC 35mm 5MP Ultra-Compact Industrial Lens

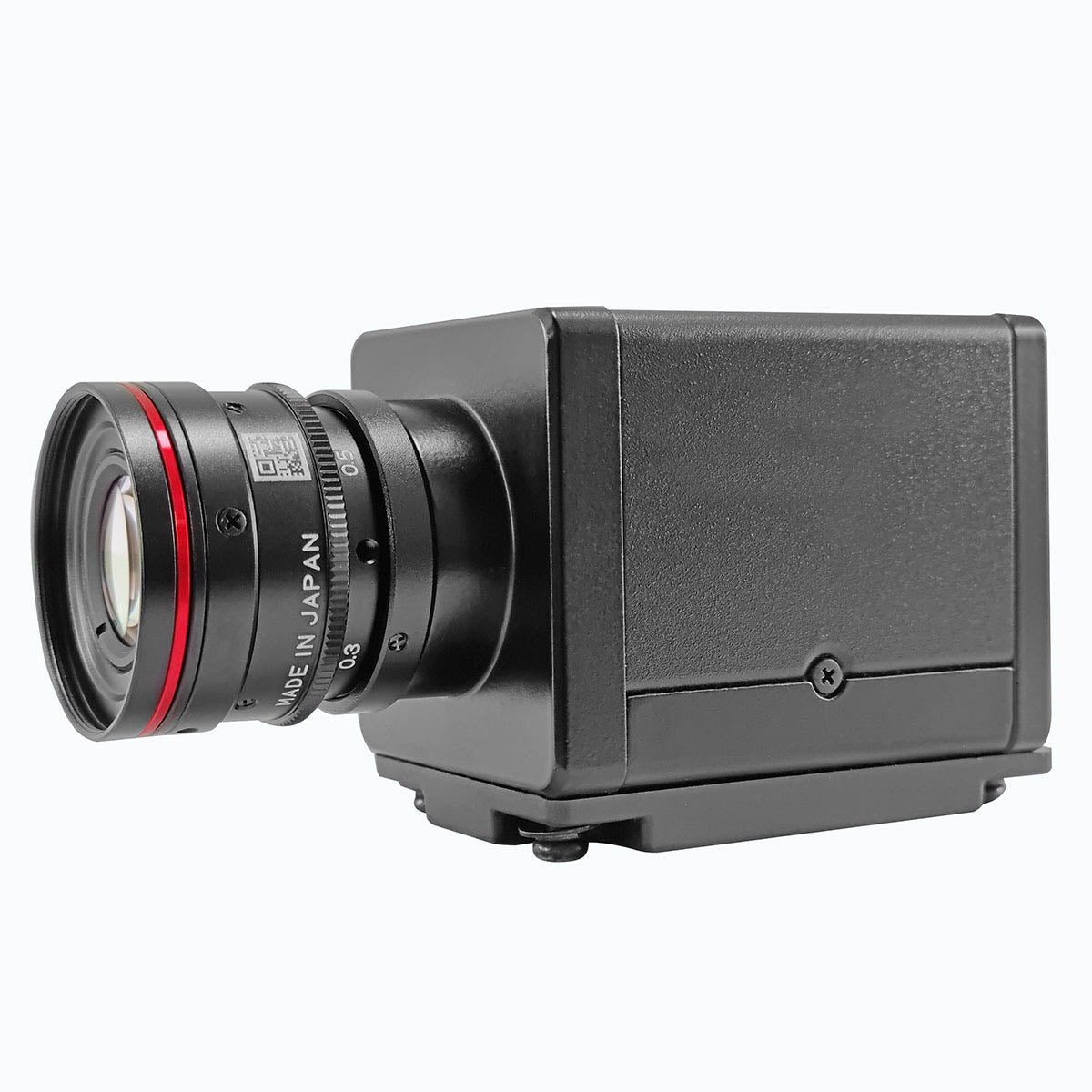

The Kowa LM35JC5MC is a 35mm 5MP C-mount lens designed to deliver precise imaging performance in industrial and machine vision applications. Its ultra-compact design makes it ideal for installations where space is limited, while still offering superior optical quality with minimal distortion. This lens is optimized for use with sensors featuring a pixel size of 3.45μm, such as Sony’s IMX250, IMX252, IMX264, and IMX265 sensors, ensuring crystal-clear images even in demanding environments.

The LM35JC5MC provides a manual aperture control (f/2.8 - f/16), allowing users to fine-tune their settings for varied lighting conditions. With a focal length of 35mm and a working distance starting from 0.2 meters, it is well-suited for close-up inspections, automated inspection systems, and precision measurement tasks. The lens is also equipped with anti-reflective coatings, ensuring optimal performance across a wide wavelength range of 400nm to 1000nm.

Whether you are working in factory automation, quality control, or robotics, the Kowa LM35JC5MC lens offers high-resolution performance and reliability, making it a valuable tool in any industrial imaging setup.

Features:

  • 35mm 5MP C-mount lens for industrial use

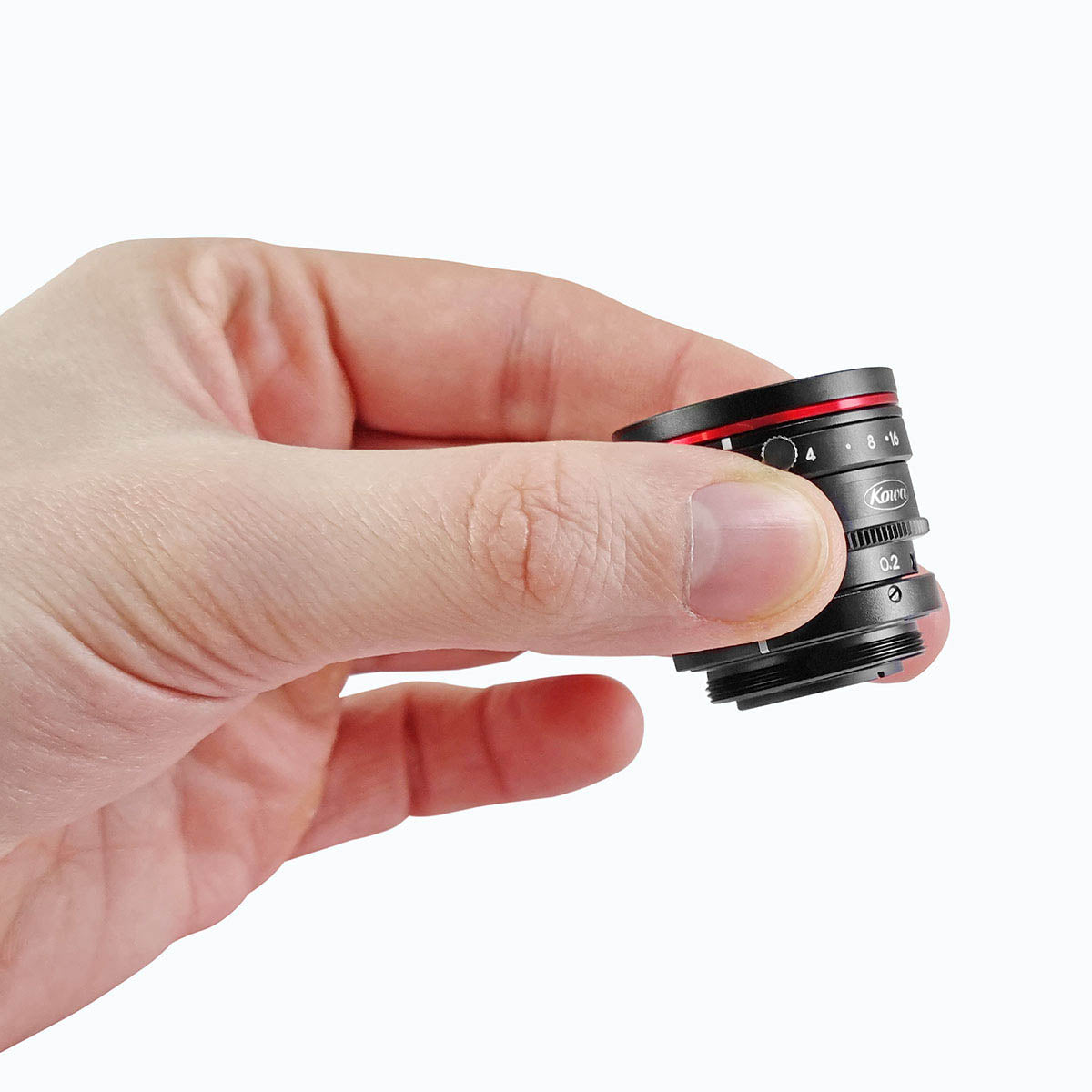

  • Ultra-compact design (Ø32 x 27.9mm)
  • Compatible with sensors such as Sony IMX250, IMX252
  • Manual aperture control (f/2.8 to f/16)
  • Designed for pixel sizes as small as 3.45μm
  • Anti-reflective coatings for optimal light transmission (400nm – 1000nm)
  • Low TV distortion (-0.02%)

Applications:

  • Automated inspection systems
  • Robotics and machine guidance
  • Precision measurement and analysis
  • Factory automation and quality control
  • Close-up imaging for medical devices
  • High-resolution imaging in surveillance systems

LM35JC5MC Spec Sheet

Focal Length (mm) 35 mm

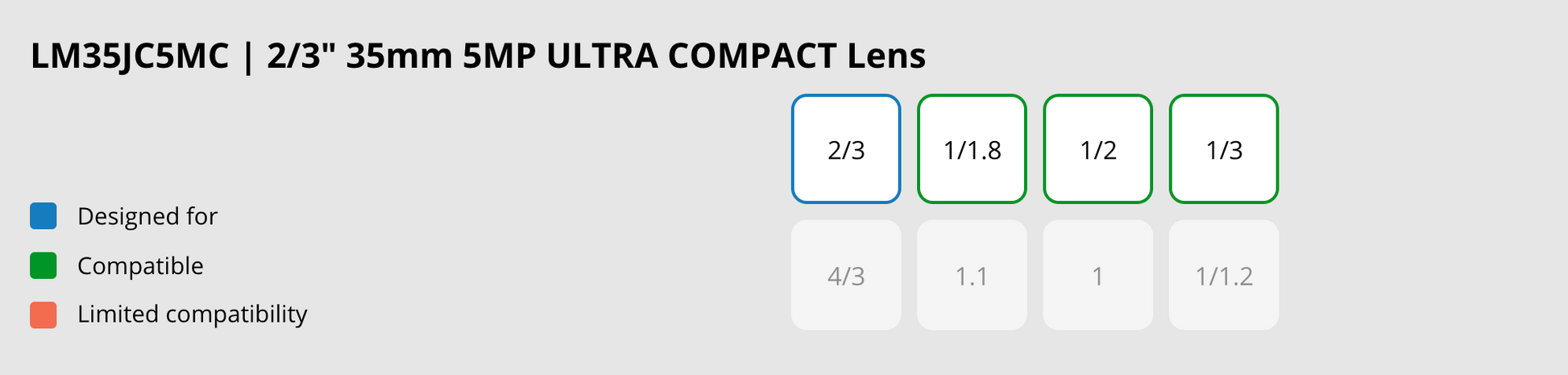

Sensor Size 2/3"
Pixel Size (µm) 3,45
Mount C-Mount
Iris Control Manual
Iris Range (F-Stop) 2,8-16
Lens Type Fixed Focal Lens
Wavelength Range VIS (380nm - 780nm)
Focusing range (m) 0,2 - ∞
Focus Control Manual
Shooting range at MOD, horizontal (mm) 48
Shooting range at MOD, vertical (mm) 36
Resolution (Center, Corner) 160lp/mm,125lp/mm
Megapixel 5
TV Distortion (%) -0,02
Back Focus in Air (mm) 13,28
Filter Size (mm) M30,5 x P0,5

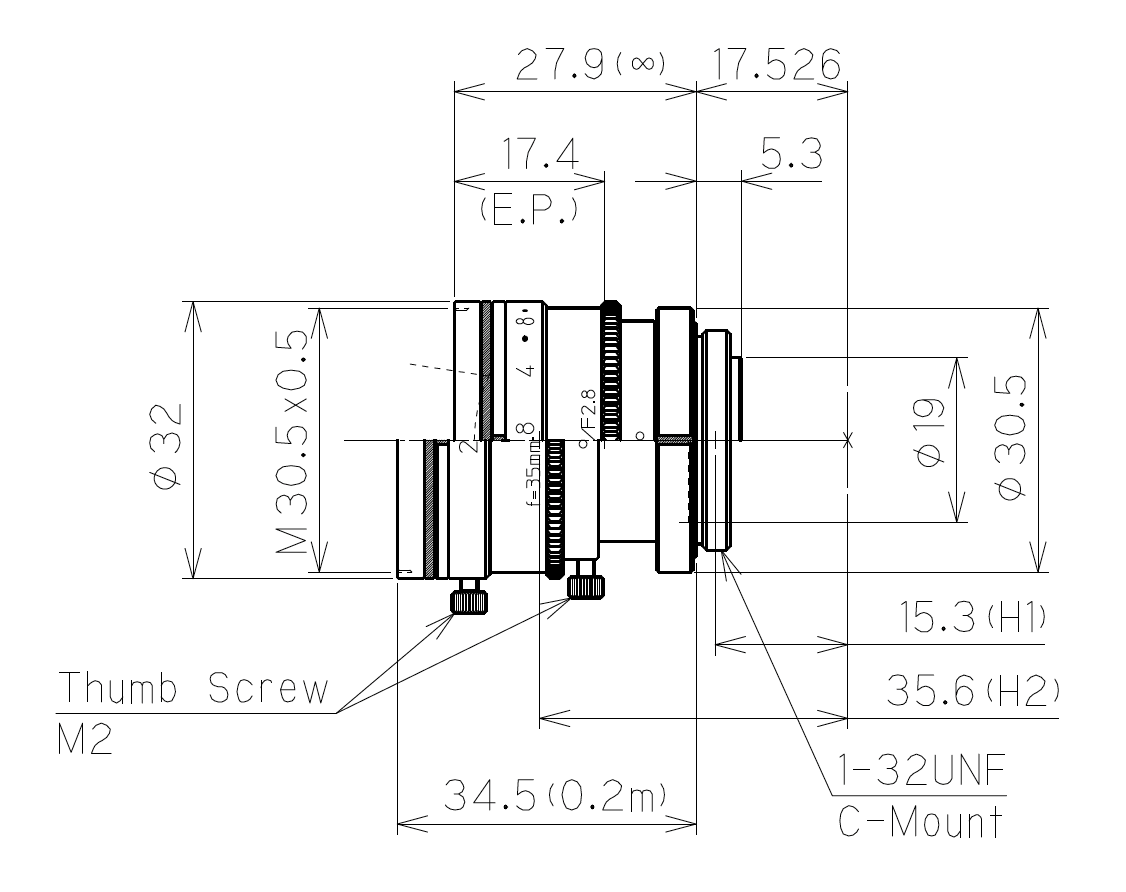

Size (mm) Ø32 X 27,9
Weight 50
Temperature Range -10°C - +50°C
Series JC5MC
Application Machine Vision
