LM35JCMV
Kowa LM35JCM-V 2/3" Ruggedized 35mm 2MP C-mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more
Kowa LM35JCM-V 2/3" Ruggedized 35mm 2MP C-mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more
SKU:LM35JCM-V
Couldn't load pickup availability
Industrial Imaging Solutions with Kowa LM35JCM-V Lens
In the ever-evolving landscape of industrial and machine vision applications, precision and reliability are paramount. Enter the Kowa LM35JCM-V 2/3" C-mount lens, a stalwart in the realm of industrial imaging solutions. Engineered with a ruggedized design, this lens stands firm against the rigors of harsh environments, boasting resistance to strong vibrations and shocks. Its compatibility extends to a range of sensors, including the OnSemi Python500, e2v EV76C570, and Aptina MT9M131, ensuring versatility across various setups. With a fixed focal length of 35mm and manual iris control, users can achieve precise adjustments tailored to their specific imaging needs.
The Kowa LM35JCM-V lens excels in delivering high-resolution imagery, vital for intricate inspection tasks and quality control processes within manufacturing plants. Its robust construction makes it a reliable choice for robotics and automation systems, where consistent performance is essential for seamless operations. Furthermore, in surveillance and security systems, this lens provides crisp and clear imaging, enabling efficient monitoring of critical areas. Whether it's scrutinizing electronic components or monitoring production lines, the Kowa LM35JCM-V lens emerges as a trusted companion, empowering businesses with superior imaging capabilities in their industrial endeavors.
Features:
- Ruggedized design for shock and vibration resistance
- Compatible with OnSemi Python500, e2v EV76C570, and Aptina MT9M131 sensors
- Manual iris control for precise adjustments
- Fixed focal length of 35mm for consistent imaging
- High resolution with 2MP capability
Applications:
- Quality control in manufacturing
- Robotics and automation systems
- Inspection of electronic components
- Monitoring production lines
- Surveillance and security systems
| Focal Length (mm) | 35 mm |

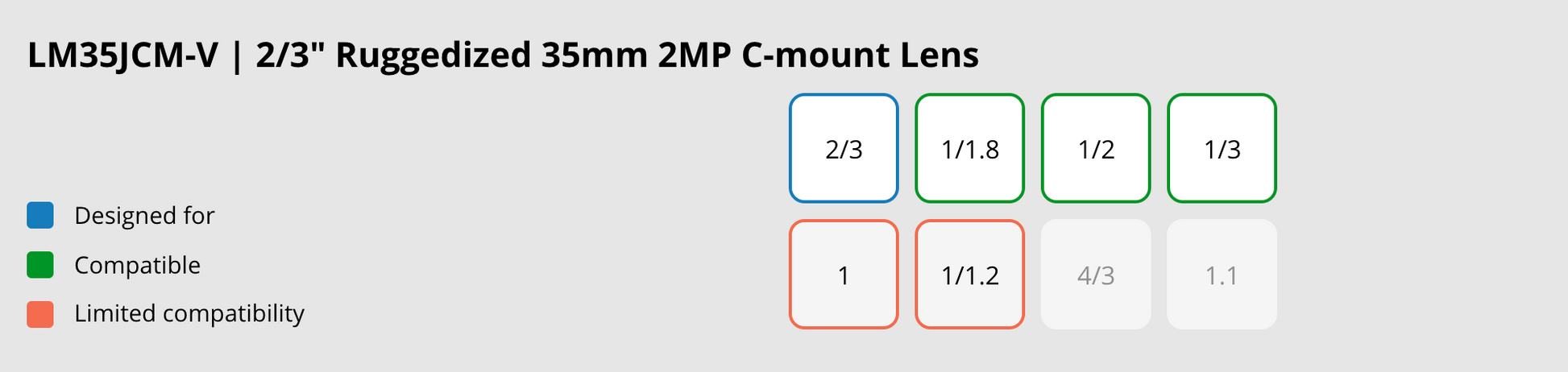

| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F2 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 47,9 |
| Shooting range at MOD, vertical (mm) | 35,8 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,2 |
| Back Focus in Air (mm) | 20,1 |
| Filter Size (mm) | M27 x P0,5 |

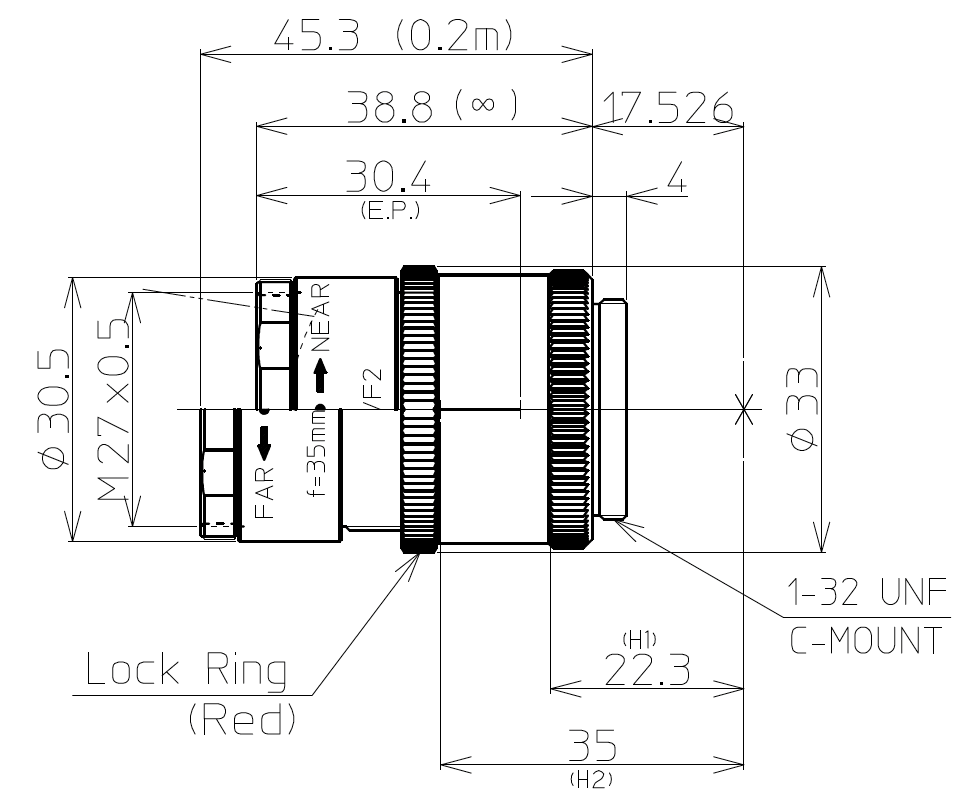

| Size (mm) | Ø54 X 56,6 |
| Weight | 215 |
| Temperature Range | -10°C - +50°C |

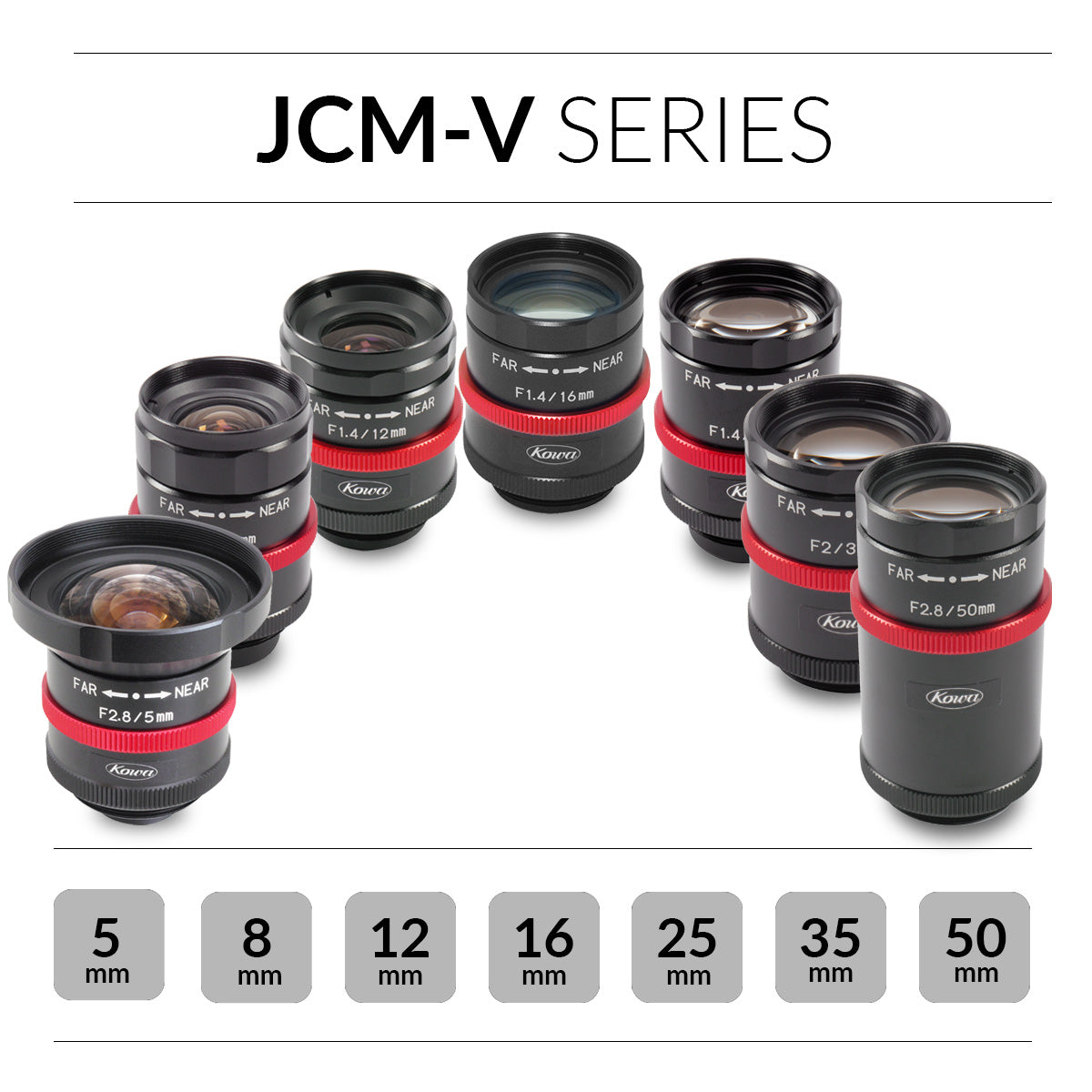

| Series | HC |
| Application | Broadcast, ITS/Traffic Control, Machine Vision |
