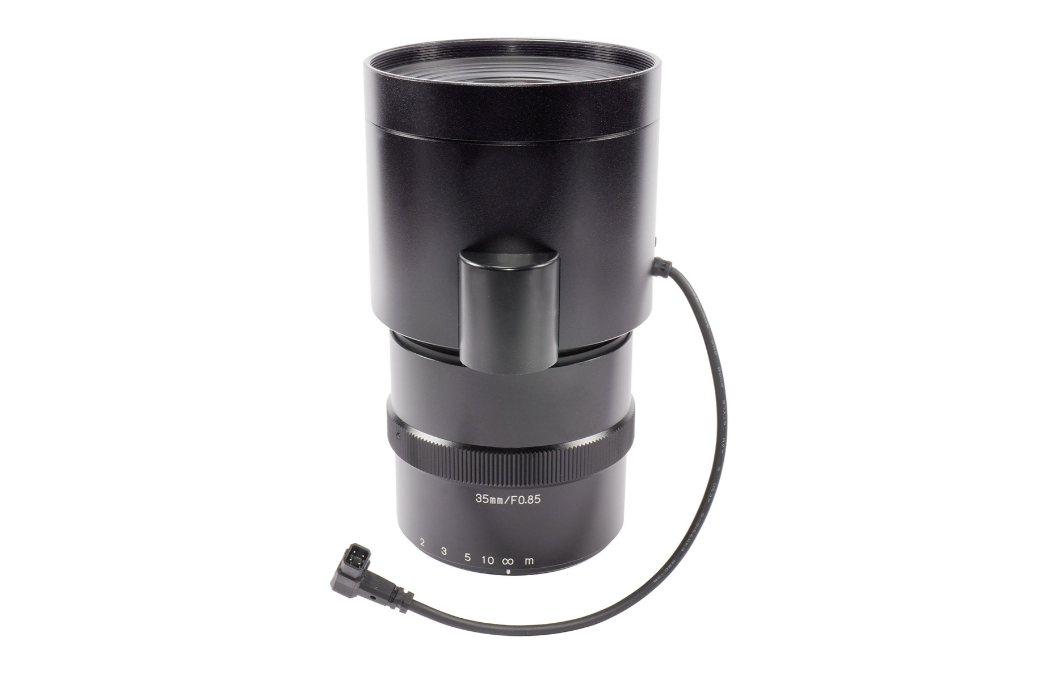

Kowa LM35JS5MA 35mm F0.85 Fixed Lens for 1" 5MP CS-Mount Cameras with Auto Iris DC and NIR Coating

*Please note this product is subject to tariff fee*

The Kowa LM35JS5MA is a high-performance 35mm fixed focal length lens built for 1" format CS-mount cameras up to 5 megapixels. With a super-fast F0.85 aperture and AI-DC auto iris control, this lens is engineered to excel in extreme low-light conditions across both visible and near-infrared spectrums (400–1000nm). Designed for high-precision imaging in ITS, traffic control, perimeter security, and industrial machine vision, it supports manual focus and delivers excellent resolution and contrast.

Optimized for pixel sizes around 3.5–4.5µm, the LM35JS5MA is ideal for applications where low frame rate, high sensitivity, and wide aperture are critical. Its broadband coated optics enhance transmission and suppress ghosting and flare. The lens features a CS-mount, M77 x 0.75 filter thread, and rugged build quality for reliable operation from -10°C to +50°C. Included is a 25cm 4-pin cable for iris control, and the housing measures 78.5mm x 145mm, weighing in at 1200g, making it suitable for robust fixed installations.

Features:

• 35mm fixed focal length with 1" format sensor compatibility
• Supports resolutions up to 5 Megapixels
• Ultra-fast F0.85 aperture for superior low-light performance
• DC Auto Iris (AI-DC) with wide F0.85–F360 range
• Manual focus control for precision tuning
• CS-Mount for compact industrial/security cameras
• Visible to Near-Infrared coverage (400–1000nm)
• M77 x 0.75 front filter thread
• Aspherical optics for reduced distortion
• Durable build: 1200g, rated for -10°C to +50°C
• Includes 25cm iris control cable with 4-pin plug

Applications:

• Traffic surveillance and ITS systems
• Border security and perimeter monitoring
• Industrial machine vision setups
• Low-light or nighttime surveillance
• Near-infrared imaging in controlled lighting conditions
• Fixed-position security camera installations

Model Kowa LM35JS5MA Sensor Format 1" Resolution 5 Megapixel Focal Length 35mm Aperture Range F0.85 – F360 Aperture Control Auto Iris (AI-DC) Focus Manual Mount Type CS-Mount Angle of View (H) 21.6° Minimum Object Distance 3 meters Filter Thread M77 x 0.75 Wavelength Range 400nm – 1000nm (Broadband Coated) Control Cable 25cm with 4-pin Plug Operating Temperature -10°C to +50°C Lens Type Fixed Focal Length Application Field Security, Traffic, Vision Systems Dimensions (mm) 78.5 x 145 Weight 1200g
