LM35XC

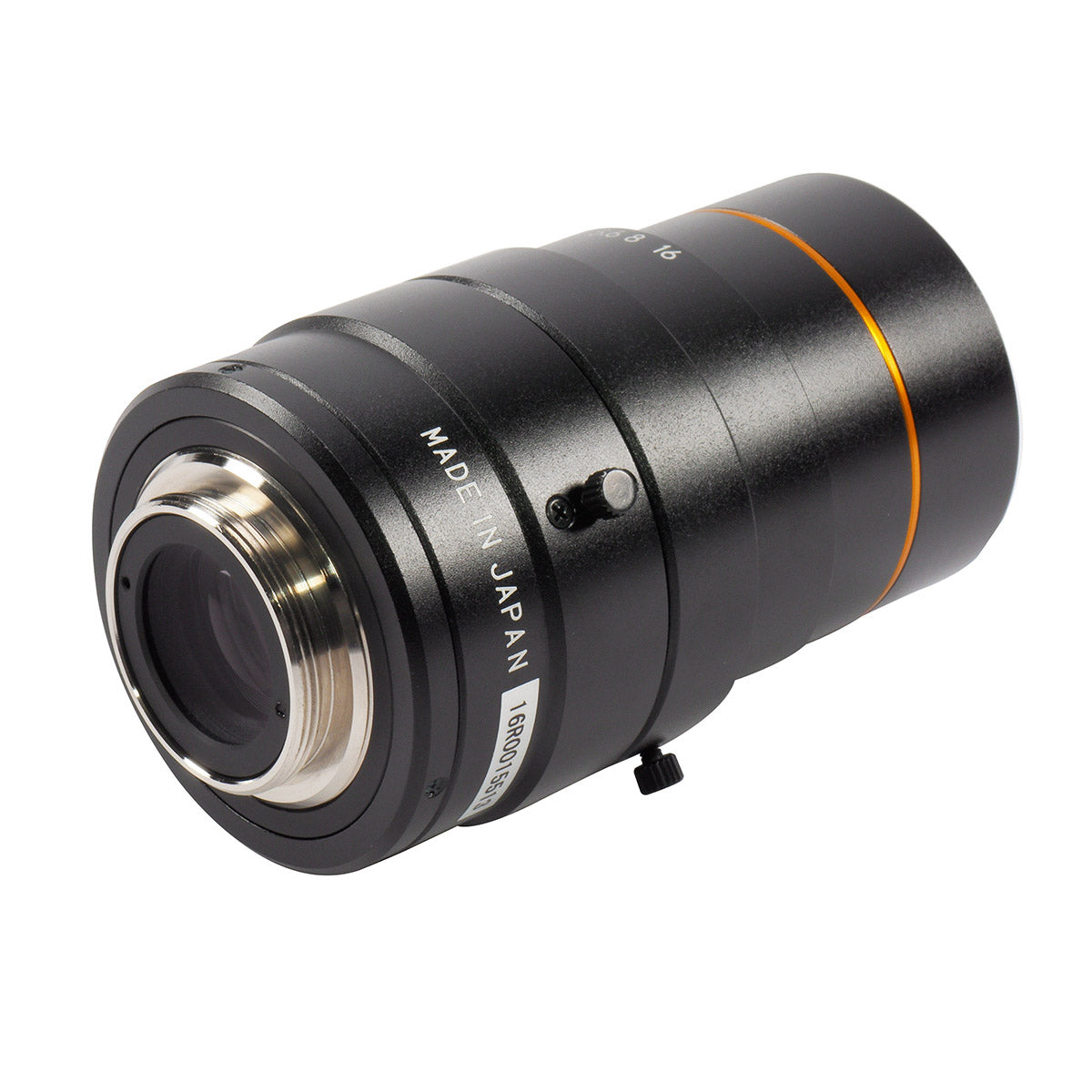

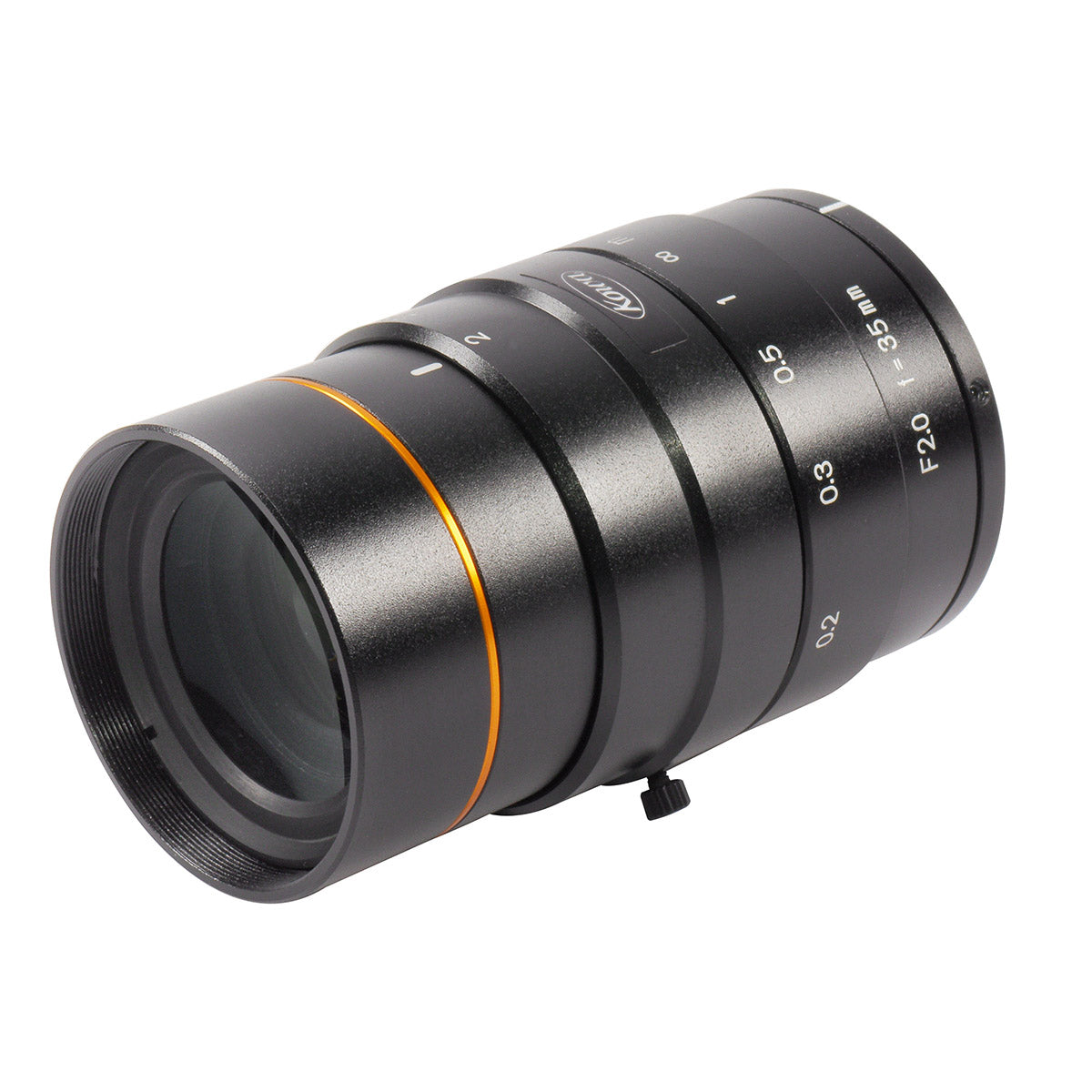

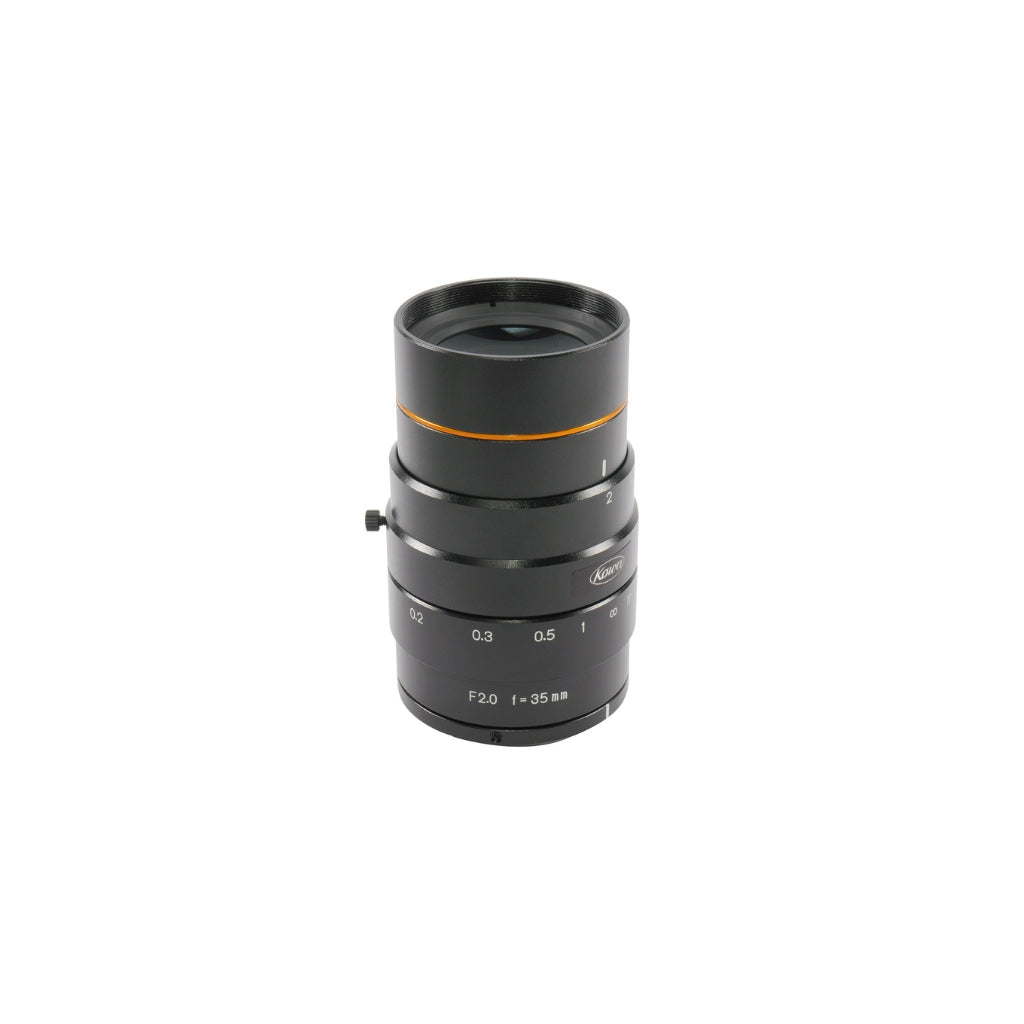

Kowa LM35XC 1.1” 20MP C-Mount FC Lens Compatible with Sony Sony IMX387, Sony IMX540 sensors and many more
Kowa LM35XC 1.1” 20MP C-Mount FC Lens Compatible with Sony Sony IMX387, Sony IMX540 sensors and many more
SKU:LM35XC
Couldn't load pickup availability
Unleashing Precision with Kowa LM35XC 1.1” 20MP C-Mount FC Lens
Kowa has been a pioneer in precision optics for decades, catering to the specific demands of industrial and machine vision applications. The Kowa LM35XC 1.1” 20MP C-Mount FC lens exemplifies their commitment to excellence, boasting unparalleled clarity and accuracy in imaging. Designed for sensors with a pixel size of 3.0μm or more, this lens is ideal for high-resolution imaging tasks in factory automation, quality control, and inspection systems.
With a focal length of 35mm and compatibility with 4/3" 20-megapixel sensors like Sony IMX387 and Sony IMX540, the Kowa LM35XC delivers exceptional performance even in demanding environments. Its manual iris control and broad wavelength range ensure versatility across various lighting conditions and applications. From broadcast to precision manufacturing, Kowa lenses are trusted for their reliability and superior imaging capabilities.
Unlock precision with Kowa LM35XC 1.1” 20MP C-Mount FC lens. Perfect for industrial imaging. Elevate your vision today!
Features:
- High-resolution 20MP imaging
- Manual iris control for versatility

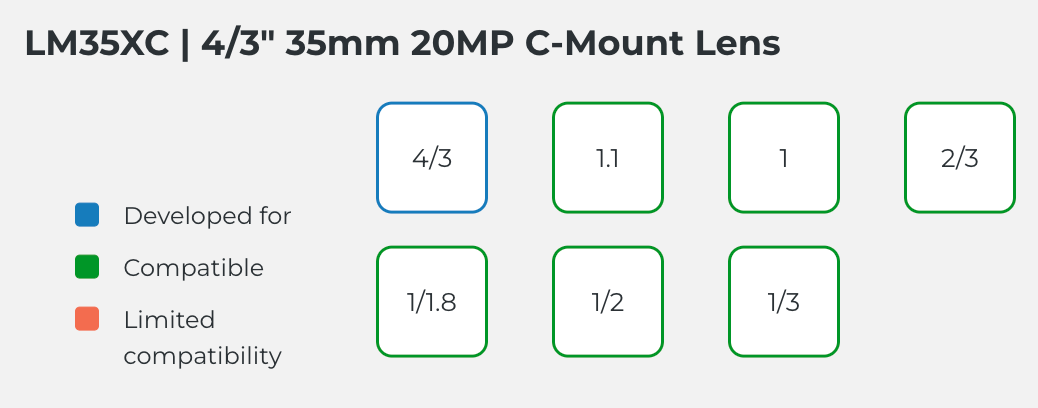

- Compatible with 4/3" 20MP sensors
- Broad wavelength range for diverse applications
- Precision optics for exceptional clarity
Applications:
- Factory automation
- Quality control
- Inspection systems
- Broadcast
- Precision manufacturing
| Aperture (F-stop) | 2 - 16 |
| Aperture (control) | Manual |
| Application field | Broadcast, Machine Vision |
| Back focus in air (mm) | 15.2 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 100 |
| Field of view at minimum working distance, vertical (mm) | 75 |
| Filter size (mm) | M37.5 x P0.5 |
| Focal length (mm) | 35 |
| Focus range (m) | 0.2 - ∞ |
| Megapixel | 20 |
| Mount | C-mount |
| Pixel size (µm) | 3 |
| Resolution, centre (lp/mm) | 160 |
| Resolution, margin (lp/mm) | 80 |
| Sensor size | 4/3" |

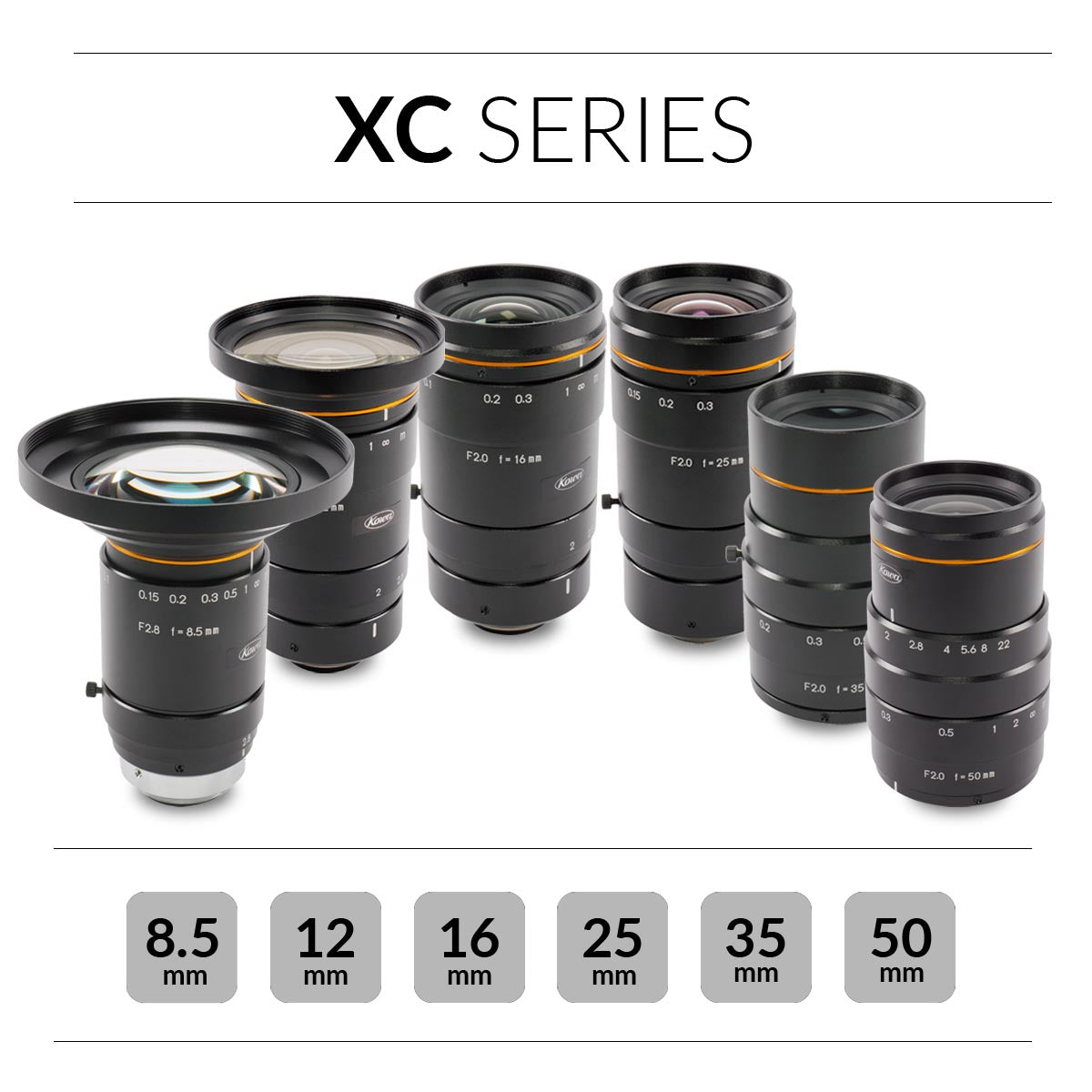

| Series | XC |

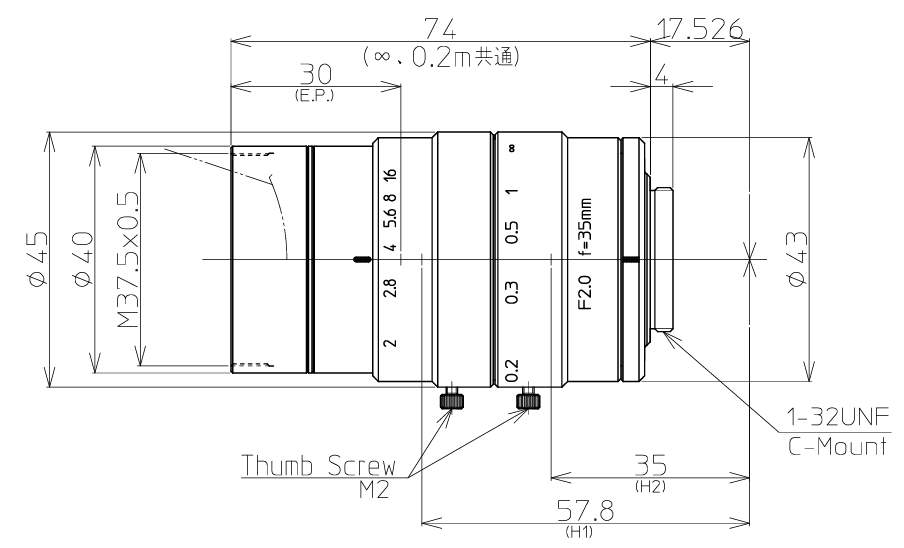

| Size (mm) | Ø45 x 74 |
| TV distortion (%) | -0.17 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Broad Band Coating (400nm – 1000nm), Peak Coating (400nm – 1000nm) |
| Weight (g) | 210 |
