Kowa LM3JC10M 2/3" 3.7mm 10MP C-Mount Lens Compatible With Sony IMX250 Sony IMX264 and Aptina MT9D131 sensors and many more

*Please note this product is subject to tariff fee*

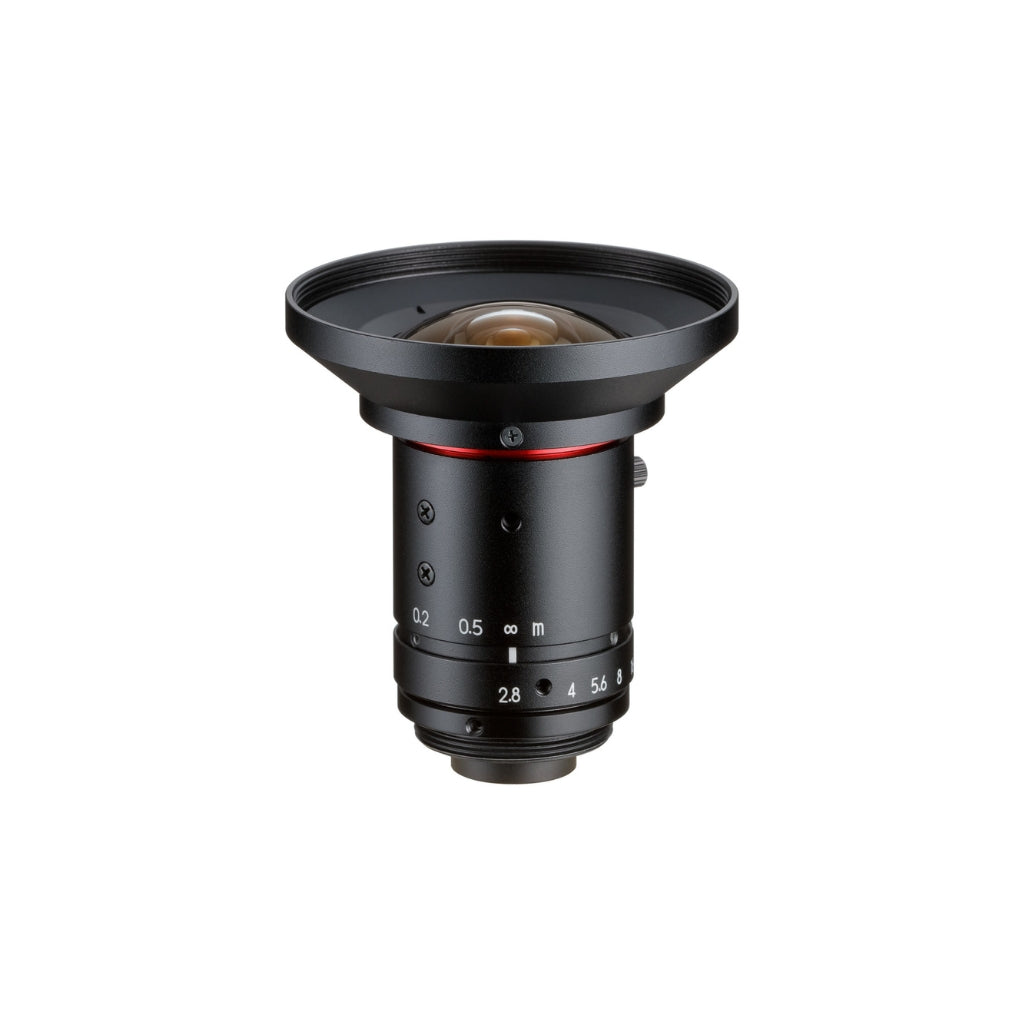

The Kowa LM3JC10M is a compact, high-resolution 3.7mm fixed focal length lens built for 2/3" image sensors with up to 10MP resolution. It supports pixel sizes down to 2.4µm, making it an excellent match for sensors like the Sony IMX250, IMX264, and Aptina MT9D131. With center resolution rated at 200 lp/mm and 125 lp/mm at the edges, this C-mount lens provides outstanding image detail and contrast across the full field of view, ideal for machine vision, automation, and high-speed inspection systems.

The lens uses a floating focus mechanism to suppress optical aberrations throughout its 0.1m to infinity focus range. It features a manual iris (F2.8–F16), ultra-low TV distortion (-0.09%), and broadband transmission from 400nm to 1000nm, covering both visible and NIR wavelengths. Weighing only 120g and measuring Ø57 x 54mm, the LM3JC10M is rugged and temperature-rated from -10°C to +50°C. This lens is designed to perform in demanding environments and integrate easily into OEM, ITS, and industrial imaging platforms.

Features:

• 3.7mm fixed focal length
• 10MP resolution with support for 2.4µm pixel size
• High center resolution: 200 lp/mm
• Edge resolution: 125 lp/mm

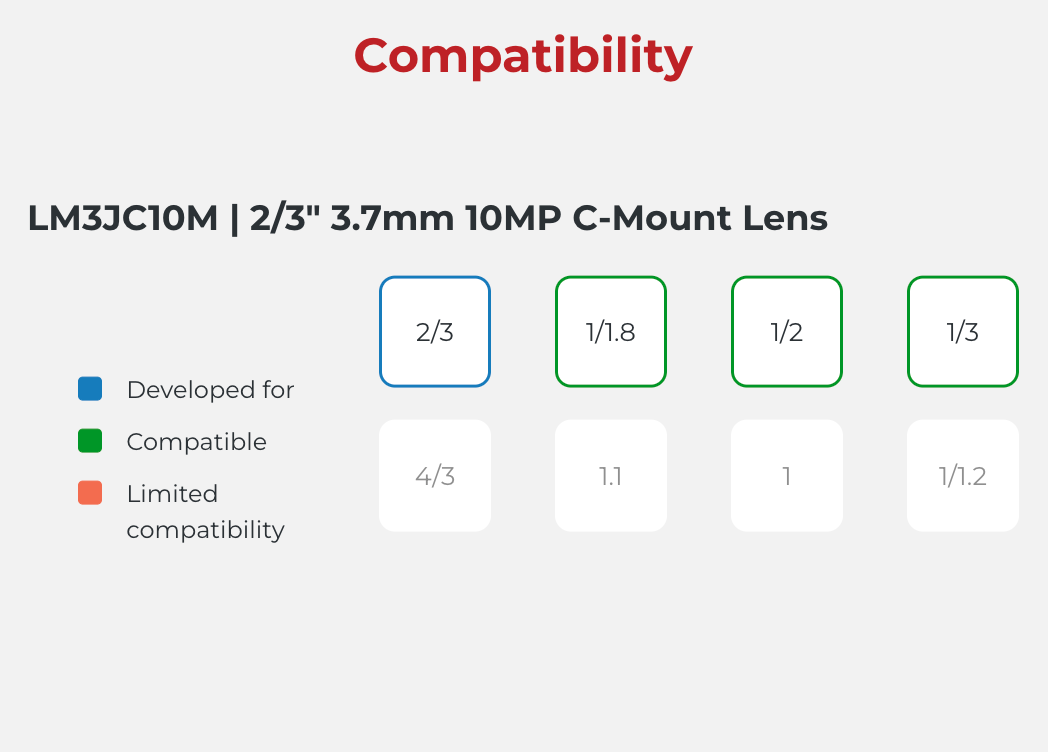

• Supports 2/3" CMOS and CCD sensors
• Compatible with Sony IMX250, IMX264, and Aptina MT9D131
• Broadband coating: 400–1000nm (Visible to NIR)
• Floating design to minimize aberration
• Manual iris and focus controls
• TV distortion: -0.09%
• Compact form factor: Ø57 x 54mm
• Operating temperature: -10°C to +50°C
• Lightweight: 120g

Applications:

• Industrial inspection and automation
• Machine vision and defect detection
• Intelligent traffic systems (ITS)
• Robotics and embedded vision
• OEM imaging platforms
• High-speed camera systems with small-pixel sensors
• Multispectral and NIR imaging tasks
