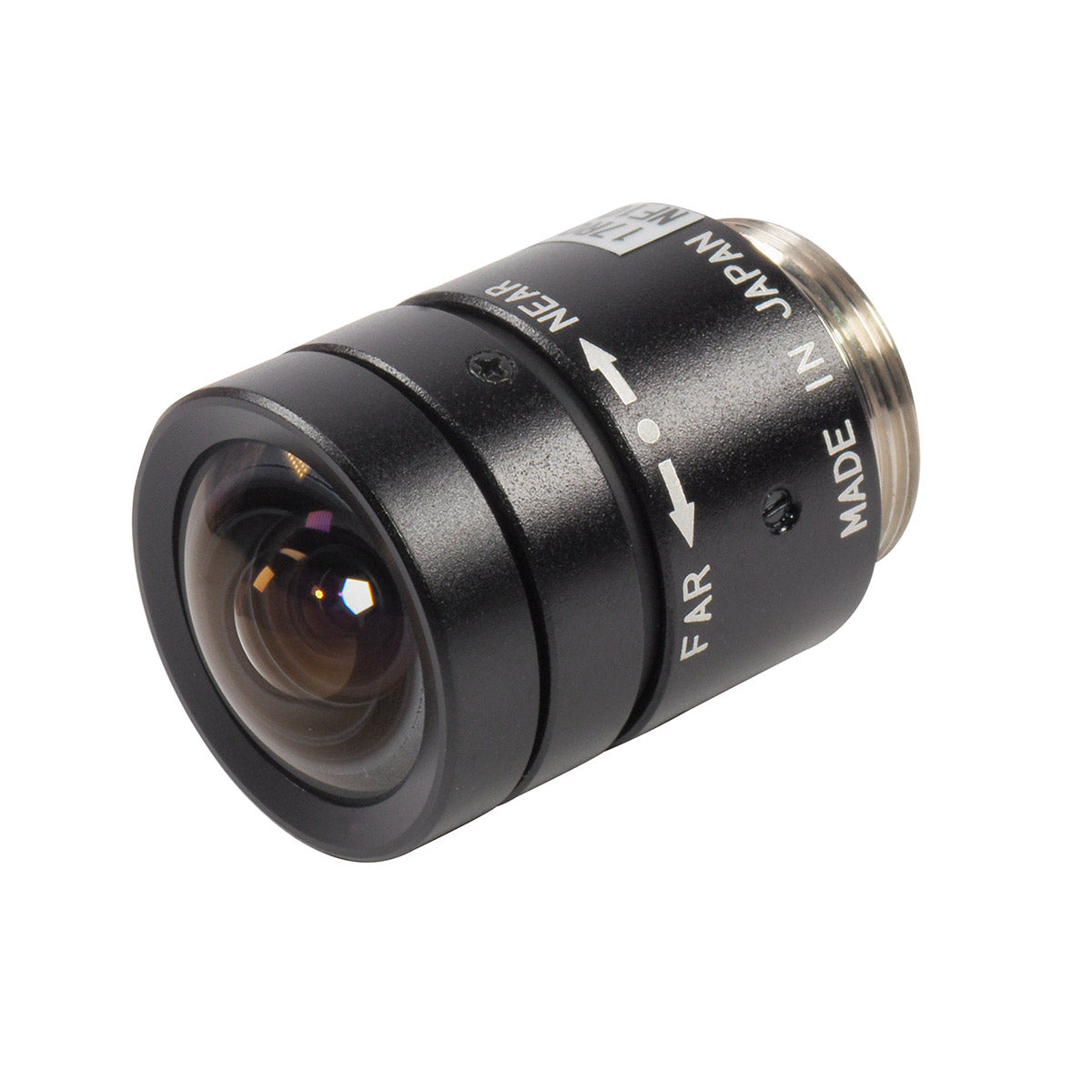

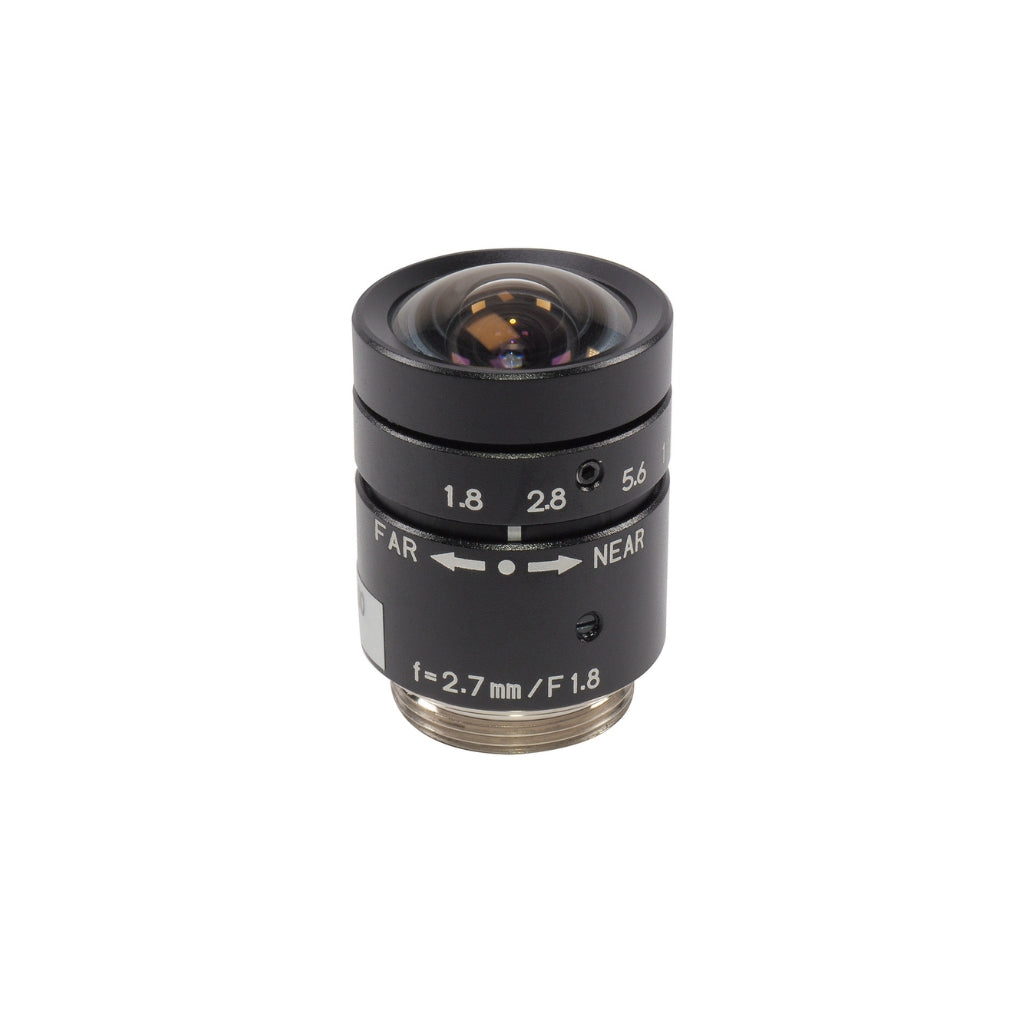

Kowa LM3NF 1/3" 2.7mm NF-Mount Lens

Kowa LM3NF 1/3" 2.7mm NF-Mount Lens

SKU:LM3NF

Regular price $316.00 USD
Regular price Sale price $316.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

High-Performance Kowa LM3NF NF-Mount Lens for Precision Imaging

Delve into the world of precision imaging with Kowa's LM3NF NF-Mount Lens. Crafted with expertise and designed for excellence, this lens is a testament to Kowa's commitment to delivering top-tier optical solutions. With a focal length of 2.7mm and a sensor size of 1/3", this lens offers impeccable clarity and resolution, making it ideal for industrial and machine vision applications.

The Kowa LM3NF boasts megapixel resolution, ensuring every detail is captured with stunning accuracy. Its compact and featherweight design makes it versatile and easy to integrate into various setups. The metal body and mount provide durability and stability, ensuring consistent performance even in demanding environments. With manual iris control ranging from f/1.8 to f/11 and manual focus control with locking screws, users have precise control over their imaging parameters.

Whether used in broadcast, machine vision, industrial automation, or security systems, the Kowa LM3NF excels in delivering exceptional results. From optical inspection to monitoring and surveillance, this lens enhances efficiency and productivity across industries. Experience the difference with Kowa's LM3NF NF-Mount Lens and unlock a new level of precision imaging. Elevate your vision and explore endless possibilities with this high-performance lens.

Features:

  • Megapixel resolution
  • Compact, featherweight NF mount optics
  • Metal body and mount for durability
  • Manual iris control with a range from f/1.8 to f/11
  • Manual focus control with locking screws
  • Wide wavelength range from 380nm to 780nm

Applications:

  • Broadcast
  • Machine Vision
  • Industrial automation
  • Security systems
  • Optical inspection

LM3NF Spec Sheet

Aperture (F-stop) 1.8 - 11
Aperture (control) Manual
Application field Broadcast, Machine Vision
Back focus in air (mm) 7.83
Control (focus) Manual
Field of view at minimum working distance, horizontal (mm) 262.7
Field of view at minimum working distance, vertical (mm) 167.8
Filter size (mm) no
Focal length (mm) 2.7
Focus range (m) 0.1 - ∞

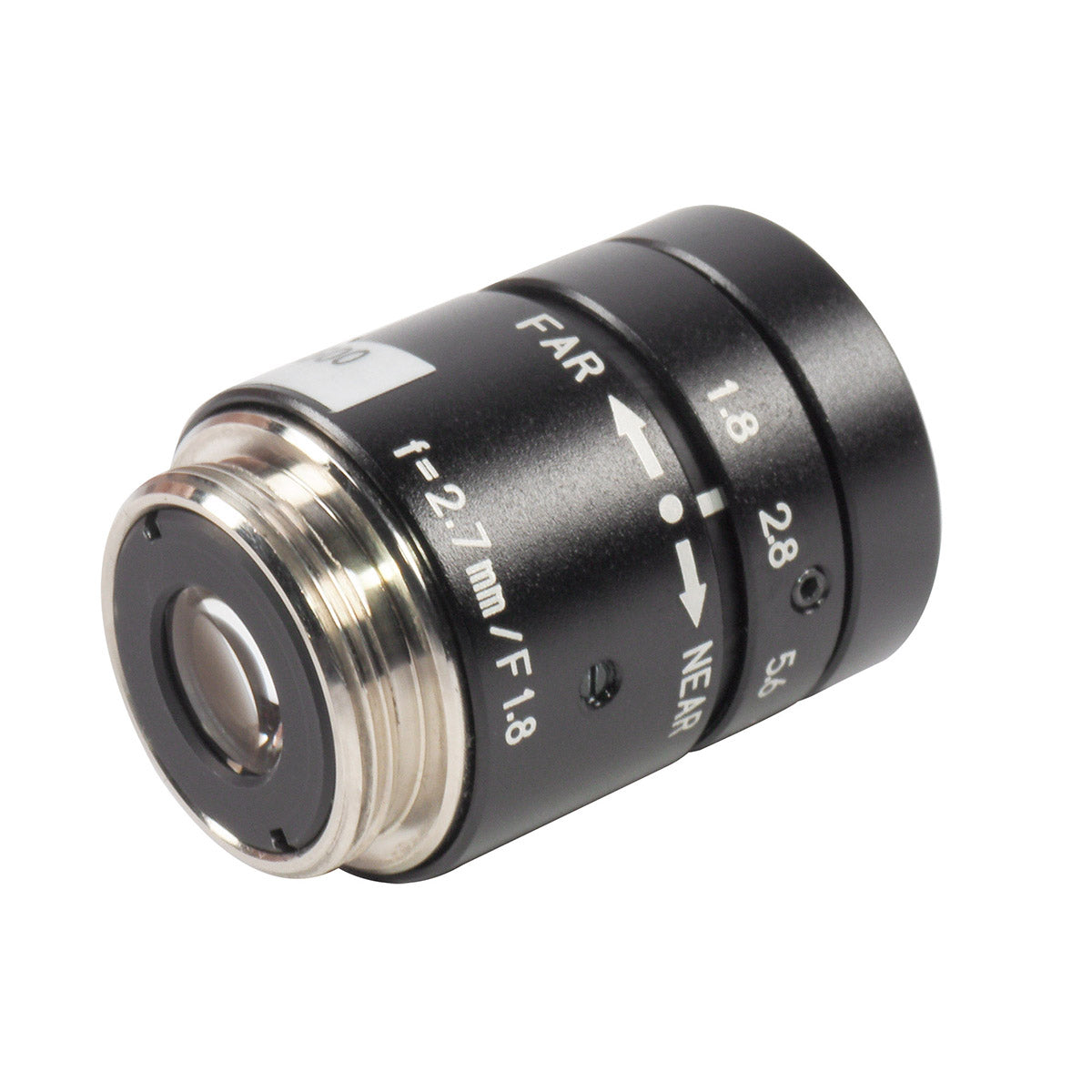

Mount NF-mount
Pixel size (µm) 4.5
Resolution, centre (lp/mm) 100
Resolution, margin (lp/mm) 80

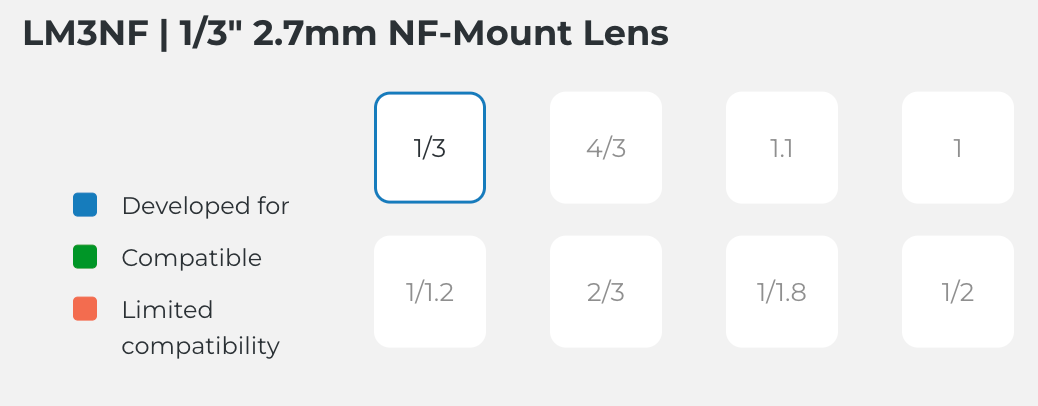

Sensor size 1/3"

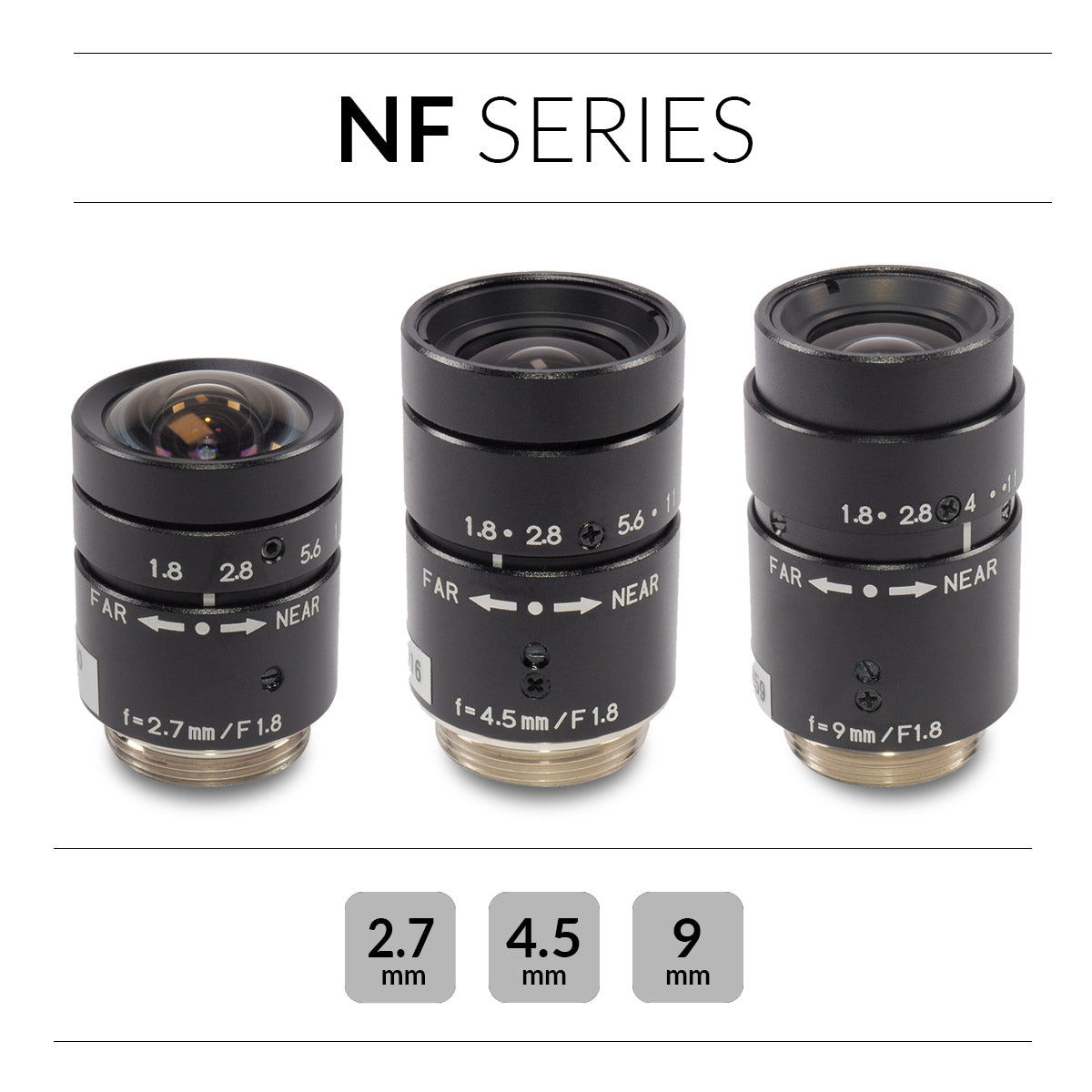

Series NF

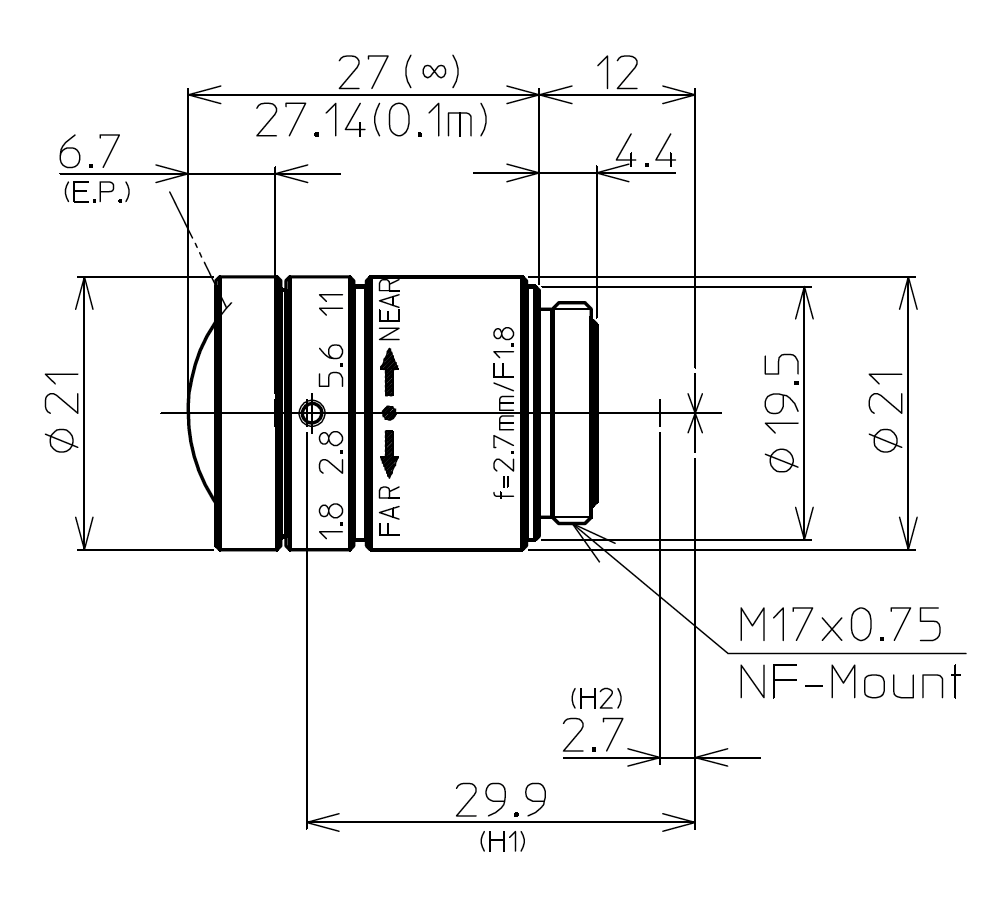

Size (mm) Ø21 x 27
TV distortion (%) -7.3
Temperature range (℃) -10°C - +50°C
Type of lens Fixed Focal Lens
Wavelength range Peak Coating (400nm – 1000nm)
Weight (g) 30
