USA Security Systems

LM3QS40

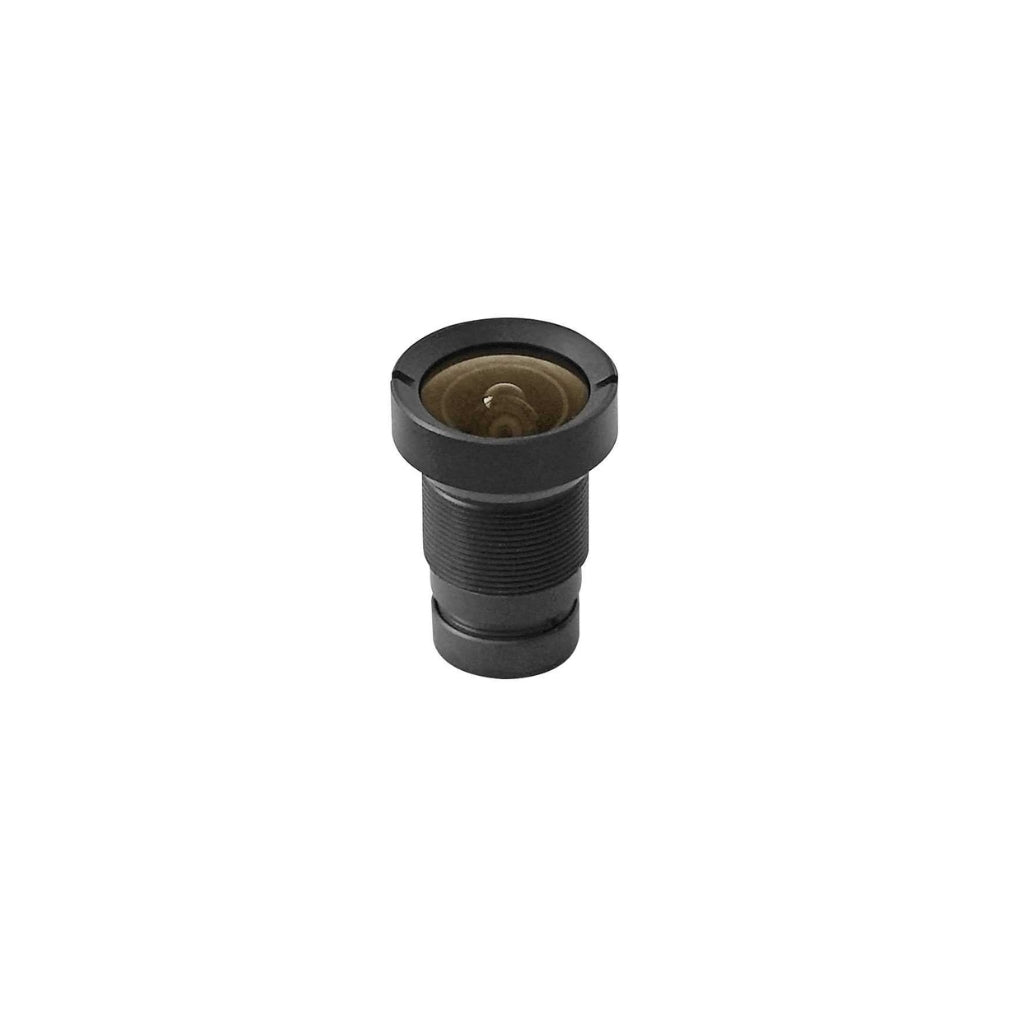

Kowa LM3QS40 1/2.5” wide angle megapixel S-Mount lens

Kowa LM3QS40 1/2.5” wide angle megapixel S-Mount lens

SKU:LM3QS40

Regular price $148.00 USD
Regular price Sale price $148.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

*Please note this product is subject to tariff fee*

Unlock the potential of your machine vision systems with Kowa's LM3QS40 lens. Engineered for precision and durability, this S-mount lens delivers exceptional wide-angle clarity, ensuring megapixel-level image quality for security and industrial applications. With its customizable features, including aperture modifications and IR cut filters, Kowa empowers you to tailor your lens for specific needs.

The option to reinforce inner glass elements enhances shock and vibration resistance, guaranteeing reliability in demanding environments. Whether for monitoring, inspection, or surveillance, Kowa's innovative optical and mechanical designs provide unmatched performance, making it the ideal choice for security systems integration.

Features:

  • Wide-angle lens with 3mm focal length
  • Megapixel clarity for enhanced image resolution
  • Customizable apertures and IR cut filters
  • Shock and vibration-resistant design
  • Optimal performance in machine vision and industrial applications

Applications:

  • Surveillance systems
  • Automated inspection
  • Quality control
  • Robotics
  • Object tracking
Focal Length 3mm

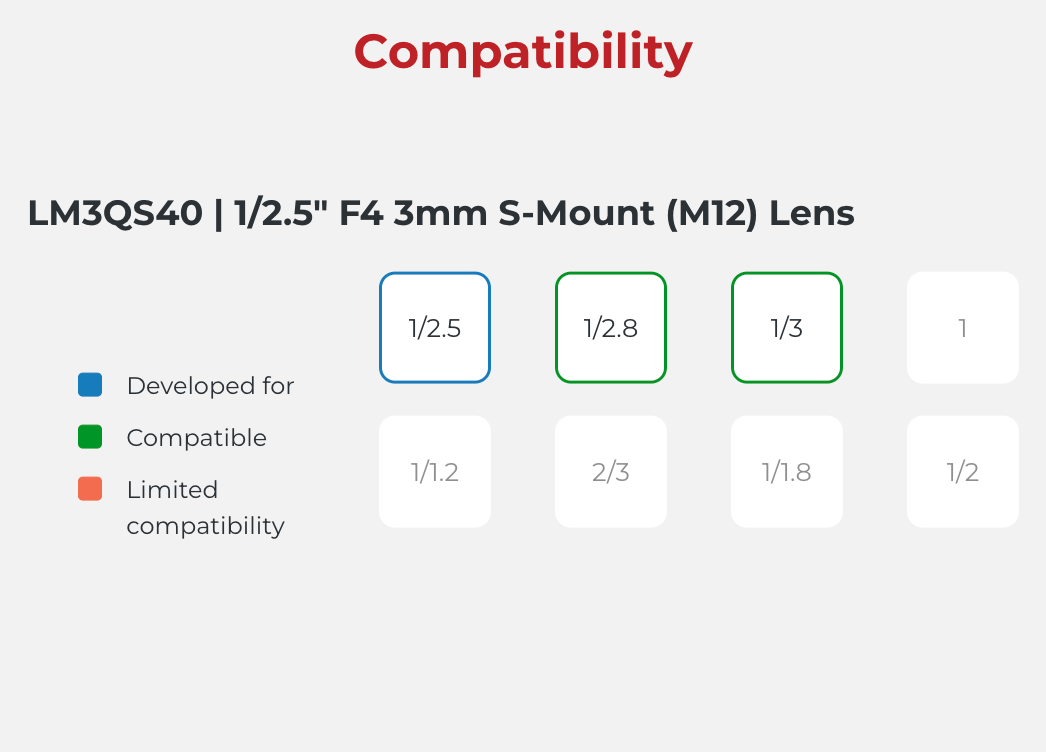

Sensor Size 1/2.5"
Pixel Size 3.2µm
Mount S-Mount
Iris Range (F-Stop) f/4.0
Lens Type Fixed Focal Lens
Wavelength Range Visible Spectrum (380nm – 780nm)
Focusing Range 0.1m – ∞
Shooting Range at MOD (Horizontal x Vertical) 86.7mm × 70.6mm
Resolution (Center / Corner) 160 lp/mm / 125 lp/mm
Distortion (TV) 0.02%
Back Focus in Air 2.6mm
Dimensions Ø16 × 22.3mm
Weight 6g
Operating Temperature -10°C to +50°C
Series Board Lens
Application Machine Vision
