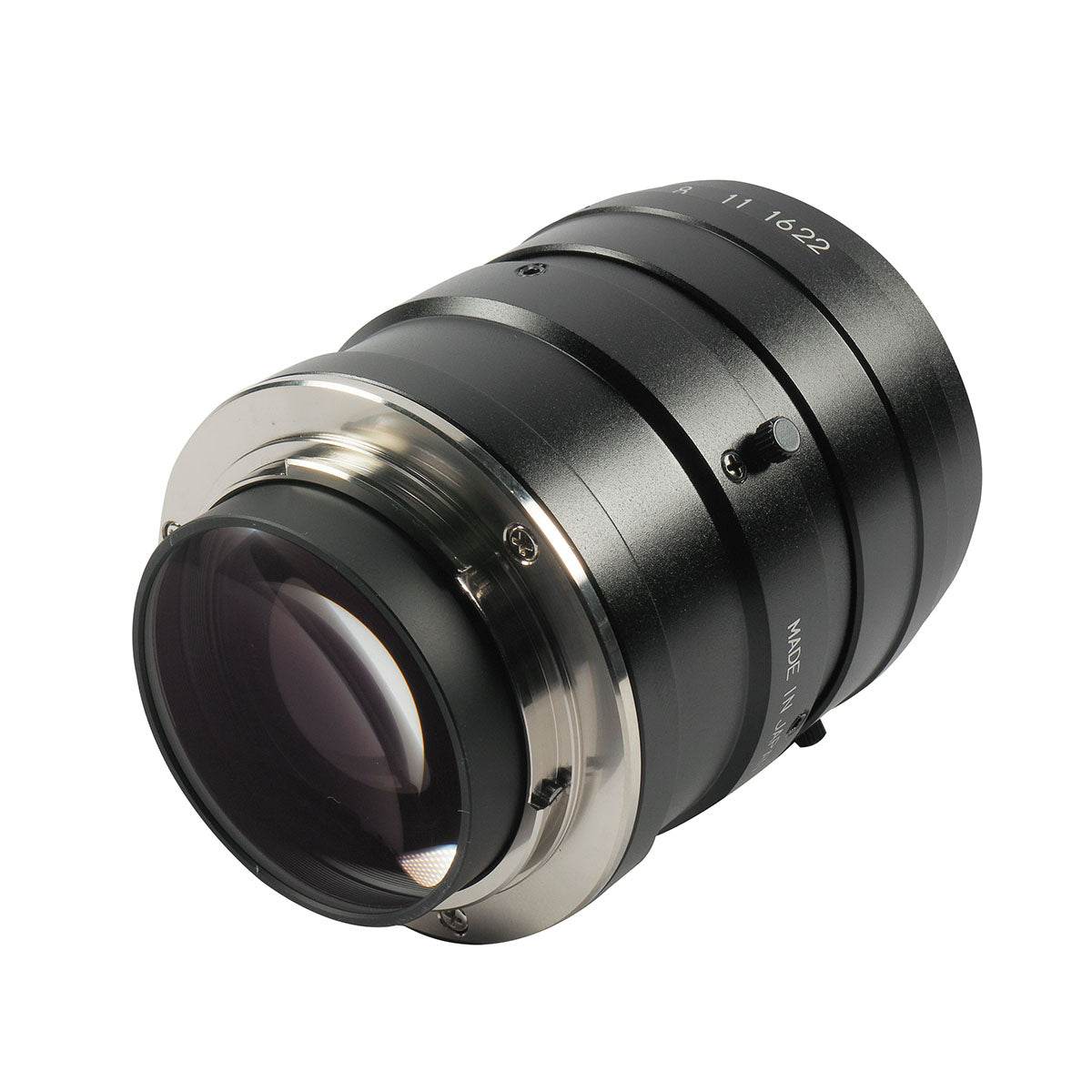

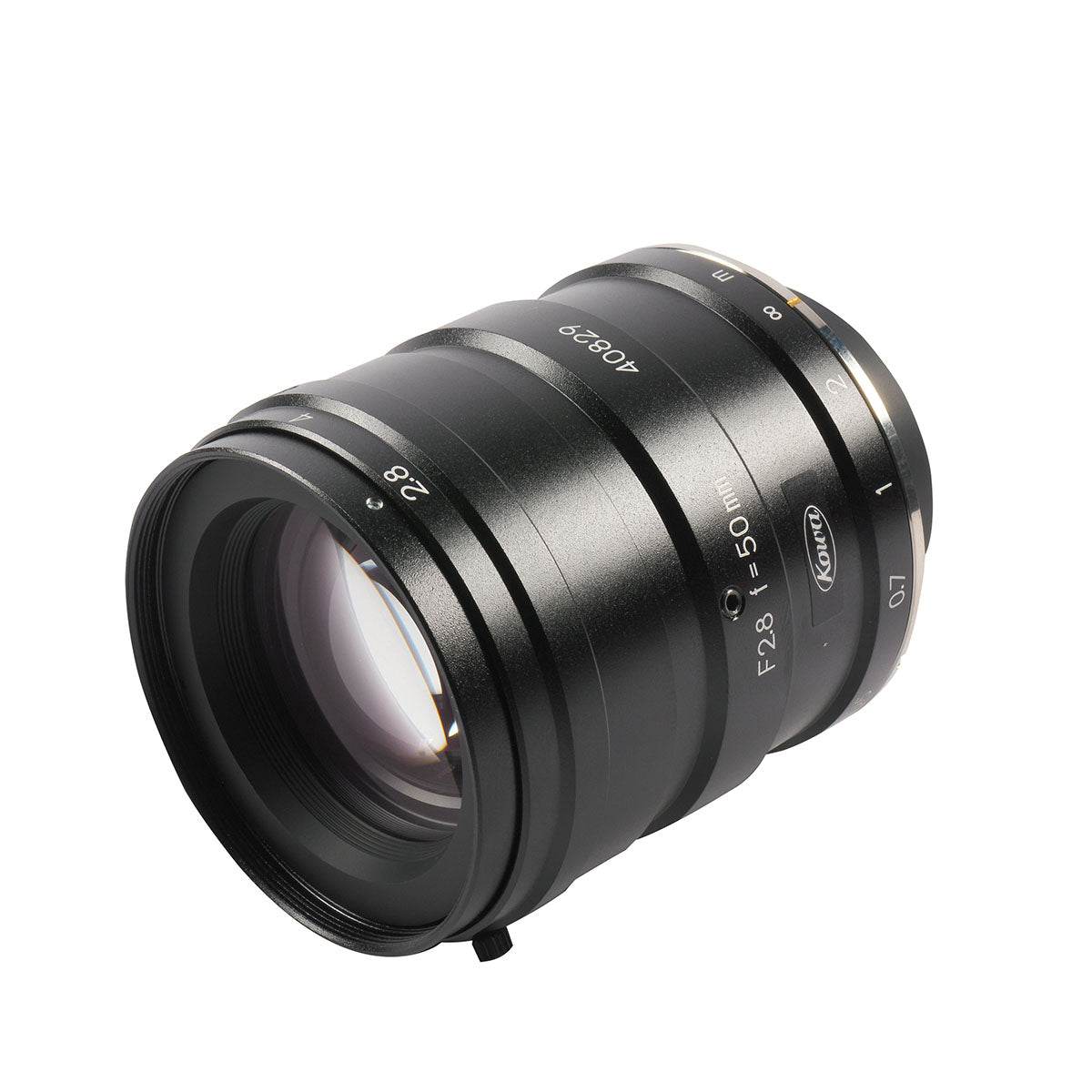

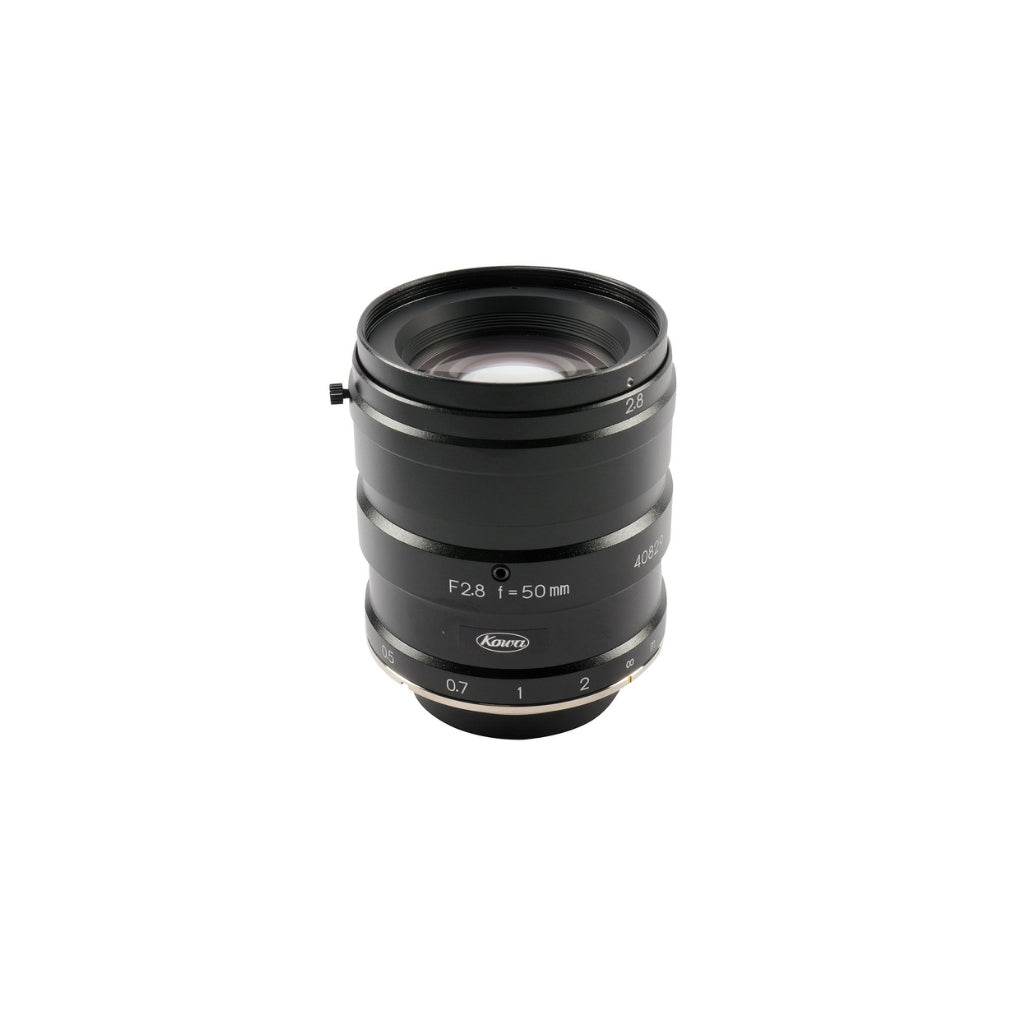

Kowa LM50CLS 30mm 50mm F-Mount Color Line Scan Lens

Unveiling Precision: Kowa LM50CLS 30mm F-Mount Color Line Scan Lens

Experience the epitome of precision optics with the Kowa LM50CLS 30mm F-Mount Color Line Scan Lens. Designed for industrial and machine vision applications, this lens is optimized for use with 30mm line sensors, ensuring ultra-high resolution imaging. With manual iris and focus control, it offers flexibility and accuracy in various settings.

This lens is tailored for industrial 3CCD color line scan cameras, delivering exceptional performance in demanding environments. Its focal length of 50mm and pixel size compatibility make it ideal for capturing intricate details with clarity. Whether it's quality control, manufacturing, or security systems, the Kowa LM50CLS excels in providing sharp, distortion-free images.

Features:

• High resolution: Center (160 lp/mm), Corner (63 lp/mm)
• Manual iris control (F-stop range: 2.8 - 22)
• Wide temperature range (-10°C to +50°C)
• Compact and lightweight design (358g)
• Compatible with 30mm line sensors

Machine Vision/Industrial Applications:

• Quality control and inspection
• Manufacturing process monitoring
• Security and surveillance systems
• Print inspection
• Surface inspection

Download Data Sheet
