LM50HC
Kowa LM50HC 1" 50mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
Kowa LM50HC 1" 50mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
SKU:LM50HC
Couldn't load pickup availability
Unlocking Precision: Kowa LM50HC 1" 50mm 5MP C-Mount Lens
Delve into the world of unparalleled precision with Kowa's LM50HC 1" 50mm 5MP C-Mount Lens. Designed meticulously for machine vision and industrial applications, Kowa lenses epitomize cutting-edge optics and reliability. With a focal length of 50mm and a pixel size of 5.0μm, this lens is tailor-made for sensors like the Sony IMX174, CMOSIS CMV4000, and Sony IMX249. Its manual iris control and fixed focal lens ensure optimal image capture, while the VIS wavelength range guarantees clarity across various lighting conditions. From broadcast to industrial automation, Kowa lenses elevate every application, delivering unmatched resolution and minimal distortion. Experience precision like never before with Kowa.
Experience unmatched precision with Kowa LM50HC 1" 50mm 5MP C-Mount Lens. Elevate your machine vision with high-res clarity. Upgrade now!
Features:
- 50mm focal length

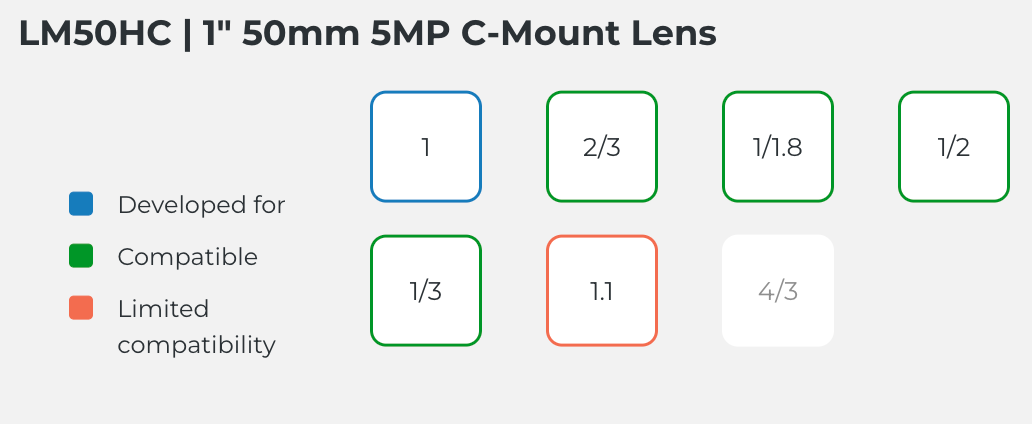

- Compatible with Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors
- Manual iris control for optimal image capture
- Fixed focal lens design for consistency
- VIS wavelength range ensures clarity in various lighting conditions
Applications:
- Quality assurance
- Industrial automation
- Broadcast systems
| Image Size | 1" (12.8 x 9.6 x 16mm) |
| Focal Length | 50mm |
| Iris Range (F-Stop) | F1.4 - F16 |
| Minimum Focus Distance | 0.5m |
| Mount | C-Mount |
| Angle of View 1" (Hor. x Ver. x Dia.) | 14.5 x 10.8 x 18.0° |
| Angle of View 2/3" (Hor. x Ver. x Dia.) | 10.0 x 7.5 x 12.5° |
| Angle of View 1/1.8" (Hor. x Ver. x Dia.) | 8.2 x 6.2 x 10.2° |
| Field of View at M.O.D. 1" (Hor. x Ver. x Dia.) | 121.8 x 91.3 x 152.9mm |
| Field of View at M.O.D. 2/3" (Hor. x Ver. x Dia.) | 83.8 x 62.9 x 104.8mm |
| Field of View at M.O.D. 1/1.8" (Hor. x Ver. x Dia.) | 68.6 x 51.4 x 85.7mm |
| TV Distortion | -0.05% |
| Flange Back | 17.526mm in air |
| Back Focus | 14.8mm in air |
| Filter Thread Size | M40.5 x P0.5 |
| Front / Rear Effective Diameter | Front Φ35.0mm / Rear Φ15.5mm |
| Exit Pupil Location | -44.4mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution: Center / Corner | Center 100lp/mm / Corner 80lp/mm |
| Weight | 210g |
