LM50NC3

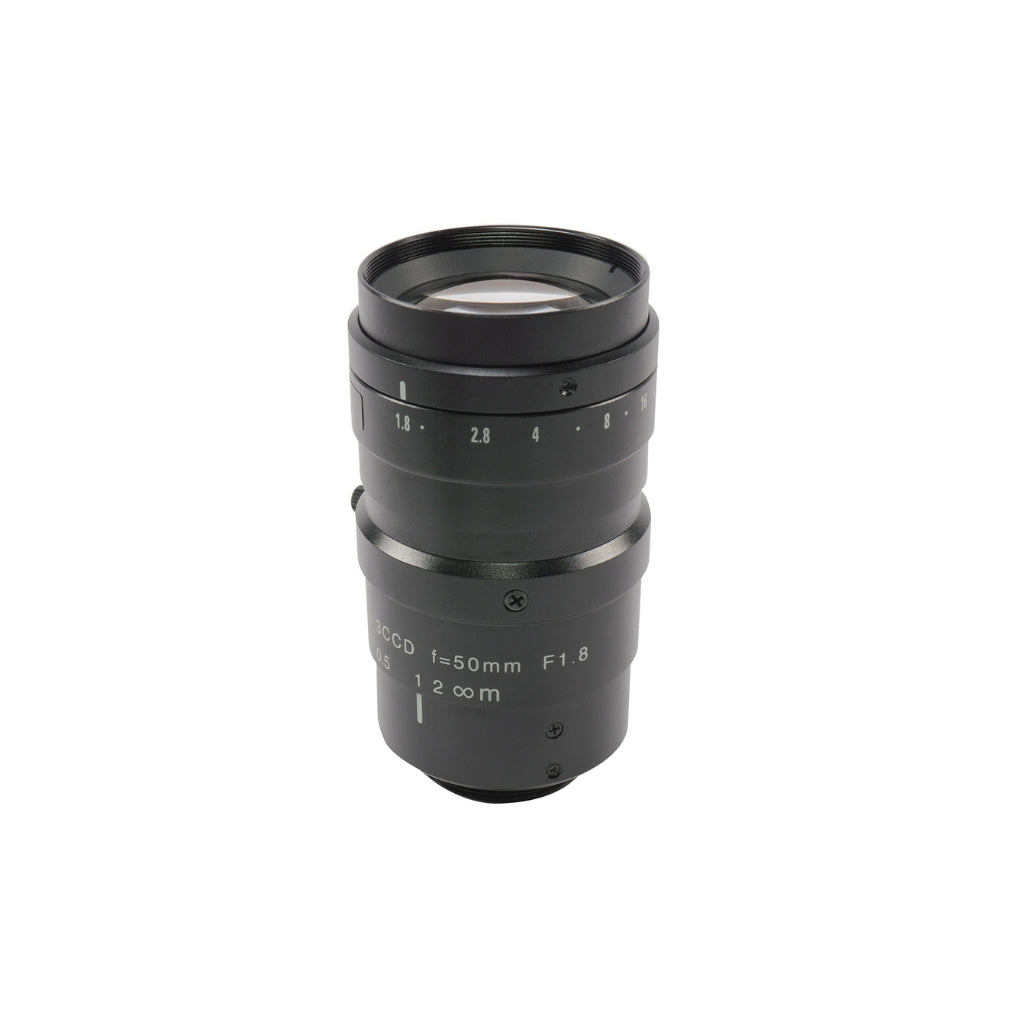

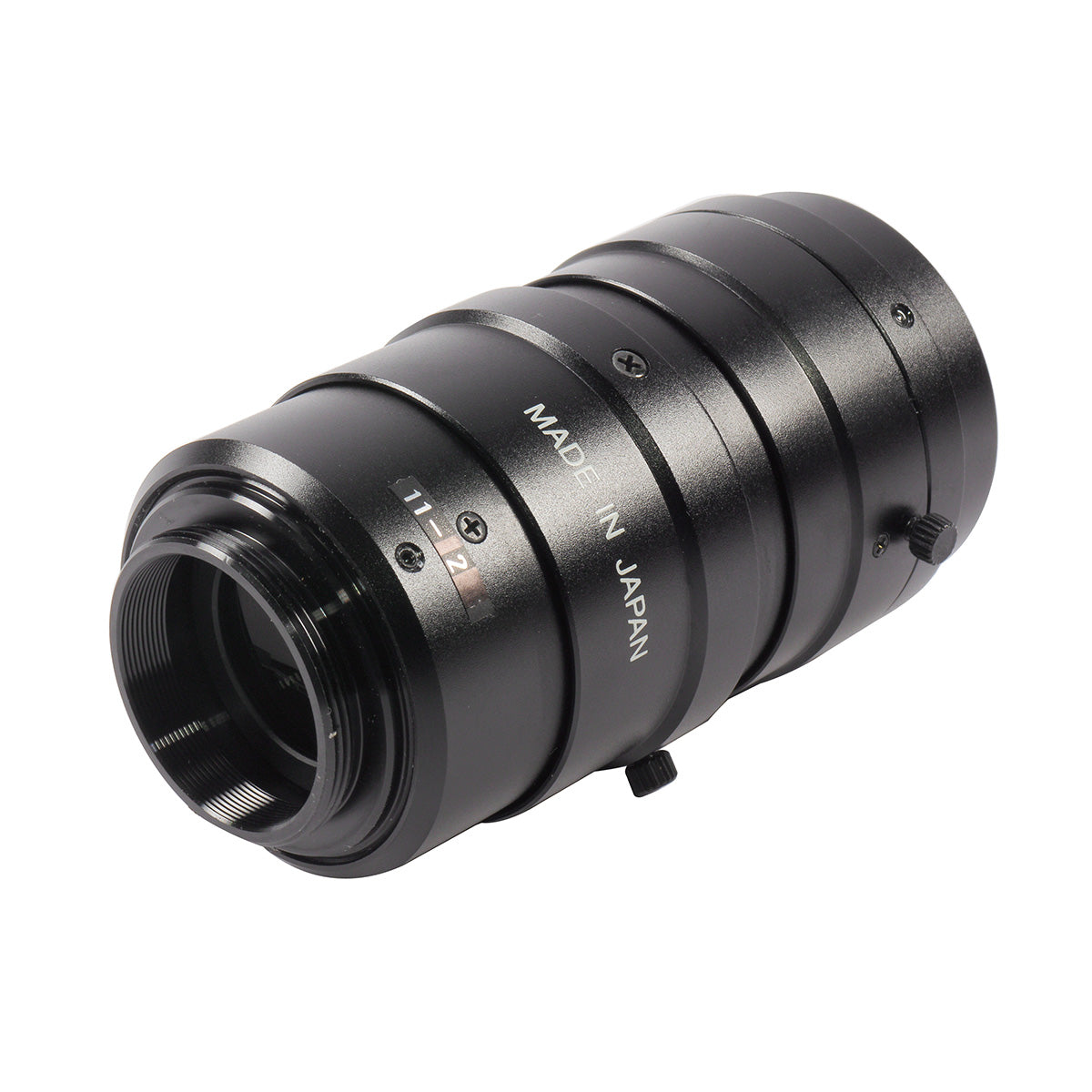

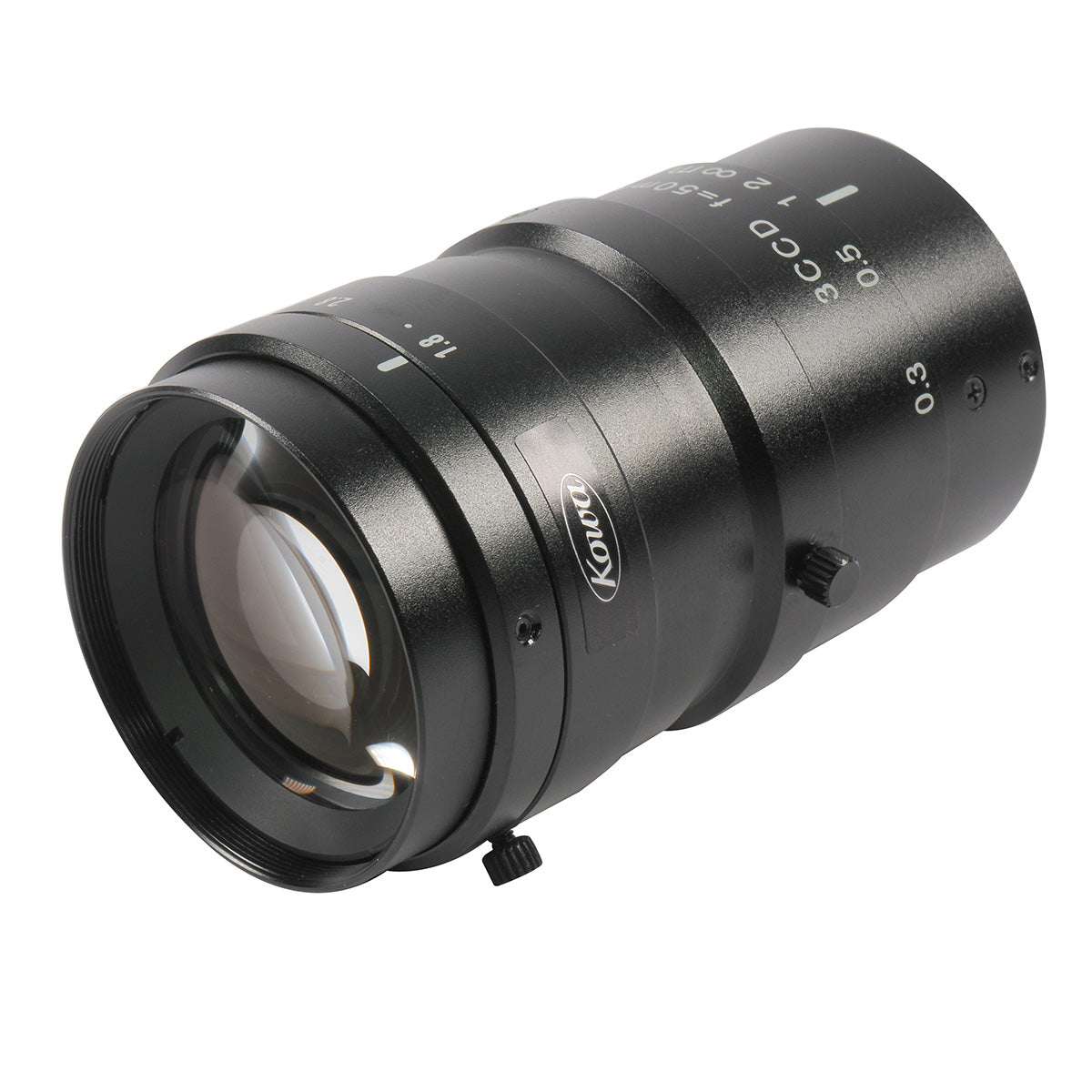

Kowa LM50NC3 1/2" 50mm 3CCD Lens
Kowa LM50NC3 1/2" 50mm 3CCD Lens
SKU:LM50NC3
Couldn't load pickup availability
High-Performance Kowa LM50NC3 Lens for Machine Vision and Industrial Applications
Kowa is renowned for delivering precision optics, and the LM50NC3 lens exemplifies this reputation. Crafted for machine vision and industrial applications, this 50mm lens offers exceptional image quality and reliability.
Featuring a robust metal housing and mount, alongside locking screws for iris and focus, the LM50NC3 ensures stability and durability in demanding environments. Its manual iris control allows for precise adjustments, catering to diverse imaging requirements.
With a focal length optimized for 1/2" sensors and a wide aperture range from f/1.8 to f/16, this fixed focal lens captures intricate details with clarity. The lens boasts high-resolution capabilities, with a center resolution of 120 lp/mm and minimal distortion (0.01%).
Ideal for machine vision systems, broadcast, and security applications, the Kowa LM50NC3 facilitates accurate image capture across various industries. Whether inspecting products, monitoring processes, or enhancing security measures, this lens delivers superior performance.
Experience precision imaging with Kowa's LM50NC3 lens. Perfect for machine vision and industrial applications, it ensures clarity and reliability. Upgrade your system today!
Features:
- Manual iris control for precise adjustments
- Robust metal mount and housing for durability
- High resolution with minimal distortion
- Wide aperture range from f/1.8 to f/16
Applications:
- Machine vision systems
- Industrial automation
- Security and surveillance
| Aperture (F-stop) | 1,8 - 16 |
| Aperture (control) | Manual |
| Application field | Broadcast, Machine Vision |
| Back focus in air (mm) | 21,2 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 39 |
| Field of view at minimum working distance, vertical (mm) | 29 |
| Filter size (mm) | M35,5 x P0,5 |
| Focal length (mm) | 50 |
| Focus range (m) | 0,3 - ∞ |
| Mount | C-mount |
| Pixel size (µm) | 4,5 |
| Resolution, centre (lp/mm) | 120 |
| Resolution, margin (lp/mm) | 100 |
| Sensor size | 1/2" |
| Series | NC3 |

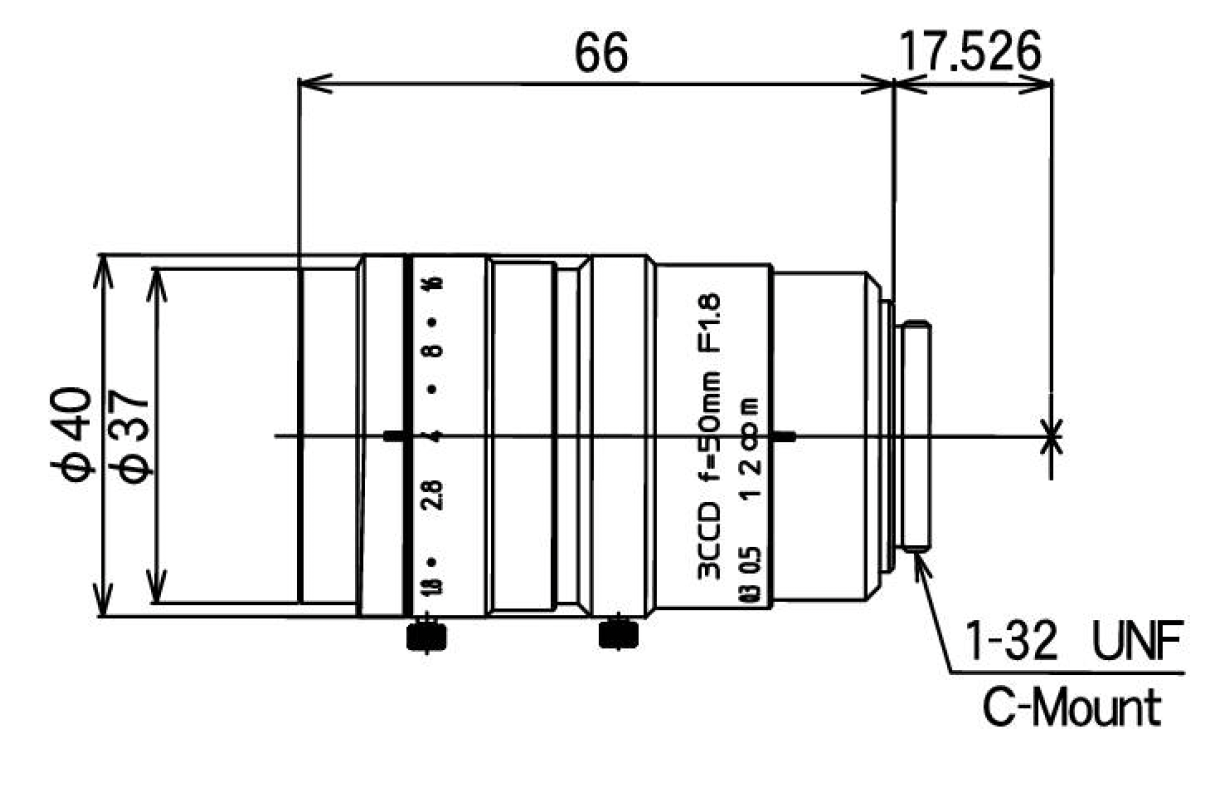

| Size (mm) | Ø40 X 66 |
| TV distortion (%) | 0,01 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Peak Coating (400nm – 1000nm) |
| Weight (g) | 155 |
