USA Security Systems

LM5JCMV

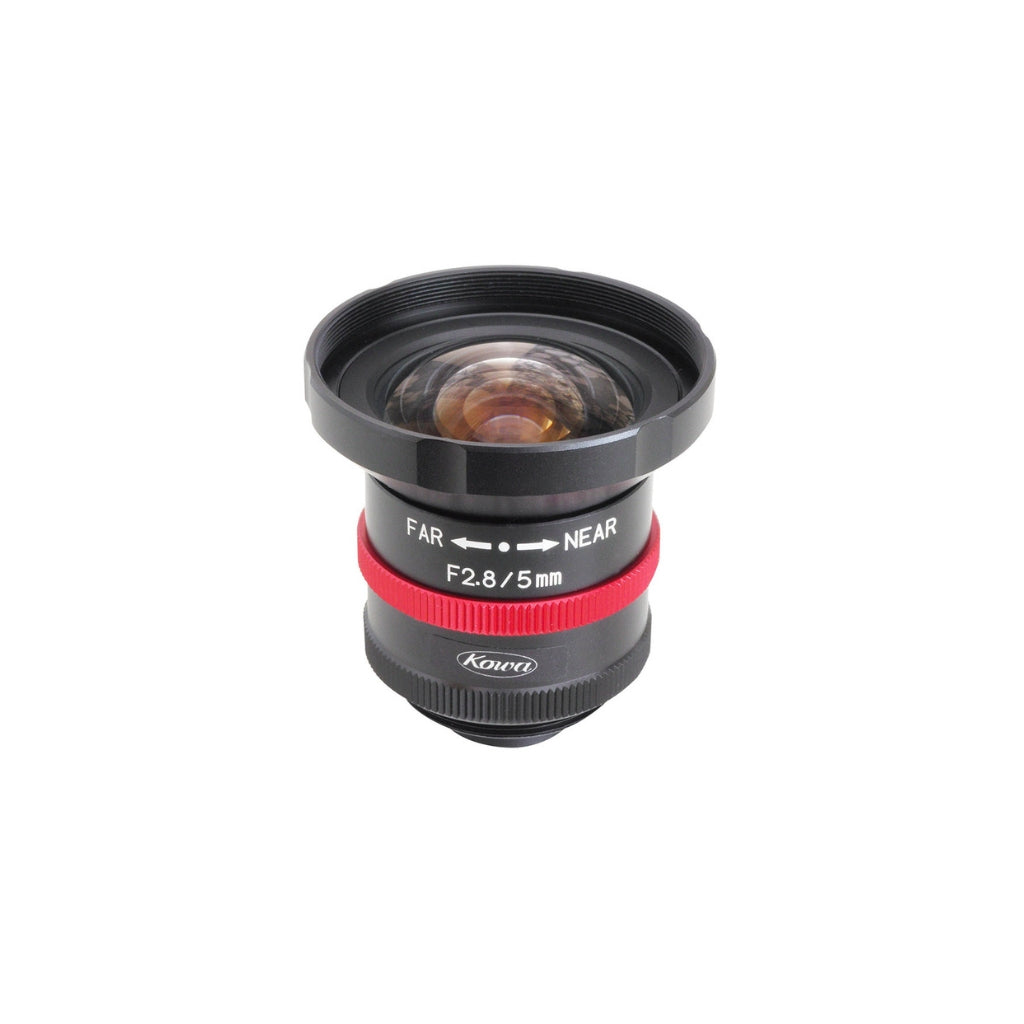

Kowa LM5JCM-V 2/3" Ruggedized 5mm 2MP C-mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more

Kowa LM5JCM-V 2/3" Ruggedized 5mm 2MP C-mount Lens Compatible With OnSemi Python500, e2v EV76C570 and Aptina MT9M131 sensors and many more

SKU:LM5JCM-V

Regular price $544.00 USD
Regular price Sale price $544.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Advanced Lens Solutions for Industrial Vision Systems

At USA Security Systems Inc., we take pride in offering cutting-edge solutions for industrial and machine vision applications. Our Kowa LM5JCM-V 2/3" lens is designed to meet the rigorous demands of industrial environments, boasting a ruggedized construction that can withstand strong vibrations and shocks. With a focal length of 5mm and compatibility with sensors featuring a pixel size of 4.5μm or more, this C-mount lens delivers exceptional performance and clarity.

Equipped with manual iris control and a wide aperture range (F2.8 to F8), the Kowa LM5JCM-V ensures precise control over image capture in various lighting conditions. Its high-resolution capabilities, with center resolution reaching 120 lp/mm, make it ideal for detailed inspection tasks. Furthermore, this lens offers a wide temperature range (-10°C to +50°C), ensuring reliable operation in diverse industrial settings.

Whether you're involved in quality control, robotics, or surveillance, our Kowa LM5JCM-V lens empowers your vision systems to deliver accurate and reliable results. Experience enhanced imaging performance and durability with USA Security Systems Inc.'s industrial lenses.

Upgrade your industrial vision systems with the rugged Kowa LM5JCM-V lens. Explore now for superior imaging performance and durability!

Features:

  • Ruggedized construction
  • Manual iris control
  • Wide temperature range
  • High resolution
  • Shock and vibration resistant

Applications:

  • Quality control inspection
  • Robotics
  • Surveillance systems

LM5JCM-V Spec Sheet

Aperture (F-stop) F2.8 / F4 / F5.6 / F8
Aperture (control) Manual
Application field Machine Vision
Back focus in air (mm) 10.2
Control (focus) Manual
Field of view at minimum working distance, horizontal (mm) 200.8
Field of view at minimum working distance, vertical (mm) 150.8
Filter size (mm) M40.5 x P0.5
Focal length (mm) 5
Focus range (m) 0.1 - ∞
Megapixel 2
Mount C-mount
Pixel size (µm) 4.5
Resolution, centre (lp/mm) 120
Resolution, margin (lp/mm) 100

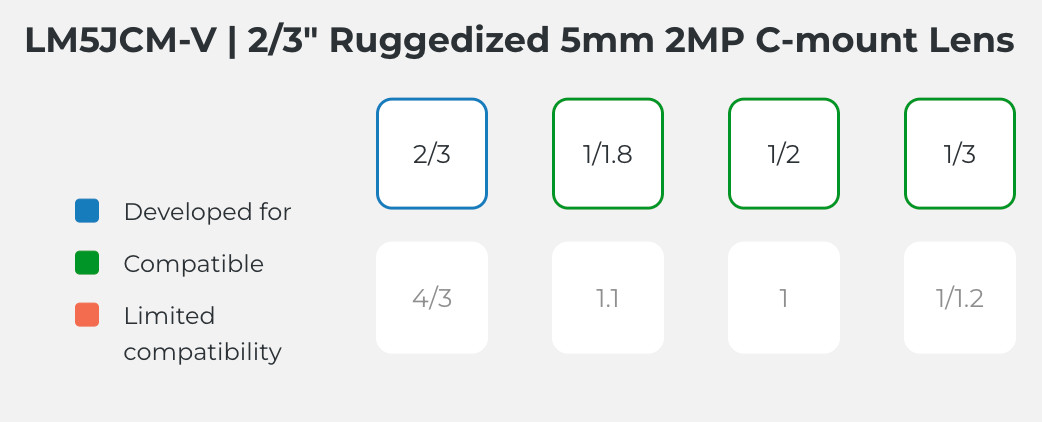

Sensor size 2/3"

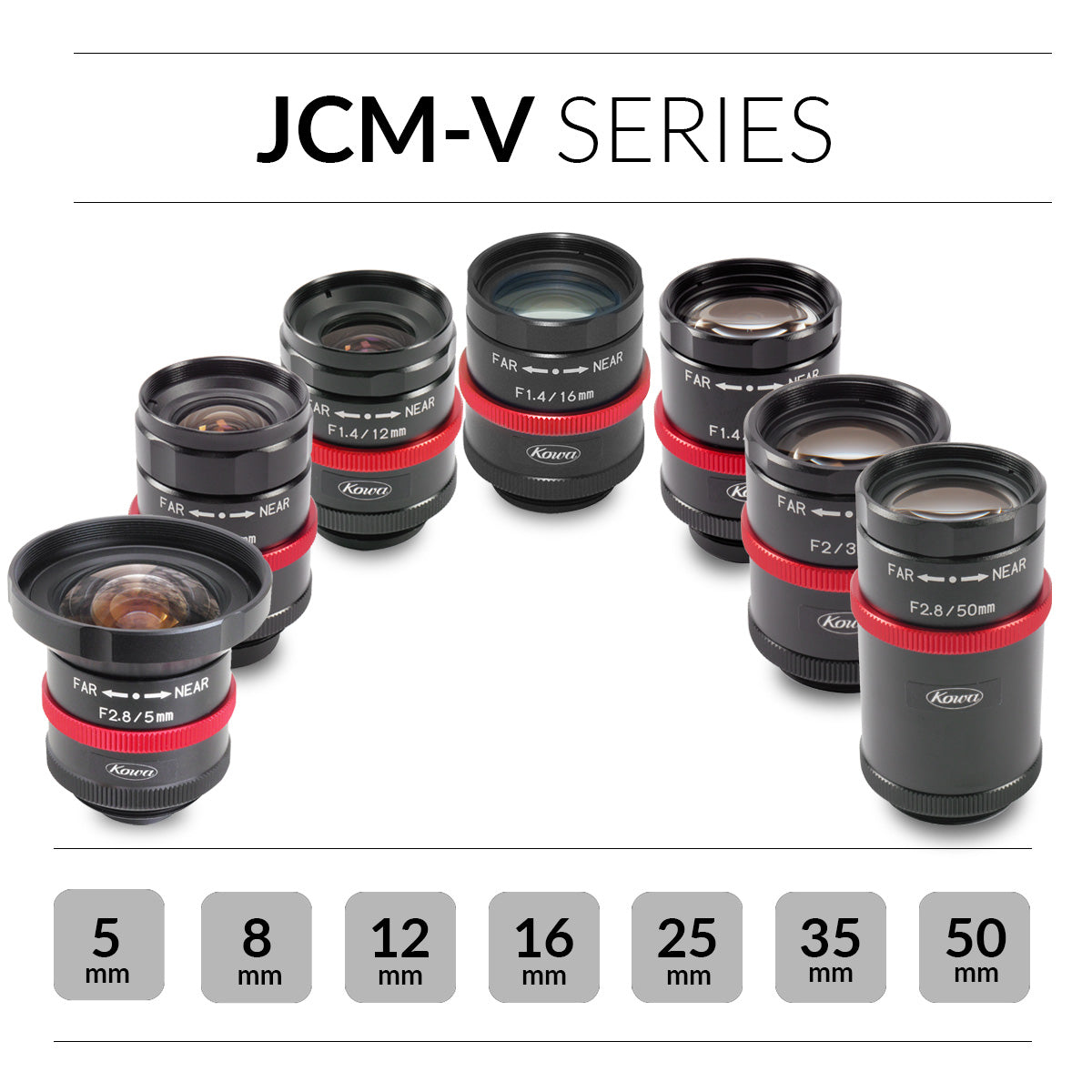

Series JCM-V

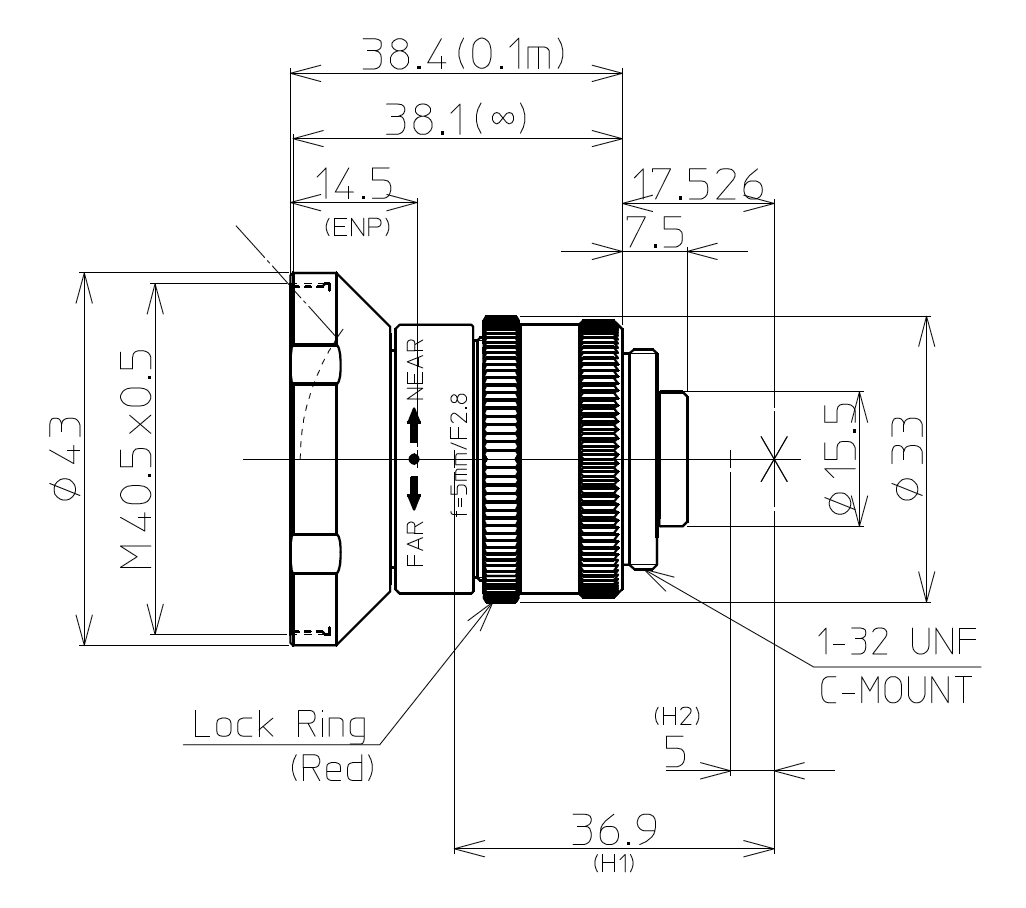

Size (mm) Ø42 x 38.2
TV distortion (%) -0.5
Temperature range (℃) -10°C to +50°C
Type of lens Fixed Focal Lens
Wavelength range Peak Coating (400nm – 1000nm)
Weight (g) 73
