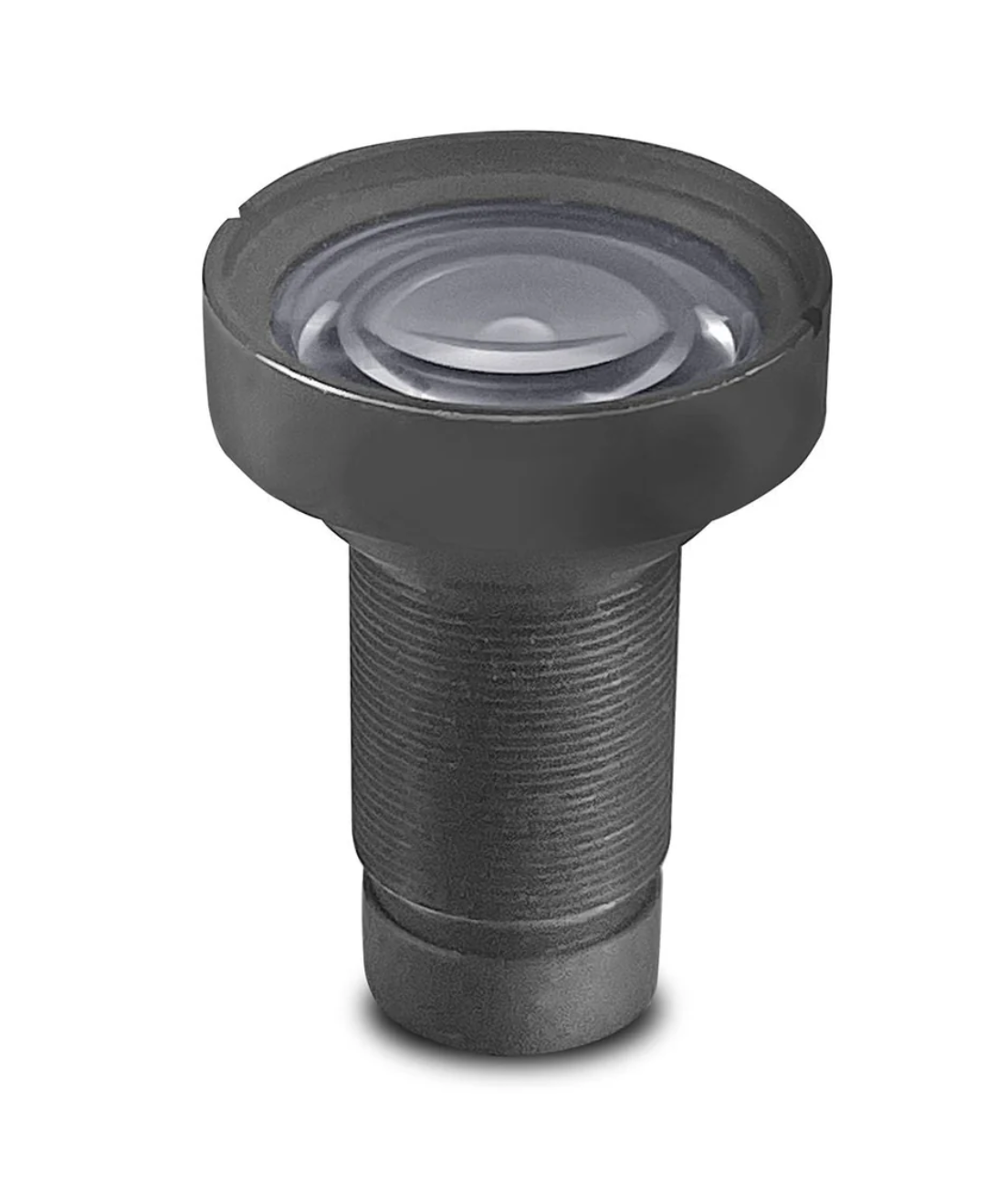

Kowa LM5NS21 5mm S-Mount Fixed Lens for 1/1.8" Sensors 2MP Resolution 2.5µm Pixel Visible Spectrum Low Distortion Design

*Please note this product is subject to tariff fee*

The Kowa LM5NS21 is a compact, high-performance 5mm fixed focal length lens engineered for 1/1.8" (9mm) CMOS sensors up to 2 megapixels, supporting pixel sizes as small as 2.5µm. Designed with precision for embedded and space-constrained imaging systems, it offers excellent optical performance with 200 lp/mm center resolution and 100 lp/mm at the image edges. A fixed F2.1 aperture and manual focus control ensure dependable performance for applications requiring consistent image quality.

Built for durability and lightweight integration, this S-mount (M12 x 0.5) lens measures only Ø21.5 x 29.9mm and weighs just 12g. Its broad focus range from 0.1m to infinity, low TV distortion (-0.51%), and visible wavelength support (400nm–800nm) make it ideal for UAV, drone, robotics, and automotive imaging. Custom options include IR cut filters, glued optics for vibration resistance, and aperture tuning — making the LM5NS21 a flexible, high-precision choice for advanced imaging systems.

Features:

• 5mm fixed focal length

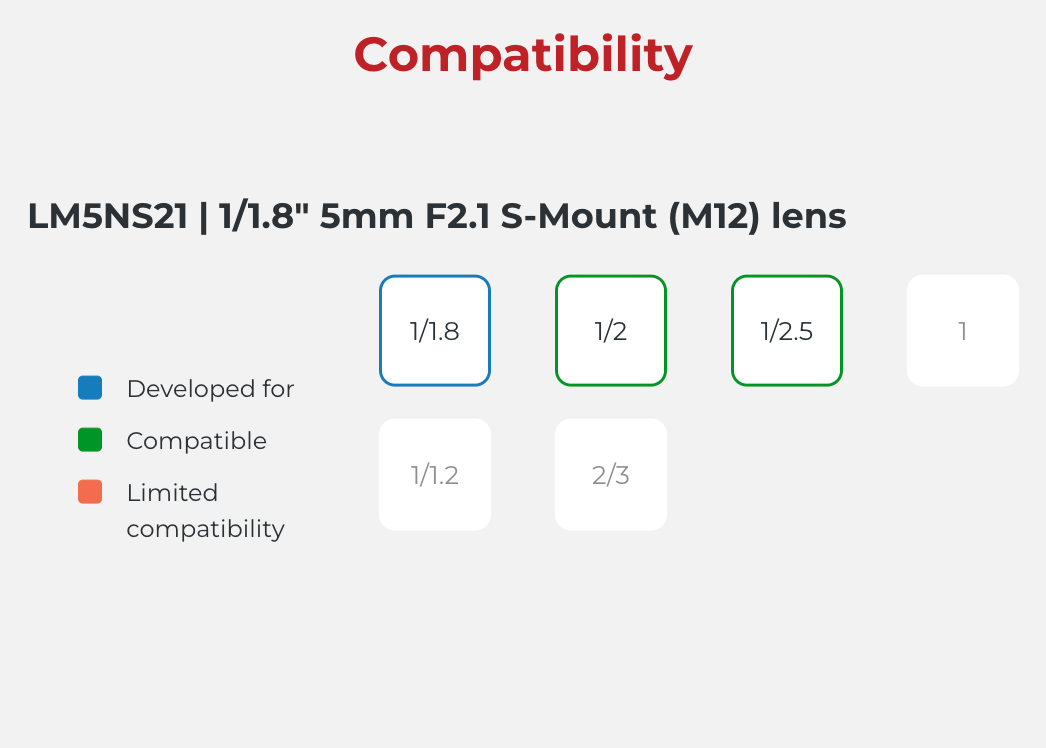

• For 1/1.8" (9mm dia.) CMOS sensors
• Supports 2MP resolution and 2.5µm pixels
• High center resolution: 200 lp/mm
• Low TV distortion: -0.51%
• Visible spectrum support (400–800nm)
• Lightweight (12g) and compact (Ø21.5 x 29.9mm)
• S-Mount (M12 x 0.5) with manual focus
• Fixed aperture: F2.1
• Focus range: 0.1m to infinity
• Optional glued optics for anti-shock
• Optional IR cut filter available
• Ideal for UAV, drone, embedded, and automotive use

Applications:

• UAV and drone cameras
• Robotics and automation vision
• Embedded smart cameras
• Compact machine vision systems
• Automotive ADAS imaging
• Industrial inspection systems
• OEM and COTS sensor modules
• Lightweight airborne vision systems

Focal Length 5.0mm Sensor Size 1/1.8" (9mm Dia.) Megapixel 2MP Pixel Size 2.5µm Mount S-Mount (M12 x P0.5) Aperture (F-Stop) F2.1 Aperture Control Fixed Focus Control Manual Focus Range 0.1m – ∞ Resolution (Center) 200 lp/mm Resolution (Margin) 100 lp/mm Field of View (H) 72.4mm at min. distance Field of View (V) 57.0mm at min. distance Back Focus in Air 5.80mm TV Distortion -0.51% Wavelength Range 400nm – 800nm (Visible) Operating Temperature -10°C to +50°C Size (mm) Ø21.5 x 29.9 Weight 12g Series NS Series Application Field UAV, Drones, Automotive Custom Options IR Cut Filter, Glued Optics, Aperture Mods Type of Lens Fixed Focal Length
