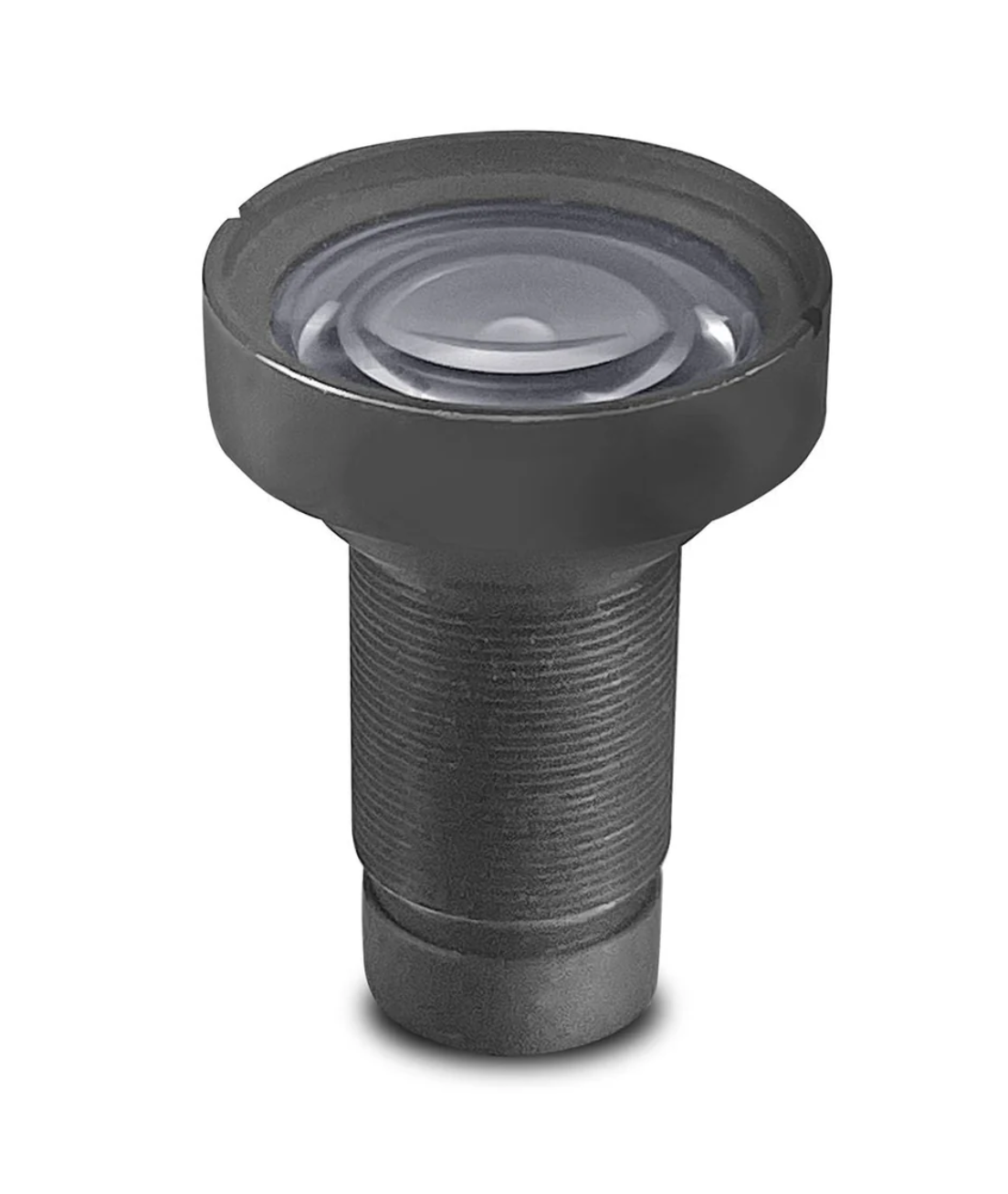

Kowa LM5NS56 5mm Fixed Lens for 1/1.8" Sensors, 2MP, S-Mount, 2.5µm Pixel, Visible Range 400–800nm

*Please note this product is subject to tariff fee*

The Kowa LM5NS56 is a high-precision 5mm fixed focal length lens designed for compact embedded systems using 1/1.8" sensors with up to 2MP resolution and 2.5µm pixel pitch. Engineered for imaging applications requiring consistent optical quality, this S-Mount lens offers 200 lp/mm center resolution and 100 lp/mm at the edge, ensuring uniform image sharpness. It delivers minimal distortion at -0.51%, making it ideal for automotive imaging, drone systems, and board-level cameras where accuracy and space-efficiency are critical.

Designed for rugged performance, the LM5NS56 features a fixed f/5.6 aperture and manual focus, with a wide focus range from 0.1m to infinity. The visible spectrum coverage spans 400nm to 800nm, and the compact body (Ø21.5 x 29.9 mm) weighs just 12g. This lens is rated for -10°C to +50°C operating environments. Additional options include IR-cut filter integration, glued lens elements for shock resistance, or full custom mechanical and optical redesigns upon request.

Features:

• 5.0mm fixed focal length

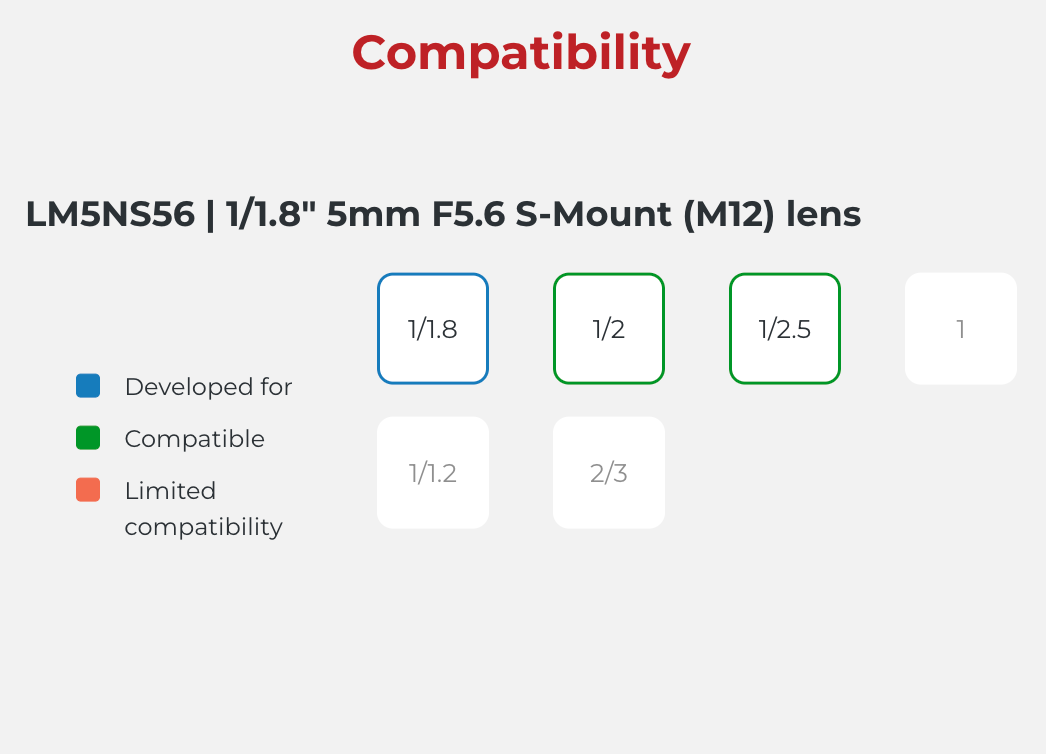

• Supports 1/1.8" sensors
• 2MP resolution with 2.5µm pixel compatibility
• 200 lp/mm center resolution, 100 lp/mm edge
• S-Mount (M12 x P0.5) for compact board-level use
• Fixed f/5.6 aperture, manual focus control
• -0.51% TV distortion
• Visible spectrum support (400–800nm)
• Small size: Ø21.5 x 29.9 mm
• Lightweight at 12g
• Operating range: -10°C to +50°C
• Customization: IR-cut filter, glued optics, redesign options

Applications:

• UAV / Drone vision systems
• Automotive onboard cameras
• Compact embedded vision modules
• Robotics and automation optics
• Machine vision in confined spaces
• Board-level camera modules
