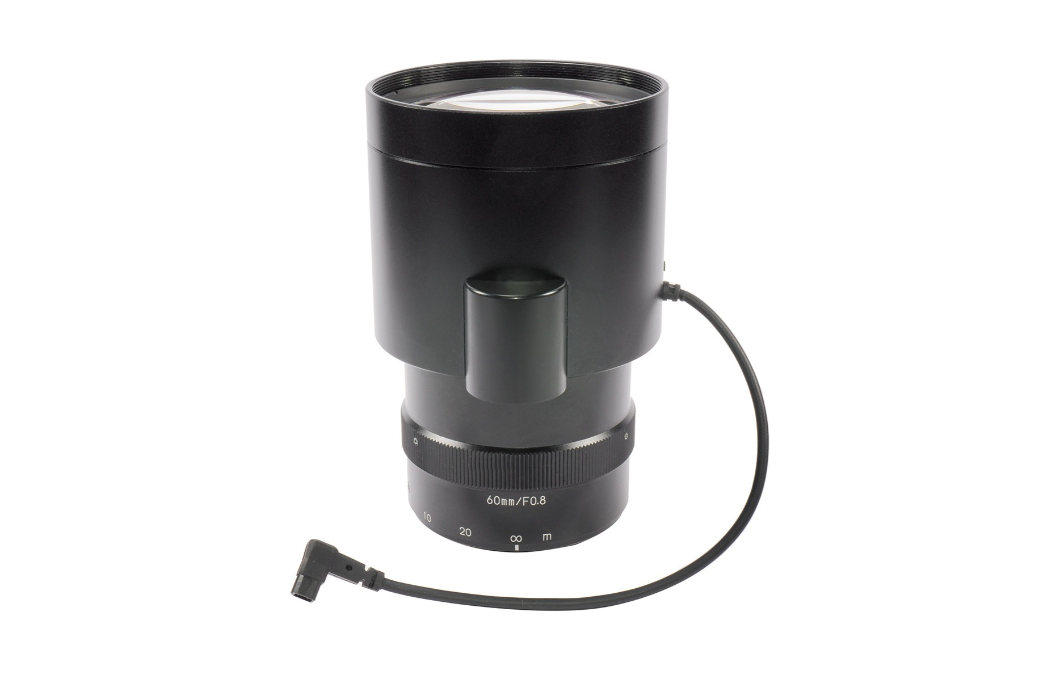

Kowa LM60JS5MA 1" 60mm Aspherical Fixed Lens 5MP CS-Mount F0.8–360 DC Auto-Iris Visible to NIR 400–1000nm

*Please note this product is subject to tariff fee*

The Kowa LM60JS5MA is a professional-grade 1" format fixed focal length lens engineered for demanding imaging environments where clarity, low-light performance, and precision matter. Featuring a 60mm focal length and an ultra-fast F0.8 maximum aperture, this lens delivers exceptional image brightness and resolution for 5MP sensors with pixel sizes down to 2.5µm. A DC-controlled auto-iris ensures precise light control for changing environments, while the aspherical optical elements reduce distortion and enhance sharpness across the frame. Its broadband coating from 400–1000nm supports both visible light and near-infrared imaging, making it a versatile solution for security, ITS, and specialized surveillance applications.

Built for reliability, the LM60JS5MA features CS-mount compatibility, manual focus for fine-tuned adjustments, and a rugged all-metal construction designed to perform in temperatures from -10°C to +50°C. With a 12.8° horizontal angle of view, M77×0.75 filter compatibility, and a minimum object distance of 3 meters, it excels in long-range observation scenarios such as border monitoring, traffic control, and industrial inspection. Its 1000g weight and solid build make it a dependable choice for mission-critical vision systems supplied by USA Security Systems.

Features:

• 1" format, 60mm fixed focal length lens
• Ultra-fast F0.8 aperture with DC-controlled auto iris
• 5MP resolution, supports pixel sizes ≥ 2.5µm
• Aspherical optics minimize distortion and enhance clarity
• Broadband coating 400–1000nm for visible and NIR use
• Manual focus for precision adjustment
• M77×0.75 filter thread
• Heavy-duty construction, 1000g weight
• Operating range: -10°C to +50°C
• 12.8° horizontal angle of view

Applications:

• Perimeter and border security monitoring
• Intelligent Traffic Systems (ITS) surveillance
• Low-light industrial inspection
• High-resolution CCTV and security systems
• Multi-spectral (visible + NIR) imaging
• Long-range observation for law enforcement

Model Kowa LM60JS5MA Format 1" Focal Length 60mm Resolution 5 Megapixels Pixel Support ≥ 2.5µm Iris Range F0.8 – F360 Iris Control DC Auto-Iris Focus Control Manual Mount CS-Mount Coating Broadband 400–1000nm Filter Thread M77×0.75 Horizontal AoV 12.8° Minimum Object Distance 3m Dimensions (mm) 78.5 × 91.5 × 124 Weight 1000g Operating Temperature -10°C to +50°C Cable / Connector 25cm cable, 4-pin plug
